GUN125R-DTTSX (2020)

Toyota Hilux

Production Jun 2020 - Aug 2021
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1505- )2GDFTV..GUN125..6F..H,L..BZAGT,GEN ;(1505- )2GDFTV..GUN125..LHD..TSC

Click highlighted areas on diagram

TYPE B

diagram 04111 04112 1104 1104 1104 1104 1105 1105 1106 1106 1106 1106 1106 1106 1106 1106 1106 1302 1501 1502 1503 1503 1601 1601 1603 1603 1603 1603 1701 1701 1701 2201 2202 2501 2501 2501 2501 2501 2606
Part # Description Qty Price
Linked diagrams
1104
1105
1106
1302
1501
1502
1503
1601
1603
1701
2201
2202
2501
2606

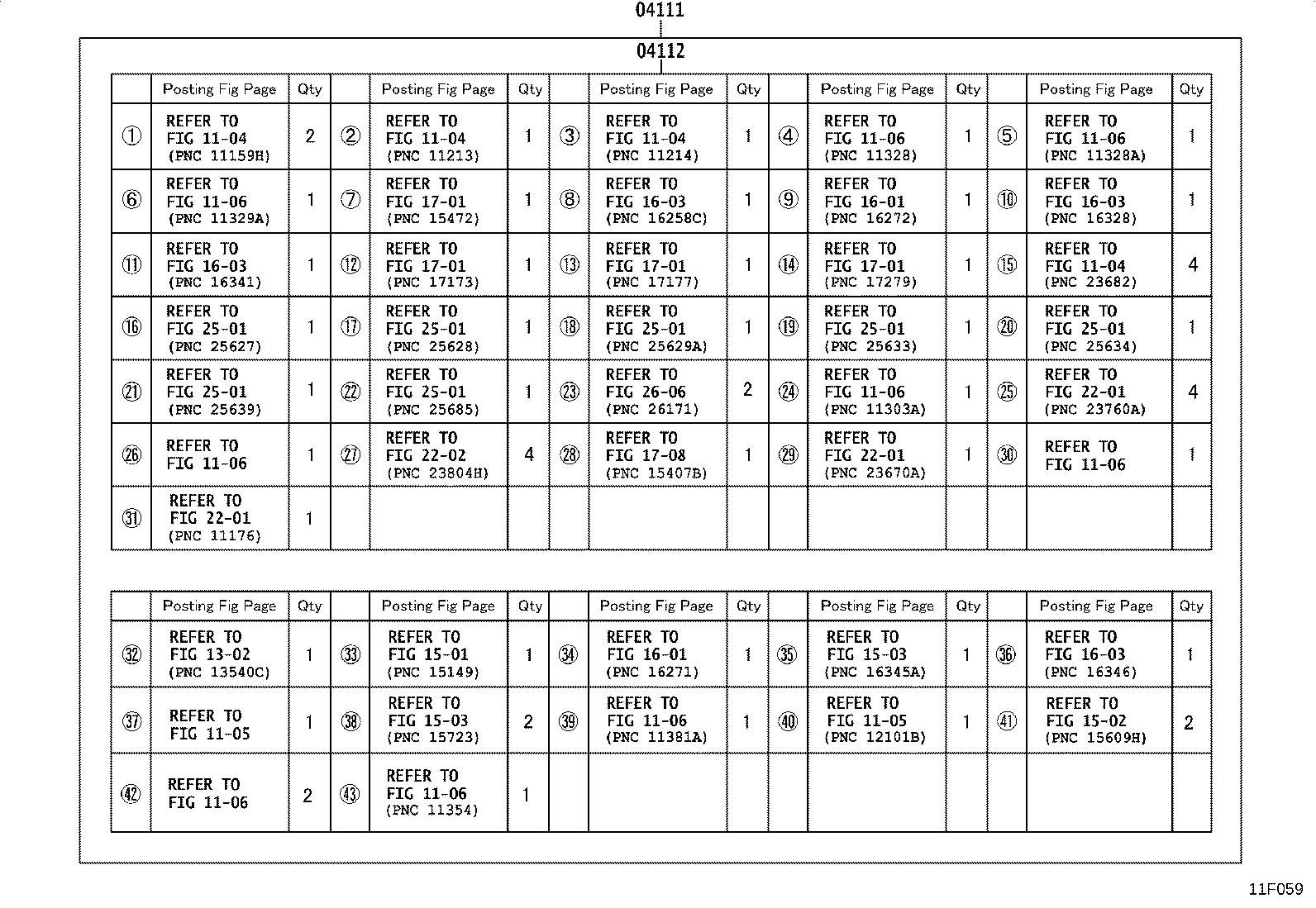

ILLUST NO. 2 OF 2(1505- )2GDFTV..GUN125..RHD..6F..GEN,SA ; (1505- )1GDFTV..GUN126..6FC..H..GEN

Click highlighted areas on diagram

TYPE E

diagram 04111 04112 1104 1104 1104 1104 1105 1105 1106 1106 1106 1106 1106 1106 1106 1106 1106 1302 1501 1502 1503 1503 1601 1601 1603 1603 1603 1603 1701 1701 1701 2201 2202 2501 2501 2606
Part # Description Qty Price
Linked diagrams
1104
1105
1106
1302
1501
1502
1503
1601
1603
1701
2201
2202
2501
2606

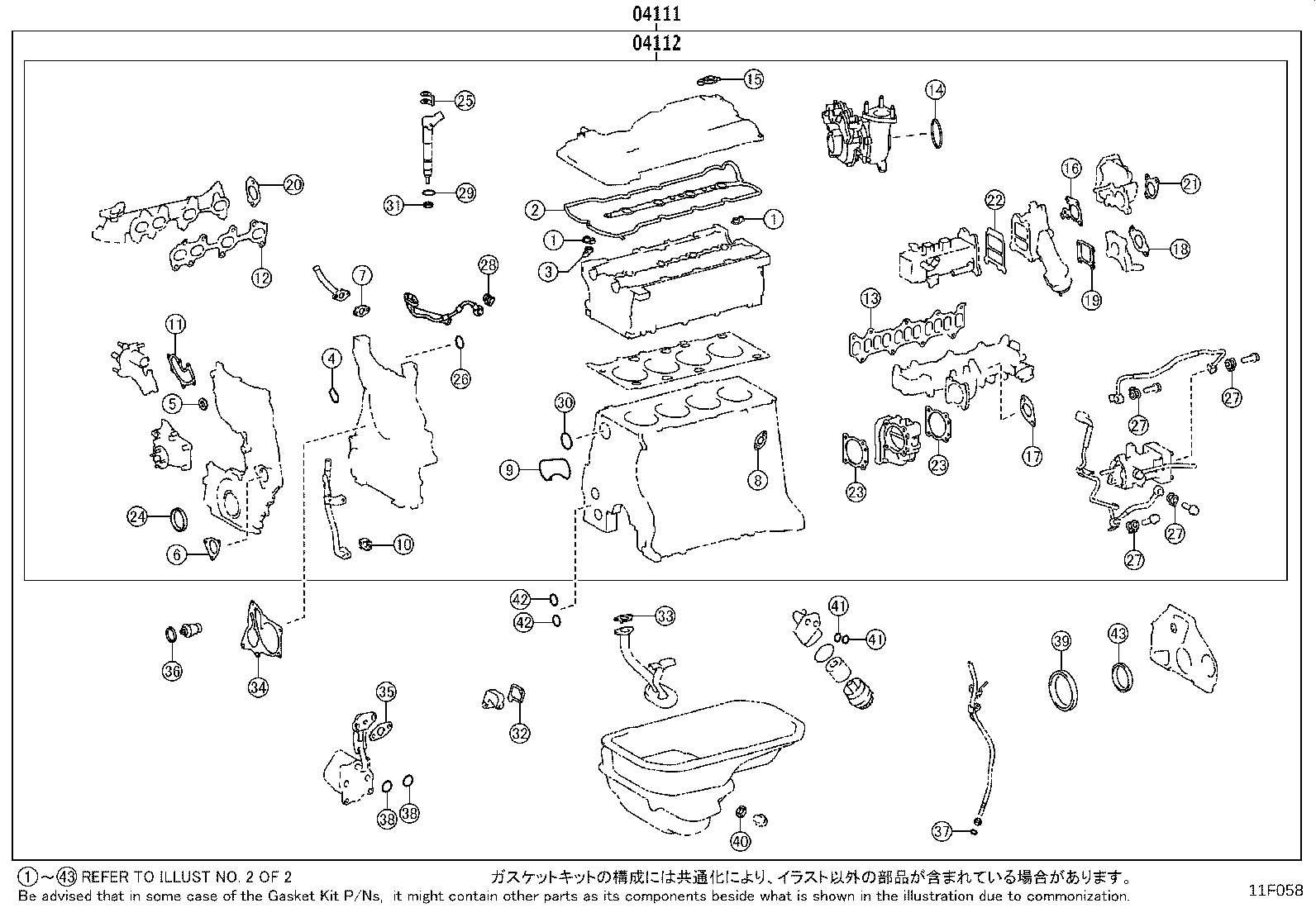

ILLUST NO. 1 OF 2(1505- )2GDFTV..GUN125..RHD..6F..GEN,SA ; (1505- )1GDFTV..GUN126..6FC..H..GEN

Click highlighted areas on diagram

TYPE E

diagram 04111 04112
Part # Description Qty Price

ILLUST NO. 1 OF 2(2006- )1GDFTV,2GDFTV..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-0E111

2GDFTV..GUN125..TD..6FC..L..GEN

NEPAL, SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ONBOARD DIAGNOSIS)

 1
04111-0E160

2GDFTV..GUN125..RHD..6F..L..GEN;2GDFTV..GUN125..RHD..TD..H..GEN

OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)

 1
04111-0E111

2GDFTV..GUN125..TD..6FC..L..GEN

WITHOUT(DESTINATION PACKAGE(EXCEPT ERP.)&EXHAUST EMISSION CONTROL-WITHOUT

 1
04111-0E111

2GDFTV..GUN125..TD..6FC..L..GEN

WITHOUT(DESTINATION PACKAGE(EXCEPT ERP.)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ONBOARD DIAGNOSIS)

 1
04111-0E160

2GDFTV..GUN125..6FC..L..GEN;2GDFTV..GUN125,135..ARL,BZAG

 1
04111-0E111

2GDFTV..GUN122..RHD..GEN;2GDFTV..GUN125..6FC..(H,S);2GDFTV..GUN125..6FC..L..GCC;2GDFTV..GUN122,135..(H,S)..GEN;2GDFTV..GUN122..LHD..TS..L..GEN;2GDFTV..GUN135..KEN,LA,PH,SA,TH,VN;2GDFTV..GUN112,120,122..(5F,6FC)..(GCC,IDN,PH,SA,TH);2GDFTV..GUN125..(AD,KD,KS,MD,MS,SD,SS,SX,TD,TS,TX)..6F..(GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN)

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-0E111

2GDFTV..GUN125..TD..6FC..L..GEN

WITHOUT(DESTINATION PACKAGE(EXCEPT ERP.)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ONBOARD DIAGNOSIS)

 1
04112-0E111

2GDFTV..GUN125..TD..6FC..L..GEN

WITHOUT(DESTINATION PACKAGE(EXCEPT ERP.)&EXHAUST EMISSION CONTROL-WITHOUT

 1
04112-0E160

2GDFTV..GUN125..RHD..6F..L..GEN;2GDFTV..GUN125..RHD..TD..H..GEN

OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)

 1
04112-0E111

2GDFTV..GUN125..TD..6FC..L..GEN

NEPAL, SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ONBOARD DIAGNOSIS)

 1
04112-0E160

2GDFTV..GUN125..6FC..L..GEN;2GDFTV..GUN125,135..ARL,BZAG

 1
04112-0E111

2GDFTV..GUN122..RHD..GEN;2GDFTV..GUN125..6FC..(H,S);2GDFTV..GUN125..6FC..L..GCC;2GDFTV..GUN122,135..(H,S)..GEN;2GDFTV..GUN122..LHD..TS..L..GEN;2GDFTV..GUN135..KEN,LA,PH,SA,TH,VN;2GDFTV..GUN112,120,122..(5F,6FC)..(GCC,IDN,PH,SA,TH);2GDFTV..GUN125..(AD,KD,KS,MD,MS,SD,SS,SX,TD,TS,TX)..6F..(GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN)

 1

ILLUST NO. 2 OF 2(2006- )1GDFTV,2GDFTV..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1104 1104 1105 1105 1106 1106 1106 1106 1106 1106 1106 1106 1106 1302 1501 1502 1503 1503 1601 1601 1603 1603 1603 1603 1701 1701 1701 1701 1708 2201 2201 2202 2501 2501 2501 2501 2501 2501 2501 2606
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-0E111

2GDFTV..GUN125..TD..6FC..L..GEN

NEPAL, SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ONBOARD DIAGNOSIS)

 1
04111-0E160

2GDFTV..GUN125..RHD..6F..L..GEN;2GDFTV..GUN125..RHD..TD..H..GEN

OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)

 1
04111-0E111

2GDFTV..GUN125..TD..6FC..L..GEN

WITHOUT(DESTINATION PACKAGE(EXCEPT ERP.)&EXHAUST EMISSION CONTROL-WITHOUT

 1
04111-0E111

2GDFTV..GUN125..TD..6FC..L..GEN

WITHOUT(DESTINATION PACKAGE(EXCEPT ERP.)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ONBOARD DIAGNOSIS)

 1
04111-0E160

2GDFTV..GUN125..6FC..L..GEN;2GDFTV..GUN125,135..ARL,BZAG

 1
04111-0E111

2GDFTV..GUN122..RHD..GEN;2GDFTV..GUN125..6FC..(H,S);2GDFTV..GUN125..6FC..L..GCC;2GDFTV..GUN122,135..(H,S)..GEN;2GDFTV..GUN122..LHD..TS..L..GEN;2GDFTV..GUN135..KEN,LA,PH,SA,TH,VN;2GDFTV..GUN112,120,122..(5F,6FC)..(GCC,IDN,PH,SA,TH);2GDFTV..GUN125..(AD,KD,KS,MD,MS,SD,SS,SX,TD,TS,TX)..6F..(GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN)

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-0E111

2GDFTV..GUN125..TD..6FC..L..GEN

WITHOUT(DESTINATION PACKAGE(EXCEPT ERP.)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ONBOARD DIAGNOSIS)

 1
04112-0E111

2GDFTV..GUN125..TD..6FC..L..GEN

WITHOUT(DESTINATION PACKAGE(EXCEPT ERP.)&EXHAUST EMISSION CONTROL-WITHOUT

 1
04112-0E160

2GDFTV..GUN125..RHD..6F..L..GEN;2GDFTV..GUN125..RHD..TD..H..GEN

OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)

 1
04112-0E111

2GDFTV..GUN125..TD..6FC..L..GEN

NEPAL, SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ONBOARD DIAGNOSIS)

 1
04112-0E160

2GDFTV..GUN125..6FC..L..GEN;2GDFTV..GUN125,135..ARL,BZAG

 1
04112-0E111

2GDFTV..GUN122..RHD..GEN;2GDFTV..GUN125..6FC..(H,S);2GDFTV..GUN125..6FC..L..GCC;2GDFTV..GUN122,135..(H,S)..GEN;2GDFTV..GUN122..LHD..TS..L..GEN;2GDFTV..GUN135..KEN,LA,PH,SA,TH,VN;2GDFTV..GUN112,120,122..(5F,6FC)..(GCC,IDN,PH,SA,TH);2GDFTV..GUN125..(AD,KD,KS,MD,MS,SD,SS,SX,TD,TS,TX)..6F..(GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN)

 1
Linked diagrams
1104
1105
1106
1302
1501
1502
1503
1601
1603
1701
1708
2201
2202
2501
2606
