GUN125R-BTFSH (2017)

Toyota Hilux

Production Aug 2017 - May 2020
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0408- )

Click highlighted areas on diagram

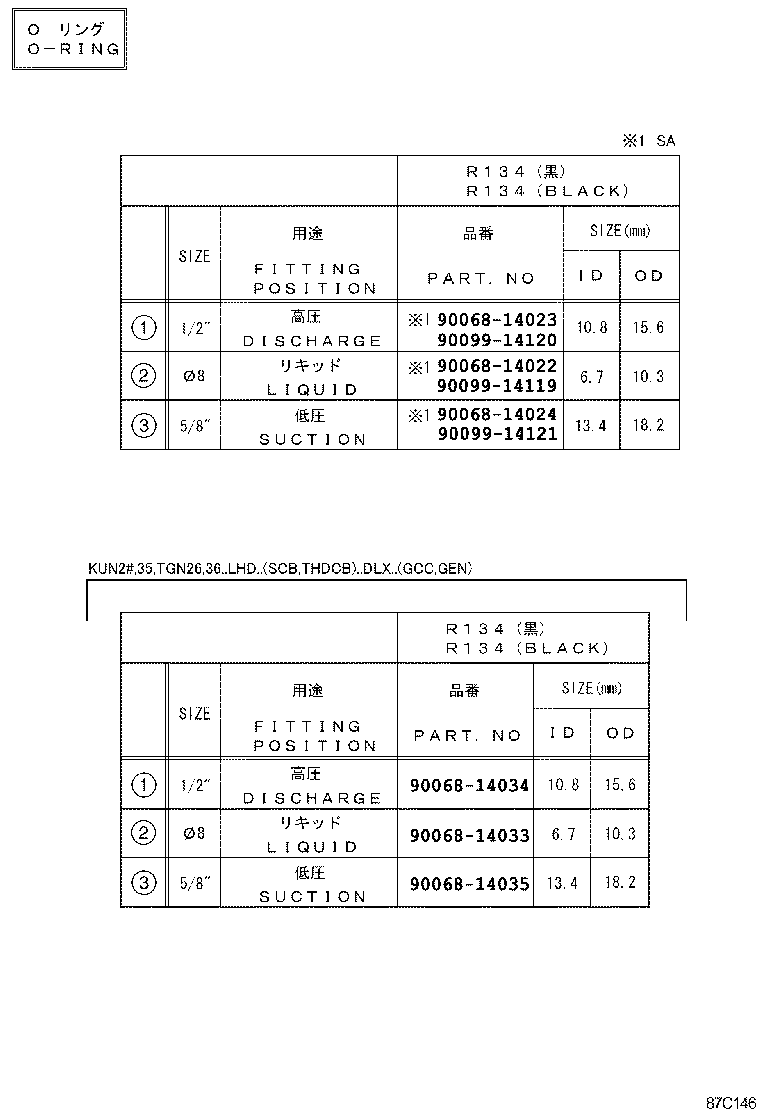

O-RING

diagram 9006814022 9006814023 9006814024 9006814033 9006814034 9006814035 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90068-14022
90068-14023
90068-14024
90068-14033
90068-14034
90068-14035
90099-14119
90099-14120
90099-14121

ILLUST NO. 1 OF 2(0408- )RHD

Click highlighted areas on diagram

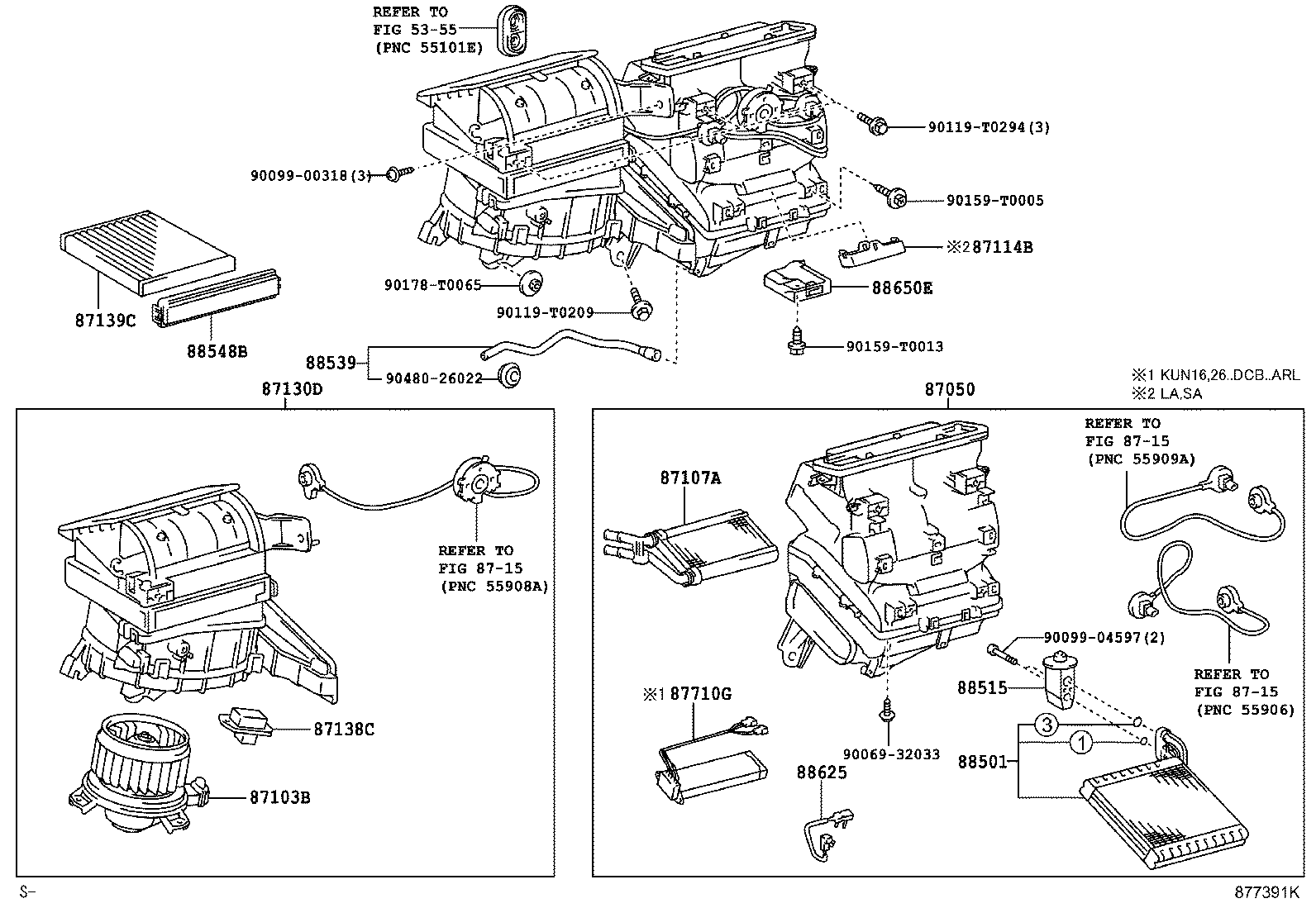

FRONT---MANUAL AIR CONDITIONER

diagram 5355 87050 87103B 87107A 87114B 87130D 87138C 87139C 8715 8715 8715 87710G 88501 88515 88539 88548B 88625 88650E 9006932033 9009900318 9009904597 90119T0209 90119T0294 90159T0005 90159T0013 90178T0065 9048026022
Part # Description Qty Price
Common parts
90069-32033
90099-00318
90099-04597
90119-T0209
90119-T0294
90159-T0005
90159-T0013
90178-T0065
90480-26022
Linked diagrams
5355
8715

ILLUST NO. 1 OF 2(0408- )RHD

Click highlighted areas on diagram

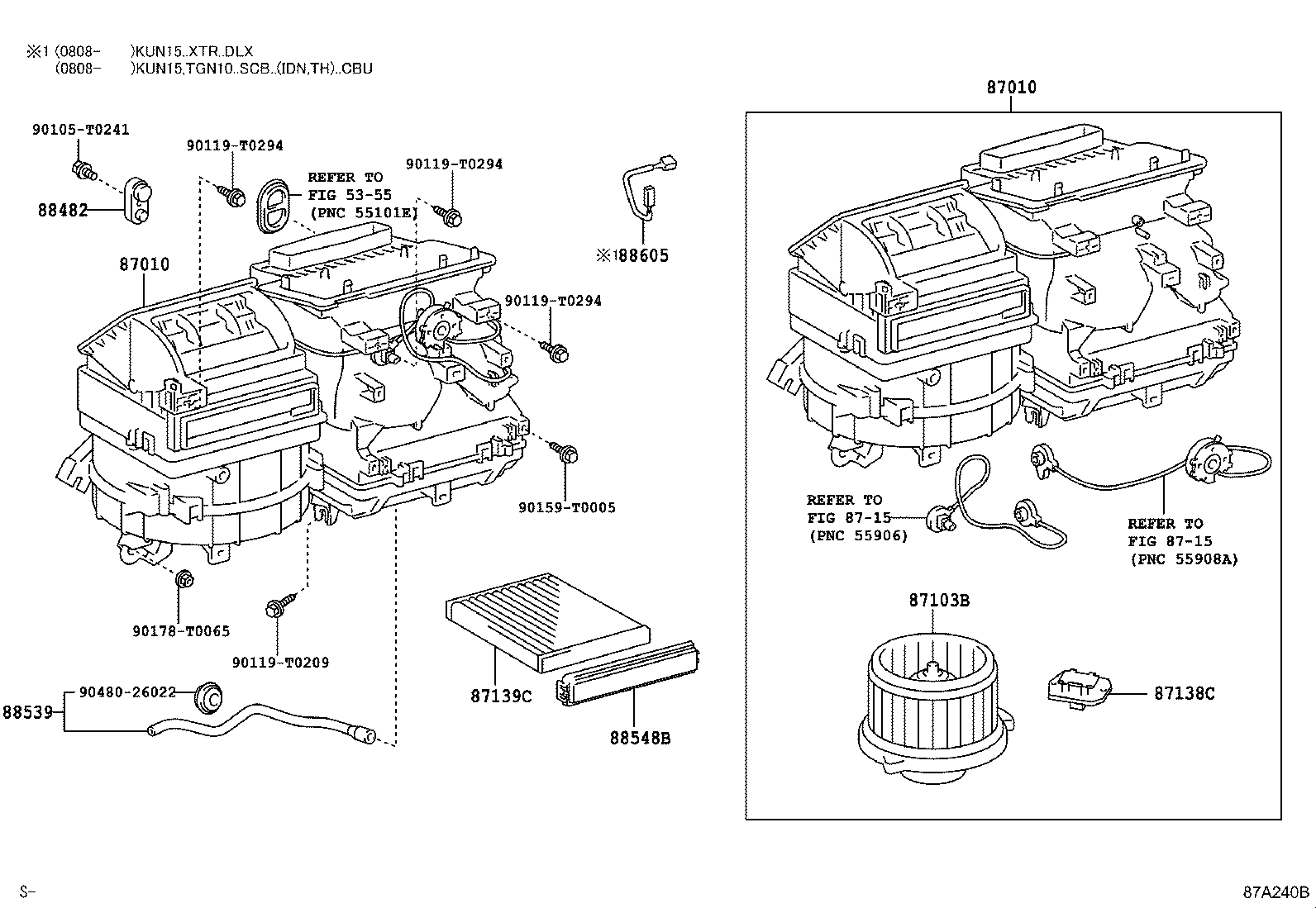

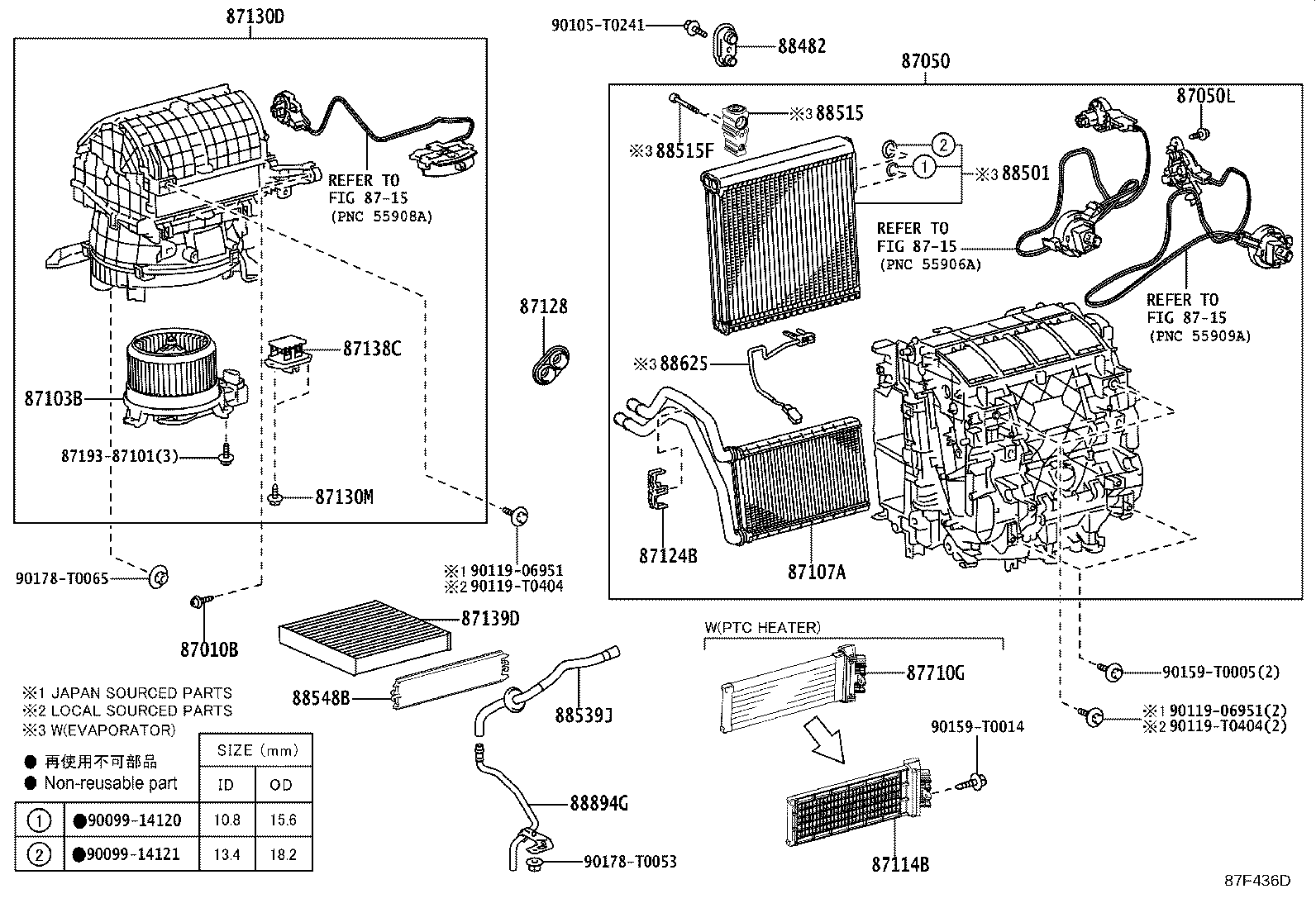

FRONT---BOOST VENTILATOR

diagram 5355 87010 87010 87103B 87138C 87139C 8715 8715 88482 88539 88548B 88605 90105T0241 90119T0209 90119T0294 90119T0294 90119T0294 90159T0005 90178T0065 9048026022
Part # Description Qty Price
Common parts
90105-T0241
90119-T0209
90119-T0294
90159-T0005
90178-T0065
90480-26022
Linked diagrams
5355
8715

ILLUST NO. 1 OF 2(0408- )RHD

Click highlighted areas on diagram

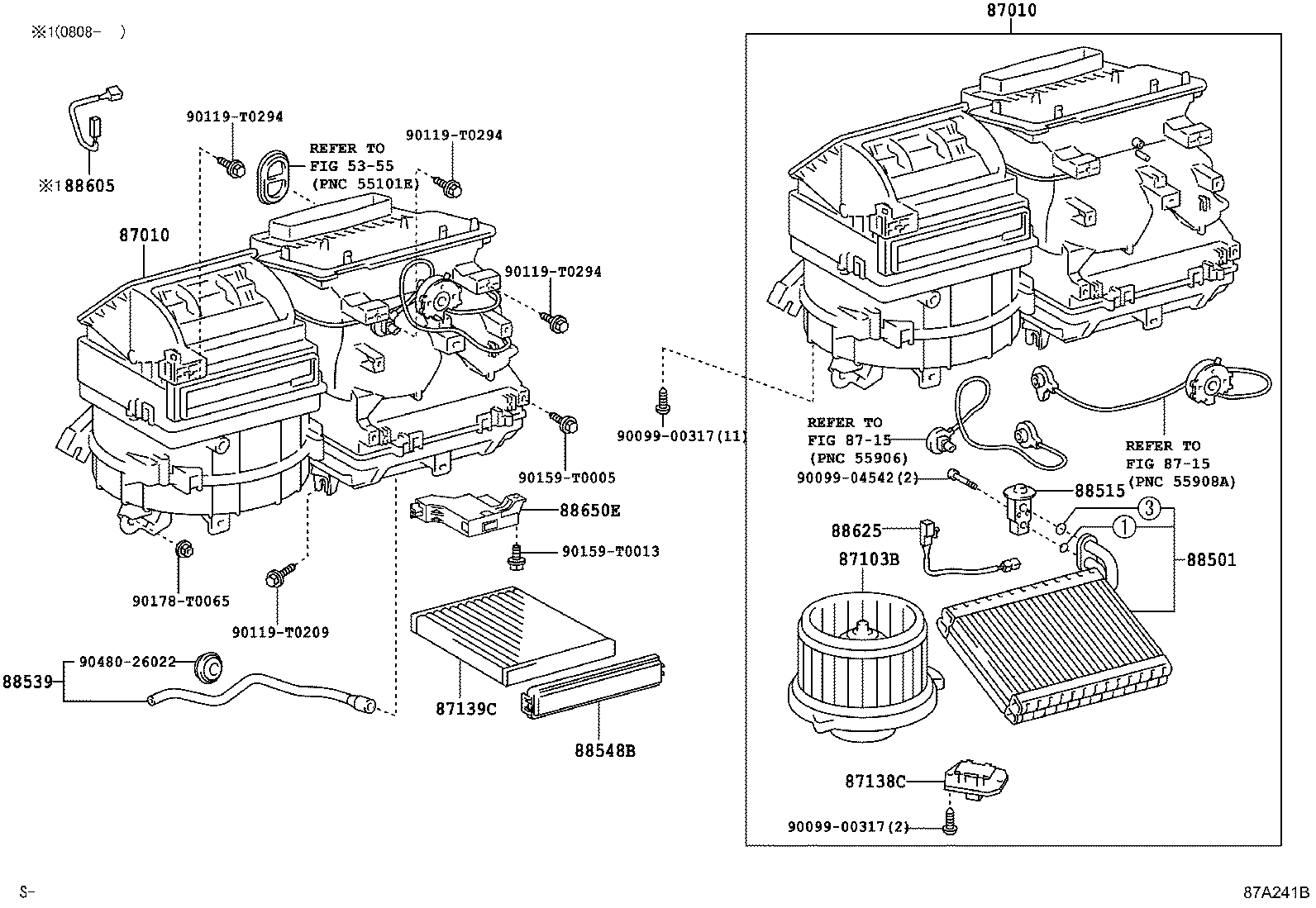

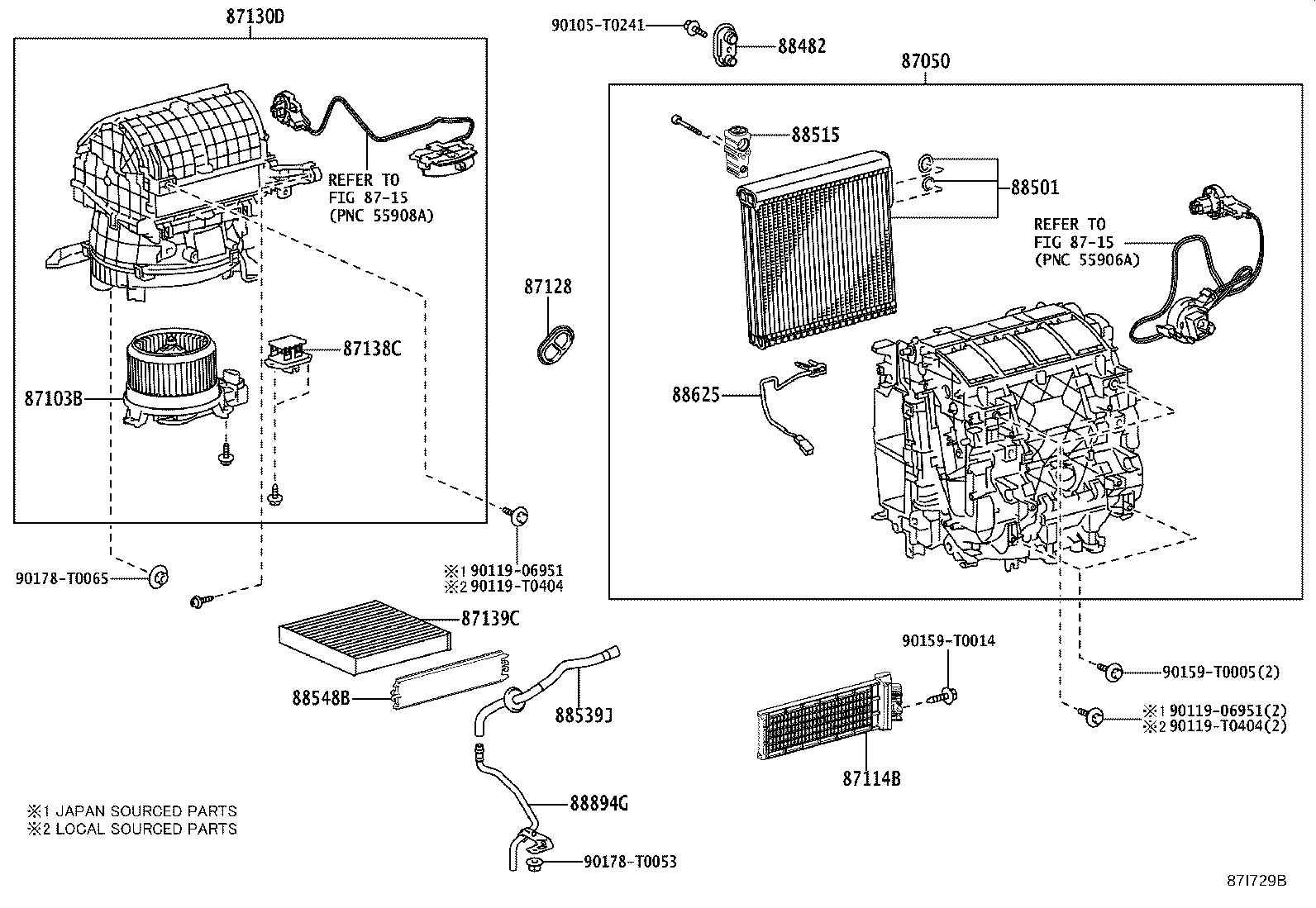

FRONT---MANUAL COOLER

diagram 5355 87010 87010 87103B 87138C 87139C 8715 8715 88501 88515 88539 88548B 88605 88625 88650E 9009900317 9009900317 9009904542 90119T0209 90119T0294 90119T0294 90119T0294 90159T0005 90159T0013 90178T0065 9048026022
Part # Description Qty Price
Common parts
90099-00317
90099-04542
90119-T0209
90119-T0294
90159-T0005
90159-T0013
90178-T0065
90480-26022
Linked diagrams
5355
8715

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

O-RING

diagram 9006814022 9006814023 9006814024 9006814033 9006814034 9006814035 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90068-14022
90068-14023
90068-14024
90068-14033
90068-14034
90068-14035
90099-14119
90099-14120
90099-14121

(1505- )RHD

Click highlighted areas on diagram

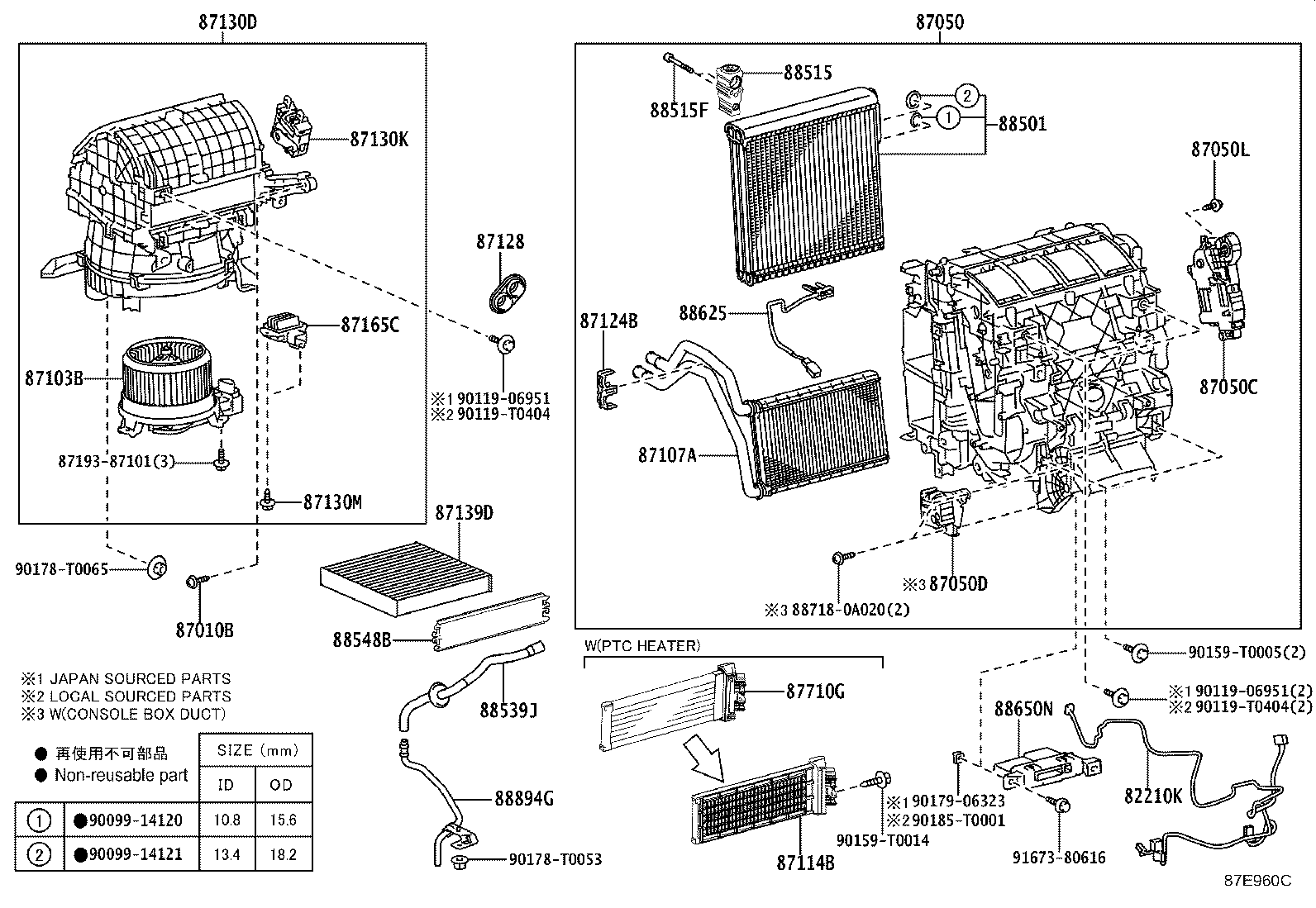

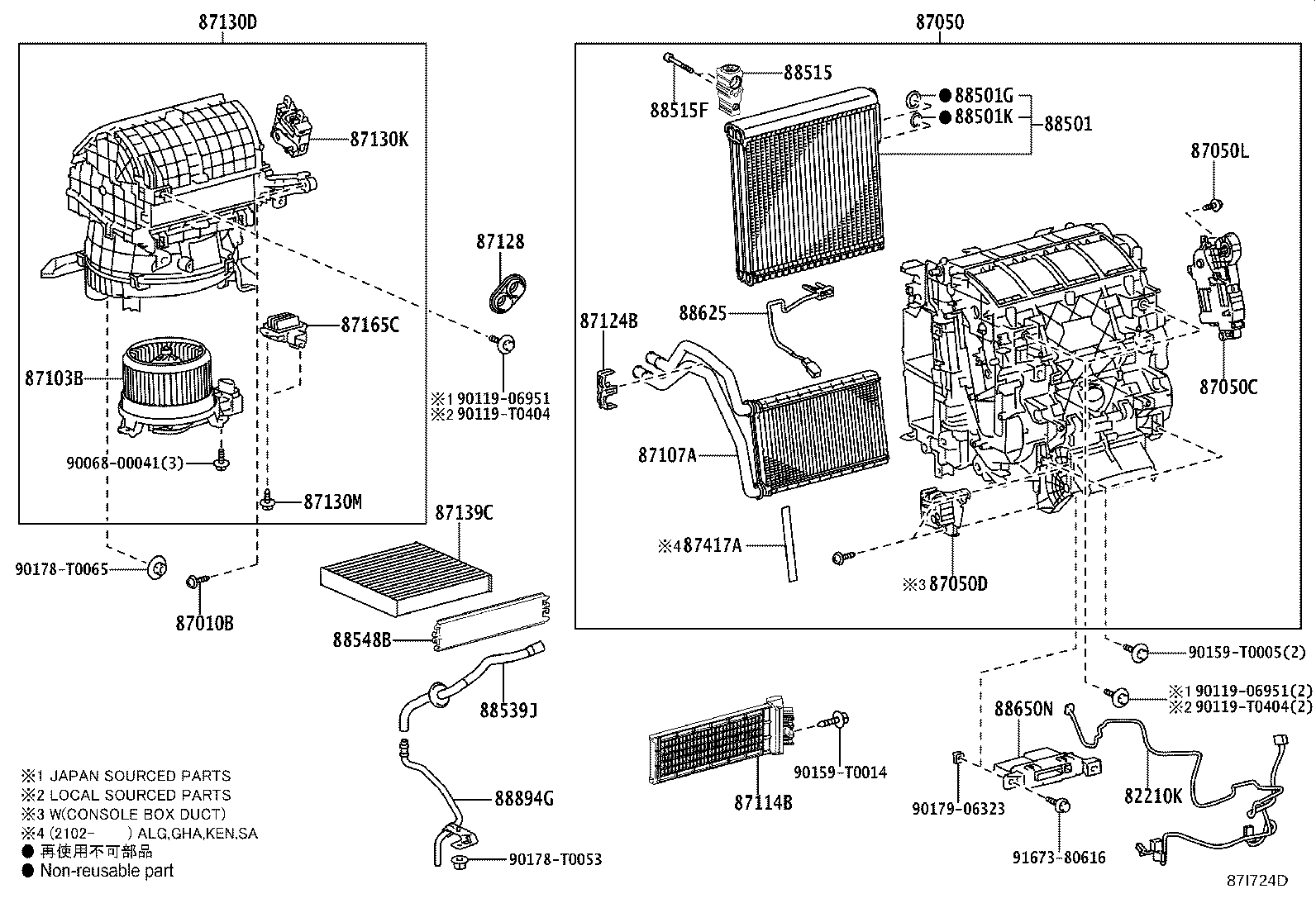

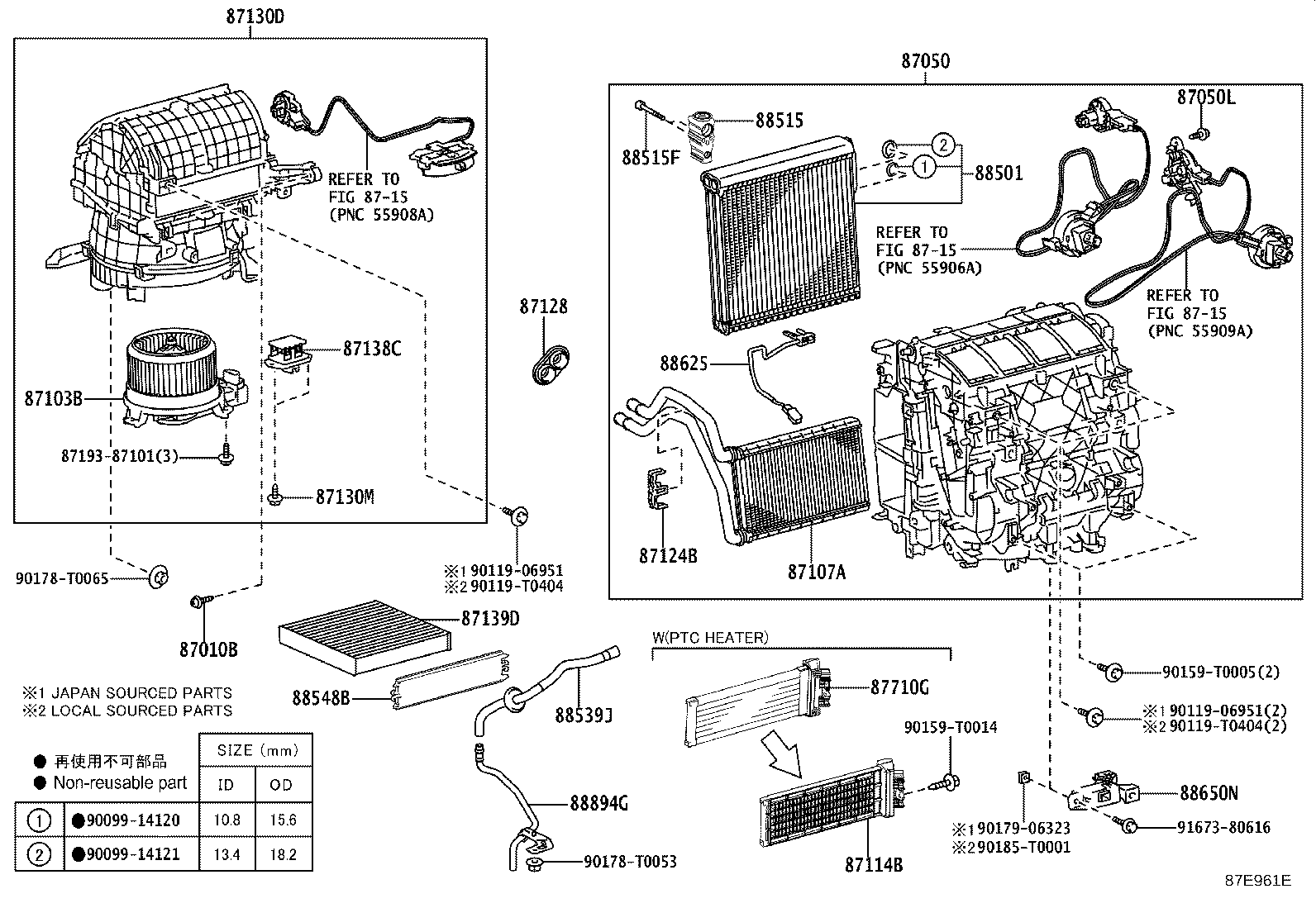

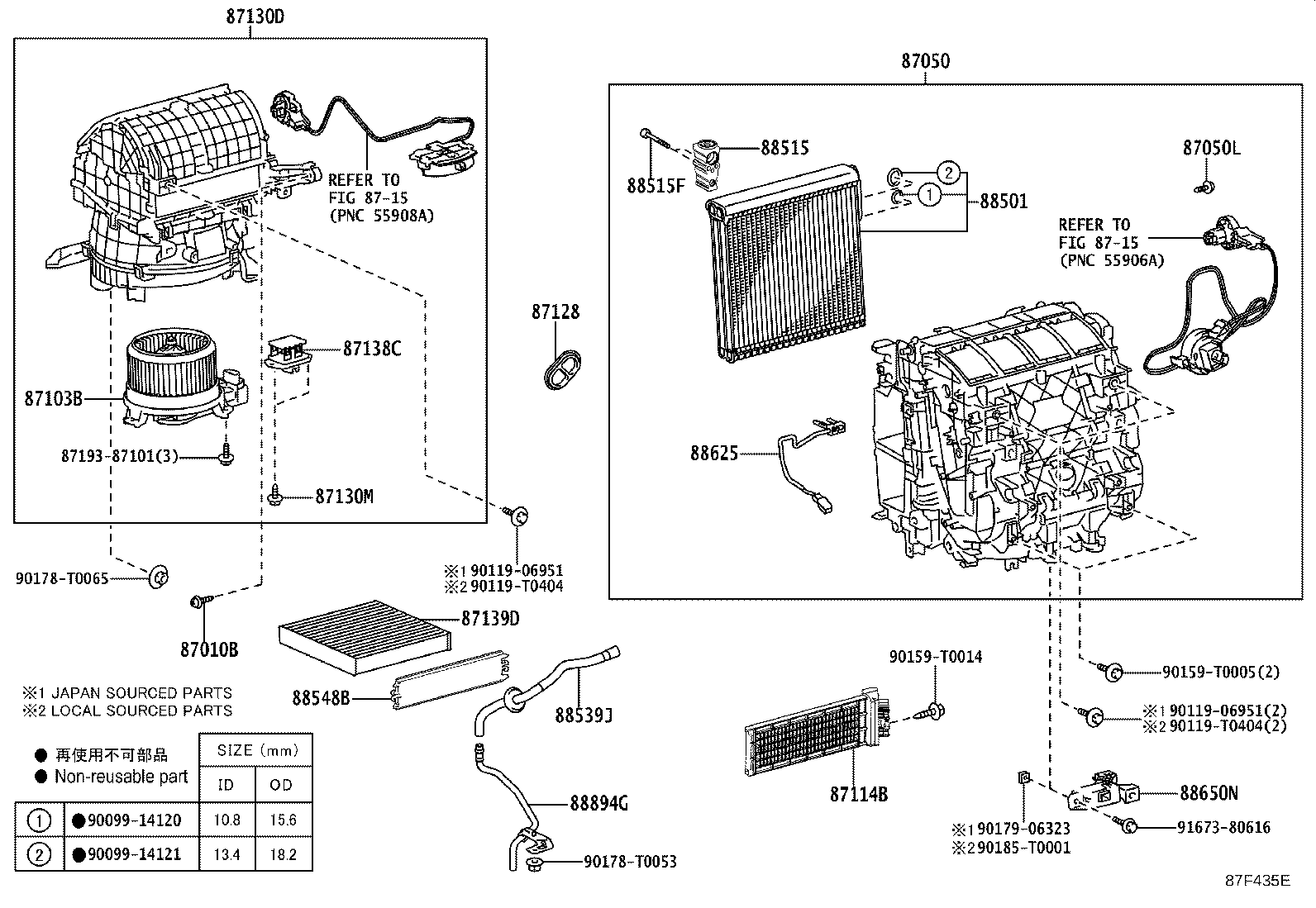

AUTO AIR CONDITIONER

diagram 82210K 87010B 87050 87050C 87050D 87050L 87103B 87107A 87114B 87124B 87128 87130D 87130K 87130M 87139D 87165C 8719387101 87710G 88501 88515 88515F 88539J 88548B 88625 88650N 887180A020 88894G 9009914120 9009914121 9011906951 9011906951 90119T0404 90119T0404 90159T0005 90159T0014 90178T0053 90178T0065 9017906323 90185T0001 9167380616
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-0K050

KUN126..RHD..SA;GUN126,KUN126..RHD..ATM..M..GEN;GUN125,126,136,KUN125..(SSC,SXT,TSC)..M

FRONT AIR CONDITIONER-AUTO

 1
87010B - SCREW(FOR AIR CONDITIONER UNIT)
88718-0A020

GUN135..L..VN;GUN135..S..PH;GUN136..ARL,TH;GUN122..6F..(L,S,X);GUN126..6F..ARL..IV3;GUN125..TXT..(GEN,TH);GUN125..TDC..6F..S..LA;GUN126..LHD..6F..M..GEN;TGN126..TDC..M..(GEN,LA);GUN126..RHD..6F..(GEN,TH);GUN125..RHD..(TDC,TSC)..6F;GUN125..(TDC,TXT)..6FC..IV3;GUN125..LHD..(TDC,TSC)..(L,X);GUN126..TDC..6F..(ARL,LA)..CBU;GUN122,126,TGN121..(L,S)..GCC..CBU;GUN122,TGN136..(DCR,HTWC)..(GEN,PH);GUN125..LHD..TDC..S..(GCC,GEN,PH,VN);GUN112,120,123,TGN11#,120..GCC,IDN,TH;TGN121..(TDC,TSC)..(L,X)..(ARL,GEN,TH);GUN126..RHD..6FC..(H,M,S)..(ARL,GEN,TH);GUN126..LHD..TDC..6FC..(M,S,X)..(GEN,LA);GUN125..(TDC,TSC)..6FC..(ARL,GEN,IDN,LA)..CBU;GUN135..(TDC,TSC,TXT)..(L,M,S,X)..(ARL,GEN,LA,TH);GUN135,TGN126..LHD..(TDC,TSC)..(5F,6FC)..(L,S,X)..CBU

 2
88718-0A020

GUN122..6F..M;GUN135..6F..S..VN;TGN121..(L,S)..TH;GUN125..TSC..S..GCC;GUN125..TSC..6FC..IV3;GUN126..TXT..6F..ARL..CBU;GUN125..TXT..6F..(ARL,IDN);GUN126,TGN126..6FC..L..GEN;GUN125,13#..LHD..TDC..(H,M);GUN122,126..LHD..(H,S,X)..HDCR..GEN;GUN122,126,TGN121,126..(H,M)..(GCC,PH,TAIW,VN);GUN122,TGN136..(TDC,TSC,TXT)..(5F,6FC)..(ARL,LA,TH);GGN12#,GUN123,KUN112,12#,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,IDN,LA,VN)

 2
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0KC90

GUN126..RHD..M..GEN;GUN125,KUN12#..RHD..(L,M,S,X)..(ARL,GEN);GGN12#,GUN122,123,126,13#,KUN136,TGN121,126..RHD..(L,S,X)..(ARL,GEN)

 1
87050-0KD50

GUN126..6F..H..TH;GUN13#..TDC..(H,M)..TH;GUN125,126,KUN12#..RHD..H..GEN

 1
87050-0KD40

GUN125,KUN125..TSC..M;GUN126,KUN126..RHD..ATM..M..GEN

FRONT AIR CONDITIONER-AUTO

 1
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-0K210

KUN126..RHD..SA;GUN135..6FC..S..MA;KUN126,TGN126..MTM..M..LA;GUN126,136,TGN138..S..(HTWCF,IART);GUN125,126,136,KUN125..(SSC,SXT,TSC)..M;GUN126,KUN126,TGN136..(5F,5FC,6FC)..M..(GEN,LA)

FRONT AIR CONDITIONER-AUTO

 1
87106-0K210

KUN126..H;KUN126..LHD..M..(SA,VN);GUN125..LHD..TDC..M..GEN;TGN126..M..(BZAGT,GCC,GEN);GUN125,126,KUN122,125..H..(GEN,PKN);GGN125,135,GUN13#,KUN13#,TGN121,128,138..(ADC,SDC,TDC,TXT)..(H,M);GUN122,125,126,KUN125,TGN136..(ADC,SDC,TDC,TXT)..(H,M)..(ARL,BZAGT,GCC,IDN,PH,SA,TAIW,TH,VN)

 1
87050L - SCREW(FOR AIR CONDITIONER RADIATOR)
88718-0A020

TGN121..L..CBU;TGN126..(TDC,TSC)..CBU;TGN121..(TDC,TSC)..(M,S,X);GGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,136..TDC,TSC,TXT

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K380

GUN135..L..GEN;GUN135..(M,X)..(ARL,TH);GUN122,125,KUN125..M..(IDN,TH);GUN126..RHD..(H,L,M,S)..(ARL,GEN,TH);GUN122,125,KUN12#,TGN121,126..RHD..(ARL,GEN);GGN12#,GUN123,136,KUN136..(H,M,S)..(ARL,GEN,TH)

 1
87103-0K381

GUN125..M..IDN;GUN135..L..GEN;GUN135..(M,X)..(ARL,TH);GUN122,125,TGN121..RHD..(ARL,GEN);GUN126,136..RHD..(H,M,S)..(ARL,GEN,TH)

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-0K110

GUN122..M;GUN126..TDC..X;TGN121..LHD..L..CBU;TGN126..(TDC,TSC)..CBU;TGN121..(M,S,X)..(ARL,GCC,GEN);GUN122..(L,S,X)..(ARL,GCC,GEN);GUN135..(TDC,TSC,TXT)..(H,M,X);GUN135..TDC..(L,S)..(GEN,LA,VN);GUN126,136..(TDC,TSC,TXT)..(H,L,M,S);GGN12#,GUN112,123,125,KUN112,12#,13#,TGN11#,120,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,VN)

 1
87114B - COVER, HEATER
87114-0K040

TGN121..L..CBU;GUN135..TDC..6F;GUN125..M..(GCC,VN);GUN125..LHD..TDC..(L,S,X);TGN121..(TDC,TSC)..(M,S,X);GUN125..RHD..TDC..(GEN,IDN,TH);GUN122,123,125,126,13#..PDC,PSC,TSC,TXT;GUN122,126,136..TDC..(GCC,GEN,LA,PH,TAIW,TH,VN);GUN135,TGN126..(TDC,TSC)..(5F,6FC)..(GCC,GEN,LA,PH,TH,VN)..CBU;GGN12#,GUN112,120,KUN112,12#,13#,TGN11#,120,136..PDC,PSC,TDC,TSC,TXT

 1
87124B - CLAMP, HEATER
87124-06140

GUN122..M;GUN126..TDC..X;TGN121..LHD..L..CBU;TGN126..(TDC,TSC)..CBU;GUN125..TDC..(GCC,GEN,LA,VN);GUN135..(TDC,TSC,TXT)..(H,M,X);TGN121..(M,S,X)..(ARL,GCC,GEN);GUN135..TDC..(L,S)..(GEN,LA,VN);GUN122..(L,S,X)..(ARL,GCC,GEN,PKN);GUN125,KUN125..TDC..ATM..(ARL,IDN);GUN125..(TSC,TXT)..(ARL,GCC,GEN,LA);GUN126,136..(PDC,PSC,TDC,TSC,TXT)..(H,L,M,S);GGN12#,GUN112,123,KUN112,12#,13#,TGN11#,120,136..(PDC,PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)

 1
87128 - GROMMET, HEATER
87128-0K180

GUN122..M;GUN126..TDC..X;TGN121..LHD..L..CBU;TGN126..(TDC,TSC)..CBU;GUN125..TDC..(GCC,GEN,LA,VN);GUN135..(TDC,TSC,TXT)..(H,M,X);TGN121..(M,S,X)..(ARL,GCC,GEN);GUN135..TDC..(L,S)..(GEN,LA,VN);GUN122..(L,S,X)..(ARL,GCC,GEN,PKN);GUN125,KUN125..TDC..ATM..(ARL,IDN);GUN125..(TSC,TXT)..(ARL,GCC,GEN,LA);GUN126,136..(PDC,PSC,TDC,TSC,TXT)..(H,L,M,S);GGN12#,GUN112,123,KUN112,12#,13#,TGN11#,120,136..(PDC,PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)

 1
87130D - BLOWER ASSY
87130-0K620

GUN125,KUN125..TSC..M;GUN126,KUN126..RHD..ATM..M..GEN

FRONT AIR CONDITIONER-AUTO

 1
87130-0K620

GUN125,126,KUN12#..RHD..H..GEN;GGN125,GUN122,125,126,13#,KUN125..(H,M)..(ARL,IDN,TH)

 1
87130-0K560

GUN126..RHD..M..GEN;GUN125,KUN12#..RHD..(L,M,S,X)..(ARL,GEN);GGN12#,GUN122,123,126,13#,KUN136,TGN121,126..RHD..(L,S,X)..(ARL,GEN)

 1
87130-0K561

GUN126..RHD..M..GEN;GUN126,136..S..(ARL,GEN);GUN122,125,135,TGN121..RHD..(L,M,S,X)..(ARL,GEN)

 1
87130-0K621

GUN125..TSC..M;GUN126..RHD..6FC..M..GEN

FRONT AIR CONDITIONER-AUTO

 1
87130-0K621

GUN125,126..RHD..H..GEN;GUN125,126,13#..(H,M)..(ARL,IDN,TH)

 1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-0K250

GUN126..6F..(H,M)..TH;GUN126..TDC..6F..M..ARL;GUN13#..(H,M)..(ARL,TH);GUN125,126..RHD..H..(GEN,PKN);GUN125,126..6FC..(H,M)..(ARL,IDN,TH)

 1
87106-0K250

GUN125..TSC..M;GUN126..RHD..6FC..M..GEN

FRONT AIR CONDITIONER-AUTO

 1
87106-0K251

GUN125,126..RHD..H..(GEN,PKN);GGN125,GUN125,126,13#..RHD..(SDC,TDC,TXT)..(H,M)..(ARL,IDN,SA,TH)

 1
87130M - SCREW(FOR BLOWER)
88718-0A020

GUN135..L..VN;GUN135..S..PH;GUN136..ARL,TH;GUN122..6F..(L,S,X);GUN126..6F..ARL..IV3;GUN125..TXT..(GEN,TH);GUN125..TDC..6F..S..LA;GUN126..LHD..6F..M..GEN;TGN126..TDC..M..(GEN,LA);GUN126..RHD..6F..(GEN,TH);GUN125..RHD..(TDC,TSC)..6F;GUN125..(TDC,TXT)..6FC..IV3;GUN125..LHD..(TDC,TSC)..(L,X);GUN126..TDC..6F..(ARL,LA)..CBU;GUN122,126,TGN121..(L,S)..GCC..CBU;GUN122,TGN136..(DCR,HTWC)..(GEN,PH);GUN125..LHD..TDC..S..(GCC,GEN,PH,VN);GUN112,120,123,TGN11#,120..GCC,IDN,TH;TGN121..(TDC,TSC)..(L,X)..(ARL,GEN,TH);GUN126..RHD..6FC..(H,M,S)..(ARL,GEN,TH);GUN126..LHD..TDC..6FC..(M,S,X)..(GEN,LA);GUN125..(TDC,TSC)..6FC..(ARL,GEN,IDN,LA)..CBU;GUN135..(TDC,TSC,TXT)..(L,M,S,X)..(ARL,GEN,LA,TH);GUN135,TGN126..LHD..(TDC,TSC)..(5F,6FC)..(L,S,X)..CBU

 1
88718-0A020

GUN135..6FC..GEN;TGN121..(L,S)..TH;GUN125..TSC..S..GCC;GUN125..TSC..6FC..IV3;GUN126..TXT..6F..ARL..CBU;GUN125..TXT..6F..(ARL,IDN);GUN126,TGN126..6FC..L..GEN;GUN135..6F..(H,S)..(GEN,VN);GUN122,125..(6F,6FC)..M..(GCC,TH,VN);GUN122,126,TGN121,126..M..(GCC,TAIW,VN);GUN122,126..LHD..(H,S,X)..HDCR..(GEN,VN);GUN122,TGN136..(TDC,TSC,TXT)..(5F,6FC)..(ARL,LA,TH);GGN12#,GUN123,KUN112,12#,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,IDN,LA,VN)

 1
87139D - ELEMENT, AIR REFINER
87139-58010

TGN121..M,S,X;TGN121..L..CBU;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);TGN126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GGN12#,GUN135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GGN135,GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

DEODORANT FILTER

 1
87139-0K070

TGN121..LHD..L..CBU;GUN125..TDC..6FC..ARL;TGN126..(TDC,TSC)..CBU;GUN125..TDC..(GCC,GEN,LA,VN);TGN121..(M,S,X)..(ARL,GCC,GEN);GUN125..(TSC,TXT)..(ARL,GCC,GEN,LA);GGN12#,GUN112,122,123,126,13#,KUN112,12#,13#,TGN11#,120,136..(PDC,PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,TAIW,VN)

POLLEN FILTER

 1
87165C - CONTROL, BLOWER MOTOR
87165-0K060

GUN125,TGN126..LHD..TDC..M..GEN;GUN125,126,KUN12#..RHD..H..(GEN,PKN);GUN126,KUN126..LHD..(5FC,6F)..M..(SA,VN);GUN126..(SDC,TDC,TXT)..(H,M)..(ARL,PH,SA,TH);GUN136..(ADC,SDC,TDC,TXT)..(H,M)..(ARL,LA,SA,TH);GGN125,135,GUN122,125,135,KUN125,136..M..(ARL,IDN,LA,PH,SA,TH,VN)

 1
87165-0K060

KUN126..RHD..SA;KUN126..6F..M..LA;GUN135..6FC..S..MA;KUN126..5FC..M..(GEN,LA);GUN126..RHD..6FC..M..GEN;GUN126,136,TGN138..S..(HTWCF,IART);GUN126,TGN126,136..(5F,6FC)..M..LA;GUN125,126,136,KUN125..(SSC,SXT,TSC)..M

FRONT AIR CONDITIONER-AUTO

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0K320

GUN126..6F..H..TH;GUN126..RHD..H..GEN;GUN126..RHD..(L,M,S,X)..(ARL,GEN,TH);GGN12#,GUN112,120,122,123,125,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(TDC,TSC,TXT)

 1
88515 - VALVE, COOLER EXPANSION
88515-0K580

TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542

TGN121..L..CBU;GUN125..TDC..6FC..ARL;TGN126..(TDC,TSC)..CBU;GUN125..MDC,MSC,TSC,TXT;TGN121..(TDC,TSC)..(M,S,X);GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,GUN112,120,122,123,126,13#,KUN112,12#,13#,TGN11#,120,136..MDC,TDC,TSC,TXT

 2
88539J - HOSE, DRAIN COOLER
88539-0K390

GUN112,12#,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(TDC,TSC,TXT)

 1
88548B - CASE, AIR FILTER
88548-0K080

TGN121..L..CBU;TGN126..(TDC,TSC)..CBU;TGN121..(TDC,TSC)..(M,S,X);GGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,136..PDC,PSC,TDC,TSC,TXT

 1
88899-06330

GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN112,120,122,123,126,13#,KUN112,122,TGN11#,120,121,126,136..PDC,PSC,TDC,TSC,TXT

 1
88625 - THERMISTOR, COOLER, NO.1
88620-0K010

TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-0K440

KUN126..RHD..SA;GUN135..6FC..S..MA;KUN126,TGN126..TDC..MTM..M..LA;GUN125,126,136,KUN125..(SSC,SXT,TSC)..M;GUN126,KUN126,TGN136..TDC..(5F,5FC,6FC)..M..(GEN,LA)

FRONT AIR CONDITIONER-AUTO

 1
88650-0K400

KUN126..L..GEN;KUN122..LHD..SSC;KUN126..RHD..(M,S);KUN125..LHD..X..SA;TGN126..TDC..M..LA;GUN122..LHD..TDC..X;GUN125..(TSC,TXT)..CBU;GUN122..(M,S)..DCR..GEN;GUN135..LHD..(SDC,TDC,TSC)..X;GUN125..(SDC,SSC,SXT,TDC)..(L,S);GUN122..LHD..(L,S,X)..(GCC,PH,SA);KUN125..(SDC,TDC)..(L,S)..(GCC,SA);KUN126..LHD..TDC..(M,S,X)..(GEN,LA);GUN125..LHD..(SDC,SSC,TDC)..X..(LA,SA);GUN135..(MDC,SDC,SSC,SXT,TDC,TXT)..(L,S);GUN125,136..RHD..(SSC,SXT,TDC)..M..(GEN,SA);GUN126..(PDC,SSC,SXT,TDC)..M..(GEN,LA,PKN,SA);GUN126..(SDC,SSC,TDC,TSC)..(L,S,X)..(GCC,GEN,LA,SA,TH);GUN122,136..RHD..(SDC,TDC,TSC,TXT)..(L,S,X)..(GEN,SA,TH);KUN125..(SSC,SXT,TDC,TSC,TXT)..6F..(L,M,S,X)..(GEN,IDN,LA,SA);GUN123,KUN122,TGN120,136..(SDC,TDC,TSC,TXT)..(L,M,S,X)..(GCC,GEN,LA,SA,TH);GGN12#,GUN112,120,KUN112,13#,LAN125,TGN11#,121,126..(SDC,SSC,TDC,TSC,TXT)..(L,S,X)..(ARL,GCC,GEN,LA,SA,TH,VN)

 1
88650-0K440

KUN126..H;KUN126..LHD..M..(SA,VN);GUN125,126,KUN122,125..H..(GEN,PKN);GUN122,125,126,KUN125..(SDC,TDC,TXT)..(H,M)..(ARL,IDN,PH,SA,TAIW,TH,VN);GGN125,135,GUN13#,KUN13#..(SDC,TDC,TXT)..(H,M)..(ARL,GEN,LA,PH,SA,TH,VN)

 1
88894G - CONNECTOR, DRAIN HOSE
88894-0K020

GUN125..TDC..6FC..ARL;GUN125..RHD..(TSC,TXT);GUN125..RHD..TDC..(GEN,IDN,TH);GUN112,120,122,123,126,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(ARL,GEN,IDN,PKN,TH)

 1
Common parts
87193-87101
88718-0A020
90099-14120
90099-14121
90119-06951
90119-T0404
90159-T0005
90159-T0014
90178-T0053
90178-T0065
90179-06323
90185-T0001
91673-80616

(1505- )RHD

Click highlighted areas on diagram

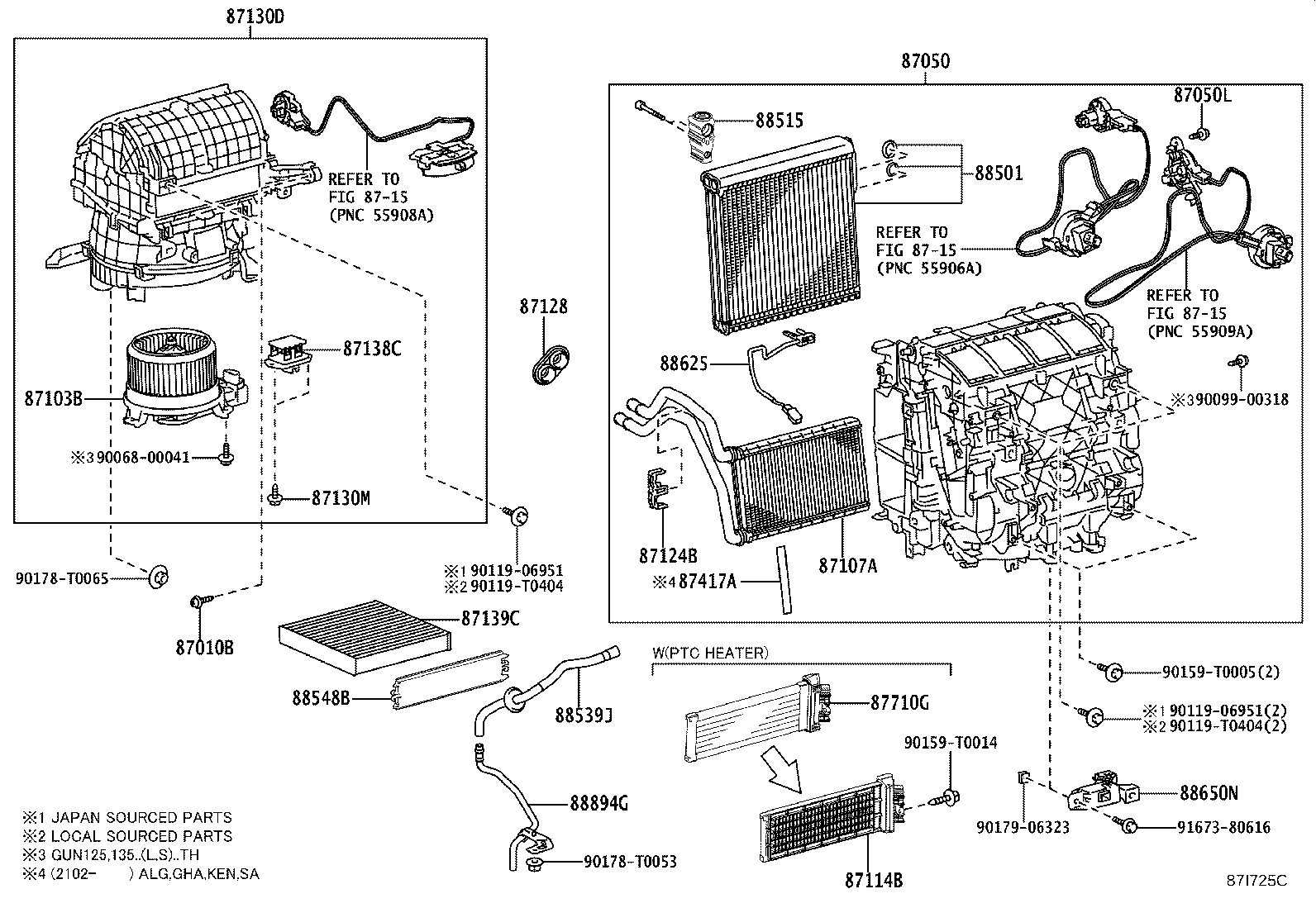

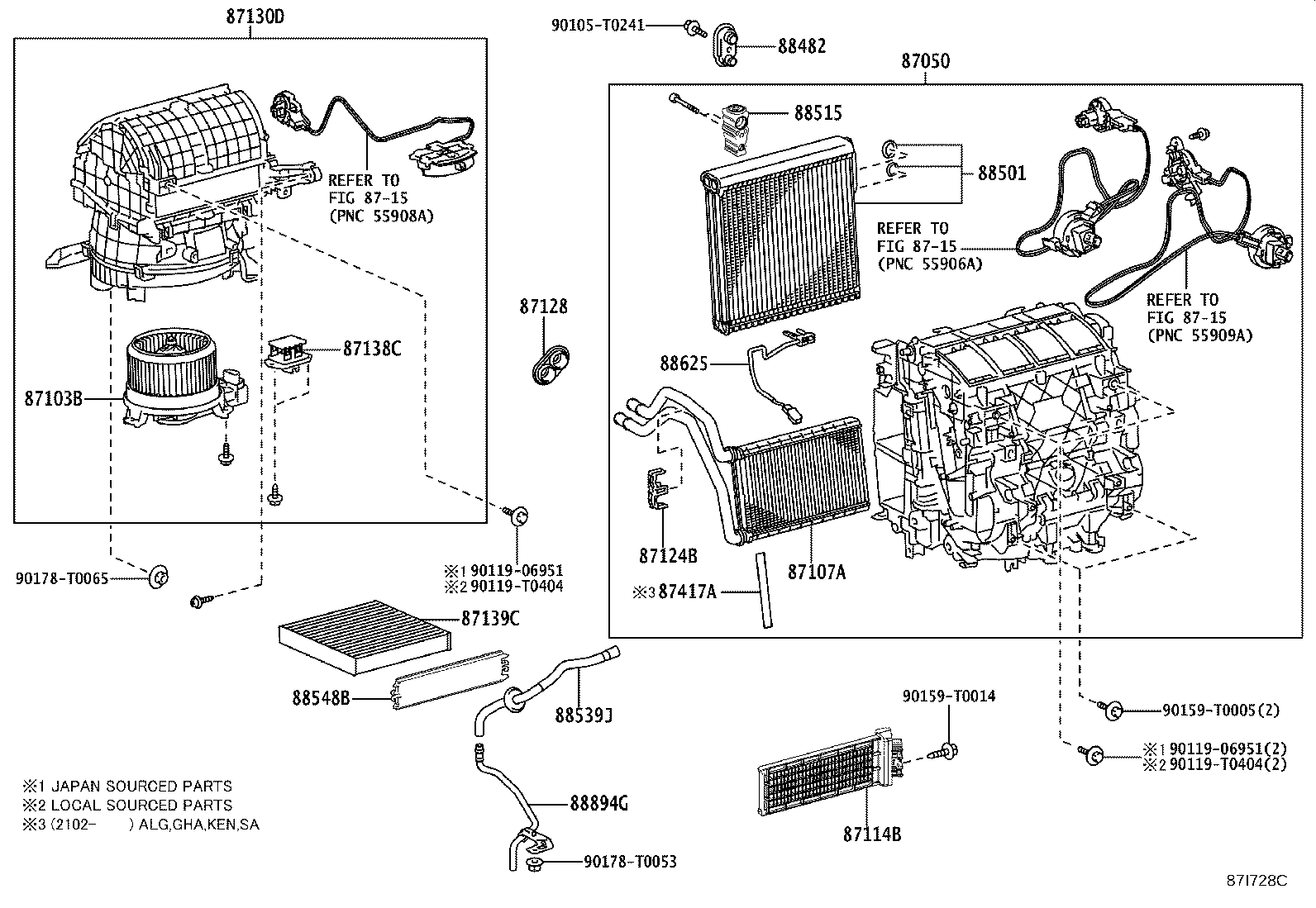

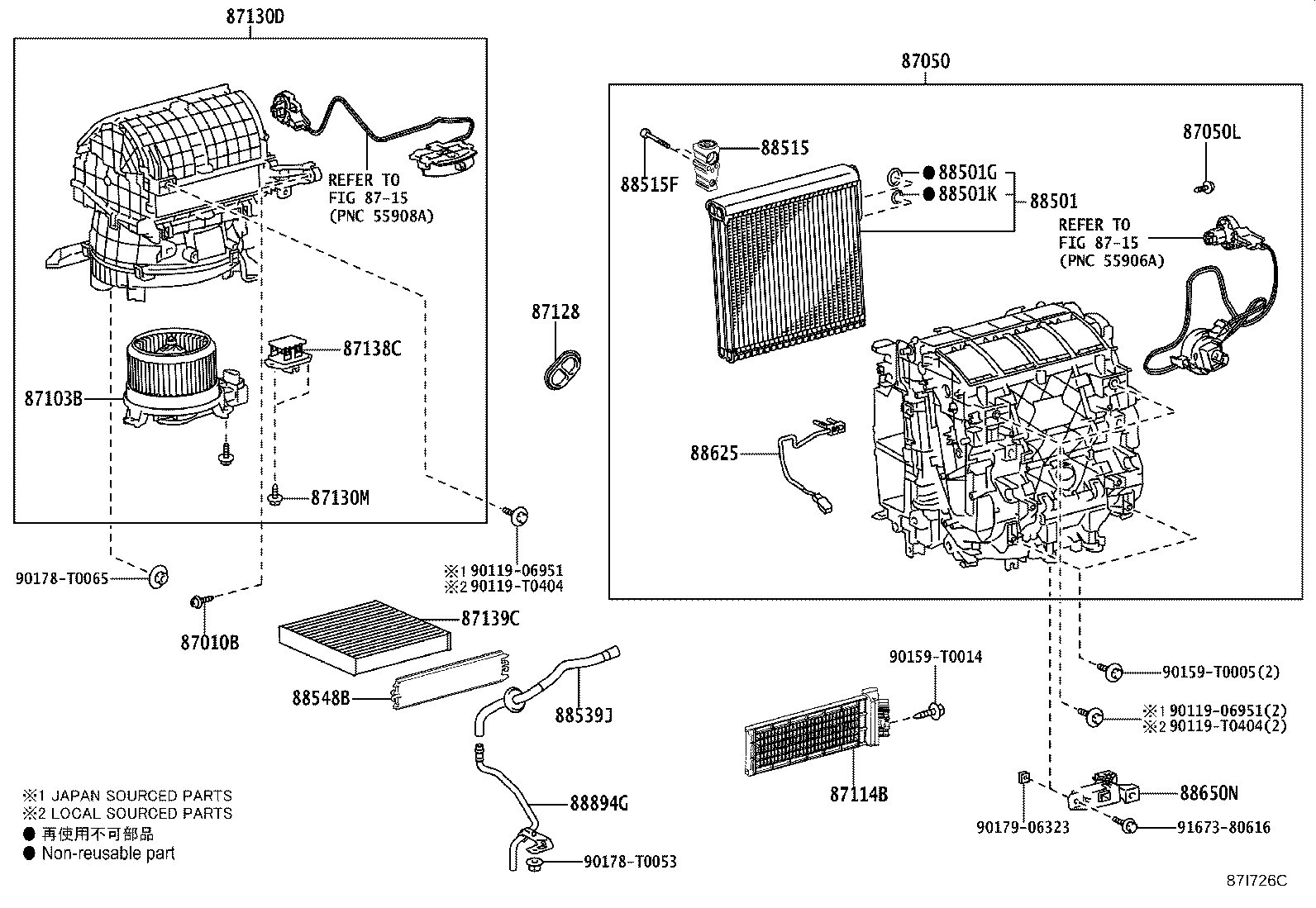

MANUAL AIR CONDITIONER

diagram 87010B 87050 87050L 87103B 87107A 87114B 87124B 87128 87130D 87130M 87138C 87139D 8715 8715 8715 8719387101 87710G 88501 88515 88515F 88539J 88548B 88625 88650N 88894G 9009914120 9009914121 9011906951 9011906951 90119T0404 90119T0404 90159T0005 90159T0014 90178T0053 90178T0065 9017906323 90185T0001 9167380616
Part # Description Qty Price
87010B - SCREW(FOR AIR CONDITIONER UNIT)
88718-0A020

GUN135..L..VN;GUN135..S..PH;GUN136..ARL,TH;GUN122..6F..(L,S,X);GUN126..6F..ARL..IV3;GUN125..TXT..(GEN,TH);GUN125..TDC..6F..S..LA;GUN126..LHD..6F..M..GEN;TGN126..TDC..M..(GEN,LA);GUN126..RHD..6F..(GEN,TH);GUN125..RHD..(TDC,TSC)..6F;GUN125..(TDC,TXT)..6FC..IV3;GUN125..LHD..(TDC,TSC)..(L,X);GUN126..TDC..6F..(ARL,LA)..CBU;GUN122,126,TGN121..(L,S)..GCC..CBU;GUN122,TGN136..(DCR,HTWC)..(GEN,PH);GUN125..LHD..TDC..S..(GCC,GEN,PH,VN);GUN112,120,123,TGN11#,120..GCC,IDN,TH;TGN121..(TDC,TSC)..(L,X)..(ARL,GEN,TH);GUN126..RHD..6FC..(H,M,S)..(ARL,GEN,TH);GUN126..LHD..TDC..6FC..(M,S,X)..(GEN,LA);GUN125..(TDC,TSC)..6FC..(ARL,GEN,IDN,LA)..CBU;GUN135..(TDC,TSC,TXT)..(L,M,S,X)..(ARL,GEN,LA,TH);GUN135,TGN126..LHD..(TDC,TSC)..(5F,6FC)..(L,S,X)..CBU

 2
88718-0A020

GUN122..6F..M;GUN135..6F..S..VN;TGN121..(L,S)..TH;GUN125..TSC..S..GCC;GUN125..TSC..6FC..IV3;GUN126..TXT..6F..ARL..CBU;GUN125..TXT..6F..(ARL,IDN);GUN126,TGN126..6FC..L..GEN;GUN125,13#..LHD..TDC..(H,M);GUN122,126..LHD..(H,S,X)..HDCR..GEN;GUN122,126,TGN121,126..(H,M)..(GCC,PH,TAIW,VN);GUN122,TGN136..(TDC,TSC,TXT)..(5F,6FC)..(ARL,LA,TH);GGN12#,GUN123,KUN112,12#,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,IDN,LA,VN)

 2
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0KC90

GUN126..RHD..M..GEN;GUN125,KUN12#..RHD..(L,M,S,X)..(ARL,GEN);GGN12#,GUN122,123,126,13#,KUN136,TGN121,126..RHD..(L,S,X)..(ARL,GEN)

 1
87050-0KD50

GUN126..6F..H..TH;GUN13#..TDC..(H,M)..TH;GUN125,126,KUN12#..RHD..H..GEN

 1
87050-0KD40

GUN125,KUN125..TSC..M;GUN126,KUN126..RHD..ATM..M..GEN

FRONT AIR CONDITIONER-AUTO

 1
87050L - SCREW(FOR AIR CONDITIONER RADIATOR)
88718-0A020

TGN121..L..CBU;TGN126..(TDC,TSC)..CBU;TGN121..(TDC,TSC)..(M,S,X);GGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,136..TDC,TSC,TXT

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K380

GUN135..L..GEN;GUN135..(M,X)..(ARL,TH);GUN122,125,KUN125..M..(IDN,TH);GUN126..RHD..(H,L,M,S)..(ARL,GEN,TH);GUN122,125,KUN12#,TGN121,126..RHD..(ARL,GEN);GGN12#,GUN123,136,KUN136..(H,M,S)..(ARL,GEN,TH)

 1
87103-0K381

GUN125..M..IDN;GUN135..L..GEN;GUN135..(M,X)..(ARL,TH);GUN122,125,TGN121..RHD..(ARL,GEN);GUN126,136..RHD..(H,M,S)..(ARL,GEN,TH)

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-0K110

GUN122..M;GUN126..TDC..X;TGN121..LHD..L..CBU;TGN126..(TDC,TSC)..CBU;TGN121..(M,S,X)..(ARL,GCC,GEN);GUN122..(L,S,X)..(ARL,GCC,GEN);GUN135..(TDC,TSC,TXT)..(H,M,X);GUN135..TDC..(L,S)..(GEN,LA,VN);GUN126,136..(TDC,TSC,TXT)..(H,L,M,S);GGN12#,GUN112,123,125,KUN112,12#,13#,TGN11#,120,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,VN)

 1
87114B - COVER, HEATER
87114-0K040

TGN121..L..CBU;GUN135..TDC..6F;GUN125..M..(GCC,VN);GUN125..LHD..TDC..(L,S,X);TGN121..(TDC,TSC)..(M,S,X);GUN125..RHD..TDC..(GEN,IDN,TH);GUN122,123,125,126,13#..PDC,PSC,TSC,TXT;GUN122,126,136..TDC..(GCC,GEN,LA,PH,TAIW,TH,VN);GUN135,TGN126..(TDC,TSC)..(5F,6FC)..(GCC,GEN,LA,PH,TH,VN)..CBU;GGN12#,GUN112,120,KUN112,12#,13#,TGN11#,120,136..PDC,PSC,TDC,TSC,TXT

 1
87124B - CLAMP, HEATER
87124-06140

GUN122..M;GUN126..TDC..X;TGN121..LHD..L..CBU;TGN126..(TDC,TSC)..CBU;GUN125..TDC..(GCC,GEN,LA,VN);GUN135..(TDC,TSC,TXT)..(H,M,X);TGN121..(M,S,X)..(ARL,GCC,GEN);GUN135..TDC..(L,S)..(GEN,LA,VN);GUN122..(L,S,X)..(ARL,GCC,GEN,PKN);GUN125,KUN125..TDC..ATM..(ARL,IDN);GUN125..(TSC,TXT)..(ARL,GCC,GEN,LA);GUN126,136..(PDC,PSC,TDC,TSC,TXT)..(H,L,M,S);GGN12#,GUN112,123,KUN112,12#,13#,TGN11#,120,136..(PDC,PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)

 1
87128 - GROMMET, HEATER
87128-0K180

GUN122..M;GUN126..TDC..X;TGN121..LHD..L..CBU;TGN126..(TDC,TSC)..CBU;GUN125..TDC..(GCC,GEN,LA,VN);GUN135..(TDC,TSC,TXT)..(H,M,X);TGN121..(M,S,X)..(ARL,GCC,GEN);GUN135..TDC..(L,S)..(GEN,LA,VN);GUN122..(L,S,X)..(ARL,GCC,GEN,PKN);GUN125,KUN125..TDC..ATM..(ARL,IDN);GUN125..(TSC,TXT)..(ARL,GCC,GEN,LA);GUN126,136..(PDC,PSC,TDC,TSC,TXT)..(H,L,M,S);GGN12#,GUN112,123,KUN112,12#,13#,TGN11#,120,136..(PDC,PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)

 1
87130D - BLOWER ASSY
87130-0K620

GUN125,KUN125..TSC..M;GUN126,KUN126..RHD..ATM..M..GEN

FRONT AIR CONDITIONER-AUTO

 1
87130-0K620

GUN125,126,KUN12#..RHD..H..GEN;GGN125,GUN122,125,126,13#,KUN125..(H,M)..(ARL,IDN,TH)

 1
87130-0K560

GUN126..RHD..M..GEN;GUN125,KUN12#..RHD..(L,M,S,X)..(ARL,GEN);GGN12#,GUN122,123,126,13#,KUN136,TGN121,126..RHD..(L,S,X)..(ARL,GEN)

 1
87130-0K561

GUN126..RHD..M..GEN;GUN126,136..S..(ARL,GEN);GUN122,125,135,TGN121..RHD..(L,M,S,X)..(ARL,GEN)

 1
87130-0K621

GUN125..TSC..M;GUN126..RHD..6FC..M..GEN

FRONT AIR CONDITIONER-AUTO

 1
87130-0K621

GUN125,126..RHD..H..GEN;GUN125,126,13#..(H,M)..(ARL,IDN,TH)

 1
87130M - SCREW(FOR BLOWER)
88718-0A020

GUN135..L..VN;GUN135..S..PH;GUN136..ARL,TH;GUN122..6F..(L,S,X);GUN126..6F..ARL..IV3;GUN125..TXT..(GEN,TH);GUN125..TDC..6F..S..LA;GUN126..LHD..6F..M..GEN;TGN126..TDC..M..(GEN,LA);GUN126..RHD..6F..(GEN,TH);GUN125..RHD..(TDC,TSC)..6F;GUN125..(TDC,TXT)..6FC..IV3;GUN125..LHD..(TDC,TSC)..(L,X);GUN126..TDC..6F..(ARL,LA)..CBU;GUN122,126,TGN121..(L,S)..GCC..CBU;GUN122,TGN136..(DCR,HTWC)..(GEN,PH);GUN125..LHD..TDC..S..(GCC,GEN,PH,VN);GUN112,120,123,TGN11#,120..GCC,IDN,TH;TGN121..(TDC,TSC)..(L,X)..(ARL,GEN,TH);GUN126..RHD..6FC..(H,M,S)..(ARL,GEN,TH);GUN126..LHD..TDC..6FC..(M,S,X)..(GEN,LA);GUN125..(TDC,TSC)..6FC..(ARL,GEN,IDN,LA)..CBU;GUN135..(TDC,TSC,TXT)..(L,M,S,X)..(ARL,GEN,LA,TH);GUN135,TGN126..LHD..(TDC,TSC)..(5F,6FC)..(L,S,X)..CBU

 1
88718-0A020

GUN135..6FC..GEN;TGN121..(L,S)..TH;GUN125..TSC..S..GCC;GUN125..TSC..6FC..IV3;GUN126..TXT..6F..ARL..CBU;GUN125..TXT..6F..(ARL,IDN);GUN126,TGN126..6FC..L..GEN;GUN135..6F..(H,S)..(GEN,VN);GUN122,125..(6F,6FC)..M..(GCC,TH,VN);GUN122,126,TGN121,126..M..(GCC,TAIW,VN);GUN122,126..LHD..(H,S,X)..HDCR..(GEN,VN);GUN122,TGN136..(TDC,TSC,TXT)..(5F,6FC)..(ARL,LA,TH);GGN12#,GUN123,KUN112,12#,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,IDN,LA,VN)

 1
87138C - RESISTOR, BLOWER
87138-0K360

KUN126..RHD..(L,M,S);GUN125..TDC..6FC..ARL;GUN125..RHD..TDC..(L,S);TGN136..RHD..(SDC,TDC,TXT);KUN122,125..RHD..MTM..(L,M,S,X);GUN125..RHD..(SDC,SSC,SXT,TSC,TXT);GUN125,126,136..RHD..(PDC,SSC,SXT,TDC)..M..(GEN,PKN,SA);GGN12#,GUN112,120,122,123,126,13#,KUN112,13#,TGN110,120,121,126..RHD..(L,S,X)..(ARL,GEN,IDN,MA,PKN,SA,TH)

 1
87139D - ELEMENT, AIR REFINER
87139-58010

TGN121..M,S,X;TGN121..L..CBU;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);TGN126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GGN12#,GUN135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GGN135,GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

DEODORANT FILTER

 1
87139-0K070

TGN121..LHD..L..CBU;GUN125..TDC..6FC..ARL;TGN126..(TDC,TSC)..CBU;GUN125..TDC..(GCC,GEN,LA,VN);TGN121..(M,S,X)..(ARL,GCC,GEN);GUN125..(TSC,TXT)..(ARL,GCC,GEN,LA);GGN12#,GUN112,122,123,126,13#,KUN112,12#,13#,TGN11#,120,136..(PDC,PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,TAIW,VN)

POLLEN FILTER

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0K320

GUN126..6F..H..TH;GUN126..RHD..H..GEN;GUN126..RHD..(L,M,S,X)..(ARL,GEN,TH);GGN12#,GUN112,120,122,123,125,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(TDC,TSC,TXT)

 1
88515 - VALVE, COOLER EXPANSION
88515-0K580

TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542

TGN121..L..CBU;GUN125..TDC..6FC..ARL;TGN126..(TDC,TSC)..CBU;GUN125..MDC,MSC,TSC,TXT;TGN121..(TDC,TSC)..(M,S,X);GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,GUN112,120,122,123,126,13#,KUN112,12#,13#,TGN11#,120,136..MDC,TDC,TSC,TXT

 2
88539J - HOSE, DRAIN COOLER
88539-0K390

GUN112,12#,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(TDC,TSC,TXT)

 1
88548B - CASE, AIR FILTER
88548-0K080

TGN121..L..CBU;TGN126..(TDC,TSC)..CBU;TGN121..(TDC,TSC)..(M,S,X);GGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,136..PDC,PSC,TDC,TSC,TXT

 1
88899-06330

GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN112,120,122,123,126,13#,KUN112,122,TGN11#,120,121,126,136..PDC,PSC,TDC,TSC,TXT

 1
88625 - THERMISTOR, COOLER, NO.1
88620-0K010

TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-0K440

KUN126..RHD..SA;GUN135..6FC..S..MA;KUN126,TGN126..TDC..MTM..M..LA;GUN125,126,136,KUN125..(SSC,SXT,TSC)..M;GUN126,KUN126,TGN136..TDC..(5F,5FC,6FC)..M..(GEN,LA)

FRONT AIR CONDITIONER-AUTO

 1
88650-0K400

KUN126..L..GEN;KUN122..LHD..SSC;KUN126..RHD..(M,S);KUN125..LHD..X..SA;TGN126..TDC..M..LA;GUN122..LHD..TDC..X;GUN125..(TSC,TXT)..CBU;GUN122..(M,S)..DCR..GEN;GUN135..LHD..(SDC,TDC,TSC)..X;GUN125..(SDC,SSC,SXT,TDC)..(L,S);GUN122..LHD..(L,S,X)..(GCC,PH,SA);KUN125..(SDC,TDC)..(L,S)..(GCC,SA);KUN126..LHD..TDC..(M,S,X)..(GEN,LA);GUN125..LHD..(SDC,SSC,TDC)..X..(LA,SA);GUN135..(MDC,SDC,SSC,SXT,TDC,TXT)..(L,S);GUN125,136..RHD..(SSC,SXT,TDC)..M..(GEN,SA);GUN126..(PDC,SSC,SXT,TDC)..M..(GEN,LA,PKN,SA);GUN126..(SDC,SSC,TDC,TSC)..(L,S,X)..(GCC,GEN,LA,SA,TH);GUN122,136..RHD..(SDC,TDC,TSC,TXT)..(L,S,X)..(GEN,SA,TH);KUN125..(SSC,SXT,TDC,TSC,TXT)..6F..(L,M,S,X)..(GEN,IDN,LA,SA);GUN123,KUN122,TGN120,136..(SDC,TDC,TSC,TXT)..(L,M,S,X)..(GCC,GEN,LA,SA,TH);GGN12#,GUN112,120,KUN112,13#,LAN125,TGN11#,121,126..(SDC,SSC,TDC,TSC,TXT)..(L,S,X)..(ARL,GCC,GEN,LA,SA,TH,VN)

 1
88650-0K440

KUN126..H;KUN126..LHD..M..(SA,VN);GUN125,126,KUN122,125..H..(GEN,PKN);GUN122,125,126,KUN125..(SDC,TDC,TXT)..(H,M)..(ARL,IDN,PH,SA,TAIW,TH,VN);GGN125,135,GUN13#,KUN13#..(SDC,TDC,TXT)..(H,M)..(ARL,GEN,LA,PH,SA,TH,VN)

 1
88894G - CONNECTOR, DRAIN HOSE
88894-0K020

GUN125..TDC..6FC..ARL;GUN125..RHD..(TSC,TXT);GUN125..RHD..TDC..(GEN,IDN,TH);GUN112,120,122,123,126,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(ARL,GEN,IDN,PKN,TH)

 1
Common parts
87193-87101
90099-14120
90099-14121
90119-06951
90119-T0404
90159-T0005
90159-T0014
90178-T0053
90178-T0065
90179-06323
90185-T0001
91673-80616
Linked diagrams
8715

(1505- )RHD

Click highlighted areas on diagram

MANUAL COOLER

diagram 87010B 87050 87050L 87103B 87114B 87128 87130D 87130M 87138C 87139D 8715 8715 8719387101 88501 88515 88515F 88539J 88548B 88625 88650N 88894G 9009914120 9009914121 9011906951 9011906951 90119T0404 90119T0404 90159T0005 90159T0014 90178T0053 90178T0065 9017906323 90185T0001 9167380616
Part # Description Qty Price
87010B - SCREW(FOR AIR CONDITIONER UNIT)
88718-0A020

GUN135..L..VN;GUN135..S..PH;GUN136..ARL,TH;GUN122..6F..(L,S,X);GUN126..6F..ARL..IV3;GUN125..TXT..(GEN,TH);GUN125..TDC..6F..S..LA;GUN126..LHD..6F..M..GEN;TGN126..TDC..M..(GEN,LA);GUN126..RHD..6F..(GEN,TH);GUN125..RHD..(TDC,TSC)..6F;GUN125..(TDC,TXT)..6FC..IV3;GUN125..LHD..(TDC,TSC)..(L,X);GUN126..TDC..6F..(ARL,LA)..CBU;GUN122,126,TGN121..(L,S)..GCC..CBU;GUN122,TGN136..(DCR,HTWC)..(GEN,PH);GUN125..LHD..TDC..S..(GCC,GEN,PH,VN);GUN112,120,123,TGN11#,120..GCC,IDN,TH;TGN121..(TDC,TSC)..(L,X)..(ARL,GEN,TH);GUN126..RHD..6FC..(H,M,S)..(ARL,GEN,TH);GUN126..LHD..TDC..6FC..(M,S,X)..(GEN,LA);GUN125..(TDC,TSC)..6FC..(ARL,GEN,IDN,LA)..CBU;GUN135..(TDC,TSC,TXT)..(L,M,S,X)..(ARL,GEN,LA,TH);GUN135,TGN126..LHD..(TDC,TSC)..(5F,6FC)..(L,S,X)..CBU

 2
88718-0A020

GUN122..6F..M;GUN135..6F..S..VN;TGN121..(L,S)..TH;GUN125..TSC..S..GCC;GUN125..TSC..6FC..IV3;GUN126..TXT..6F..ARL..CBU;GUN125..TXT..6F..(ARL,IDN);GUN126,TGN126..6FC..L..GEN;GUN125,13#..LHD..TDC..(H,M);GUN122,126..LHD..(H,S,X)..HDCR..GEN;GUN122,126,TGN121,126..(H,M)..(GCC,PH,TAIW,VN);GUN122,TGN136..(TDC,TSC,TXT)..(5F,6FC)..(ARL,LA,TH);GGN12#,GUN123,KUN112,12#,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,IDN,LA,VN)

 2
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0KC90

GUN126..RHD..M..GEN;GUN125,KUN12#..RHD..(L,M,S,X)..(ARL,GEN);GGN12#,GUN122,123,126,13#,KUN136,TGN121,126..RHD..(L,S,X)..(ARL,GEN)

 1
87050-0KD50

GUN126..6F..H..TH;GUN13#..TDC..(H,M)..TH;GUN125,126,KUN12#..RHD..H..GEN

 1
87050-0KD40

GUN125,KUN125..TSC..M;GUN126,KUN126..RHD..ATM..M..GEN

FRONT AIR CONDITIONER-AUTO

 1
87050L - SCREW(FOR AIR CONDITIONER RADIATOR)
88718-0A020

TGN121..L..CBU;TGN126..(TDC,TSC)..CBU;TGN121..(TDC,TSC)..(M,S,X);GGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,136..TDC,TSC,TXT

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K380

GUN135..L..GEN;GUN135..(M,X)..(ARL,TH);GUN122,125,KUN125..M..(IDN,TH);GUN126..RHD..(H,L,M,S)..(ARL,GEN,TH);GUN122,125,KUN12#,TGN121,126..RHD..(ARL,GEN);GGN12#,GUN123,136,KUN136..(H,M,S)..(ARL,GEN,TH)

 1
87103-0K381

GUN125..M..IDN;GUN135..L..GEN;GUN135..(M,X)..(ARL,TH);GUN122,125,TGN121..RHD..(ARL,GEN);GUN126,136..RHD..(H,M,S)..(ARL,GEN,TH)

 1
87114B - COVER, HEATER
87114-0K040

TGN121..L..CBU;GUN135..TDC..6F;GUN125..M..(GCC,VN);GUN125..LHD..TDC..(L,S,X);TGN121..(TDC,TSC)..(M,S,X);GUN125..RHD..TDC..(GEN,IDN,TH);GUN122,123,125,126,13#..PDC,PSC,TSC,TXT;GUN122,126,136..TDC..(GCC,GEN,LA,PH,TAIW,TH,VN);GUN135,TGN126..(TDC,TSC)..(5F,6FC)..(GCC,GEN,LA,PH,TH,VN)..CBU;GGN12#,GUN112,120,KUN112,12#,13#,TGN11#,120,136..PDC,PSC,TDC,TSC,TXT

 1
87128 - GROMMET, HEATER
87128-0K180

GUN122..M;GUN126..TDC..X;TGN121..LHD..L..CBU;TGN126..(TDC,TSC)..CBU;GUN125..TDC..(GCC,GEN,LA,VN);GUN135..(TDC,TSC,TXT)..(H,M,X);TGN121..(M,S,X)..(ARL,GCC,GEN);GUN135..TDC..(L,S)..(GEN,LA,VN);GUN122..(L,S,X)..(ARL,GCC,GEN,PKN);GUN125,KUN125..TDC..ATM..(ARL,IDN);GUN125..(TSC,TXT)..(ARL,GCC,GEN,LA);GUN126,136..(PDC,PSC,TDC,TSC,TXT)..(H,L,M,S);GGN12#,GUN112,123,KUN112,12#,13#,TGN11#,120,136..(PDC,PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)

 1
87130D - BLOWER ASSY
87130-0K620

GUN125,KUN125..TSC..M;GUN126,KUN126..RHD..ATM..M..GEN

FRONT AIR CONDITIONER-AUTO

 1
87130-0K620

GUN125,126,KUN12#..RHD..H..GEN;GGN125,GUN122,125,126,13#,KUN125..(H,M)..(ARL,IDN,TH)

 1
87130-0K560

GUN126..RHD..M..GEN;GUN125,KUN12#..RHD..(L,M,S,X)..(ARL,GEN);GGN12#,GUN122,123,126,13#,KUN136,TGN121,126..RHD..(L,S,X)..(ARL,GEN)

 1
87130-0K561

GUN126..RHD..M..GEN;GUN126,136..S..(ARL,GEN);GUN122,125,135,TGN121..RHD..(L,M,S,X)..(ARL,GEN)

 1
87130-0K621

GUN125..TSC..M;GUN126..RHD..6FC..M..GEN

FRONT AIR CONDITIONER-AUTO

 1
87130-0K621

GUN125,126..RHD..H..GEN;GUN125,126,13#..(H,M)..(ARL,IDN,TH)

 1
87130M - SCREW(FOR BLOWER)
88718-0A020

GUN135..L..VN;GUN135..S..PH;GUN136..ARL,TH;GUN122..6F..(L,S,X);GUN126..6F..ARL..IV3;GUN125..TXT..(GEN,TH);GUN125..TDC..6F..S..LA;GUN126..LHD..6F..M..GEN;TGN126..TDC..M..(GEN,LA);GUN126..RHD..6F..(GEN,TH);GUN125..RHD..(TDC,TSC)..6F;GUN125..(TDC,TXT)..6FC..IV3;GUN125..LHD..(TDC,TSC)..(L,X);GUN126..TDC..6F..(ARL,LA)..CBU;GUN122,126,TGN121..(L,S)..GCC..CBU;GUN122,TGN136..(DCR,HTWC)..(GEN,PH);GUN125..LHD..TDC..S..(GCC,GEN,PH,VN);GUN112,120,123,TGN11#,120..GCC,IDN,TH;TGN121..(TDC,TSC)..(L,X)..(ARL,GEN,TH);GUN126..RHD..6FC..(H,M,S)..(ARL,GEN,TH);GUN126..LHD..TDC..6FC..(M,S,X)..(GEN,LA);GUN125..(TDC,TSC)..6FC..(ARL,GEN,IDN,LA)..CBU;GUN135..(TDC,TSC,TXT)..(L,M,S,X)..(ARL,GEN,LA,TH);GUN135,TGN126..LHD..(TDC,TSC)..(5F,6FC)..(L,S,X)..CBU

 1
88718-0A020

GUN135..6FC..GEN;TGN121..(L,S)..TH;GUN125..TSC..S..GCC;GUN125..TSC..6FC..IV3;GUN126..TXT..6F..ARL..CBU;GUN125..TXT..6F..(ARL,IDN);GUN126,TGN126..6FC..L..GEN;GUN135..6F..(H,S)..(GEN,VN);GUN122,125..(6F,6FC)..M..(GCC,TH,VN);GUN122,126,TGN121,126..M..(GCC,TAIW,VN);GUN122,126..LHD..(H,S,X)..HDCR..(GEN,VN);GUN122,TGN136..(TDC,TSC,TXT)..(5F,6FC)..(ARL,LA,TH);GGN12#,GUN123,KUN112,12#,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,IDN,LA,VN)

 1
87138C - RESISTOR, BLOWER
87138-0K360

KUN126..RHD..(L,M,S);GUN125..TDC..6FC..ARL;GUN125..RHD..TDC..(L,S);TGN136..RHD..(SDC,TDC,TXT);KUN122,125..RHD..MTM..(L,M,S,X);GUN125..RHD..(SDC,SSC,SXT,TSC,TXT);GUN125,126,136..RHD..(PDC,SSC,SXT,TDC)..M..(GEN,PKN,SA);GGN12#,GUN112,120,122,123,126,13#,KUN112,13#,TGN110,120,121,126..RHD..(L,S,X)..(ARL,GEN,IDN,MA,PKN,SA,TH)

 1
87139D - ELEMENT, AIR REFINER
87139-58010

TGN121..M,S,X;TGN121..L..CBU;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);TGN126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GGN12#,GUN135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GGN135,GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

DEODORANT FILTER

 1
87139-0K070

TGN121..LHD..L..CBU;GUN125..TDC..6FC..ARL;TGN126..(TDC,TSC)..CBU;GUN125..TDC..(GCC,GEN,LA,VN);TGN121..(M,S,X)..(ARL,GCC,GEN);GUN125..(TSC,TXT)..(ARL,GCC,GEN,LA);GGN12#,GUN112,122,123,126,13#,KUN112,12#,13#,TGN11#,120,136..(PDC,PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,TAIW,VN)

POLLEN FILTER

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0K320

GUN126..6F..H..TH;GUN126..RHD..H..GEN;GUN126..RHD..(L,M,S,X)..(ARL,GEN,TH);GGN12#,GUN112,120,122,123,125,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(TDC,TSC,TXT)

 1
88515 - VALVE, COOLER EXPANSION
88515-0K580

TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542

TGN121..L..CBU;GUN125..TDC..6FC..ARL;TGN126..(TDC,TSC)..CBU;GUN125..MDC,MSC,TSC,TXT;TGN121..(TDC,TSC)..(M,S,X);GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,GUN112,120,122,123,126,13#,KUN112,12#,13#,TGN11#,120,136..MDC,TDC,TSC,TXT

 2
88539J - HOSE, DRAIN COOLER
88539-0K390

GUN112,12#,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(TDC,TSC,TXT)

 1
88548B - CASE, AIR FILTER
88548-0K080

TGN121..L..CBU;TGN126..(TDC,TSC)..CBU;TGN121..(TDC,TSC)..(M,S,X);GGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,136..PDC,PSC,TDC,TSC,TXT

 1
88899-06330

GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN112,120,122,123,126,13#,KUN112,122,TGN11#,120,121,126,136..PDC,PSC,TDC,TSC,TXT

 1
88625 - THERMISTOR, COOLER, NO.1
88620-0K010

TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-0K440

KUN126..RHD..SA;GUN135..6FC..S..MA;KUN126,TGN126..TDC..MTM..M..LA;GUN125,126,136,KUN125..(SSC,SXT,TSC)..M;GUN126,KUN126,TGN136..TDC..(5F,5FC,6FC)..M..(GEN,LA)

FRONT AIR CONDITIONER-AUTO

 1
88650-0K400

KUN126..L..GEN;KUN122..LHD..SSC;KUN126..RHD..(M,S);KUN125..LHD..X..SA;TGN126..TDC..M..LA;GUN122..LHD..TDC..X;GUN125..(TSC,TXT)..CBU;GUN122..(M,S)..DCR..GEN;GUN135..LHD..(SDC,TDC,TSC)..X;GUN125..(SDC,SSC,SXT,TDC)..(L,S);GUN122..LHD..(L,S,X)..(GCC,PH,SA);KUN125..(SDC,TDC)..(L,S)..(GCC,SA);KUN126..LHD..TDC..(M,S,X)..(GEN,LA);GUN125..LHD..(SDC,SSC,TDC)..X..(LA,SA);GUN135..(MDC,SDC,SSC,SXT,TDC,TXT)..(L,S);GUN125,136..RHD..(SSC,SXT,TDC)..M..(GEN,SA);GUN126..(PDC,SSC,SXT,TDC)..M..(GEN,LA,PKN,SA);GUN126..(SDC,SSC,TDC,TSC)..(L,S,X)..(GCC,GEN,LA,SA,TH);GUN122,136..RHD..(SDC,TDC,TSC,TXT)..(L,S,X)..(GEN,SA,TH);KUN125..(SSC,SXT,TDC,TSC,TXT)..6F..(L,M,S,X)..(GEN,IDN,LA,SA);GUN123,KUN122,TGN120,136..(SDC,TDC,TSC,TXT)..(L,M,S,X)..(GCC,GEN,LA,SA,TH);GGN12#,GUN112,120,KUN112,13#,LAN125,TGN11#,121,126..(SDC,SSC,TDC,TSC,TXT)..(L,S,X)..(ARL,GCC,GEN,LA,SA,TH,VN)

 1
88650-0K440

KUN126..H;KUN126..LHD..M..(SA,VN);GUN125,126,KUN122,125..H..(GEN,PKN);GUN122,125,126,KUN125..(SDC,TDC,TXT)..(H,M)..(ARL,IDN,PH,SA,TAIW,TH,VN);GGN125,135,GUN13#,KUN13#..(SDC,TDC,TXT)..(H,M)..(ARL,GEN,LA,PH,SA,TH,VN)

 1
88894G - CONNECTOR, DRAIN HOSE
88894-0K020

GUN125..TDC..6FC..ARL;GUN125..RHD..(TSC,TXT);GUN125..RHD..TDC..(GEN,IDN,TH);GUN112,120,122,123,126,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(ARL,GEN,IDN,PKN,TH)

 1
Common parts
87193-87101
90099-14120
90099-14121
90119-06951
90119-T0404
90159-T0005
90159-T0014
90178-T0053
90178-T0065
90179-06323
90185-T0001
91673-80616
Linked diagrams
8715

(1505- )RHD

Click highlighted areas on diagram

MANUAL HEATER

diagram 87010B 87050 87050L 87103B 87107A 87114B 87124B 87128 87130D 87130M 87138C 87139D 8715 8715 8715 8719387101 87710G 88482 88501 88515 88515F 88539J 88548B 88625 88894G 9009914120 9009914121 90105T0241 9011906951 9011906951 90119T0404 90119T0404 90159T0005 90159T0014 90178T0053 90178T0065
Part # Description Qty Price
87010B - SCREW(FOR AIR CONDITIONER UNIT)
88718-0A020

GUN135..L..VN;GUN135..S..PH;GUN136..ARL,TH;GUN122..6F..(L,S,X);GUN126..6F..ARL..IV3;GUN125..TXT..(GEN,TH);GUN125..TDC..6F..S..LA;GUN126..LHD..6F..M..GEN;TGN126..TDC..M..(GEN,LA);GUN126..RHD..6F..(GEN,TH);GUN125..RHD..(TDC,TSC)..6F;GUN125..(TDC,TXT)..6FC..IV3;GUN125..LHD..(TDC,TSC)..(L,X);GUN126..TDC..6F..(ARL,LA)..CBU;GUN122,126,TGN121..(L,S)..GCC..CBU;GUN122,TGN136..(DCR,HTWC)..(GEN,PH);GUN125..LHD..TDC..S..(GCC,GEN,PH,VN);GUN112,120,123,TGN11#,120..GCC,IDN,TH;TGN121..(TDC,TSC)..(L,X)..(ARL,GEN,TH);GUN126..RHD..6FC..(H,M,S)..(ARL,GEN,TH);GUN126..LHD..TDC..6FC..(M,S,X)..(GEN,LA);GUN125..(TDC,TSC)..6FC..(ARL,GEN,IDN,LA)..CBU;GUN135..(TDC,TSC,TXT)..(L,M,S,X)..(ARL,GEN,LA,TH);GUN135,TGN126..LHD..(TDC,TSC)..(5F,6FC)..(L,S,X)..CBU

 2
88718-0A020

GUN122..6F..M;GUN135..6F..S..VN;TGN121..(L,S)..TH;GUN125..TSC..S..GCC;GUN125..TSC..6FC..IV3;GUN126..TXT..6F..ARL..CBU;GUN125..TXT..6F..(ARL,IDN);GUN126,TGN126..6FC..L..GEN;GUN125,13#..LHD..TDC..(H,M);GUN122,126..LHD..(H,S,X)..HDCR..GEN;GUN122,126,TGN121,126..(H,M)..(GCC,PH,TAIW,VN);GUN122,TGN136..(TDC,TSC,TXT)..(5F,6FC)..(ARL,LA,TH);GGN12#,GUN123,KUN112,12#,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,IDN,LA,VN)

 2
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0KC90

GUN126..RHD..M..GEN;GUN125,KUN12#..RHD..(L,M,S,X)..(ARL,GEN);GGN12#,GUN122,123,126,13#,KUN136,TGN121,126..RHD..(L,S,X)..(ARL,GEN)

 1
87050-0KD50

GUN126..6F..H..TH;GUN13#..TDC..(H,M)..TH;GUN125,126,KUN12#..RHD..H..GEN

 1
87050-0KD40

GUN125,KUN125..TSC..M;GUN126,KUN126..RHD..ATM..M..GEN

FRONT AIR CONDITIONER-AUTO

 1
87050L - SCREW(FOR AIR CONDITIONER RADIATOR)
88718-0A020

TGN121..L..CBU;TGN126..(TDC,TSC)..CBU;TGN121..(TDC,TSC)..(M,S,X);GGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,136..TDC,TSC,TXT

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K380

GUN135..L..GEN;GUN135..(M,X)..(ARL,TH);GUN122,125,KUN125..M..(IDN,TH);GUN126..RHD..(H,L,M,S)..(ARL,GEN,TH);GUN122,125,KUN12#,TGN121,126..RHD..(ARL,GEN);GGN12#,GUN123,136,KUN136..(H,M,S)..(ARL,GEN,TH)

 1
87103-0K381

GUN125..M..IDN;GUN135..L..GEN;GUN135..(M,X)..(ARL,TH);GUN122,125,TGN121..RHD..(ARL,GEN);GUN126,136..RHD..(H,M,S)..(ARL,GEN,TH)

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-0K110

GUN122..M;GUN126..TDC..X;TGN121..LHD..L..CBU;TGN126..(TDC,TSC)..CBU;TGN121..(M,S,X)..(ARL,GCC,GEN);GUN122..(L,S,X)..(ARL,GCC,GEN);GUN135..(TDC,TSC,TXT)..(H,M,X);GUN135..TDC..(L,S)..(GEN,LA,VN);GUN126,136..(TDC,TSC,TXT)..(H,L,M,S);GGN12#,GUN112,123,125,KUN112,12#,13#,TGN11#,120,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,VN)

 1
87114B - COVER, HEATER
87114-0K040

TGN121..L..CBU;GUN135..TDC..6F;GUN125..M..(GCC,VN);GUN125..LHD..TDC..(L,S,X);TGN121..(TDC,TSC)..(M,S,X);GUN125..RHD..TDC..(GEN,IDN,TH);GUN122,123,125,126,13#..PDC,PSC,TSC,TXT;GUN122,126,136..TDC..(GCC,GEN,LA,PH,TAIW,TH,VN);GUN135,TGN126..(TDC,TSC)..(5F,6FC)..(GCC,GEN,LA,PH,TH,VN)..CBU;GGN12#,GUN112,120,KUN112,12#,13#,TGN11#,120,136..PDC,PSC,TDC,TSC,TXT

 1
87124B - CLAMP, HEATER
87124-06140

GUN122..M;GUN126..TDC..X;TGN121..LHD..L..CBU;TGN126..(TDC,TSC)..CBU;GUN125..TDC..(GCC,GEN,LA,VN);GUN135..(TDC,TSC,TXT)..(H,M,X);TGN121..(M,S,X)..(ARL,GCC,GEN);GUN135..TDC..(L,S)..(GEN,LA,VN);GUN122..(L,S,X)..(ARL,GCC,GEN,PKN);GUN125,KUN125..TDC..ATM..(ARL,IDN);GUN125..(TSC,TXT)..(ARL,GCC,GEN,LA);GUN126,136..(PDC,PSC,TDC,TSC,TXT)..(H,L,M,S);GGN12#,GUN112,123,KUN112,12#,13#,TGN11#,120,136..(PDC,PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)

 1
87128 - GROMMET, HEATER
87128-0K180

GUN122..M;GUN126..TDC..X;TGN121..LHD..L..CBU;TGN126..(TDC,TSC)..CBU;GUN125..TDC..(GCC,GEN,LA,VN);GUN135..(TDC,TSC,TXT)..(H,M,X);TGN121..(M,S,X)..(ARL,GCC,GEN);GUN135..TDC..(L,S)..(GEN,LA,VN);GUN122..(L,S,X)..(ARL,GCC,GEN,PKN);GUN125,KUN125..TDC..ATM..(ARL,IDN);GUN125..(TSC,TXT)..(ARL,GCC,GEN,LA);GUN126,136..(PDC,PSC,TDC,TSC,TXT)..(H,L,M,S);GGN12#,GUN112,123,KUN112,12#,13#,TGN11#,120,136..(PDC,PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)

 1
87130D - BLOWER ASSY
87130-0K620

GUN125,KUN125..TSC..M;GUN126,KUN126..RHD..ATM..M..GEN

FRONT AIR CONDITIONER-AUTO

 1
87130-0K620

GUN125,126,KUN12#..RHD..H..GEN;GGN125,GUN122,125,126,13#,KUN125..(H,M)..(ARL,IDN,TH)

 1
87130-0K560

GUN126..RHD..M..GEN;GUN125,KUN12#..RHD..(L,M,S,X)..(ARL,GEN);GGN12#,GUN122,123,126,13#,KUN136,TGN121,126..RHD..(L,S,X)..(ARL,GEN)

 1
87130-0K561

GUN126..RHD..M..GEN;GUN126,136..S..(ARL,GEN);GUN122,125,135,TGN121..RHD..(L,M,S,X)..(ARL,GEN)

 1
87130-0K621

GUN125..TSC..M;GUN126..RHD..6FC..M..GEN

FRONT AIR CONDITIONER-AUTO

 1
87130-0K621

GUN125,126..RHD..H..GEN;GUN125,126,13#..(H,M)..(ARL,IDN,TH)

 1
87130M - SCREW(FOR BLOWER)
88718-0A020

GUN135..L..VN;GUN135..S..PH;GUN136..ARL,TH;GUN122..6F..(L,S,X);GUN126..6F..ARL..IV3;GUN125..TXT..(GEN,TH);GUN125..TDC..6F..S..LA;GUN126..LHD..6F..M..GEN;TGN126..TDC..M..(GEN,LA);GUN126..RHD..6F..(GEN,TH);GUN125..RHD..(TDC,TSC)..6F;GUN125..(TDC,TXT)..6FC..IV3;GUN125..LHD..(TDC,TSC)..(L,X);GUN126..TDC..6F..(ARL,LA)..CBU;GUN122,126,TGN121..(L,S)..GCC..CBU;GUN122,TGN136..(DCR,HTWC)..(GEN,PH);GUN125..LHD..TDC..S..(GCC,GEN,PH,VN);GUN112,120,123,TGN11#,120..GCC,IDN,TH;TGN121..(TDC,TSC)..(L,X)..(ARL,GEN,TH);GUN126..RHD..6FC..(H,M,S)..(ARL,GEN,TH);GUN126..LHD..TDC..6FC..(M,S,X)..(GEN,LA);GUN125..(TDC,TSC)..6FC..(ARL,GEN,IDN,LA)..CBU;GUN135..(TDC,TSC,TXT)..(L,M,S,X)..(ARL,GEN,LA,TH);GUN135,TGN126..LHD..(TDC,TSC)..(5F,6FC)..(L,S,X)..CBU

 1
88718-0A020

GUN135..6FC..GEN;TGN121..(L,S)..TH;GUN125..TSC..S..GCC;GUN125..TSC..6FC..IV3;GUN126..TXT..6F..ARL..CBU;GUN125..TXT..6F..(ARL,IDN);GUN126,TGN126..6FC..L..GEN;GUN135..6F..(H,S)..(GEN,VN);GUN122,125..(6F,6FC)..M..(GCC,TH,VN);GUN122,126,TGN121,126..M..(GCC,TAIW,VN);GUN122,126..LHD..(H,S,X)..HDCR..(GEN,VN);GUN122,TGN136..(TDC,TSC,TXT)..(5F,6FC)..(ARL,LA,TH);GGN12#,GUN123,KUN112,12#,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,IDN,LA,VN)

 1
87138C - RESISTOR, BLOWER
87138-0K360

KUN126..RHD..(L,M,S);GUN125..TDC..6FC..ARL;GUN125..RHD..TDC..(L,S);TGN136..RHD..(SDC,TDC,TXT);KUN122,125..RHD..MTM..(L,M,S,X);GUN125..RHD..(SDC,SSC,SXT,TSC,TXT);GUN125,126,136..RHD..(PDC,SSC,SXT,TDC)..M..(GEN,PKN,SA);GGN12#,GUN112,120,122,123,126,13#,KUN112,13#,TGN110,120,121,126..RHD..(L,S,X)..(ARL,GEN,IDN,MA,PKN,SA,TH)

 1
87139D - ELEMENT, AIR REFINER
87139-58010

TGN121..M,S,X;TGN121..L..CBU;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);TGN126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GGN12#,GUN135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GGN135,GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

DEODORANT FILTER

 1
87139-0K070

TGN121..LHD..L..CBU;GUN125..TDC..6FC..ARL;TGN126..(TDC,TSC)..CBU;GUN125..TDC..(GCC,GEN,LA,VN);TGN121..(M,S,X)..(ARL,GCC,GEN);GUN125..(TSC,TXT)..(ARL,GCC,GEN,LA);GGN12#,GUN112,122,123,126,13#,KUN112,12#,13#,TGN11#,120,136..(PDC,PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,TAIW,VN)

POLLEN FILTER

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0K320

GUN126..6F..H..TH;GUN126..RHD..H..GEN;GUN126..RHD..(L,M,S,X)..(ARL,GEN,TH);GGN12#,GUN112,120,122,123,125,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(TDC,TSC,TXT)

 1
88515 - VALVE, COOLER EXPANSION
88515-0K580

TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542

TGN121..L..CBU;GUN125..TDC..6FC..ARL;TGN126..(TDC,TSC)..CBU;GUN125..MDC,MSC,TSC,TXT;TGN121..(TDC,TSC)..(M,S,X);GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,GUN112,120,122,123,126,13#,KUN112,12#,13#,TGN11#,120,136..MDC,TDC,TSC,TXT

 2
88539J - HOSE, DRAIN COOLER
88539-0K390

GUN112,12#,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(TDC,TSC,TXT)

 1
88548B - CASE, AIR FILTER
88548-0K080

TGN121..L..CBU;TGN126..(TDC,TSC)..CBU;TGN121..(TDC,TSC)..(M,S,X);GGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,136..PDC,PSC,TDC,TSC,TXT

 1
88899-06330

GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN112,120,122,123,126,13#,KUN112,122,TGN11#,120,121,126,136..PDC,PSC,TDC,TSC,TXT

 1
88625 - THERMISTOR, COOLER, NO.1
88620-0K010

TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN

 1
88894G - CONNECTOR, DRAIN HOSE
88894-0K020

GUN125..TDC..6FC..ARL;GUN125..RHD..(TSC,TXT);GUN125..RHD..TDC..(GEN,IDN,TH);GUN112,120,122,123,126,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(ARL,GEN,IDN,PKN,TH)

 1
Common parts
87193-87101
90099-14120
90099-14121
90105-T0241
90119-06951
90119-T0404
90159-T0005
90159-T0014
90178-T0053
90178-T0065
Linked diagrams
8715

(2006- )RHD

Click highlighted areas on diagram

AUTO AIR CONDITIONER

diagram 82210K 87010B 87050 87050C 87050D 87050L 87103B 87107A 87114B 87124B 87128 87130D 87130K 87130M 87139C 87165C 87417A 88501 88501G 88501K 88515 88515F 88539J 88548B 88625 88650N 88894G 9006800041 9011906951 9011906951 90119T0404 90119T0404 90159T0005 90159T0014 90178T0053 90178T0065 9017906323 9167380616
Part # Description Qty Price
Common parts
90068-00041
90119-06951
90119-T0404
90159-T0005
90159-T0014
90178-T0053
90178-T0065
90179-06323
91673-80616

(2006- )RHD

Click highlighted areas on diagram

MANUAL AIR CONDITIONER

diagram 87010B 87050 87050L 87103B 87107A 87114B 87124B 87128 87130D 87130M 87138C 87139C 8715 8715 8715 87417A 87710G 88501 88515 88539J 88548B 88625 88650N 88894G 9006800041 9009900318 9011906951 9011906951 90119T0404 90119T0404 90159T0005 90159T0014 90178T0053 90178T0065 9017906323 9167380616
Part # Description Qty Price
Common parts
90068-00041
90099-00318
90119-06951
90119-T0404
90159-T0005
90159-T0014
90178-T0053
90178-T0065
90179-06323
91673-80616
Linked diagrams
8715

(2006- )RHD

Click highlighted areas on diagram

MANUAL COOLER

diagram 87010B 87050 87050L 87103B 87114B 87128 87130D 87130M 87138C 87139C 8715 8715 88501 88501G 88501K 88515 88515F 88539J 88548B 88625 88650N 88894G 9011906951 9011906951 90119T0404 90119T0404 90159T0005 90159T0014 90178T0053 90178T0065 9017906323 9167380616
Part # Description Qty Price
Common parts
90119-06951
90119-T0404
90159-T0005
90159-T0014
90178-T0053
90178-T0065
90179-06323
91673-80616
Linked diagrams
8715

(2006- )RHD

Click highlighted areas on diagram

MANUAL HEATER

diagram 87050 87103B 87107A 87114B 87124B 87128 87130D 87138C 87139C 8715 8715 8715 87417A 88482 88501 88515 88539J 88548B 88625 88894G 90105T0241 9011906951 9011906951 90119T0404 90119T0404 90159T0005 90159T0014 90178T0053 90178T0065
Part # Description Qty Price
Common parts
90105-T0241
90119-06951
90119-T0404
90159-T0005
90159-T0014
90178-T0053
90178-T0065
Linked diagrams
8715

(2006- )RHD

Click highlighted areas on diagram

BOOST VENTILATOR

diagram 87050 87103B 87114B 87128 87130D 87138C 87139C 8715 8715 88482 88501 88515 88539J 88548B 88625 88894G 90105T0241 9011906951 9011906951 90119T0404 90119T0404 90159T0005 90159T0014 90178T0053 90178T0065
Part # Description Qty Price
Common parts
90105-T0241
90119-06951
90119-T0404
90159-T0005
90159-T0014
90178-T0053
90178-T0065
Linked diagrams
8715
