GUN125R-BTFSH (2017)
Toyota Hilux

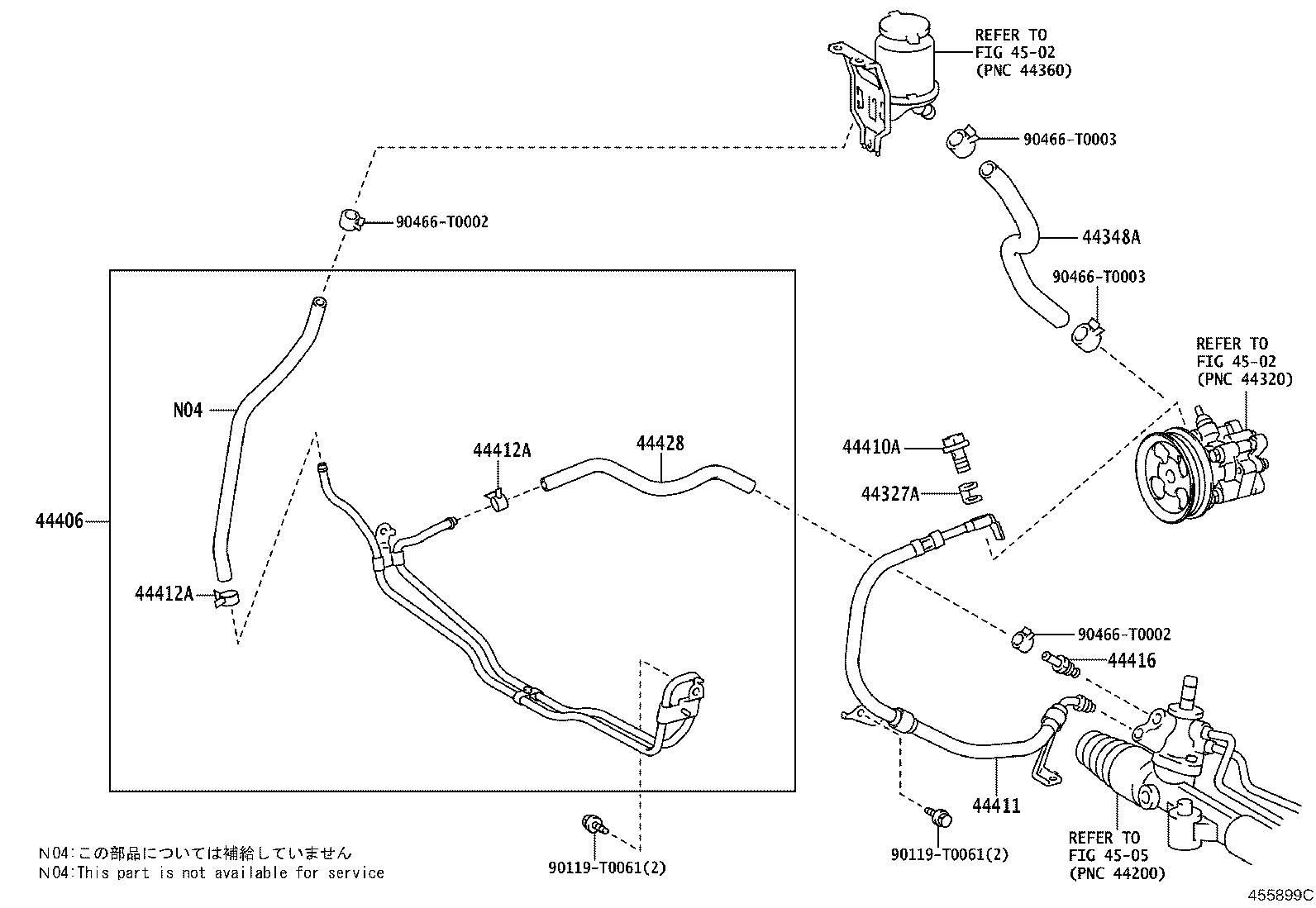

(1107- )KUN1#,2#,3#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0061 | ||||
| 90466-T0002 | ||||
| 90466-T0003 | ||||
| Linked diagrams | ||||
| 4502 | ||||

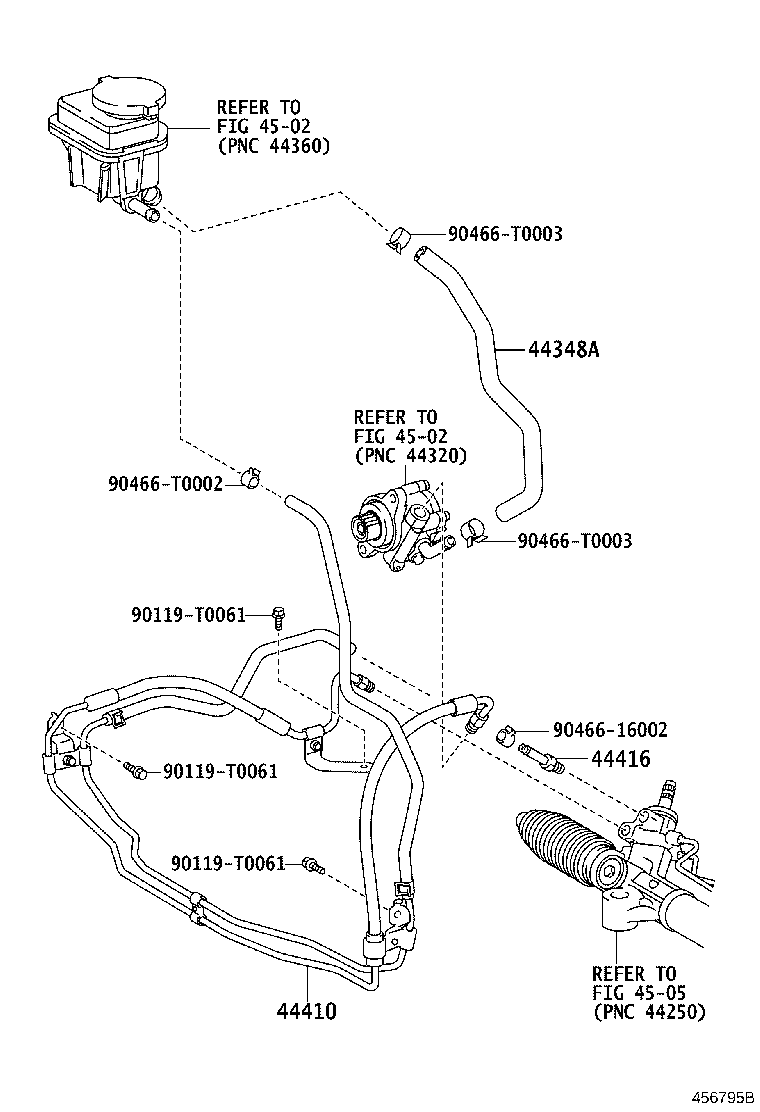

(1107- )GGN15,25,35..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0061 | ||||
| 90466-T0002 | ||||
| 90466-T0003 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||

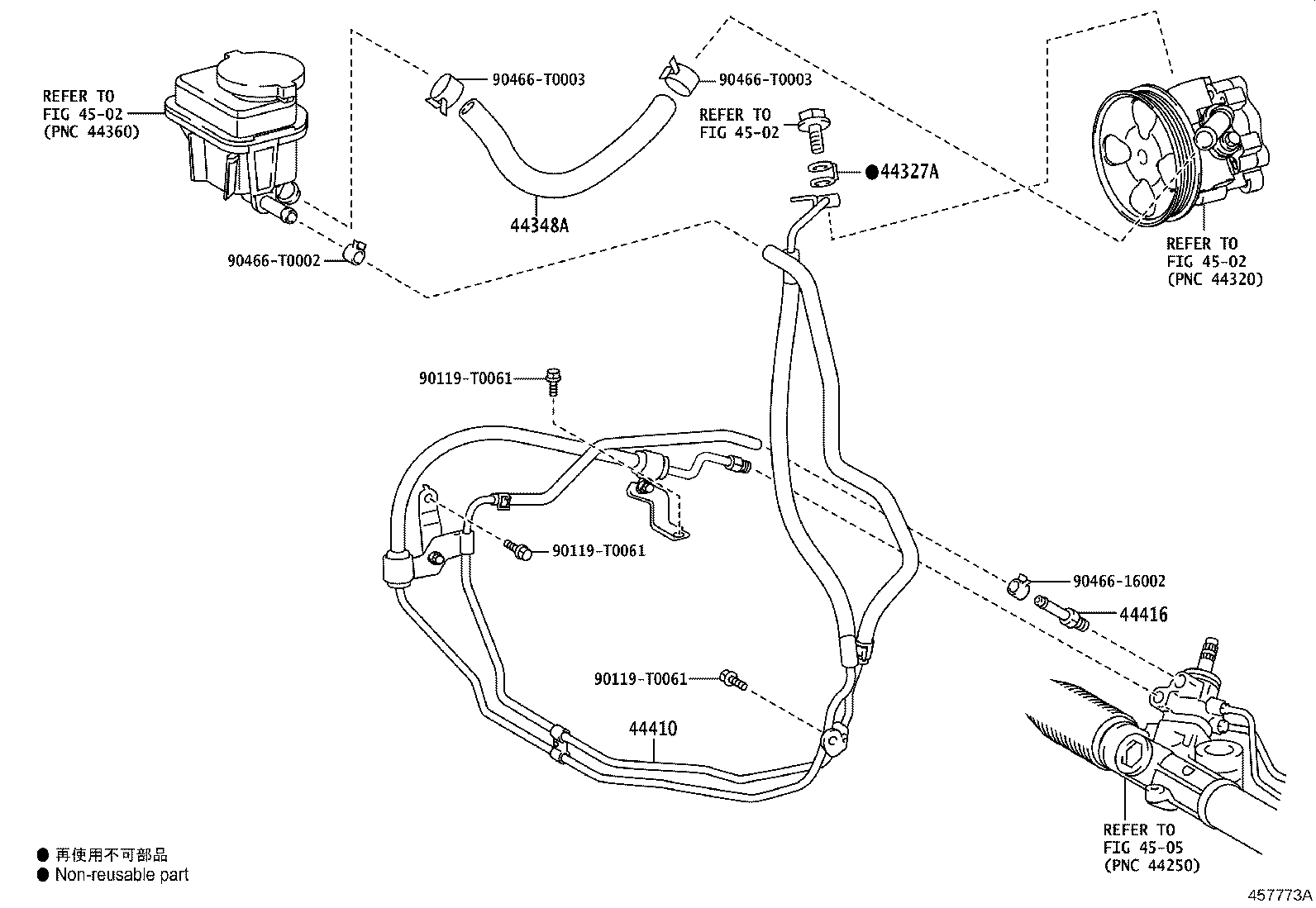

(1505- )GUN112,12#,13#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GGN12#,135,GUN112,120,122,123,126,136,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-0K100 |
GUN112,12#,13# |
1 | ||
| 44348-0K110 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,120,122,123,126,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 44348-0K060 |
KUN126..PDC..L;KUN126..5FC..PKN;KUN112,12#,13#..ADC,ASC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-0K270 |
GUN125..TDC..6FC..ARL;GUN125..RHD..TDC..(GEN,IDN,TH);GUN135..RHD..(ARL,GEN,MA,SA,TH);GUN125..RHD..(SDC,SSC,SXT,TSC,TXT);GUN126,136..RHD..(ARL,GEN,PKN,SA,TH) |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-0K040 |
KUN126..PDC..L;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GGN12#,135,GUN112,120,135,KUN126..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| Common parts | ||||
| 90119-T0061 | ||||
| 90466-16002 | ||||
| 90466-T0002 | ||||
| 90466-T0003 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||

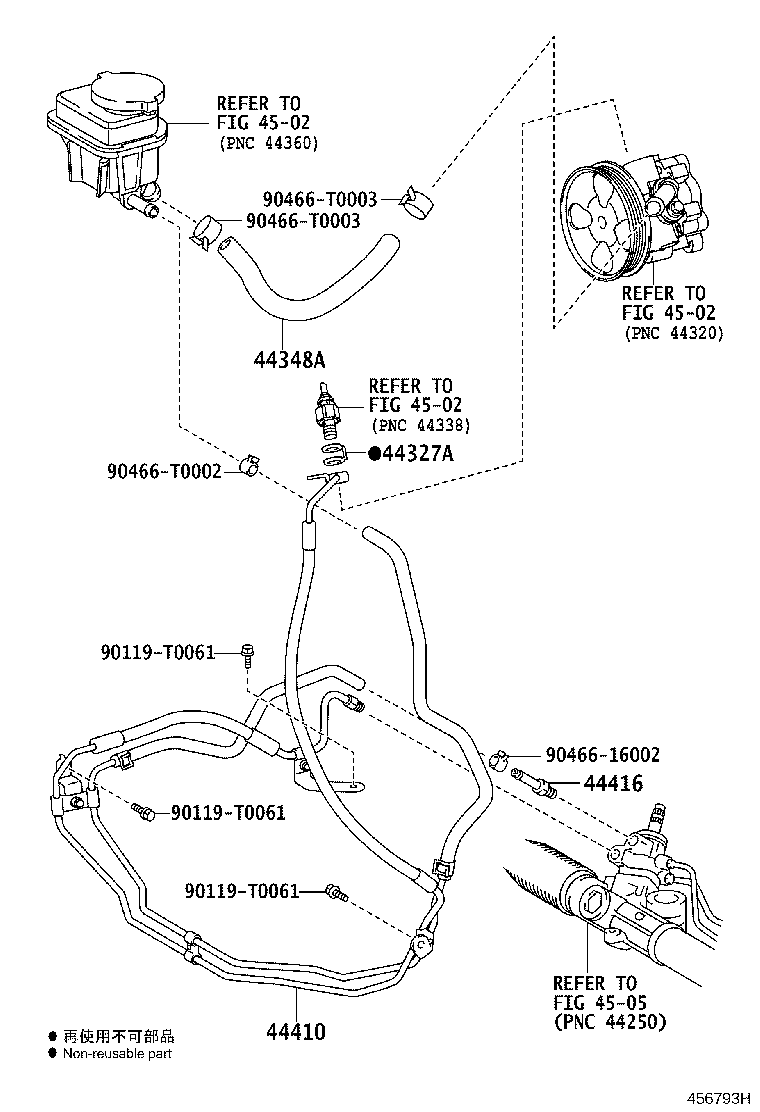

(1505- )KUN112,12#,13#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-0K100 |
GUN112,12#,13# |
1 | ||
| 44348-0K110 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,120,122,123,126,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 44348-0K060 |
KUN126..PDC..L;KUN126..5FC..PKN;KUN112,12#,13#..ADC,ASC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-0K270 |
GUN125..TDC..6FC..ARL;GUN125..RHD..TDC..(GEN,IDN,TH);GUN135..RHD..(ARL,GEN,MA,SA,TH);GUN125..RHD..(SDC,SSC,SXT,TSC,TXT);GUN126,136..RHD..(ARL,GEN,PKN,SA,TH) |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-0K040 |
KUN126..PDC..L;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GGN12#,135,GUN112,120,135,KUN126..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| Common parts | ||||
| 90119-T0061 | ||||
| 90466-16002 | ||||
| 90466-T0002 | ||||
| 90466-T0003 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||
(2006- )GUN125,126,13#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0061 | ||||
| 90466-16002 | ||||
| 90466-T0002 | ||||
| 90466-T0003 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||
