GUN125L-DTFXHF (2015)
Toyota Hilux

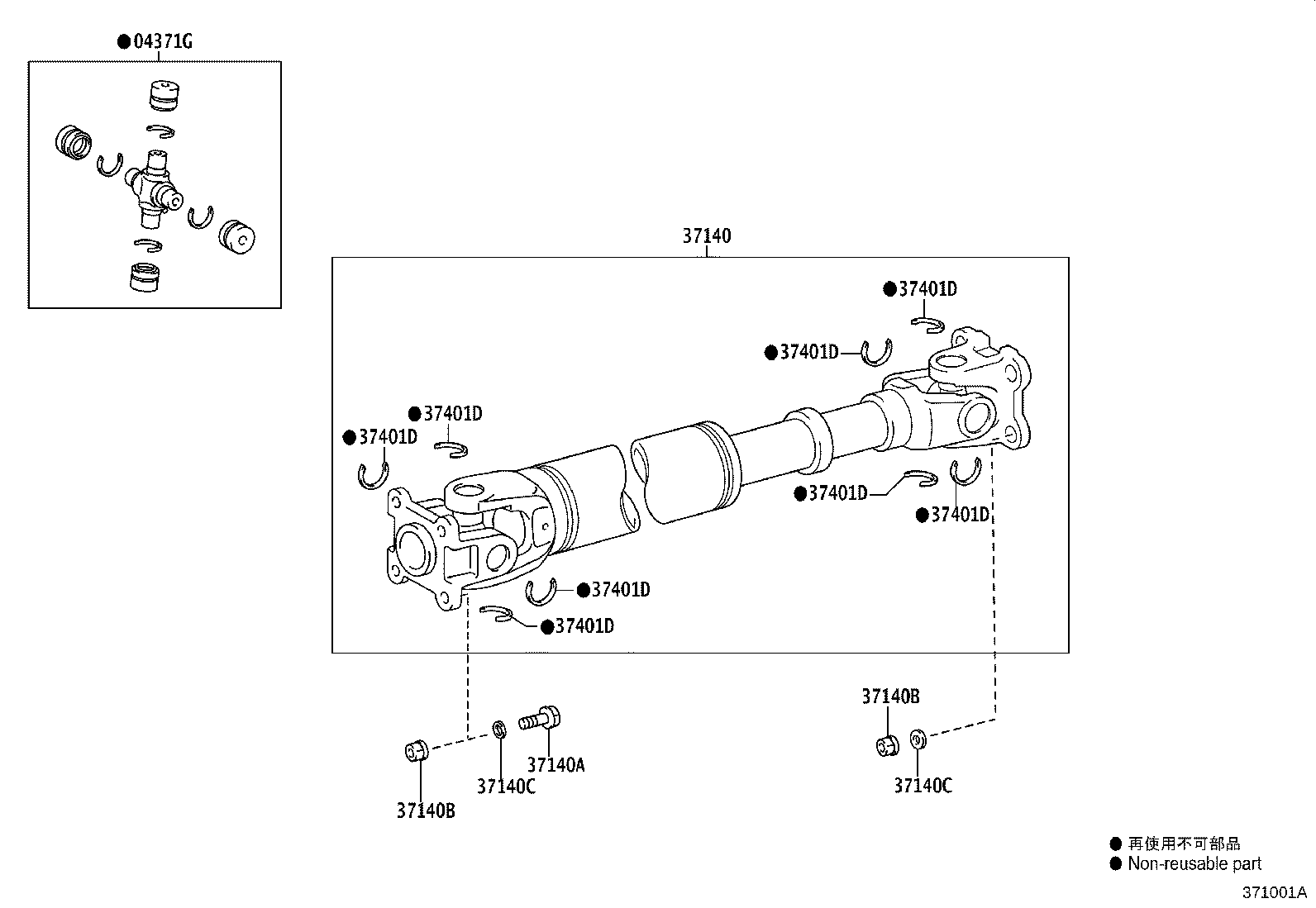

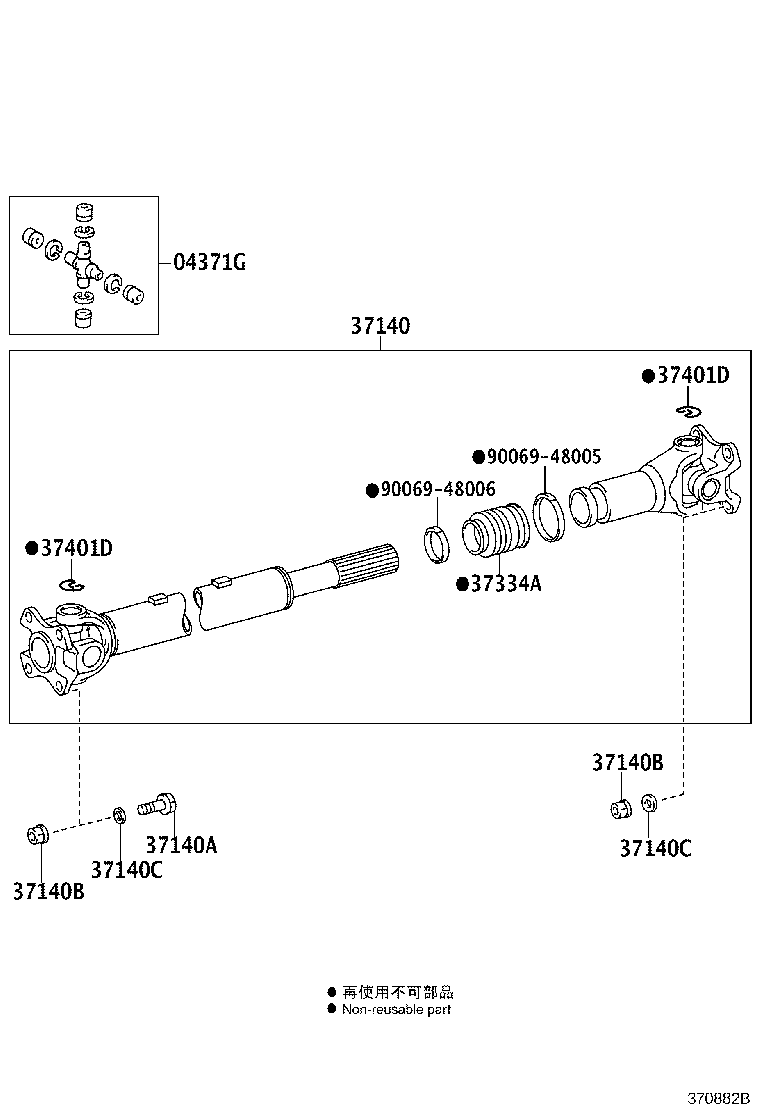

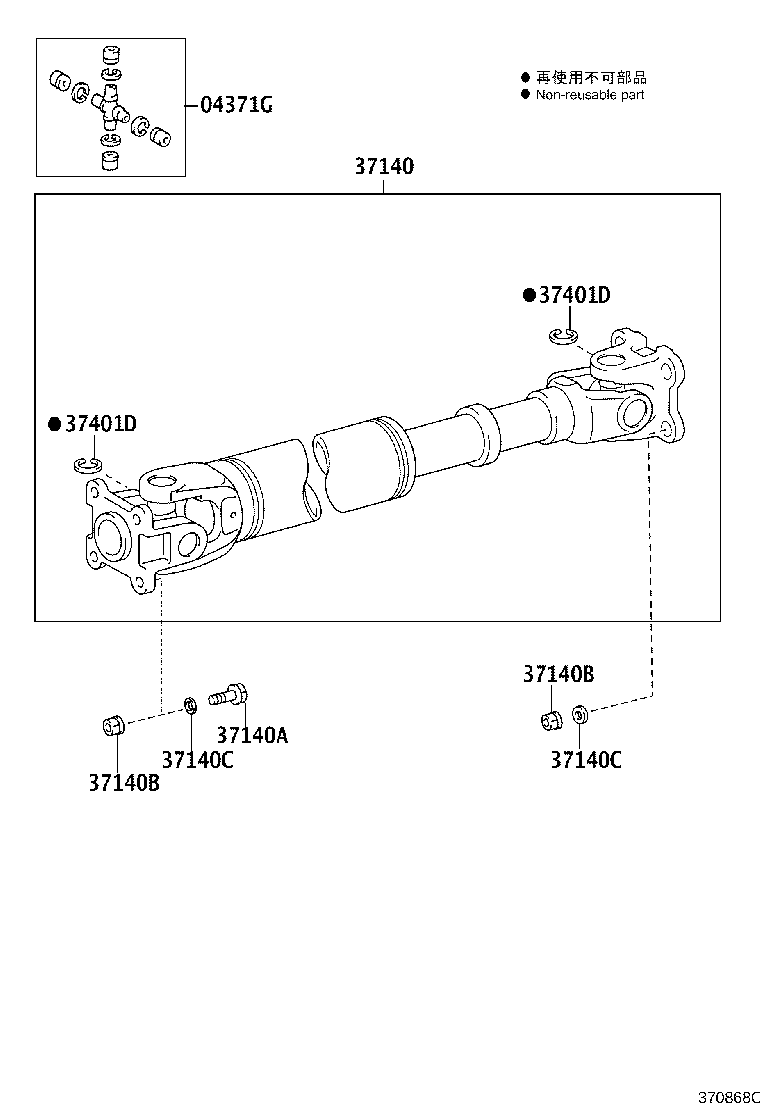

ILLUST NO. 1 OF 2(1505- )GGN125,GUN125,126,KUN125,126,TGN126..MDC,MSC,PDC,PSC,TDC,TSC,TXT
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371G - SPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-0K110 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT |
2 | ||
| 37140 - SHAFT ASSY, PROPELLER, FRONT | ||||
| 37140-0K030 |
GUN125..(TSC,TXT)..6F;GUN126,KUN125..(PDC,PSC,TDC,TSC,TXT)..6F;GUN125,KUN126..(PDC,PSC,TDC)..6F..(GCC,GEN,IDN,LA,PH,PKN,TH,VN) |
1 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90105-T0084 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
4 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90178-T0024 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
8 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90178-T0024 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90201-T0003 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90201-T0003 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
8 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90520-T0014 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.33,MARK 3 |
1 | ||
| 90520-T0009 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.23,MARK H |
1 | ||
| 90520-T0010 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.25,MARK J |
1 | ||
| 90520-T0007 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.19,MARK F |
1 | ||
| 90520-T0011 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.27,MARK K |
1 | ||
| 90520-T0012 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.29,MARK 1 |
1 | ||
| 90520-T0019 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.43,MARK 8 |
1 | ||
| 90520-T0017 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.39,MARK 6 |
1 | ||
| 90520-T0015 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.35,MARK 4 |
1 | ||
| 90520-T0025 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.55,MARK D |
1 | ||
| 90520-T0022 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.49,MARK A |
1 | ||
| 90520-T0020 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.45,MARK N |
1 | ||
| 90520-T0026 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.57,MARK E |
1 | ||
| 90520-T0023 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.51,MARK B |
1 | ||
| 90520-T0018 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.41,MARK 7 |
1 | ||
| 90520-T0008 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.21,MARK G |
1 | ||
| 90520-T0016 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.37,MARK 5 |
1 | ||
| 90520-T0021 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.47,MARK 10 |
1 | ||
| 90520-T0024 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.53,MARK C |
1 | ||
| 90520-T0013 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.31,MARK 2 |
1 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90520-T0014 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.33,MARK 3 |
1 | ||
| 90520-T0009 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.23,MARK H |
1 | ||
| 90520-T0010 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.25,MARK J |
1 | ||
| 90520-T0007 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.19,MARK F |
1 | ||
| 90520-T0011 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.27,MARK K |
1 | ||
| 90520-T0012 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.29,MARK 1 |
1 | ||
| 90520-T0019 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.43,MARK 8 |
1 | ||
| 90520-T0017 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.39,MARK 6 |
1 | ||
| 90520-T0015 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.35,MARK 4 |
1 | ||
| 90520-T0025 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.55,MARK D |
1 | ||
| 90520-T0022 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.49,MARK A |
1 | ||
| 90520-T0020 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.45,MARK N |
1 | ||
| 90520-T0026 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.57,MARK E |
1 | ||
| 90520-T0023 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.51,MARK B |
1 | ||
| 90520-T0018 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.41,MARK 7 |
1 | ||
| 90520-T0008 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.21,MARK G |
1 | ||
| 90520-T0016 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.37,MARK 5 |
1 | ||
| 90520-T0021 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.47,MARK 10 |
1 | ||
| 90520-T0024 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.53,MARK C |
1 | ||
| 90520-T0013 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.31,MARK 2 |
1 | ||

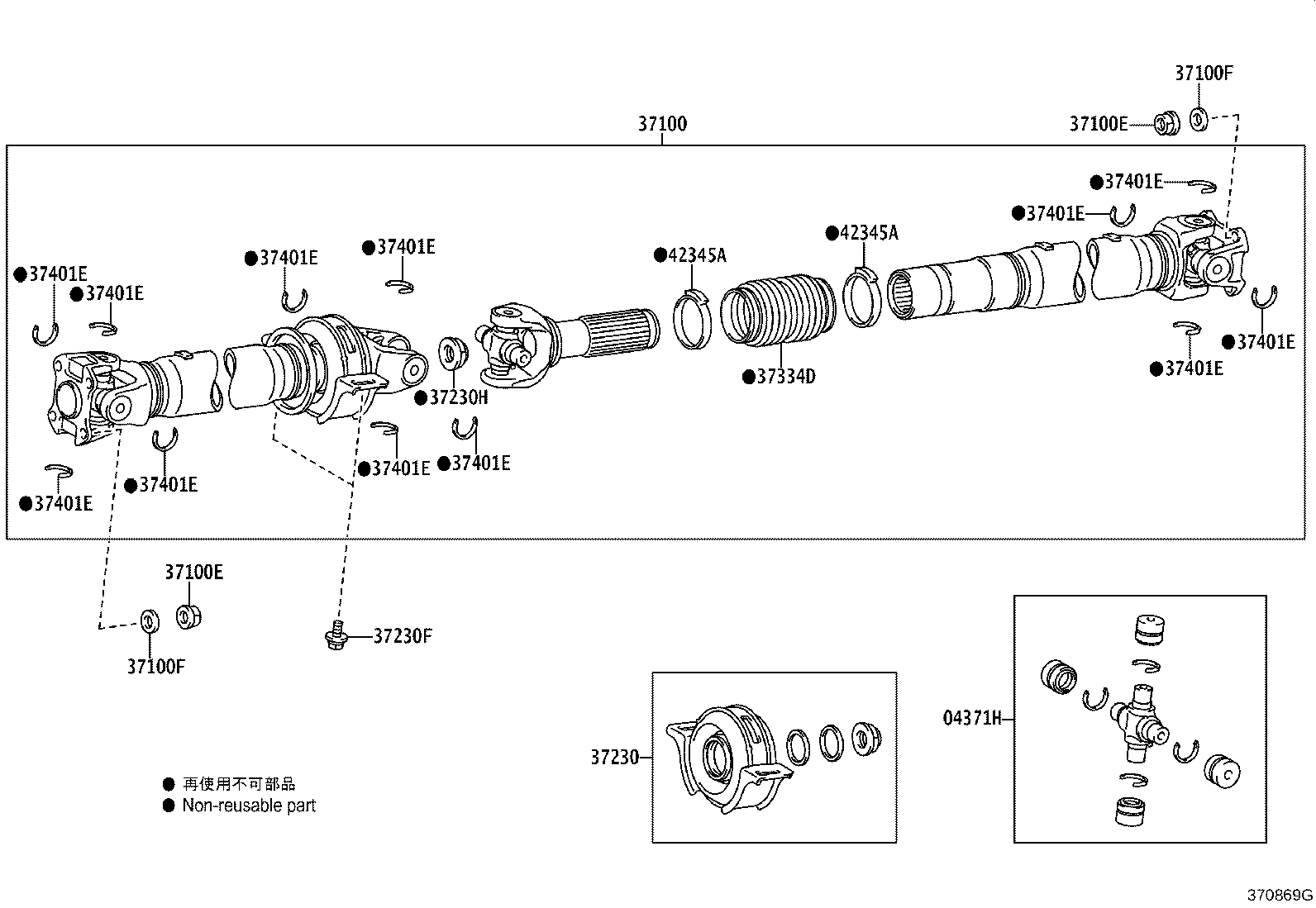

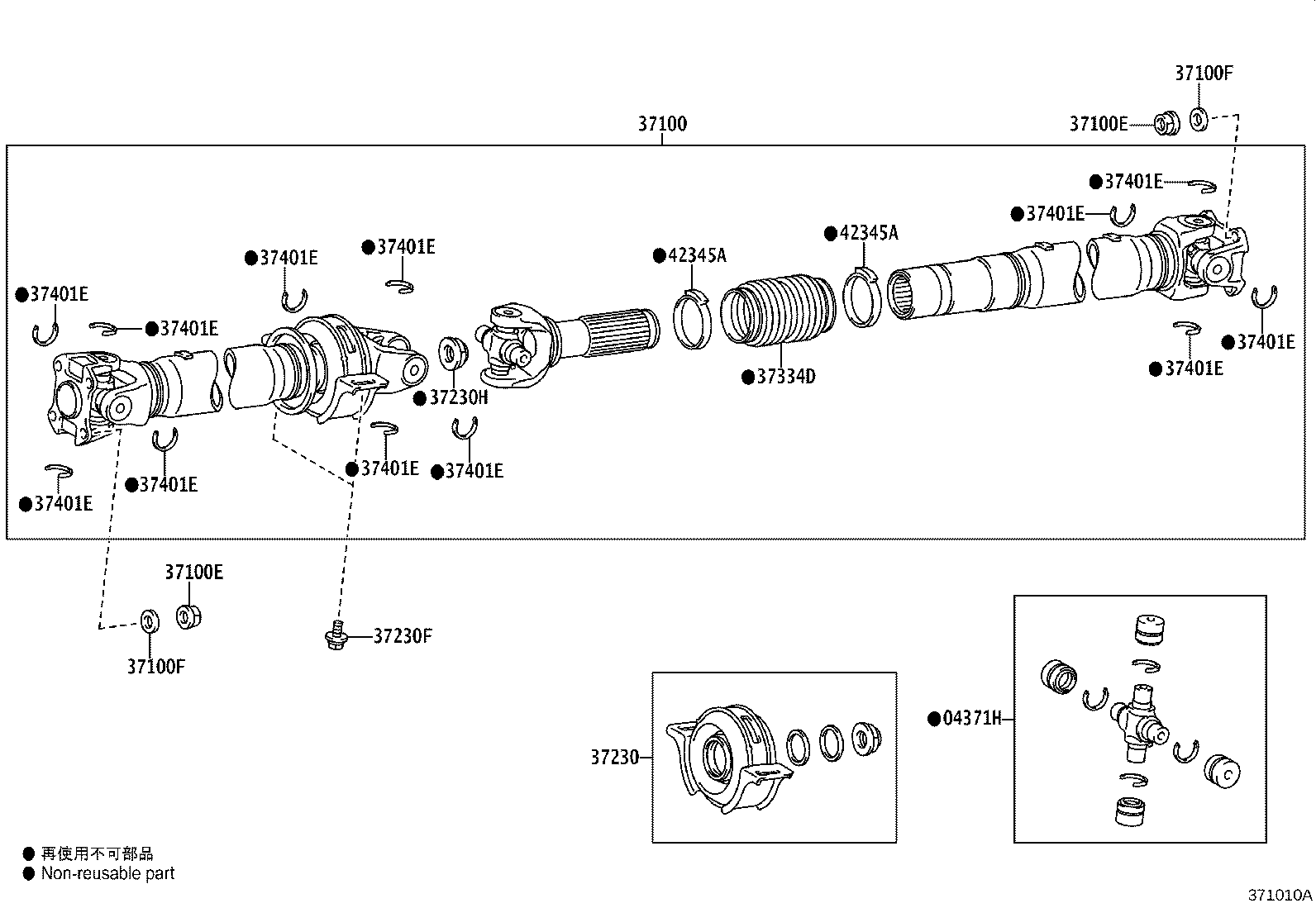

ILLUST NO. 2 OF 2(1505- )GGN125,GUN125,126,KUN125,126,TGN126..MDC,MSC,PDC,PSC,TDC,TSC,TXT
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-0K120 |
GUN126..L..GEN;GUN125..(TSC,TXT)..6F;GUN126,135..(MDC,PDC,PSC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) |
3 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-0KG70 |
GUN125,126,KUN125,126..(MDC,MSC,PDC,PSC,TDC,TSC,TXT)..6F |
1 | ||
| 37100-0KG71 |
GUN125..(TSC,TXT)..6F;GUN126..(PDC,PSC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN) |
1 | ||
| 37100E - NUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90178-T0024 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
8 | ||
| 37100E - NUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90178-T0024 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
8 | ||
| 37100F - WASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-T0003 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
8 | ||
| 37100F - WASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-T0003 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
8 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-09030 |
GUN125,135..(MDC,MSC,TDC,TSC,TXT)..6F;GUN126,136,KUN125,126,13#..(MDC,PDC,PSC,TDC,TSC,TXT)..(6F,6FC) |
1 | ||
| 37230-09120 |
GUN125..(TSC,TXT)..6F;GUN135..(TDC,TSC,TXT)..6F;GUN126,136..PDC,PSC,TDC,TSC,TXT;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN) |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-T0148 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
2 | ||
| 37230H - NUT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90177-T0020 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) |
1 | ||
| 37334D - BOOT, REAR PROPELLER SHAFT | ||||
| 37334-0K020 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0225 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.06,MARK C |
1 | ||
| 90520-T0231 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.07,MARK 5 |
1 | ||
| 90520-T0232 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK 6 |
1 | ||
| 90520-T0223 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.00,MARK A |
1 | ||
| 90520-T0224 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK B |
1 | ||
| 90520-T0227 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=1.99,MARK 1 |
1 | ||
| 90520-T0229 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK 3 |
1 | ||
| 90520-T0230 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.05,MARK 4 |
1 | ||
| 90520-T0228 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.01,MARK 2 |
1 | ||
| 90520-T0234 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.13,MARK 8 |
1 | ||
| 90520-T0226 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK D |
1 | ||
| 90520-T0235 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.15,MARK N |
1 | ||
| 90520-T0233 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.11,MARK 7 |
1 | ||
| 90520-T0236 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.17,MARK 10 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0225 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.06,MARK C |
1 | ||
| 90520-T0231 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.07,MARK 5 |
1 | ||
| 90520-T0232 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK 6 |
1 | ||
| 90520-T0223 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.00,MARK A |
1 | ||
| 90520-T0224 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK B |
1 | ||
| 90520-T0227 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=1.99,MARK 1 |
1 | ||
| 90520-T0229 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK 3 |
1 | ||
| 90520-T0230 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.05,MARK 4 |
1 | ||
| 90520-T0228 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.01,MARK 2 |
1 | ||
| 90520-T0234 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.13,MARK 8 |
1 | ||
| 90520-T0226 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK D |
1 | ||
| 90520-T0235 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.15,MARK N |
1 | ||
| 90520-T0233 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.11,MARK 7 |
1 | ||
| 90520-T0236 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.17,MARK 10 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0225 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.06,MARK C |
1 | ||
| 90520-T0231 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.07,MARK 5 |
1 | ||
| 90520-T0232 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK 6 |
1 | ||
| 90520-T0223 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.00,MARK A |
1 | ||
| 90520-T0224 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK B |
1 | ||
| 90520-T0227 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=1.99,MARK 1 |
1 | ||
| 90520-T0229 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK 3 |
1 | ||
| 90520-T0230 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.05,MARK 4 |
1 | ||
| 90520-T0228 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.01,MARK 2 |
1 | ||
| 90520-T0234 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.13,MARK 8 |
1 | ||
| 90520-T0226 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK D |
1 | ||
| 90520-T0235 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.15,MARK N |
1 | ||
| 90520-T0233 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.11,MARK 7 |
1 | ||
| 90520-T0236 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.17,MARK 10 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0225 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.06,MARK C |
1 | ||
| 90520-T0231 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.07,MARK 5 |
1 | ||
| 90520-T0232 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK 6 |
1 | ||
| 90520-T0223 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.00,MARK A |
1 | ||
| 90520-T0224 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK B |
1 | ||
| 90520-T0227 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=1.99,MARK 1 |
1 | ||
| 90520-T0229 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK 3 |
1 | ||
| 90520-T0230 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.05,MARK 4 |
1 | ||
| 90520-T0228 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.01,MARK 2 |
1 | ||
| 90520-T0234 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.13,MARK 8 |
1 | ||
| 90520-T0226 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK D |
1 | ||
| 90520-T0235 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.15,MARK N |
1 | ||
| 90520-T0233 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.11,MARK 7 |
1 | ||
| 90520-T0236 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.17,MARK 10 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0225 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.06,MARK C |
1 | ||
| 90520-T0231 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.07,MARK 5 |
1 | ||
| 90520-T0232 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK 6 |
1 | ||
| 90520-T0223 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.00,MARK A |
1 | ||
| 90520-T0224 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK B |
1 | ||
| 90520-T0227 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=1.99,MARK 1 |
1 | ||
| 90520-T0229 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK 3 |
1 | ||
| 90520-T0230 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.05,MARK 4 |
1 | ||
| 90520-T0228 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.01,MARK 2 |
1 | ||
| 90520-T0234 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.13,MARK 8 |
1 | ||
| 90520-T0226 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK D |
1 | ||
| 90520-T0235 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.15,MARK N |
1 | ||
| 90520-T0233 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.11,MARK 7 |
1 | ||
| 90520-T0236 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.17,MARK 10 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0225 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.06,MARK C |
1 | ||
| 90520-T0231 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.07,MARK 5 |
1 | ||
| 90520-T0232 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK 6 |
1 | ||
| 90520-T0223 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.00,MARK A |
1 | ||
| 90520-T0224 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK B |
1 | ||
| 90520-T0227 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=1.99,MARK 1 |
1 | ||
| 90520-T0229 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK 3 |
1 | ||
| 90520-T0230 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.05,MARK 4 |
1 | ||
| 90520-T0228 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.01,MARK 2 |
1 | ||
| 90520-T0234 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.13,MARK 8 |
1 | ||
| 90520-T0226 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK D |
1 | ||
| 90520-T0235 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.15,MARK N |
1 | ||
| 90520-T0233 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.11,MARK 7 |
1 | ||
| 90520-T0236 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.17,MARK 10 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0225 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.06,MARK C |
1 | ||
| 90520-T0231 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.07,MARK 5 |
1 | ||
| 90520-T0232 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK 6 |
1 | ||
| 90520-T0223 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.00,MARK A |
1 | ||
| 90520-T0224 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK B |
1 | ||
| 90520-T0227 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=1.99,MARK 1 |
1 | ||
| 90520-T0229 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK 3 |
1 | ||
| 90520-T0230 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.05,MARK 4 |
1 | ||
| 90520-T0228 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.01,MARK 2 |
1 | ||
| 90520-T0234 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.13,MARK 8 |
1 | ||
| 90520-T0226 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK D |
1 | ||
| 90520-T0235 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.15,MARK N |
1 | ||
| 90520-T0233 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.11,MARK 7 |
1 | ||
| 90520-T0236 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.17,MARK 10 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0225 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.06,MARK C |
1 | ||
| 90520-T0231 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.07,MARK 5 |
1 | ||
| 90520-T0232 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK 6 |
1 | ||
| 90520-T0223 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.00,MARK A |
1 | ||
| 90520-T0224 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK B |
1 | ||
| 90520-T0227 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=1.99,MARK 1 |
1 | ||
| 90520-T0229 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK 3 |
1 | ||
| 90520-T0230 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.05,MARK 4 |
1 | ||
| 90520-T0228 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.01,MARK 2 |
1 | ||
| 90520-T0234 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.13,MARK 8 |
1 | ||
| 90520-T0226 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK D |
1 | ||
| 90520-T0235 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.15,MARK N |
1 | ||
| 90520-T0233 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.11,MARK 7 |
1 | ||
| 90520-T0236 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.17,MARK 10 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0225 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.06,MARK C |
1 | ||
| 90520-T0231 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.07,MARK 5 |
1 | ||
| 90520-T0232 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK 6 |
1 | ||
| 90520-T0223 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.00,MARK A |
1 | ||
| 90520-T0224 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK B |
1 | ||
| 90520-T0227 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=1.99,MARK 1 |
1 | ||
| 90520-T0229 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK 3 |
1 | ||
| 90520-T0230 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.05,MARK 4 |
1 | ||
| 90520-T0228 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.01,MARK 2 |
1 | ||
| 90520-T0234 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.13,MARK 8 |
1 | ||
| 90520-T0226 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK D |
1 | ||
| 90520-T0235 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.15,MARK N |
1 | ||
| 90520-T0233 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.11,MARK 7 |
1 | ||
| 90520-T0236 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.17,MARK 10 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0225 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.06,MARK C |
1 | ||
| 90520-T0231 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.07,MARK 5 |
1 | ||
| 90520-T0232 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK 6 |
1 | ||
| 90520-T0223 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.00,MARK A |
1 | ||
| 90520-T0224 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK B |
1 | ||
| 90520-T0227 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=1.99,MARK 1 |
1 | ||
| 90520-T0229 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK 3 |
1 | ||
| 90520-T0230 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.05,MARK 4 |
1 | ||
| 90520-T0228 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.01,MARK 2 |
1 | ||
| 90520-T0234 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.13,MARK 8 |
1 | ||
| 90520-T0226 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK D |
1 | ||
| 90520-T0235 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.15,MARK N |
1 | ||
| 90520-T0233 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.11,MARK 7 |
1 | ||
| 90520-T0236 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.17,MARK 10 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0225 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.06,MARK C |
1 | ||
| 90520-T0231 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.07,MARK 5 |
1 | ||
| 90520-T0232 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK 6 |
1 | ||
| 90520-T0223 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.00,MARK A |
1 | ||
| 90520-T0224 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK B |
1 | ||
| 90520-T0227 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=1.99,MARK 1 |
1 | ||
| 90520-T0229 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK 3 |
1 | ||
| 90520-T0230 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.05,MARK 4 |
1 | ||
| 90520-T0228 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.01,MARK 2 |
1 | ||
| 90520-T0234 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.13,MARK 8 |
1 | ||
| 90520-T0226 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK D |
1 | ||
| 90520-T0235 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.15,MARK N |
1 | ||
| 90520-T0233 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.11,MARK 7 |
1 | ||
| 90520-T0236 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.17,MARK 10 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0225 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.06,MARK C |
1 | ||
| 90520-T0231 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.07,MARK 5 |
1 | ||
| 90520-T0232 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK 6 |
1 | ||
| 90520-T0223 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.00,MARK A |
1 | ||
| 90520-T0224 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK B |
1 | ||
| 90520-T0227 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=1.99,MARK 1 |
1 | ||
| 90520-T0229 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.03,MARK 3 |
1 | ||
| 90520-T0230 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.05,MARK 4 |
1 | ||
| 90520-T0228 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.01,MARK 2 |
1 | ||
| 90520-T0234 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.13,MARK 8 |
1 | ||
| 90520-T0226 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.09,MARK D |
1 | ||
| 90520-T0235 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.15,MARK N |
1 | ||
| 90520-T0233 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.11,MARK 7 |
1 | ||
| 90520-T0236 |
GUN125..(TSC,TXT)..6F;GUN135..(MDC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,136,KUN125,126,13#..(PDC,PSC,TDC,TSC,TXT)..(6F,6FC) T=2.17,MARK 10 |
1 | ||
| 42345A - CLAMP, REAR PROPELLER SHAFT BOOT | ||||
| 42345-0K260 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT |
2 | ||
| 42345A - CLAMP, REAR PROPELLER SHAFT BOOT | ||||
| 42345-0K260 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT |
2 | ||
ILLUST NO. 1 OF 2(1511- )GGN125,GUN125,126,KUN125,126,LAN125,TGN126,127,128..ADC,ASC,KDC,KSC,SDC,
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371G - SPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-0K110 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT |
2 | ||
| 37140 - SHAFT ASSY, PROPELLER, FRONT | ||||
| 37140-0K030 |
GUN125..(TSC,TXT)..6F;GUN126,KUN125..(PDC,PSC,TDC,TSC,TXT)..6F;GUN125,KUN126..(PDC,PSC,TDC)..6F..(GCC,GEN,IDN,LA,PH,PKN,TH,VN) |
1 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90105-T0084 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
4 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90178-T0024 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
8 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90178-T0024 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90201-T0003 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90201-T0003 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
8 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90520-T0014 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.33,MARK 3 |
1 | ||
| 90520-T0009 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.23,MARK H |
1 | ||
| 90520-T0010 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.25,MARK J |
1 | ||
| 90520-T0007 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.19,MARK F |
1 | ||
| 90520-T0011 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.27,MARK K |
1 | ||
| 90520-T0012 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.29,MARK 1 |
1 | ||
| 90520-T0019 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.43,MARK 8 |
1 | ||
| 90520-T0017 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.39,MARK 6 |
1 | ||
| 90520-T0015 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.35,MARK 4 |
1 | ||
| 90520-T0025 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.55,MARK D |
1 | ||
| 90520-T0022 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.49,MARK A |
1 | ||
| 90520-T0020 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.45,MARK N |
1 | ||
| 90520-T0026 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.57,MARK E |
1 | ||
| 90520-T0023 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.51,MARK B |
1 | ||
| 90520-T0018 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.41,MARK 7 |
1 | ||
| 90520-T0008 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.21,MARK G |
1 | ||
| 90520-T0016 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.37,MARK 5 |
1 | ||
| 90520-T0021 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.47,MARK 10 |
1 | ||
| 90520-T0024 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.53,MARK C |
1 | ||
| 90520-T0013 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.31,MARK 2 |
1 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90520-T0014 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.33,MARK 3 |
1 | ||
| 90520-T0009 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.23,MARK H |
1 | ||
| 90520-T0010 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.25,MARK J |
1 | ||
| 90520-T0007 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.19,MARK F |
1 | ||
| 90520-T0011 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.27,MARK K |
1 | ||
| 90520-T0012 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.29,MARK 1 |
1 | ||
| 90520-T0019 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.43,MARK 8 |
1 | ||
| 90520-T0017 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.39,MARK 6 |
1 | ||
| 90520-T0015 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.35,MARK 4 |
1 | ||
| 90520-T0025 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.55,MARK D |
1 | ||
| 90520-T0022 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.49,MARK A |
1 | ||
| 90520-T0020 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.45,MARK N |
1 | ||
| 90520-T0026 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.57,MARK E |
1 | ||
| 90520-T0023 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.51,MARK B |
1 | ||
| 90520-T0018 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.41,MARK 7 |
1 | ||
| 90520-T0008 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.21,MARK G |
1 | ||
| 90520-T0016 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.37,MARK 5 |
1 | ||
| 90520-T0021 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.47,MARK 10 |
1 | ||
| 90520-T0024 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.53,MARK C |
1 | ||
| 90520-T0013 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,TGN126..PDC,PSC,TDC,TSC,TXT T=2.31,MARK 2 |
1 | ||
| Common parts | ||||
| 90069-48005 | ||||
| 90069-48006 | ||||
ILLUST NO. 1 OF 2(2006- )GGN125,GUN125,126,TGN126..MD,MMD,MS,PD,PS,TD,TS,TX
FRONT
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(2006- )GGN125,GUN125,126,TGN126..MD,MMD,MS,PD,PS,TD,TS,TX
REAR
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
