Toyota Hilux GUN125 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
GR
HILUX
GUN125L-DTFXHF (2015)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

GUN125L-DTFXHF (2015)

Toyota Hilux

Production May 2015 - May 2020

Engine 2GDFTV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0408- )

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90068-14022
90068-14023
90068-14024
90068-14033
90068-14034
90068-14035
90099-14119
90099-14120
90099-14121

ILLUST NO. 1 OF 2(0408- )KUN10,16,25..ANCOM,ARL,GCC,GEN,LA,MA,SA,TH ; (0408- )KUN15..DCB,SCB,X

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty	Price
Common parts
88688-0K340
88718-0K060
88718-0KB20
88899-52050
90091-40617
90091-40620
90179-06274
91511-60630
91551-80625
Linked diagrams
8714
8719

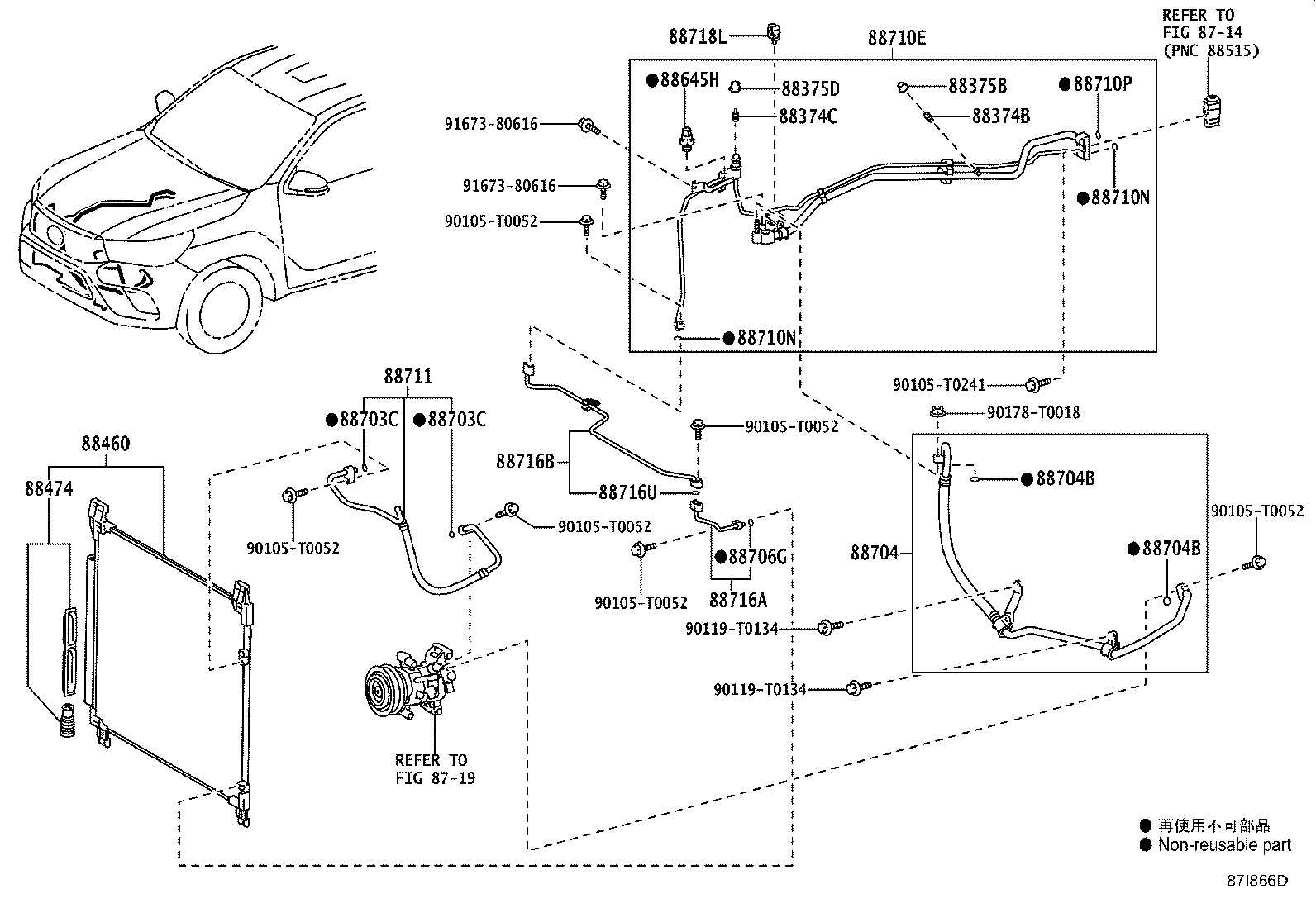

(1505- )TGN11#,12#,13#

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	GUN126..GCC;TGN126..M..GCC;GUN125..(L,M)..GCC;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN122,TGN126..(TDC,TSC)..(L,S,X)..(GCC,LA);GUN112,135,TGN11#,120,121..LHD..(TDC,TSC)..(L,M,S,X)..(GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88374-30010	GUN122..TDC..L..GEN;GUN125..(TDC,TSC)..X..LA;GUN125..LHD..TDC..S..GEN;GUN135,TGN126..TDC..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88374-30010	GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 05/2020	1
88374-30010	TGN126..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 10/2020	1
88374-30010	TGN126..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 10/2020	1
88374-30010	GUN122..GCC,PH;GUN125..TDC..X..LA;GUN122..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN125..TDC..(H,L,M,S);GUN122..(M,S)..DCR..GEN;KUN125,126,13#..ADC,ASC;GUN125..MDC,MSC,TSC,TXT;GUN122..RHD..(ARL,GEN,TH);GUN126,13#..MDC,TDC,TSC,TXT;GGN12#,GUN112,120,123,TGN11#,12#,13#..ARL,BZAGT,GCC,GEN,LA,TH	05/2015 - 12/2020	1
88374C - VALVE, SERVICE, NO.2
88374-30010	GUN122..TDC..L..GEN;GUN125..(TDC,TSC)..X..LA;GUN125..LHD..TDC..S..GEN;GUN135,TGN126..TDC..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88374-30010	GUN126..GCC;TGN126..M..GCC;GUN125..(L,M)..GCC;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN122,TGN126..(TDC,TSC)..(L,S,X)..(GCC,LA);GUN112,135,TGN11#,120,121..LHD..(TDC,TSC)..(L,M,S,X)..(GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88374-30010	TGN121..ARL;GUN122..M..GCC;GUN125..TSC..S..GCC;KUN122..L..GCC..CBU;KUN126..TDC..5FC..(L,X);KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;KUN125..TDC..(L,S)..(GCC,LA);GUN125,TGN126..LHD..TDC..S..GEN;GGN125,GUN122..LHD..TDC..(HDCR,HTWC);KUN122,126..(TDC,TSC)..(5F,5FC)..S..(GCC,LA);GGN12#,KUN112,126,13#,TGN136..(TDC,TSC)..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88374-30010	TGN126..TDC..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 05/2020	1
88374-30010	GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 05/2020	1
88374-30010	TGN126..TDC..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88374-30010	GUN122..GCC,PH;GUN125..TDC..X..LA;GUN122..LHD..TDC..X;KUN125..TDC,TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(H,L,M,S);GUN125..MDC,MSC,TSC,TXT;GUN122..(M,S)..DCR..GEN;GUN122..RHD..(ARL,GEN,TH);GGN12#,GUN112..ARL,GCC,TH;GUN120,123,126,13#,KUN112,122,126,13#,TGN11#,120,121,126,136..(MDC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,MA,PH,TAIW,TH,VN)	05/2015 - 12/2020	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	GUN126..GCC;TGN126..M..GCC;GUN125..(L,M)..GCC;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN122,TGN126..(TDC,TSC)..(L,S,X)..(GCC,LA);GUN112,135,TGN11#,120,121..LHD..(TDC,TSC)..(L,M,S,X)..(GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88375-30290	GUN122..TDC..L..GEN;GUN125..(TDC,TSC)..X..LA;GUN125..LHD..TDC..S..GEN;GUN135,TGN126..TDC..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88375-30290	GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 05/2020	1
88375-30290	TGN126..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 10/2020	1
88375-30290	TGN126..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 10/2020	1
88375-30290	GUN122..GCC,PH;GUN125..TDC..X..LA;GUN122..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN125..TDC..(H,L,M,S);GUN122..(M,S)..DCR..GEN;KUN125,126,13#..ADC,ASC;GUN125..MDC,MSC,TSC,TXT;GUN122..RHD..(ARL,GEN,TH);GUN126,13#..MDC,TDC,TSC,TXT;GGN12#,GUN112,120,123,TGN11#,12#,13#..ARL,BZAGT,GCC,GEN,LA,TH	05/2015 - 12/2020	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	GUN126..GCC;TGN126..M..GCC;GUN125..(L,M)..GCC;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN122,TGN126..(TDC,TSC)..(L,S,X)..(GCC,LA);GUN112,135,TGN11#,120,121..LHD..(TDC,TSC)..(L,M,S,X)..(GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88375-30280	GUN122..TDC..L..GEN;GUN125..(TDC,TSC)..X..LA;GUN125..LHD..TDC..S..GEN;GUN135,TGN126..TDC..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88375-30280	TGN121..ARL;GUN122..M..GCC;GUN125..TSC..S..GCC;KUN122..L..GCC..CBU;KUN126..TDC..5FC..(L,X);KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;KUN125..TDC..(L,S)..(GCC,LA);GUN125,TGN126..LHD..TDC..S..GEN;GGN125,GUN122..LHD..TDC..(HDCR,HTWC);KUN122,126..(TDC,TSC)..(5F,5FC)..S..(GCC,LA);GGN12#,KUN112,126,13#,TGN136..(TDC,TSC)..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88375-30280	TGN126..TDC..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(ASC,TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 10/2020	1
88375-30280	GUN135..TDC..X..LA;GUN125..(ASC,TDC,TSC)..X..LA BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 10/2020	1
88375-30280	TGN126..TDC..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(ASC,TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 10/2020	1
88375-30280	GUN122..GCC,PH;GUN125..TDC..X..LA;GUN122..LHD..TDC..X;KUN125..TDC,TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(H,L,M,S);GUN122..(M,S)..DCR..GEN;GUN122..RHD..(ARL,GEN,TH);GUN125..ADC,ASC,MDC,MSC,TSC,TXT;GUN126,13#..ADC,ASC,MDC,TDC,TSC,TXT;GGN12#,GUN112,120,123,KUN112,122,126,13#,TGN11#,120,121,126,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,TH,VN)	05/2015 - 12/2020	1
88460 - CONDENSER ASSY, COOLER
88460-0K360	KUN122..L..GCC..CBU;KUN126..TDC..5FC..(L,X);KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;KUN125..TDC..(L,S)..(GCC,LA);KUN122,126..(TDC,TSC)..(5F,5FC)..S..(GCC,LA);KUN112,126,13#..(TDC,TSC)..MTM..(L,S,X)..(GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 04/2019	1
88460-0K350	GUN122..TDC..L..GEN;GUN125..(TDC,TSC)..X..LA;GUN125..LHD..TDC..S..GEN;GUN135,TGN126..TDC..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88460-0K350	GUN122..GCC,PH;TGN121..L..CBU;GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);TGN126..(TDC,TSC)..CBU;GUN122..(M,S)..DCR..GEN;TGN121..(TDC,TSC)..(M,S,X);GUN125..TDC..(GCC,LA,PH,VN);GUN125..LHD..TDC..(L,M,S)..GEN;GUN122,125..RHD..(TDC,TSC,TXT);GGN12#,GUN112,120,123,126,13#,TGN11#,120,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,TAIW,TH,VN)	05/2015 - 05/2020	1
88460-0K350	GUN126..GCC;TGN126..M..GCC;TGN121..GEN..IV3;GUN125..(L,M)..GCC;TGN121..(GCC,GEN)..CBU;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN112,122,135,TGN11#,120,126..(TDC,TSC)..(L,S,X)..(GCC,LA)..CBU FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88474 - DRYER, COOLER
88474-12020	GUN126..GCC;TGN126..M..GCC;TGN121..GEN..IV3;GUN125..(L,M)..GCC;TGN121..(GCC,GEN)..CBU;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN112,122,135,TGN11#,120,126..(TDC,TSC)..(L,S,X)..(GCC,LA)..CBU FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88474-12020	GUN122..GCC,PH;GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);GUN122..(M,S)..DCR..GEN;GUN125..TDC..(GCC,LA,PH,VN);GUN122,125..RHD..(TDC,TSC,TXT);GUN125..LHD..TDC..(L,M,S)..GEN;KUN126,TGN121..(5F,5FC)..L..CBU;KUN125,TGN126..(TDC,TSC,TXT)..CBU;KUN126,TGN121..(PDC,TDC,TSC)..(H,M,S,X);GGN12#,GUN112,120,123,126,13#,KUN112,122,13#,TGN11#,120,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,TAIW,TH,VN)	05/2015 - 05/2020	1
88474-12020	GUN122..TDC..L..GEN;GUN125..(TDC,TSC)..X..LA;GUN125..LHD..TDC..S..GEN;GUN135,TGN126..TDC..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88474-12020	TGN121..ARL;GUN122..M..GCC;GUN125..TSC..S..GCC;KUN122..L..GCC..CBU;KUN126..TDC..5FC..(L,X);KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;KUN125..TDC..(L,S)..(GCC,LA);GUN125,TGN126..LHD..TDC..S..GEN;GGN125,GUN122..LHD..TDC..(HDCR,HTWC);KUN122,126..(TDC,TSC)..(5F,5FC)..S..(GCC,LA);GGN12#,KUN112,126,13#,TGN136..(TDC,TSC)..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88645H - SWITCH, PRESSURE NO.1
88645-0K030	GUN126..GCC;TGN126..M..GCC;GUN125..(L,M)..GCC;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN122,TGN126..(TDC,TSC)..(L,S,X)..(GCC,LA);GUN112,135,TGN11#,120,121..LHD..(TDC,TSC)..(L,M,S,X)..(GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88645-0K030	GUN122..TDC..L..GEN;GUN125..(TDC,TSC)..X..LA;GUN125..LHD..TDC..S..GEN;GUN135,TGN126..TDC..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88645-0K030	GUN135..TDC..X..LA;GUN125..(ASC,TDC,TSC)..X..LA BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 10/2020	1
88645-0K030	TGN126..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(ASC,TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 10/2020	1
88645-0K030	TGN126..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(ASC,TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 10/2020	1
88645-0K030	TGN121..ARL;GUN122..M..GCC;TGN136..ADC..S;KUN126..5FC..(L,X);GUN125..TSC..S..GCC;KUN122..L..GCC..CBU;KUN122,125..X..(GEN,LA);KUN125..(L,S)..(GCC,LA);KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;GUN125,TGN126..LHD..TDC..S..GEN;KUN122,126..(5F,5FC)..S..(GCC,LA);GGN125,GUN122..LHD..TDC..(HDCR,HTWC);TGN136..(ASC,TDC,TSC)..(S,X)..(GEN,LA);GGN12#,KUN112,126,13#..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 10/2020	1
88645-0K030	KUN126..L..GEN;KUN126..H,M,S,X;KUN122..LHD..SSC;GUN126..(H,M)..PKN;KUN125..SDC..(M,S);GUN122..LHD..TDC..X;GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122..(M,S)..DCR..GEN;GUN122..LHD..(GCC,PH,SA);GUN122..RHD..(ARL,GEN,TH);GUN135,KUN125..LHD..X..SA;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..LHD..(SDC,SSC,TDC)..X..(LA,SA);KUN125..(ADC,ASC,SSC,SXT,TDC,TSC,TXT)..DCR;KUN122,TGN120,136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,TH);GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S)..(GCC,GEN,LA,PH,SA,TH,VN);GGN12#,135,GUN112,120,123,126,136,KUN112,13#,LAN125,TGN11#,121,126,128,138..ARL,BZAGT,GCC,GEN,LA,PH,SA,TAIW,TH,VN	05/2015 - 12/2999	1
88704 - HOSE SUB-ASSY, SUCTION
88704-0KG20	GUN135..TDC..X..LA;GUN122..TDC..L..GEN;GUN125..LHD..TDC..S..GEN;GUN125..(TDC,TSC)..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88704-0KE50	KUN125..TDC..S..LA;KUN126..TDC..5FC..(L,X);KUN126..TDC..5FC..S..LA;KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125,136..RHD..TDC..(L,S)..GEN;KUN126,135..(TDC,TSC)..6F..(S,X)..DCR FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 04/2019	1
88704-0KG20	GUN126..GCC;GUN125..(L,M)..GCC;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN112,122,135..(TDC,TSC)..(L,S,X)..(GCC,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88704-0KG20	GUN122..GCC,PH;GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);GUN122..(M,S)..DCR..GEN;GUN125..TDC..(GCC,LA,PH,VN);GUN125..LHD..TDC..(L,S)..GEN;GUN122,125..RHD..(TDC,TSC,TXT);GUN112,120,123,126,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,TAIW,TH,VN)	05/2015 - 05/2020	1
88704-0KG20	GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 05/2020	1
88704-0KG20	GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88704-0KG20	GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 05/2020	1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0KE70	GUN135..TDC..X..LA;GUN122..TDC..L..GEN;GUN125..LHD..TDC..S..GEN;GUN125..(TDC,TSC)..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88710-0KE50	GGN12#,KUN112,12#,13#,TGN11#,120,121,126,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,TH,VN)	05/2015 - 05/2020	1
88710-0KE70	GUN126..GCC;GUN125..(L,M)..GCC;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN112,122,135..(TDC,TSC)..(L,S,X)..(GCC,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88710-0KE50	TGN121..ARL;TGN126..S..GEN;KUN122..L..GCC..CBU;KUN126..TDC..5FC..S..LA;KUN126..TDC..5FC..(L,X);KUN122,125..(TDC,TSC)..X;GGN125,KUN122..(M,S)..GCC;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;KUN125..TDC..(L,S)..(GCC,LA);GGN12#,KUN112,126,13#,TGN136..(TDC,TSC)..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88710-0KE70	GUN126..GCC;GUN125..(L,M)..GCC;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN112,122,135..(TDC,TSC)..(L,S,X)..(GCC,LA) FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 12/2019	1
88710-0KE70	GUN122..GCC,PH;GUN126..6F..H..TH;GUN126..H..(GEN,VN);GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);GUN122..(M,S)..DCR..GEN;GUN125..TDC..(GCC,LA,PH,VN);GUN122,125..RHD..(ARL,GEN,TH);GUN125..LHD..TDC..(L,M,S)..GEN;GUN126..(TDC,TSC,TXT)..(L,M,S,X);GUN112,120,123,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,TH,VN)	05/2015 - 05/2020	1
88710-0KE70	GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 05/2020	1
88710-0KE70	GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 05/2020	1
88710-0KE70	GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88710-0KR40	GUN126..GCC;GUN125..TDC..X..LA;GUN126,135..TDC..6F..(S,X)..LA;GUN112,122,125..(TDC,TSC)..(L,M,S)..(GCC,LA) FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 05/2020	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0K660	KUN125..TDC..S..LA;KUN126..TDC..5FC..(L,X);KUN126..TDC..5FC..S..LA;KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125,136..RHD..TDC..(L,S)..GEN;KUN126,135..(TDC,TSC)..6F..(S,X)..DCR FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 04/2019	1
88711-0KB50	GUN135..TDC..X..LA;GUN122..TDC..L..GEN;GUN125..LHD..TDC..S..GEN;GUN125..(TDC,TSC)..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88711-0KB50	GUN125..TDC..LA;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126,135..(TDC,TSC)..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88711-0KB50	GUN122..PH;GUN122..LHD..TDC..X;GUN122..(M,S)..DCR..GEN;GUN125..TDC..(LA,PH,VN);GUN122,125..RHD..(TDC,TSC,TXT);GUN125..LHD..TDC..(L,M,S)..GEN;GUN125..LHD..(TSC,TXT)..(GEN,LA);GUN112,120,123,126,13#..(TDC,TSC,TXT)..(ARL,GEN,LA,PH,TAIW,TH,VN)	05/2015 - 05/2020	1
88711-0KB50	GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88711-0KB50	GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 05/2020	1
88711-0KB50	GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 05/2020	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0KQ80	GUN122..TDC..L..GEN;GUN125..(TDC,TSC)..X..LA;GUN125..LHD..TDC..S..GEN;GUN135,TGN126..TDC..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88716-0KQ80	GUN126..GCC;TGN126..M..GCC;GUN125..(L,M)..GCC;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN122,TGN126..(TDC,TSC)..(L,S,X)..(GCC,LA);GUN112,135,TGN11#,120,121..LHD..(TDC,TSC)..(L,M,S,X)..(GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88716-0KQ80	GUN122..GCC,PH;GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);GUN122..(M,S)..DCR..GEN;GGN12#,KUN125..TDC,TSC,TXT;GUN125..TDC..(GCC,LA,PH,VN);GUN122,125..RHD..(TDC,TSC,TXT);GUN125..LHD..TDC..(L,M,S)..GEN;GUN112,120,123,126,13#,KUN112,122,126,13#,TGN11#,120,121,126,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,TAIW,TH,VN)	05/2015 - 05/2020	1
88716-0KQ80	TGN121..ARL;GUN122..M..GCC;GUN125..TSC..S..GCC;KUN122..L..GCC..CBU;KUN126..TDC..5FC..(L,X);KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;KUN125..TDC..(L,S)..(GCC,LA);GUN125,TGN126..LHD..TDC..S..GEN;GGN125,GUN122..LHD..TDC..(HDCR,HTWC);KUN122,126..(TDC,TSC)..(5F,5FC)..S..(GCC,LA);GGN12#,KUN112,126,13#,TGN136..(TDC,TSC)..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88716-0KQ80	GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 05/2020	1
88716-0KQ80	TGN126..TDC..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 05/2020	1
88716-0KQ80	TGN126..TDC..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88718L - CLAMP, PIPING
88718-0KF20	GUN126..GCC;GUN125..(L,M)..GCC;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN112,122,135..(TDC,TSC)..(L,S,X)..(GCC,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88718-0KF20	GUN135..TDC..X..LA;GUN122..TDC..L..GEN;GUN125..LHD..TDC..S..GEN;GUN125..(TDC,TSC)..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88718-0KF20	GUN122..GCC,PH;GUN126..6F..H..TH;GUN126..H..(GEN,VN);GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);GUN122..(M,S)..DCR..GEN;GUN125..TDC..(GCC,LA,PH,VN);GUN122,125..RHD..(TDC,TSC,TXT);GUN125..LHD..TDC..(L,M,S)..GEN;GUN126..(TDC,TSC,TXT)..(L,M,S,X);GUN112,120,123,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,TH,VN)	05/2015 - 05/2020	1
88718-0KF20	GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88718-0KF20	GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 05/2020	1
88718-0KF20	GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 05/2020	1
88718-0KF20	TGN121..ARL;TGN126..S..GEN;KUN122..L..GCC..CBU;KUN126..TDC..5FC..S..LA;KUN126..TDC..5FC..(L,X);KUN122,125..(TDC,TSC)..X;GGN125,KUN122..(M,S)..GCC;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;KUN125..TDC..(L,S)..(GCC,LA);GGN12#,KUN112,126,13#,TGN136..(TDC,TSC)..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	2
88718L - CLAMP, PIPING
88718-0KF20	GUN126..GCC;GUN125..(L,M)..GCC;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN112,122,135..(TDC,TSC)..(L,S,X)..(GCC,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88718-0KF20	GUN135..TDC..X..LA;GUN122..TDC..L..GEN;GUN125..LHD..TDC..S..GEN;GUN125..(TDC,TSC)..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88718-0KF20	GUN122..GCC,PH;GUN126..6F..H..TH;GUN126..H..(GEN,VN);GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);GUN122..(M,S)..DCR..GEN;GUN125..TDC..(GCC,LA,PH,VN);GUN122,125..RHD..(TDC,TSC,TXT);GUN125..LHD..TDC..(L,M,S)..GEN;GUN126..(TDC,TSC,TXT)..(L,M,S,X);GUN112,120,123,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,TH,VN)	05/2015 - 05/2020	1
88718-0KF20	GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88718-0KF20	GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 05/2020	1
88718-0KF20	GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 05/2020	1
88718-0KF20	TGN121..ARL;TGN126..S..GEN;KUN122..L..GCC..CBU;KUN126..TDC..5FC..S..LA;KUN126..TDC..5FC..(L,X);KUN122,125..(TDC,TSC)..X;GGN125,KUN122..(M,S)..GCC;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;KUN125..TDC..(L,S)..(GCC,LA);GGN12#,KUN112,126,13#,TGN136..(TDC,TSC)..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	2
Common parts
90068-14022
90068-14023
90068-14024
90099-14119
90099-14120
90099-14121
90105-T0052
90105-T0241
90119-T0134
90178-T0018
91673-80616
Linked diagrams
8714
8719

(1505- )KUN112,12#,13#

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	GUN126..GCC;TGN126..M..GCC;GUN125..(L,M)..GCC;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN122,TGN126..(TDC,TSC)..(L,S,X)..(GCC,LA);GUN112,135,TGN11#,120,121..LHD..(TDC,TSC)..(L,M,S,X)..(GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88374-30010	GUN122..TDC..L..GEN;GUN125..(TDC,TSC)..X..LA;GUN125..LHD..TDC..S..GEN;GUN135,TGN126..TDC..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88374-30010	GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 05/2020	1
88374-30010	TGN126..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 10/2020	1
88374-30010	TGN126..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 10/2020	1
88374-30010	GUN122..GCC,PH;GUN125..TDC..X..LA;GUN122..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN125..TDC..(H,L,M,S);GUN122..(M,S)..DCR..GEN;KUN125,126,13#..ADC,ASC;GUN125..MDC,MSC,TSC,TXT;GUN122..RHD..(ARL,GEN,TH);GUN126,13#..MDC,TDC,TSC,TXT;GGN12#,GUN112,120,123,TGN11#,12#,13#..ARL,BZAGT,GCC,GEN,LA,TH	05/2015 - 12/2020	1
88374C - VALVE, SERVICE, NO.2
88374-30010	GUN122..TDC..L..GEN;GUN125..(TDC,TSC)..X..LA;GUN125..LHD..TDC..S..GEN;GUN135,TGN126..TDC..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88374-30010	GUN126..GCC;TGN126..M..GCC;GUN125..(L,M)..GCC;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN122,TGN126..(TDC,TSC)..(L,S,X)..(GCC,LA);GUN112,135,TGN11#,120,121..LHD..(TDC,TSC)..(L,M,S,X)..(GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88374-30010	TGN121..ARL;GUN122..M..GCC;GUN125..TSC..S..GCC;KUN122..L..GCC..CBU;KUN126..TDC..5FC..(L,X);KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;KUN125..TDC..(L,S)..(GCC,LA);GUN125,TGN126..LHD..TDC..S..GEN;GGN125,GUN122..LHD..TDC..(HDCR,HTWC);KUN122,126..(TDC,TSC)..(5F,5FC)..S..(GCC,LA);GGN12#,KUN112,126,13#,TGN136..(TDC,TSC)..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88374-30010	TGN126..TDC..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 05/2020	1
88374-30010	GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 05/2020	1
88374-30010	TGN126..TDC..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88374-30010	GUN122..GCC,PH;GUN125..TDC..X..LA;GUN122..LHD..TDC..X;KUN125..TDC,TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(H,L,M,S);GUN125..MDC,MSC,TSC,TXT;GUN122..(M,S)..DCR..GEN;GUN122..RHD..(ARL,GEN,TH);GGN12#,GUN112..ARL,GCC,TH;GUN120,123,126,13#,KUN112,122,126,13#,TGN11#,120,121,126,136..(MDC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,MA,PH,TAIW,TH,VN)	05/2015 - 12/2020	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	GUN126..GCC;TGN126..M..GCC;GUN125..(L,M)..GCC;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN122,TGN126..(TDC,TSC)..(L,S,X)..(GCC,LA);GUN112,135,TGN11#,120,121..LHD..(TDC,TSC)..(L,M,S,X)..(GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88375-30290	GUN122..TDC..L..GEN;GUN125..(TDC,TSC)..X..LA;GUN125..LHD..TDC..S..GEN;GUN135,TGN126..TDC..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88375-30290	GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 05/2020	1
88375-30290	TGN126..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 10/2020	1
88375-30290	TGN126..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 10/2020	1
88375-30290	GUN122..GCC,PH;GUN125..TDC..X..LA;GUN122..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN125..TDC..(H,L,M,S);GUN122..(M,S)..DCR..GEN;KUN125,126,13#..ADC,ASC;GUN125..MDC,MSC,TSC,TXT;GUN122..RHD..(ARL,GEN,TH);GUN126,13#..MDC,TDC,TSC,TXT;GGN12#,GUN112,120,123,TGN11#,12#,13#..ARL,BZAGT,GCC,GEN,LA,TH	05/2015 - 12/2020	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	GUN126..GCC;TGN126..M..GCC;GUN125..(L,M)..GCC;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN122,TGN126..(TDC,TSC)..(L,S,X)..(GCC,LA);GUN112,135,TGN11#,120,121..LHD..(TDC,TSC)..(L,M,S,X)..(GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88375-30280	GUN122..TDC..L..GEN;GUN125..(TDC,TSC)..X..LA;GUN125..LHD..TDC..S..GEN;GUN135,TGN126..TDC..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88375-30280	TGN121..ARL;GUN122..M..GCC;GUN125..TSC..S..GCC;KUN122..L..GCC..CBU;KUN126..TDC..5FC..(L,X);KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;KUN125..TDC..(L,S)..(GCC,LA);GUN125,TGN126..LHD..TDC..S..GEN;GGN125,GUN122..LHD..TDC..(HDCR,HTWC);KUN122,126..(TDC,TSC)..(5F,5FC)..S..(GCC,LA);GGN12#,KUN112,126,13#,TGN136..(TDC,TSC)..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88375-30280	TGN126..TDC..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(ASC,TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 10/2020	1
88375-30280	GUN135..TDC..X..LA;GUN125..(ASC,TDC,TSC)..X..LA BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 10/2020	1
88375-30280	TGN126..TDC..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(ASC,TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 10/2020	1
88375-30280	GUN122..GCC,PH;GUN125..TDC..X..LA;GUN122..LHD..TDC..X;KUN125..TDC,TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(H,L,M,S);GUN122..(M,S)..DCR..GEN;GUN122..RHD..(ARL,GEN,TH);GUN125..ADC,ASC,MDC,MSC,TSC,TXT;GUN126,13#..ADC,ASC,MDC,TDC,TSC,TXT;GGN12#,GUN112,120,123,KUN112,122,126,13#,TGN11#,120,121,126,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,TH,VN)	05/2015 - 12/2020	1
88460 - CONDENSER ASSY, COOLER
88460-0K360	KUN122..L..GCC..CBU;KUN126..TDC..5FC..(L,X);KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;KUN125..TDC..(L,S)..(GCC,LA);KUN122,126..(TDC,TSC)..(5F,5FC)..S..(GCC,LA);KUN112,126,13#..(TDC,TSC)..MTM..(L,S,X)..(GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 04/2019	1
88460-0K350	GUN122..TDC..L..GEN;GUN125..(TDC,TSC)..X..LA;GUN125..LHD..TDC..S..GEN;GUN135,TGN126..TDC..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88460-0K350	GUN122..GCC,PH;TGN121..L..CBU;GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);TGN126..(TDC,TSC)..CBU;GUN122..(M,S)..DCR..GEN;TGN121..(TDC,TSC)..(M,S,X);GUN125..TDC..(GCC,LA,PH,VN);GUN125..LHD..TDC..(L,M,S)..GEN;GUN122,125..RHD..(TDC,TSC,TXT);GGN12#,GUN112,120,123,126,13#,TGN11#,120,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,TAIW,TH,VN)	05/2015 - 05/2020	1
88460-0K350	GUN126..GCC;TGN126..M..GCC;TGN121..GEN..IV3;GUN125..(L,M)..GCC;TGN121..(GCC,GEN)..CBU;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN112,122,135,TGN11#,120,126..(TDC,TSC)..(L,S,X)..(GCC,LA)..CBU FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88474 - DRYER, COOLER
88474-12020	GUN126..GCC;TGN126..M..GCC;TGN121..GEN..IV3;GUN125..(L,M)..GCC;TGN121..(GCC,GEN)..CBU;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN112,122,135,TGN11#,120,126..(TDC,TSC)..(L,S,X)..(GCC,LA)..CBU FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88474-12020	GUN122..GCC,PH;GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);GUN122..(M,S)..DCR..GEN;GUN125..TDC..(GCC,LA,PH,VN);GUN122,125..RHD..(TDC,TSC,TXT);GUN125..LHD..TDC..(L,M,S)..GEN;KUN126,TGN121..(5F,5FC)..L..CBU;KUN125,TGN126..(TDC,TSC,TXT)..CBU;KUN126,TGN121..(PDC,TDC,TSC)..(H,M,S,X);GGN12#,GUN112,120,123,126,13#,KUN112,122,13#,TGN11#,120,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,TAIW,TH,VN)	05/2015 - 05/2020	1
88474-12020	GUN122..TDC..L..GEN;GUN125..(TDC,TSC)..X..LA;GUN125..LHD..TDC..S..GEN;GUN135,TGN126..TDC..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88474-12020	TGN121..ARL;GUN122..M..GCC;GUN125..TSC..S..GCC;KUN122..L..GCC..CBU;KUN126..TDC..5FC..(L,X);KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;KUN125..TDC..(L,S)..(GCC,LA);GUN125,TGN126..LHD..TDC..S..GEN;GGN125,GUN122..LHD..TDC..(HDCR,HTWC);KUN122,126..(TDC,TSC)..(5F,5FC)..S..(GCC,LA);GGN12#,KUN112,126,13#,TGN136..(TDC,TSC)..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88645H - SWITCH, PRESSURE NO.1
88645-0K030	GUN126..GCC;TGN126..M..GCC;GUN125..(L,M)..GCC;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN122,TGN126..(TDC,TSC)..(L,S,X)..(GCC,LA);GUN112,135,TGN11#,120,121..LHD..(TDC,TSC)..(L,M,S,X)..(GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88645-0K030	GUN122..TDC..L..GEN;GUN125..(TDC,TSC)..X..LA;GUN125..LHD..TDC..S..GEN;GUN135,TGN126..TDC..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88645-0K030	GUN135..TDC..X..LA;GUN125..(ASC,TDC,TSC)..X..LA BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 10/2020	1
88645-0K030	TGN126..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(ASC,TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 10/2020	1
88645-0K030	TGN126..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(ASC,TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 10/2020	1
88645-0K030	TGN121..ARL;GUN122..M..GCC;TGN136..ADC..S;KUN126..5FC..(L,X);GUN125..TSC..S..GCC;KUN122..L..GCC..CBU;KUN122,125..X..(GEN,LA);KUN125..(L,S)..(GCC,LA);KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;GUN125,TGN126..LHD..TDC..S..GEN;KUN122,126..(5F,5FC)..S..(GCC,LA);GGN125,GUN122..LHD..TDC..(HDCR,HTWC);TGN136..(ASC,TDC,TSC)..(S,X)..(GEN,LA);GGN12#,KUN112,126,13#..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 10/2020	1
88645-0K030	KUN126..L..GEN;KUN126..H,M,S,X;KUN122..LHD..SSC;GUN126..(H,M)..PKN;KUN125..SDC..(M,S);GUN122..LHD..TDC..X;GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122..(M,S)..DCR..GEN;GUN122..LHD..(GCC,PH,SA);GUN122..RHD..(ARL,GEN,TH);GUN135,KUN125..LHD..X..SA;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..LHD..(SDC,SSC,TDC)..X..(LA,SA);KUN125..(ADC,ASC,SSC,SXT,TDC,TSC,TXT)..DCR;KUN122,TGN120,136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,TH);GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S)..(GCC,GEN,LA,PH,SA,TH,VN);GGN12#,135,GUN112,120,123,126,136,KUN112,13#,LAN125,TGN11#,121,126,128,138..ARL,BZAGT,GCC,GEN,LA,PH,SA,TAIW,TH,VN	05/2015 - 12/2999	1
88704 - HOSE SUB-ASSY, SUCTION
88704-0KG20	GUN135..TDC..X..LA;GUN122..TDC..L..GEN;GUN125..LHD..TDC..S..GEN;GUN125..(TDC,TSC)..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88704-0KE50	KUN125..TDC..S..LA;KUN126..TDC..5FC..(L,X);KUN126..TDC..5FC..S..LA;KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125,136..RHD..TDC..(L,S)..GEN;KUN126,135..(TDC,TSC)..6F..(S,X)..DCR FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 04/2019	1
88704-0KG20	GUN126..GCC;GUN125..(L,M)..GCC;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN112,122,135..(TDC,TSC)..(L,S,X)..(GCC,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88704-0KG20	GUN122..GCC,PH;GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);GUN122..(M,S)..DCR..GEN;GUN125..TDC..(GCC,LA,PH,VN);GUN125..LHD..TDC..(L,S)..GEN;GUN122,125..RHD..(TDC,TSC,TXT);GUN112,120,123,126,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,TAIW,TH,VN)	05/2015 - 05/2020	1
88704-0KG20	GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 05/2020	1
88704-0KG20	GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88704-0KG20	GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 05/2020	1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0KE70	GUN135..TDC..X..LA;GUN122..TDC..L..GEN;GUN125..LHD..TDC..S..GEN;GUN125..(TDC,TSC)..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88710-0KE50	GGN12#,KUN112,12#,13#,TGN11#,120,121,126,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,TH,VN)	05/2015 - 05/2020	1
88710-0KE70	GUN126..GCC;GUN125..(L,M)..GCC;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN112,122,135..(TDC,TSC)..(L,S,X)..(GCC,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88710-0KE50	TGN121..ARL;TGN126..S..GEN;KUN122..L..GCC..CBU;KUN126..TDC..5FC..S..LA;KUN126..TDC..5FC..(L,X);KUN122,125..(TDC,TSC)..X;GGN125,KUN122..(M,S)..GCC;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;KUN125..TDC..(L,S)..(GCC,LA);GGN12#,KUN112,126,13#,TGN136..(TDC,TSC)..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88710-0KE70	GUN126..GCC;GUN125..(L,M)..GCC;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN112,122,135..(TDC,TSC)..(L,S,X)..(GCC,LA) FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 12/2019	1
88710-0KE70	GUN122..GCC,PH;GUN126..6F..H..TH;GUN126..H..(GEN,VN);GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);GUN122..(M,S)..DCR..GEN;GUN125..TDC..(GCC,LA,PH,VN);GUN122,125..RHD..(ARL,GEN,TH);GUN125..LHD..TDC..(L,M,S)..GEN;GUN126..(TDC,TSC,TXT)..(L,M,S,X);GUN112,120,123,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,TH,VN)	05/2015 - 05/2020	1
88710-0KE70	GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 05/2020	1
88710-0KE70	GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 05/2020	1
88710-0KE70	GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88710-0KR40	GUN126..GCC;GUN125..TDC..X..LA;GUN126,135..TDC..6F..(S,X)..LA;GUN112,122,125..(TDC,TSC)..(L,M,S)..(GCC,LA) FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 05/2020	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0K660	KUN125..TDC..S..LA;KUN126..TDC..5FC..(L,X);KUN126..TDC..5FC..S..LA;KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125,136..RHD..TDC..(L,S)..GEN;KUN126,135..(TDC,TSC)..6F..(S,X)..DCR FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 04/2019	1
88711-0KB50	GUN135..TDC..X..LA;GUN122..TDC..L..GEN;GUN125..LHD..TDC..S..GEN;GUN125..(TDC,TSC)..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88711-0KB50	GUN125..TDC..LA;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126,135..(TDC,TSC)..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88711-0KB50	GUN122..PH;GUN122..LHD..TDC..X;GUN122..(M,S)..DCR..GEN;GUN125..TDC..(LA,PH,VN);GUN122,125..RHD..(TDC,TSC,TXT);GUN125..LHD..TDC..(L,M,S)..GEN;GUN125..LHD..(TSC,TXT)..(GEN,LA);GUN112,120,123,126,13#..(TDC,TSC,TXT)..(ARL,GEN,LA,PH,TAIW,TH,VN)	05/2015 - 05/2020	1
88711-0KB50	GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88711-0KB50	GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 05/2020	1
88711-0KB50	GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 05/2020	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0K660	KUN125..TDC..S..LA;KUN126..TDC..5FC..(L,X);KUN126..TDC..5FC..S..LA;KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125,136..RHD..TDC..(L,S)..GEN;KUN126,135..(TDC,TSC)..6F..(S,X)..DCR FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 04/2019	1
88711-0KB50	GUN135..TDC..X..LA;GUN122..TDC..L..GEN;GUN125..LHD..TDC..S..GEN;GUN125..(TDC,TSC)..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88711-0KB50	GUN125..TDC..LA;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126,135..(TDC,TSC)..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88711-0KB50	GUN122..PH;GUN122..LHD..TDC..X;GUN122..(M,S)..DCR..GEN;GUN125..TDC..(LA,PH,VN);GUN122,125..RHD..(TDC,TSC,TXT);GUN125..LHD..TDC..(L,M,S)..GEN;GUN125..LHD..(TSC,TXT)..(GEN,LA);GUN112,120,123,126,13#..(TDC,TSC,TXT)..(ARL,GEN,LA,PH,TAIW,TH,VN)	05/2015 - 05/2020	1
88711-0KB50	GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88711-0KB50	GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 05/2020	1
88711-0KB50	GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 05/2020	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0KQ80	GUN122..TDC..L..GEN;GUN125..(TDC,TSC)..X..LA;GUN125..LHD..TDC..S..GEN;GUN135,TGN126..TDC..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88716-0KQ80	GUN126..GCC;TGN126..M..GCC;GUN125..(L,M)..GCC;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN122,TGN126..(TDC,TSC)..(L,S,X)..(GCC,LA);GUN112,135,TGN11#,120,121..LHD..(TDC,TSC)..(L,M,S,X)..(GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88716-0KQ80	GUN122..GCC,PH;GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);GUN122..(M,S)..DCR..GEN;GGN12#,KUN125..TDC,TSC,TXT;GUN125..TDC..(GCC,LA,PH,VN);GUN122,125..RHD..(TDC,TSC,TXT);GUN125..LHD..TDC..(L,M,S)..GEN;GUN112,120,123,126,13#,KUN112,122,126,13#,TGN11#,120,121,126,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,TAIW,TH,VN)	05/2015 - 05/2020	1
88716-0KQ80	TGN121..ARL;GUN122..M..GCC;GUN125..TSC..S..GCC;KUN122..L..GCC..CBU;KUN126..TDC..5FC..(L,X);KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;KUN125..TDC..(L,S)..(GCC,LA);GUN125,TGN126..LHD..TDC..S..GEN;GGN125,GUN122..LHD..TDC..(HDCR,HTWC);KUN122,126..(TDC,TSC)..(5F,5FC)..S..(GCC,LA);GGN12#,KUN112,126,13#,TGN136..(TDC,TSC)..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88716-0KQ80	GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 05/2020	1
88716-0KQ80	TGN126..TDC..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 05/2020	1
88716-0KQ80	TGN126..TDC..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88718L - CLAMP, PIPING
88718-0KF20	GUN126..GCC;GUN125..(L,M)..GCC;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN112,122,135..(TDC,TSC)..(L,S,X)..(GCC,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88718-0KF20	GUN135..TDC..X..LA;GUN122..TDC..L..GEN;GUN125..LHD..TDC..S..GEN;GUN125..(TDC,TSC)..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88718-0KF20	GUN122..GCC,PH;GUN126..6F..H..TH;GUN126..H..(GEN,VN);GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);GUN122..(M,S)..DCR..GEN;GUN125..TDC..(GCC,LA,PH,VN);GUN122,125..RHD..(TDC,TSC,TXT);GUN125..LHD..TDC..(L,M,S)..GEN;GUN126..(TDC,TSC,TXT)..(L,M,S,X);GUN112,120,123,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,TH,VN)	05/2015 - 05/2020	1
88718-0KF20	GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88718-0KF20	GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 05/2020	1
88718-0KF20	GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 05/2020	1
88718-0KF20	TGN121..ARL;TGN126..S..GEN;KUN122..L..GCC..CBU;KUN126..TDC..5FC..S..LA;KUN126..TDC..5FC..(L,X);KUN122,125..(TDC,TSC)..X;GGN125,KUN122..(M,S)..GCC;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;KUN125..TDC..(L,S)..(GCC,LA);GGN12#,KUN112,126,13#,TGN136..(TDC,TSC)..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	2
88718L - CLAMP, PIPING
88718-0KF20	GUN126..GCC;GUN125..(L,M)..GCC;GUN126..TDC..6FC..M..LA;GUN122..LHD..TDC..X..DCR;GUN126..TDC..6F..(S,X)..LA;GUN125..TDC..(S,X)..(GCC,LA);GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA);GUN112,122,135..(TDC,TSC)..(L,S,X)..(GCC,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 12/2019	1
88718-0KF20	GUN135..TDC..X..LA;GUN122..TDC..L..GEN;GUN125..LHD..TDC..S..GEN;GUN125..(TDC,TSC)..X..LA FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 12/2019	1
88718-0KF20	GUN122..GCC,PH;GUN126..6F..H..TH;GUN126..H..(GEN,VN);GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);GUN122..(M,S)..DCR..GEN;GUN125..TDC..(GCC,LA,PH,VN);GUN122,125..RHD..(TDC,TSC,TXT);GUN125..LHD..TDC..(L,M,S)..GEN;GUN126..(TDC,TSC,TXT)..(L,M,S,X);GUN112,120,123,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,TH,VN)	05/2015 - 05/2020	1
88718-0KF20	GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	1
88718-0KF20	GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS	05/2015 - 05/2020	1
88718-0KF20	GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA) BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)	05/2015 - 05/2020	1
88718-0KF20	TGN121..ARL;TGN126..S..GEN;KUN122..L..GCC..CBU;KUN126..TDC..5FC..S..LA;KUN126..TDC..5FC..(L,X);KUN122,125..(TDC,TSC)..X;GGN125,KUN122..(M,S)..GCC;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;KUN125..TDC..(L,S)..(GCC,LA);GGN12#,KUN112,126,13#,TGN136..(TDC,TSC)..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)	05/2015 - 05/2020	2
Common parts
90068-14022
90068-14023
90068-14024
90099-14119
90099-14120
90099-14121
90105-T0052
90105-T0241
90119-T0134
91551-80625
91673-80616
Linked diagrams
8714
8719

(2006- )GUN112,12#,13#..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

W/O(SUB-COOL ACCELERATOR)

Part #	Description	Period	Qty	Price
Common parts
90105-T0052
90105-T0241
90119-T0134
90178-T0018
91673-80616
Linked diagrams
8714
8719

(2006- )GUN125,126,135..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

W(SUB-COOL ACCELERATOR)

Part #	Description	Period	Qty	Price
Common parts
88688-0K860
90105-T0052
90105-T0241
90119-T0134
90178-T0018
91673-80616
Linked diagrams
8714
8719

(2006- )GUN125..TD..LA ; (2006- )GUN126,136..LA,TWN ; (2006- )GUN125..AD,A

Click highlighted areas on diagram

EURO 6C OR EURO 6D-TEMP

Part #	Description	Period	Qty	Price
Common parts
90105-T0052
90105-T0241
90119-T0134
90178-T0018
91673-80616
Linked diagrams
8714
8719

(2006- )TGN11#,12#,13#

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty	Price
Common parts
90105-T0052
90105-T0241
90119-T0134
90178-T0018
91673-80616
Linked diagrams
8714
8719

(2006- )GUN112,122,125,126,135..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty	Price
Common parts
90105-T0052
90105-T0241
90119-T0134
90178-T0018
90179-06156
91551-80625
Linked diagrams
8714
8719

GUN125L-DTFXHF (2015)

ILLUST NO. 2 OF 2(0408- )

ILLUST NO. 1 OF 2(0408- )KUN10,16,25..ANCOM,ARL,GCC,GEN,LA,MA,SA,TH ; (0408- )KUN15..DCB,SCB,X

(1505- )TGN11#,12#,13#

(1505- )KUN112,12#,13#

(2006- )GUN112,12#,13#..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

(2006- )GUN125,126,135..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

(2006- )GUN125..TD..LA ; (2006- )GUN126,136..LA,TWN ; (2006- )GUN125..AD,A

(2006- )TGN11#,12#,13#

(2006- )GUN112,122,125,126,135..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,

Part Price Details
