GUN125L-DTFXHF (2015)

Toyota Hilux

Production May 2015 - May 2020
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )1GDFTV,2GDFTV

Click highlighted areas on diagram

diagram 12268B 1701 1701 17341F 17341G 17341G 17342F 17342G 17342G 17343E 17344E 17344F 17344F 17361J 17362B 17362E 17363K 17700 17701 17705 17710B 17750A 17781A 17781A 17801 17881 17881A 17894B 17940D 22204 2606 9009900289 90119T0101 90119T0145 90119T0145 90119T0145 90119T0145 90167T0033 9038709064 90387T0026 9048018006 90480T0011 90480T0011
Part # Description Qty Price
12268B - HOSE, OIL RETURN
12268-0L020

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
17341F - HOSE, AIR, NO.1
17341-0L020

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-65012

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 2
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-65012

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 2
17342F - HOSE, AIR, NO.2(FOR INTERCOOLER)
17342-0L020

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER)
90460-65012

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 2
17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER)
90460-65012

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 2
17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3)
90460-80006

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
17344E - HOSE, AIR, NO.4
17344-0L020

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4)
90460-65012

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 2
17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4)
90460-65012

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 2
17361J - TUBE, AIR, NO.1
17361-0L021

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
17362B - TUBE, AIR, NO.2
17362-0L020

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
17362E - CLAMP, NO.2(FOR AIR TUBE, NO.2)
90460-67008

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
17363K - TUBE, AIR, NO.3(FOR INTERCOOLER)
17363-0L020

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
17700 - CLEANER ASSY, AIR
17700-0L350

2GDFTV..GUN125..TSC,TXT;2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN135..MDC,TDC,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN112,120,122,123,126,136..PDC,PSC,TDC,TSC,TXT

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0C170

2GDFTV..GUN125..TSC,TXT;2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN135..MDC,TDC,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1G#,2GDFTV..GGN12#,GUN112,120,122,123,126,136..PDC,PSC,TDC,TSC,TXT

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0L290

2GDFTV..GUN125..TSC,TXT;2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN135..MDC,TDC,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN112,120,122,123,126,136..PDC,PSC,TDC,TSC,TXT

 1
17710B - GROMMET
90480-11016

1GDFTV,2GDFTV..GUN112,12#,13#..MDC,MSC,TDC,TSC,TXT

(L)

 2
90480-T0011

2GDFTV..GUN125..TSC,TXT;2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN135..MDC,TDC,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN112,120,122,123,126,136..PDC,PSC,TDC,TSC,TXT

(L)

 2
17750A - INLET ASSY, AIR CLEANER
17750-0L060

1GDFTV,2GDFTV..GUN112,12#,13#..TDC,TSC,TXT

 1
17781A - CLAMP, HOSE
90466-07002

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 2
17781A - CLAMP, HOSE
90466-07002

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 2
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0L040

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1G#,2GDFTV..GGN12#,135,GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-0L120

1GDFTV,2GDFTV..GUN112,12#,13#..ADC,ASC,MDC,MSC,PDC,PSC,TDC,TSC,TXT

 1
17881-0E020

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN112,120,122,123,126,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

MADE IN THAILAND

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-T0005

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1G#,2GDFTV..GGN12#,135,GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
90460-T0020

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1G#,2GDFTV..GGN12#,135,GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
17940D - INTERCOOLER ASSY
17940-0L110

2GDFTV..GUN125..TSC,TXT;2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN135..MDC,TDC,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN112,120,122,123,126,136..PDC,PSC,TDC,TSC,TXT

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-30030

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
Common parts
90099-00289
90119-T0101
90119-T0145
90167-T0033
90387-09064
90387-T0026
90480-18006
90480-T0011
Linked diagrams
1701
2606

(2006- )2GDFTV..GUN125..TD..LA ; (2006- )1GDFTV..GUN126,136..LA,TWN ; (2006-

Click highlighted areas on diagram

W(INTERCOOLER (WATER COOLED TYPE))

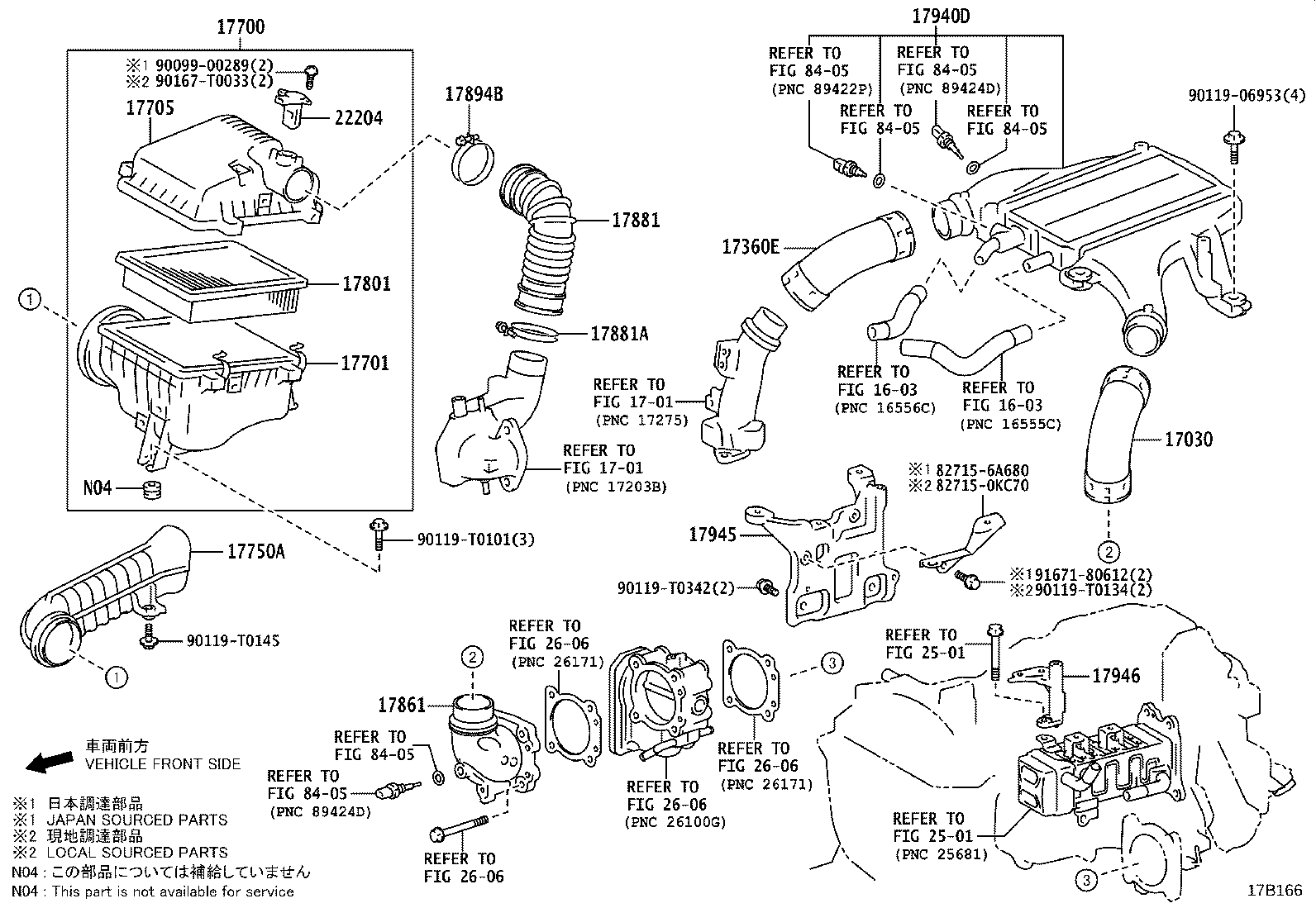

diagram 1603 1603 1701 1701 17030 17360E 17700 17701 17705 17750A 17801 17861 17881 17881A 17894B 17940D 17945 17946 22204 2501 2501 2606 2606 2606 2606 827150KC70 827156A680 8405 8405 8405 8405 8405 8405 9009900289 9011906953 90119T0101 90119T0134 90119T0145 90119T0342 90167T0033 9167180612
Part # Description Qty Price
Common parts
82715-0KC70
82715-6A680
90099-00289
90119-06953
90119-T0101
90119-T0134
90119-T0145
90119-T0342
90167-T0033
91671-80612
Linked diagrams
1603
1701
2501
2606
8405

(2006- )1GDFTV,2GDFTV..GUN112,12#,136..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN

Click highlighted areas on diagram

W(INTERCOOLER (AIR COOLED TYPE))

diagram 1105 1701 1701 17302B 17341F 17361J 17362B 17700 17701 17705 17710B 17750A 17801 17861 17881 17881A 17894B 17940D 22204 2606 8405 8405 9009900289 90119T0101 90119T0145 90119T0145 90119T0145 90119T0145 90167T0033 90387T0026 9048018006 90480T0011 90480T0011
Part # Description Qty Price
Common parts
90099-00289
90119-T0101
90119-T0145
90167-T0033
90387-T0026
90480-18006
90480-T0011
Linked diagrams
1105
1701
2606
8405
