GUN125L-DGFLXG (2020)

Toyota Hilux

Production Nov 2020 - Nov 2021
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )AD

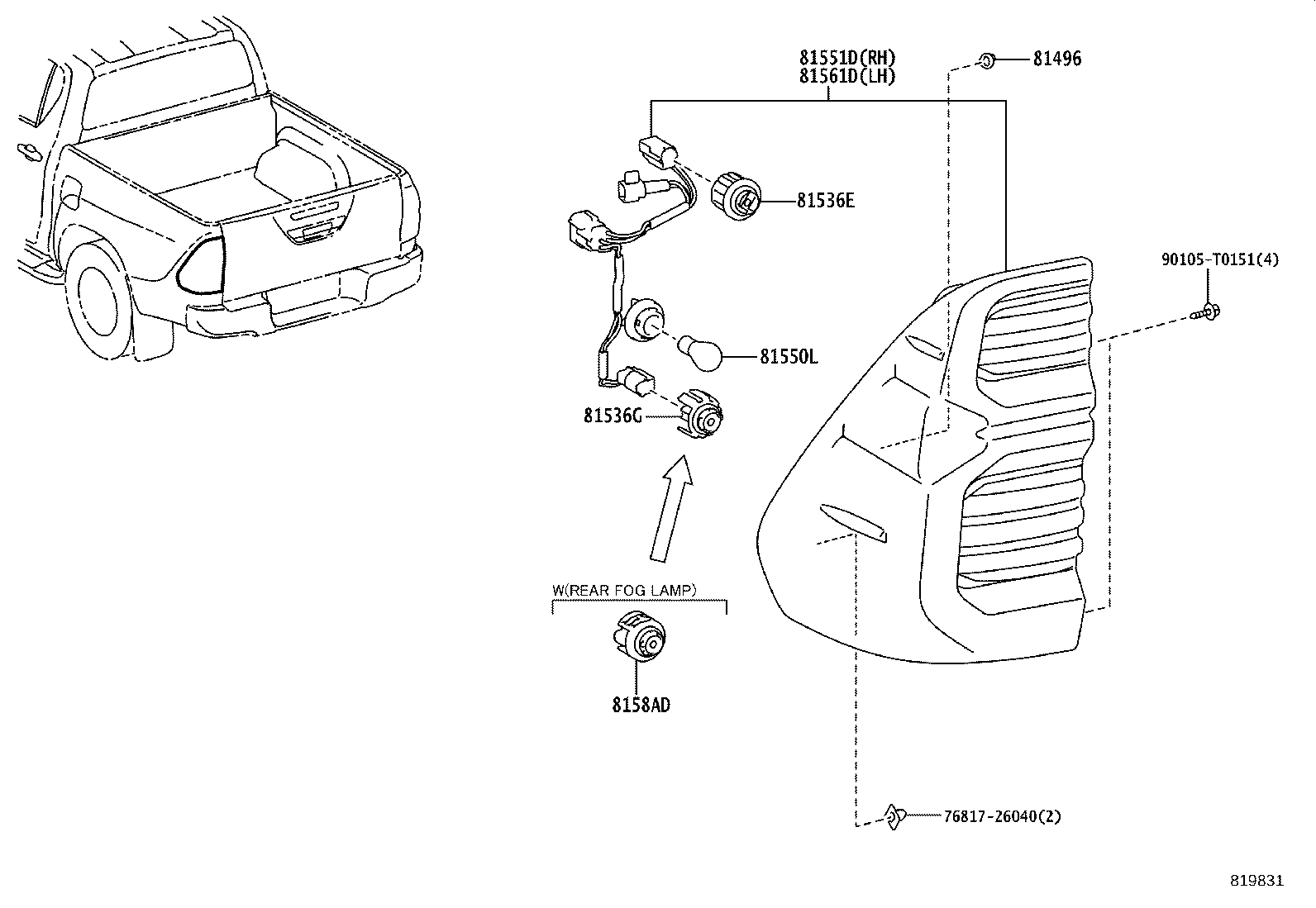

Click highlighted areas on diagram

REAR TAIL & STOP LAMP = LED TYPE

diagram 7681726040 81496 81536E 81536G 81550L 81551D 81561D 8158AD 90105T0151
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-0D040

GUN125..H..MA;GUN126..(AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX)..CBU;GGN125,GUN112,120,122,123,125,13#,LAN125,TGN11#,12#,13#..(AD,AS,KD,KS,SD,SS,SX,TD,TS,TX)..CBU

(L)

 2
81496-52020

GUN125..H..MA;GUN126..(AD,AS,KD,MD,MMD,SD,SS,SX,TD,TS,TX)..CBU;GGN125,GUN112,120,122,123,125,13#,LAN125,TGN11#,12#,13#..(AD,AS,KD,KS,SD,SS,SX,TD,TS,TX)..CBU

(J)

 2
81536G - LED, BACK-UP LAMP
8158A-12260

TGN126..H..(GCC,GEN);GUN126,136..H..(BZAG,GCC,MA,TWN);GGN125,GUN125..H..(BZAG,GCC,LA,MA)

 1
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15020

GUN126,136..(L,S)..BZAG..CBU;GUN125,135,TGN128,13#..BZAG..CBU

12V 21W,AMBER,PNC 81560 = VALEO

 2
90981-15028

GUN125,135,TGN128,13#..(AD,AS)..CBU;GUN126,136,TGN126..(AD,AS)..(L,S)..CBU

12V 21W,AMBER,PNC 81560 = KOITO

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-0K261

GUN125,135,TGN128,13#..(AD,AS)..CBU;GUN126,136,TGN126..(AD,AS)..(L,S)..CBU

KOITO

 1
81551-0K300

GUN125,135,TGN128,13#..(AD,AS)..CBU;GUN126,136,TGN126..(AD,AS)..(L,S)..CBU

VALEO

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-0K271

GUN126,136..(L,S)..BZAG..CBU;GUN125,135,TGN128,13#..BZAG..CBU

KOITO

 1
81561-0K310

GUN126,136..(L,S)..BZAG..CBU;GUN125,135,TGN128,13#..BZAG..CBU

VALEO

 1
8158AD - LED, REAR FOG LAMP
8158A-0D610

TGN126..H..(GCC,GEN);GUN126,136..H..(BZAG,GCC,MA,TWN);GGN125,GUN125..H..(BZAG,GCC,LA,MA)

 1
Common parts
76817-26040
90105-T0151
