GUN123R-CTMSYQ (2015)
Toyota Hilux
ILLUST NO. 1 OF 2(1506- )SXT,TXT..CBU
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61783E - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-0K160 |
GUN125..6FC..ARL..CBU;GUN135..(ADC,ASC,MDC,TDC,TSC,TXT)..CBU;GUN125..(BZAGT,GCC,GEN,IDN,LA,PH,TH,VN)..CBU;GGN12#,GUN112,120,122,123,126,136,KUN112,12#,13#,TGN11#,120,121,126,128,13#..(ADC,ASC,PDC,PSC,TDC,TSC,TXT)..CBU |
2 | ||
| 65505 - POST SUB-ASSY, SIDE PANEL REAR END, RH | ||||
| 65505-KK010 |
TGN121..(L,S)..TH;GUN136..TDC..(H,M);GUN126..TDC..M..ARL;GGN125..(ADC,TDC)..(H,M);GUN126..TDC..(GEN,LA,PH,TAIW,TH,VN);GUN123,126,136..(ADC,PDC,SXT,TXT)..CBU;GUN135..(ADC,MDC,SXT,TDC,TXT)..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,122,125,KUN12#,13#,TGN126,128,13#..(ADC,PDC,SXT,TDC,TXT)..(BZAGT,GEN,IDN,LA,PH,PKN,SA,TH,VN) EXCEPT PLANT TSAM |
1 | ||
| 65593A - PLATE, SIDE PANEL REAR END POST INSIDE, RH | ||||
| 65593-KK010 |
GUN136..TDC..(H,M);GUN126..TDC..M..ARL;GGN125..(ADC,SDC,TDC)..(H,M);TGN121..(SDC,TDC,TXT)..(SA,TH);GUN126..TDC..(GEN,LA,PH,TAIW,TH,VN);GUN122..(SDC,TDC,TXT)..5F..(GEN,PH,SA,TH);GUN135..(ADC,MDC,SDC,SXT,TDC,TXT)..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GGN135,GUN123,126,136,LAN125,TGN128,138..(ADC,PDC,SDC,SXT,TXT)..CBU;GUN125,KUN12#,13#,TGN126,136..(ADC,PDC,SDC,SXT,TDC,TXT)..(BZAGT,GEN,IDN,LA,PH,PKN,SA,TH,VN) |
1 | ||
| 65635A - PANEL, WHEEL HOUSE, REAR RH | ||||
| 65635-KK010 |
TGN136..SDC;GUN135..X..LA;GUN125..TSC..LA;TGN126..(L,X)..CBU;TGN136..ADC..X..LA;KUN135..(ADC,TDC)..X;GUN125..TDC..S..(GCC,PH);TGN136..(ASC,TDC,TSC)..X;KUN125..RHD..(SDC,SSC,TSC,TXT);GUN125..RHD..(SDC,SSC,TSC)..CBU;KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,KUN125..(ADC,ASC,TDC)..(L,X)..(DCR,HDCR);GUN135..(ASC,SDC,SSC,TDC)..(L,S,X)..(BZAGT,GEN,PH,SA)..CBU;GUN126,136,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X)..CBU;GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA)..CBU;GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..(5F,6FC)..CBU |
1 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-0K070 |
TGN126..TSC..S;KUN126,135..L,X;KUN125..RHD..(TSC,TXT);KUN125..(ADC,ASC,TDC)..(L,X);GUN125,135..TDC..S..(GCC,PH);KUN125..LHD..(TSC,TXT)..(L,X);GUN125..TDC..(L,X)..(GCC,GEN,LA);GUN125,126..TSC..(GCC,GEN,IDN,LA);GUN135..(TDC,TSC)..(L,X)..(GEN,LA);GUN126,TGN126,136..(PDC,PSC,TDC,TSC)..(L,X)..CBU;GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121..(PSC,TDC,TSC,TXT)..CBU |
1 | ||
| 65671D - BRACE, SIDE PANEL SKIRT, FRONT RH | ||||
| 65608-KK010 |
GUN126..SSC..S;GUN122..(PSC,SSC,TSC,TXT)..5F..CBU;GUN125,135,KUN12#,LAN125,TGN120,121..(ASC,PSC,SSC,SXT,TSC,TXT)..CBU;GUN112,123,126,136,KUN112,135,TGN11#,126,136..(ASC,PSC,SXT,TSC,TXT)..CBU |
1 | ||
| 66301B - HOOK SUB-ASSY, ROPE | ||||
| 66312-0K010 |
GUN136..TDC..(H,M);GUN126..TDC..M..ARL;GGN125..(SDC,TDC)..M;TGN121..(SDC,TDC,TXT)..(SA,TH);GUN126..TDC..(GEN,LA,PH,TAIW,TH,VN);GUN123,126,136..(PDC,SDC,SXT,TXT)..CBU;GUN135..(MDC,SDC,SXT,TDC,TXT)..(GEN,LA,MA,PH,SA,TH,VN);GGN135,GUN120,122,125,KUN12#,13#,LAN125,TGN126,136..(PDC,SDC,SXT,TDC,TXT)..(GEN,IDN,LA,PH,PKN,SA,TH,VN) |
4 | ||
| 76645E - BRACKET, RR BODY MUDGUARD, RH | ||||
| 76645-KK010 |
TGN136..SDC;GUN135..X..LA;GUN125..TSC..LA;TGN126..(L,X)..CBU;TGN136..ADC..X..LA;KUN135..(ADC,TDC)..X;GUN125..TDC..S..(GCC,PH);TGN136..(ASC,TDC,TSC)..X;KUN125..RHD..(SDC,SSC,TSC,TXT);GUN125..RHD..(SDC,SSC,TSC)..CBU;KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,KUN125..(ADC,ASC,TDC)..(L,X)..(DCR,HDCR);GUN135..(ASC,SDC,SSC,TDC)..(L,S,X)..(BZAGT,GEN,PH,SA)..CBU;GUN126,136,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X)..CBU;GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA)..CBU;GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..(5F,6FC)..CBU |
1 | ||
| 76917H - MUDGUARD, SIDE, REAR RH | ||||
| 76607-KK010 |
GUN122..5F..CBU;GUN125..6FC..ARL..CBU;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN)..CBU;GUN125..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN)..CBU;GUN112,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..CBU |
1 | ||
| Common parts | ||||
| 90119-T0139 | ||||
| 90154-T0002 | ||||
| 90157-T0004 | ||||
| 90159-T0036 | ||||
| 90189-06214 | ||||
| 90467-07215 | ||||

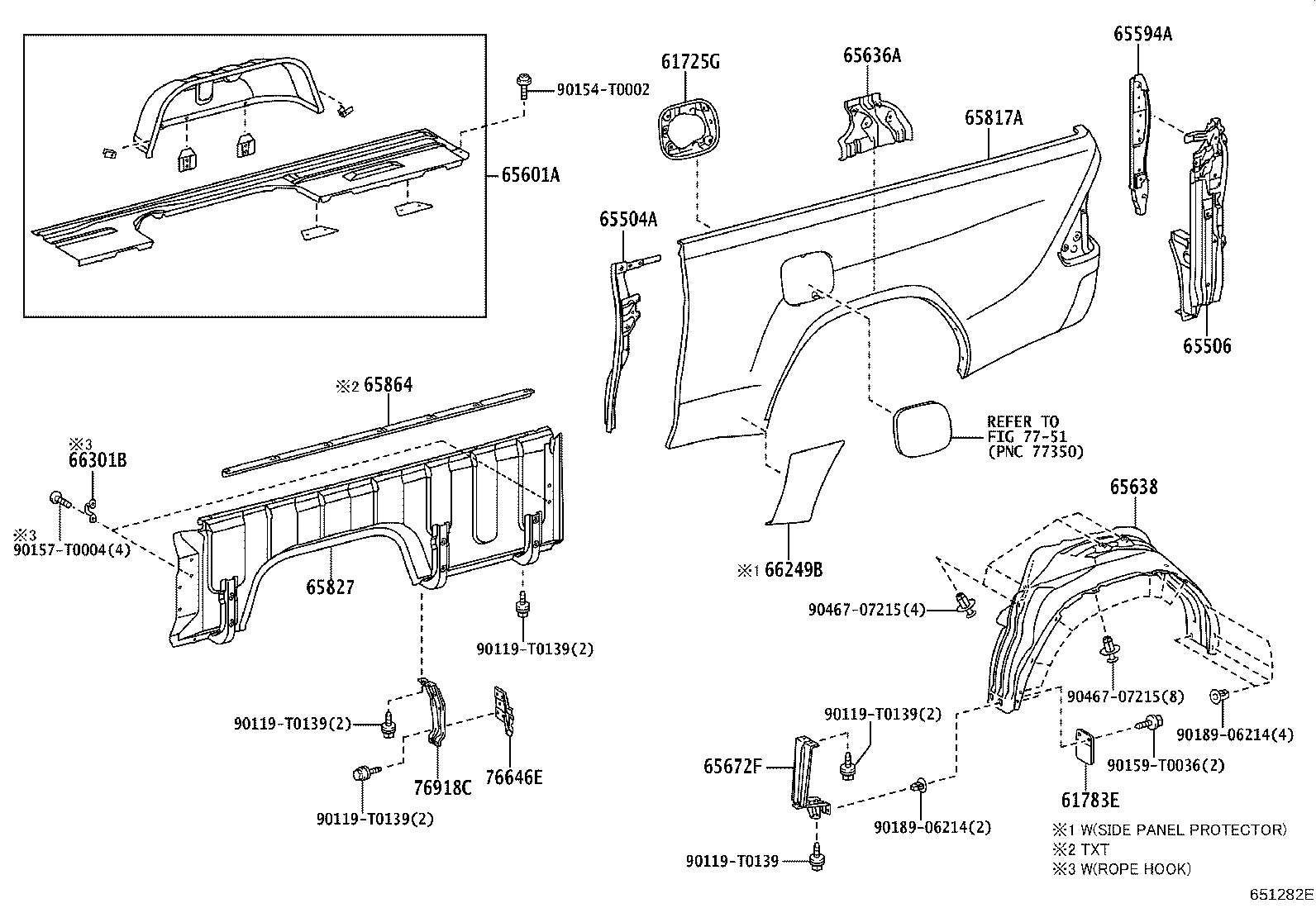

ILLUST NO. 2 OF 2(1506- )SXT,TXT..CBU
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61725G - BOX, FUEL INLET, NO.1 | ||||
| 61725-KK010 |
TGN136..SDC;GUN135..X..LA;GUN125..TSC..LA;TGN126..(L,X)..CBU;TGN136..ADC..X..LA;KUN135..(ADC,TDC)..X;GUN125..TDC..S..(GCC,PH);TGN136..(ASC,TDC,TSC)..X;KUN125..RHD..(SDC,SSC,TSC,TXT);GUN125..RHD..(SDC,SSC,TSC)..CBU;KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,KUN125..(ADC,ASC,TDC)..(L,X)..(DCR,HDCR);GUN135..(ASC,SDC,SSC,TDC)..(L,S,X)..(BZAGT,GEN,PH,SA)..CBU;GUN126,136,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X)..CBU;GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA)..CBU;GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..(5F,6FC)..CBU |
1 | ||
| 61783E - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-0K160 |
GUN125..6FC..ARL..CBU;GUN135..(ADC,ASC,MDC,TDC,TSC,TXT)..CBU;GUN125..(BZAGT,GCC,GEN,IDN,LA,PH,TH,VN)..CBU;GGN12#,GUN112,120,122,123,126,136,KUN112,12#,13#,TGN11#,120,121,126,128,13#..(ADC,ASC,PDC,PSC,TDC,TSC,TXT)..CBU |
2 | ||
| 65506 - POST SUB-ASSY, SIDE PANEL REAR END, LH | ||||
| 65506-KK010 |
TGN121..(L,S)..TH;GUN136..TDC..(H,M);GUN126..TDC..M..ARL;GGN125..(ADC,TDC)..(H,M);GUN126..TDC..(GEN,LA,PH,TAIW,TH,VN);GUN123,126,136..(ADC,PDC,SXT,TXT)..CBU;GUN135..(ADC,MDC,SXT,TDC,TXT)..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,122,125,KUN12#,13#,TGN126,128,13#..(ADC,PDC,SXT,TDC,TXT)..(BZAGT,GEN,IDN,LA,PH,PKN,SA,TH,VN) EXCEPT PLANT TSAM |
1 | ||
| 65594A - PLATE, SIDE PANEL REAR END POST INSIDE, LH | ||||
| 65594-KK010 |
GUN136..TDC..(H,M);GUN126..TDC..M..ARL;GGN125..(ADC,SDC,TDC)..(H,M);TGN121..(SDC,TDC,TXT)..(SA,TH);GUN126..TDC..(GEN,LA,PH,TAIW,TH,VN);GUN122..(SDC,TDC,TXT)..5F..(GEN,PH,SA,TH);GUN135..(ADC,MDC,SDC,SXT,TDC,TXT)..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GGN135,GUN123,126,136,LAN125,TGN128,138..(ADC,PDC,SDC,SXT,TXT)..CBU;GUN125,KUN12#,13#,TGN126,136..(ADC,PDC,SDC,SXT,TDC,TXT)..(BZAGT,GEN,IDN,LA,PH,PKN,SA,TH,VN) |
1 | ||
| 65636A - PANEL, WHEEL HOUSE, REAR LH | ||||
| 65636-KK010 |
TGN136..SDC;GUN135..X..LA;GUN125..TSC..LA;TGN126..(L,X)..CBU;TGN136..ADC..X..LA;KUN135..(ADC,TDC)..X;GUN125..TDC..S..(GCC,PH);TGN136..(ASC,TDC,TSC)..X;KUN125..RHD..(SDC,SSC,TSC,TXT);GUN125..RHD..(SDC,SSC,TSC)..CBU;KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,KUN125..(ADC,ASC,TDC)..(L,X)..(DCR,HDCR);GUN135..(ASC,SDC,SSC,TDC)..(L,S,X)..(BZAGT,GEN,PH,SA)..CBU;GUN126,136,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X)..CBU;GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA)..CBU;GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..(5F,6FC)..CBU |
1 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-0K070 |
TGN126..TSC..S;KUN126,135..L,X;KUN125..RHD..(TSC,TXT);KUN125..(ADC,ASC,TDC)..(L,X);GUN125,135..TDC..S..(GCC,PH);KUN125..LHD..(TSC,TXT)..(L,X);GUN125..TDC..(L,X)..(GCC,GEN,LA);GUN125,126..TSC..(GCC,GEN,IDN,LA);GUN135..(TDC,TSC)..(L,X)..(GEN,LA);GUN126,TGN126,136..(PDC,PSC,TDC,TSC)..(L,X)..CBU;GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121..(PSC,TDC,TSC,TXT)..CBU |
1 | ||
| 65672F - BRACE, SIDE PANEL SKIRT, FRONT LH | ||||
| 65609-KK010 |
GUN126..SSC..S;GUN122..(PSC,SSC,TSC,TXT)..5F..CBU;GUN125,135,KUN12#,LAN125,TGN120,121..(ASC,PSC,SSC,SXT,TSC,TXT)..CBU;GUN112,123,126,136,KUN112,135,TGN11#,126,136..(ASC,PSC,SXT,TSC,TXT)..CBU |
1 | ||
| 66301B - HOOK SUB-ASSY, ROPE | ||||
| 66312-0K010 |
GUN136..TDC..(H,M);GUN126..TDC..M..ARL;GGN125..(SDC,TDC)..M;TGN121..(SDC,TDC,TXT)..(SA,TH);GUN126..TDC..(GEN,LA,PH,TAIW,TH,VN);GUN123,126,136..(PDC,SDC,SXT,TXT)..CBU;GUN135..(MDC,SDC,SXT,TDC,TXT)..(GEN,LA,MA,PH,SA,TH,VN);GGN135,GUN120,122,125,KUN12#,13#,LAN125,TGN126,136..(PDC,SDC,SXT,TDC,TXT)..(GEN,IDN,LA,PH,PKN,SA,TH,VN) |
4 | ||
| 76646E - BRACKET, RR BODY MUDGUARD, LH | ||||
| 76646-KK010 |
TGN136..SDC;GUN135..X..LA;GUN125..TSC..LA;TGN126..(L,X)..CBU;TGN136..ADC..X..LA;KUN135..(ADC,TDC)..X;GUN125..TDC..S..(GCC,PH);TGN136..(ASC,TDC,TSC)..X;KUN125..RHD..(SDC,SSC,TSC,TXT);GUN125..RHD..(SDC,SSC,TSC)..CBU;KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,KUN125..(ADC,ASC,TDC)..(L,X)..(DCR,HDCR);GUN135..(ASC,SDC,SSC,TDC)..(L,S,X)..(BZAGT,GEN,PH,SA)..CBU;GUN126,136,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X)..CBU;GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA)..CBU;GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..(5F,6FC)..CBU |
1 | ||
| 76918C - MUDGUARD, SIDE, REAR LH | ||||
| 76607-KK010 |
GUN122..5F..CBU;GUN125..6FC..ARL..CBU;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN)..CBU;GUN125..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN)..CBU;GUN112,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..CBU |
1 | ||
| Common parts | ||||
| 90119-T0139 | ||||
| 90154-T0002 | ||||
| 90157-T0004 | ||||
| 90159-T0036 | ||||
| 90189-06214 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 7751 | ||||
