GUN122R-BTFXYT3 (2018)

Toyota Hilux

Production Sep 2018 - May 2020
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )IV3

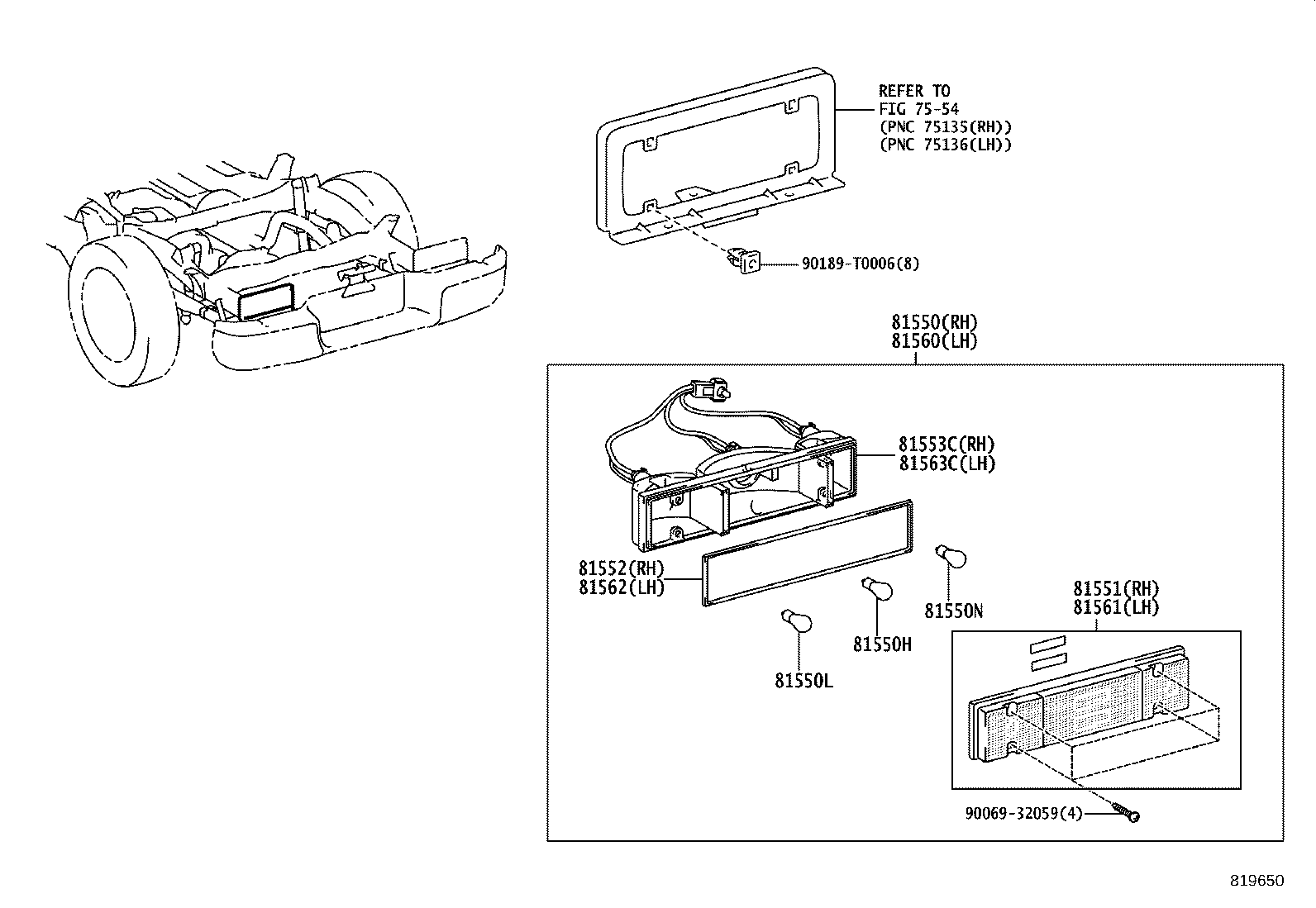

Click highlighted areas on diagram

diagram 7554 81550 81550H 81550L 81550N 81551 81552 81553C 81560 81561 81562 81563C 9006932059 90189T0006
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-0K360

GUN12#,13#,KUN122,LAN125,TGN120,121,126..IV3

 1
81550H - BULB, TAIL & STOP LAMP
90981-TD004

GUN12#,13#,KUN122,LAN125,TGN120,121,126..IV3

12V 21/5W

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-TD003

GUN12#,13#,KUN122,LAN125,TGN120,121,126..IV3

12V 21W

 2
81550N - BULB, BACK UP LAMP
90981-TD003

GUN12#,13#,KUN122,LAN125,TGN120,121,126..IV3

12V 21W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-0K360

GUN12#,13#,KUN122,LAN125,TGN120,121,126..IV3

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-0K360

GUN12#,13#,KUN122,LAN125,TGN120,121,126..IV3

 1
81553C - BODY, REAR COMBINATION LAMP, RH
81553-0K360

GUN12#,13#,KUN122,LAN125,TGN120,121,126..IV3

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-0K400

GUN12#,13#,KUN122,LAN125,TGN120,121,126..IV3

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-0K400

GUN12#,13#,KUN122,LAN125,TGN120,121,126..IV3

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-0K360

GUN12#,13#,KUN122,LAN125,TGN120,121,126..IV3

 1
81563C - BODY, REAR COMBINATION LAMP, LH
81563-0K400

GUN12#,13#,KUN122,LAN125,TGN120,121,126..IV3

 1
Common parts
90069-32059
90189-T0006
Linked diagrams
7554
