GUN122R-BTFXYT3 (2018)

Toyota Hilux

Production Sep 2018 - May 2020
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(1107- )KUN15,16,2#,35..IV3

Click highlighted areas on diagram

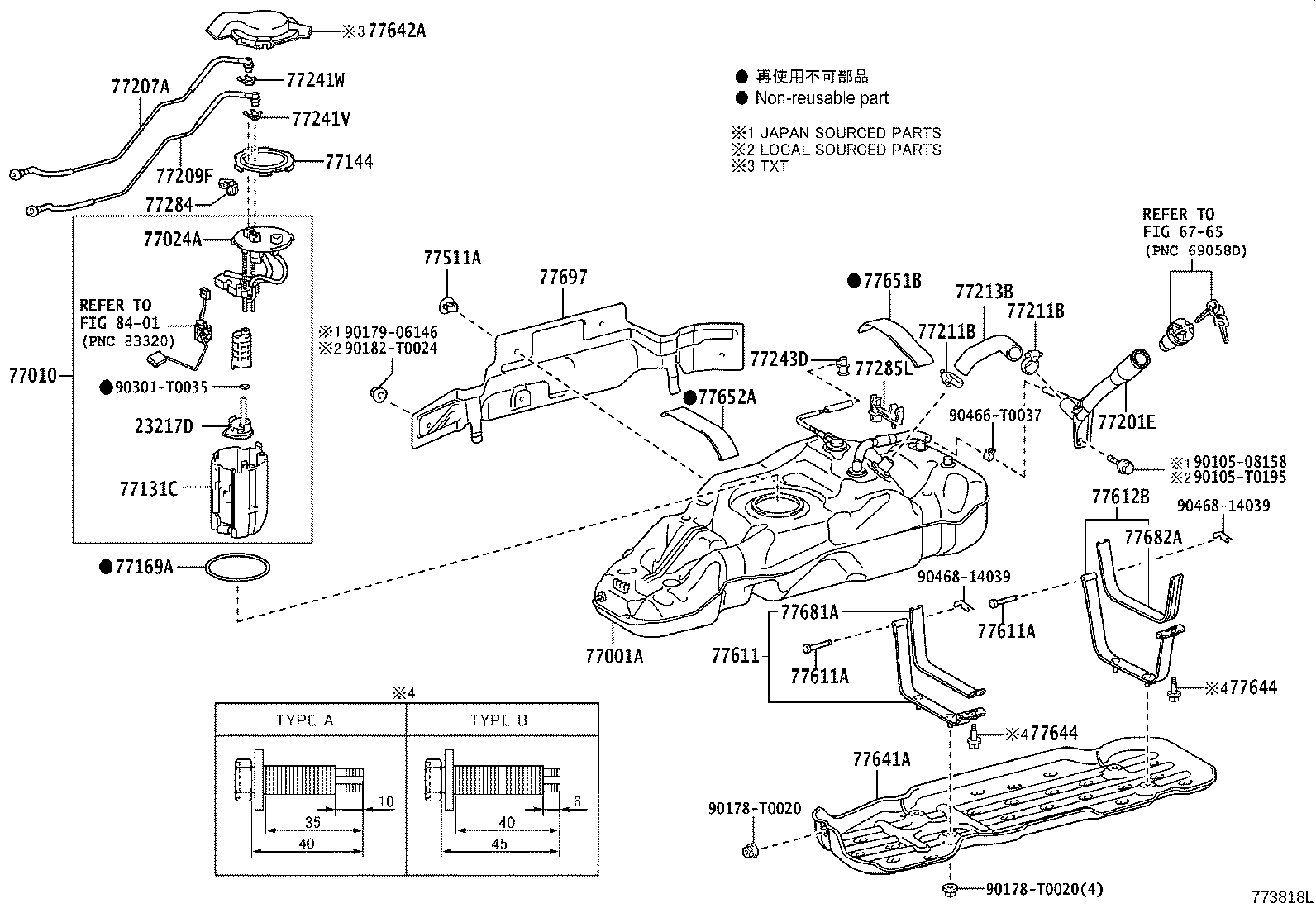

FUEL TANK

diagram 6765 77017B 77026A 77100 77144 77161C 77169A 77201 77204A 77209D 77213B 77241V 77241W 77269A 77277T 77281 77283C 77601A 77602B 77611A 77611A 77641A 77642A 77644 77644 776440K010 77652 77652 77681A 77682 77697 8401 90105T0204 90178T0020 90178T0020 9017906169 9046046005 9046046005 90466T0037 90466T0037 90466T0040 90466T0040 9046814039 9046814039
Part # Description Qty Price
Common parts
77644-0K010
90105-T0204
90178-T0020
90179-06169
90460-46005
90466-T0037
90466-T0040
90468-14039
Linked diagrams
6765
8401

ILLUST NO. 1 OF 3(1505- )GUN12#,13#,KUN122,LAN125..IV3

Click highlighted areas on diagram

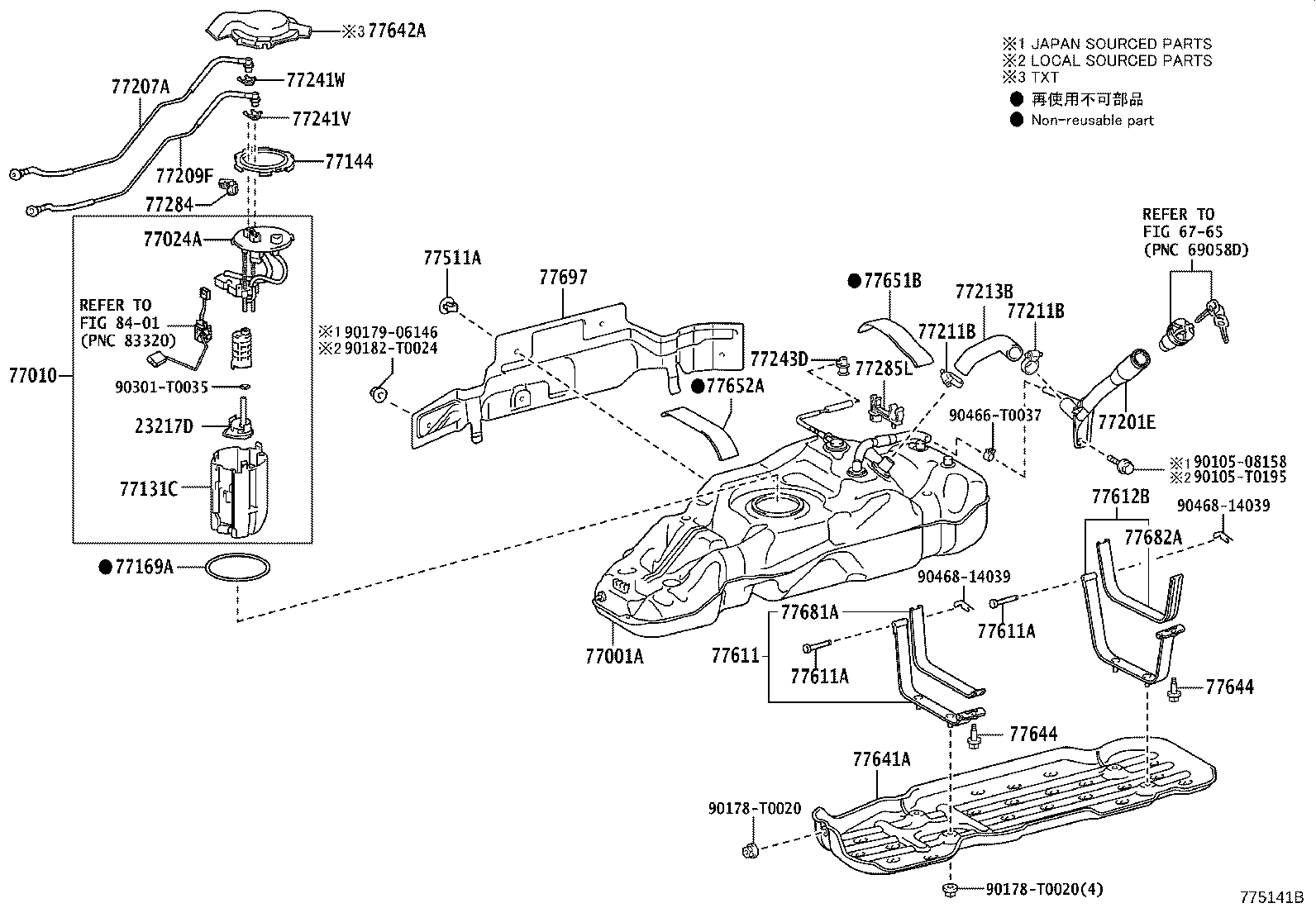

FUEL TANK

diagram 23217D 6765 77001A 77010 77024A 77131C 77144 77169A 77201E 77207A 77209F 77211B 77211B 77213B 77241V 77241W 77243D 77284 77285L 77511A 77611 77611A 77611A 77612B 77641A 77642A 77644 77644 77651B 77652A 77681A 77682A 77697 8401 9010508158 90105T0195 90178T0020 90178T0020 9017906146 90182T0024 90301T0035 90466T0037 9046814039 9046814039
Part # Description Qty Price
23217D - FILTER, FUEL PUMP
23217-0L020

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN112,120,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2GDFTV,1KDFTV,2KDFTV,5LE..GUN122,123,126,136,KUN112,12#,13#,LAN125..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
77001A - TANK SUB-ASSY, FUEL
77001-0K680

GUN12#,13#,KUN122..(PSC,TDC,TSC,TXT)..IV3

 1
77010 - TUBE ASSY, FUEL TANK VENT
77010-0K201

GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN120,122,123,126,136,KUN122,LAN125..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-0K190

GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN120,122,123,126,136,KUN12#,13#,LAN125..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
77131C - SUB-TANK, FUEL, NO.1
77131-0K200

GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN120,122,123,126,136,KUN122,LAN125..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
77144 - RETAINER, FUEL PUMP GAUGE
77144-0K040

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN126,136,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,12#,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-0K040

GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
77201E - PIPE SUB-ASSY, FUEL TANK FILLER
77201-KK140

GUN120,122..(PH,TH)..IV3

 1
77207A - TUBE SUB-ASSY, FUEL RETURN
77204-0K140

GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN120,122,123,126,136,KUN12#,13#,LAN125..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
77209F - TUBE SUB-ASSY, FUEL TANK MAIN
77209-0K200

GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN120,122,123,126,136,KUN12#,13#,LAN125..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
77211B - CLAMP (FOR FUEL FILLER PIPE)
90460-46005

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,12#,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 2
77211B - CLAMP (FOR FUEL FILLER PIPE)
90460-46005

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,12#,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 2
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-KK010

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
77241V - CLIP, TUBE JOINT
77241-0K020

GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
77241W - CLIP, TUBE JOINT
77241-0K010

GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
77243D - JOINT, FUEL TUBE, NO.1
77245-71010

GUN12#,13#,KUN122,LAN125..IV3

 1
77284 - CLAMP, FUEL TUBE
77289-0K050

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN126,136,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
77285L - CLAMP, FUEL TUBE, NO.1
77285-0K250

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
77511A - BRACKET, FUEL TANK
77644-0K010

TGN136..ADC,ASC,SDC;GUN125..TDC..6FC..ARL;TGN121,126..ADC,ASC,SDC,SSC;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GGN125,135,GUN120,KUN126,13#,LAN125,TGN120..GEN,LA,PKN,SA,TH,VN;GUN122,123,126,136,KUN122,125,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 4
77611 - BAND, FUEL TANK
77601-KK040

GGN120,GUN120,122,123,KUN122,TGN120,121..ARL,GEN,PH,SA,TH

 1
77611A - PIN (FOR FUEL TANK BAND)
77653-0K041

GUN135..L..MA;GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,TGN126..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN112,13#,KUN112,TGN110,128,138..ARL,BZAGT,GEN,IDN,LA,PH,SA,TH,VN;GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 2
77611A - PIN (FOR FUEL TANK BAND)
77653-0K041

GUN135..L..MA;GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,TGN126..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN112,13#,KUN112,TGN110,128,138..ARL,BZAGT,GEN,IDN,LA,PH,SA,TH,VN;GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 2
77612B - BAND, FUEL TANK, NO.2
77602-KK020

GGN120,GUN120,122,123,KUN122,TGN120,121..ARL,GEN,PH,SA,TH

 1
77644 - BOLT, FUEL TANK
77644-35030

GUN135..L..MA;GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,13#,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 2
77644 - BOLT, FUEL TANK
77644-35030

GUN135..L..MA;GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,13#,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 2
77651B - CUSHION, FUEL TANK
77651-0K080

GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN135..MDC,TDC,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN120,122,123,126,136,KUN12#,13#..PDC,PSC,TDC,TSC,TXT

 1
77652A - CUSHION, FUEL TANK, NO.2
77652-0K140

TGN136..ADC,ASC,SDC;GUN125..TDC..6FC..ARL;TGN121,126..ADC,ASC,SDC,SSC;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GGN125,135,GUN120,KUN126,13#,LAN125,TGN120..GEN,LA,PKN,SA,TH,VN;GUN122,123,126,136,KUN122,125,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
77681A - SEAT, FUEL TANK BAND
77681-KK020

GUN135..L..MA;TGN126..L..GEN;GUN125..TDC..6FC..ARL;TGN126..BZAGT,GCC,LA,SA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,13#,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
77682A - SEAT, FUEL TANK BAND, NO.2
77682-KK010

GUN135..L..MA;TGN126..L..GEN;GUN125..TDC..6FC..ARL;TGN126..BZAGT,GCC,LA,SA;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;KUN112,TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..(M,S,X);GUN112,13#,TGN110,128,138..ARL,BZAGT,GEN,IDN,LA,PH,SA,TH,VN;GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
77697 - INSULATOR, FUEL TANK HEAT, NO.1
77697-0K130

GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN135..MDC,TDC,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN120,122,123,126,136,KUN12#,13#..PDC,PSC,TDC,TSC,TXT

 1
Common parts
90105-08158
90105-T0195
90178-T0020
90179-06146
90182-T0024
90301-T0035
90466-T0037
90468-14039
Linked diagrams
6765
8401

ILLUST NO. 2 OF 3(1505- )GUN12#,13#

Click highlighted areas on diagram

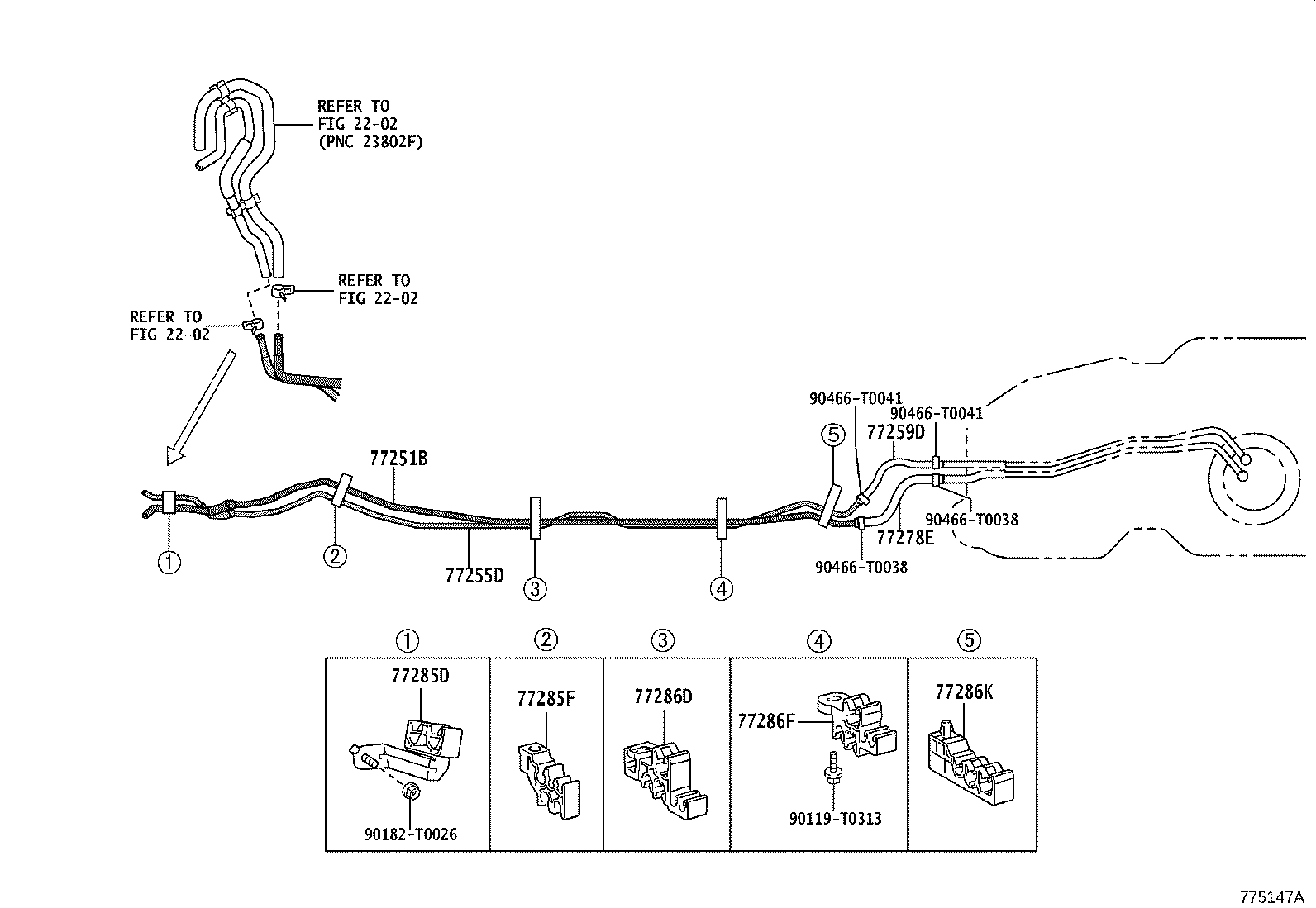

FUEL TUBE

diagram 2202 2202 2202 77251B 77255D 77259D 77278E 77285D 77285F 77286D 77286F 77286K 90119T0313 90182T0026 90466T0038 90466T0038 90466T0041 90466T0041
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-KK060

GUN120,122,123

 1
77255D - TUBE, FUEL RETURN
77255-KK090

GUN120,122,123

 1
77259D - HOSE, FUEL, NO.1
77259-71060

GUN135..L..MA;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN120,122,123,126,13#,KUN12#,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
77278E - HOSE, FUEL
95338-10022

GUN135..L..MA;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN120,122,123,126,13#,KUN12#,13#,LAN125..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-0K240

KUN112,12#,13#,LAN125

 1
77285-0K160

GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GUN112,120,122,123,126..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH)

 1
77285F - CLAMP, FUEL TUBE, NO.1
77285-0K230

GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;TGN126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GGN12#,135,GUN112,120,122,123,KUN112,12#,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
77286D - CLAMP, FUEL TUBE, NO.2
77286-0K170

GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;TGN126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GGN12#,135,GUN112,120,122,123,KUN112,12#,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
77286F - CLAMP, FUEL TUBE, NO.2
77286-0K150

GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;TGN126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
77286K - CLAMP, FUEL TUBE, NO.2
77286-0K220

GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;TGN126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
Common parts
90119-T0313
90182-T0026
90466-T0038
90466-T0041
Linked diagrams
2202

ILLUST NO. 3 OF 3(1505- )ASC,KSC,MSC,PSC,SSC,SXT,TSC,TXT

Click highlighted areas on diagram

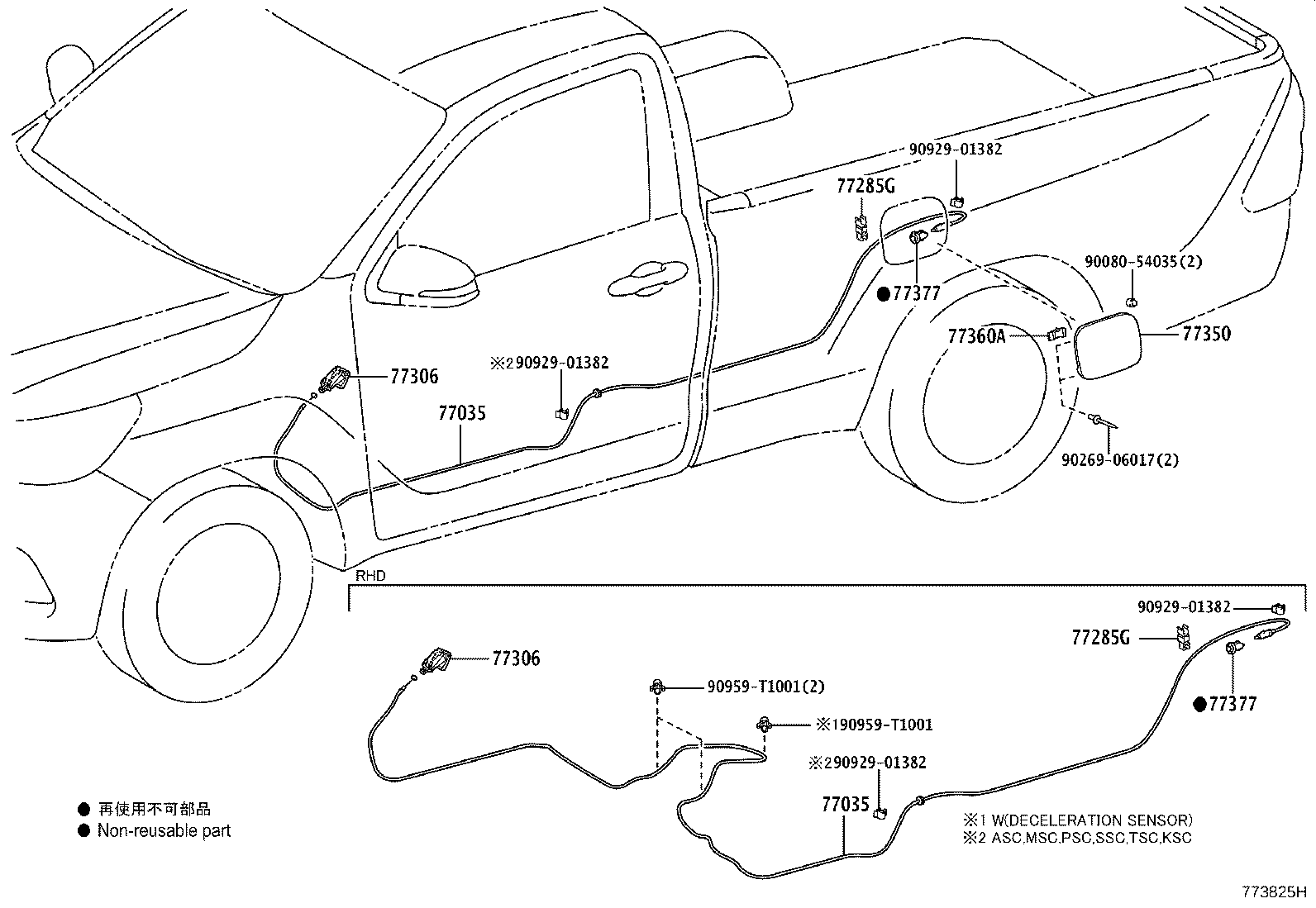

FUEL LID OPENER

diagram 77035 77035 77285G 77285G 77306 77306 77350 77360A 77377 77377 9008054035 9026906017 9092901382 9092901382 9092901382 9092901382 90959T1001 90959T1001
Part # Description Qty Price
Common parts
90080-54035
90269-06017
90929-01382
90959-T1001

ILLUST NO. 1 OF 3(2006- )GUN120,122,125,126,13#,LAN125..IV3

Click highlighted areas on diagram

FUEL TANK

diagram 23217D 6765 77001A 77010 77024A 77131C 77144 77169A 77201E 77207A 77209F 77211B 77211B 77213B 77241V 77241W 77243D 77284 77285L 77511A 77611 77611A 77611A 77612B 77641A 77642A 77644 77644 77651B 77652A 77681A 77682A 77697 8401 9010508158 90105T0195 90178T0020 90178T0020 9017906146 90182T0024 90301T0035 90466T0037 9046814039 9046814039
Part # Description Qty Price
Common parts
90105-08158
90105-T0195
90178-T0020
90179-06146
90182-T0024
90301-T0035
90466-T0037
90468-14039
Linked diagrams
6765
8401

ILLUST NO. 2 OF 3(2006- )GUN12#,13#..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

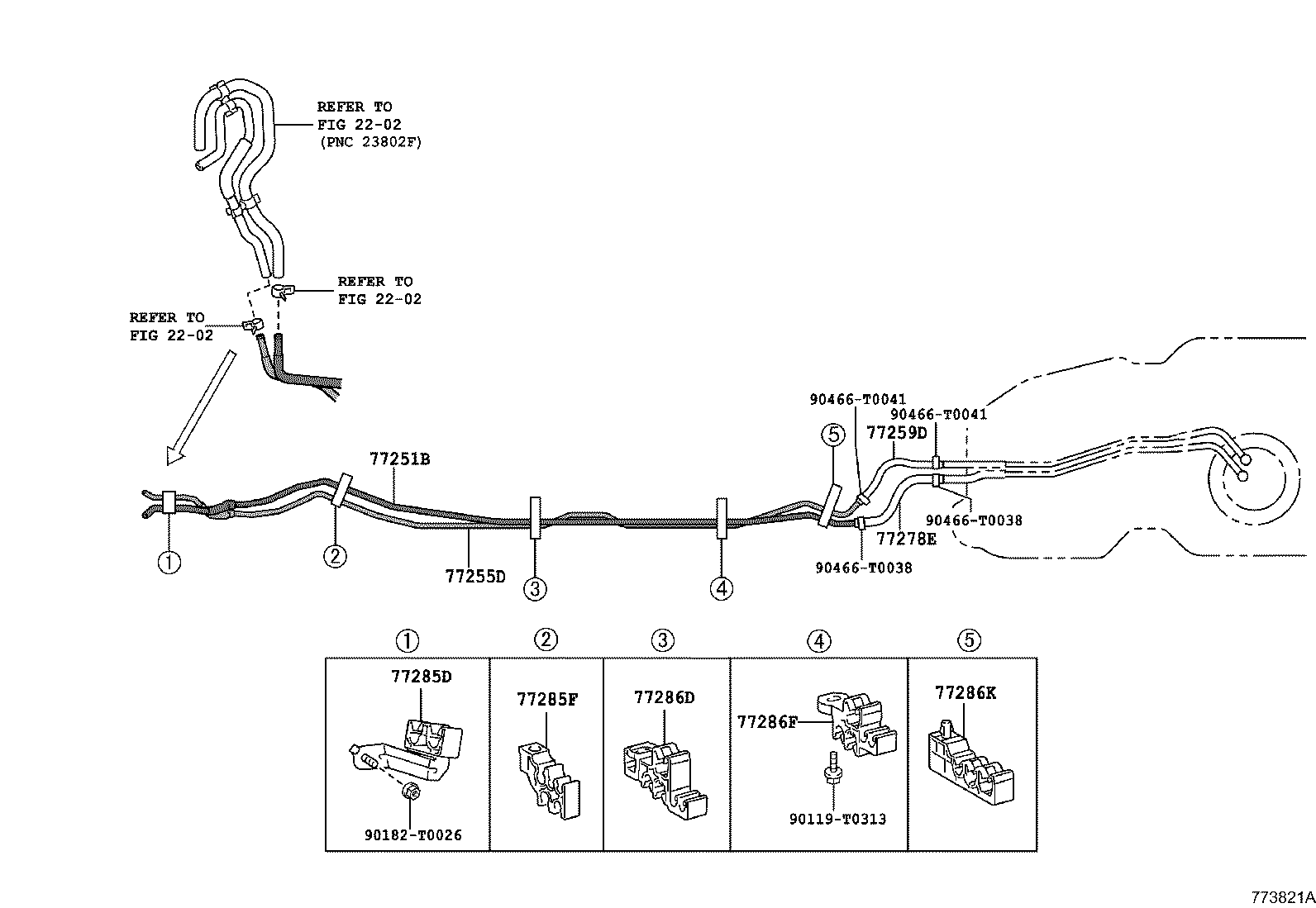

FUEL TUBE

diagram 2202 2202 2202 77251B 77255D 77259D 77278E 77285D 77285F 77286D 77286F 77286K 90119T0313 90182T0026 90466T0038 90466T0038 90466T0041 90466T0041
Part # Description Qty Price
Common parts
90119-T0313
90182-T0026
90466-T0038
90466-T0041
Linked diagrams
2202

ILLUST NO. 3 OF 3(2006- )AS,KS,MS,PS,SS,SX,TS,TX

Click highlighted areas on diagram

FUEL LID OPENER

diagram 77035 77035 77285G 77285G 77306 77306 77350 77360A 77377 77377 9008054035 9026906017 9092901382 9092901382 9092901382 9092901382 90959T1001 90959T1001
Part # Description Qty Price
Common parts
90080-54035
90269-06017
90929-01382
90959-T1001
