GUN122R-BTFXYT3 (2018)

Toyota Hilux

Production Sep 2018 - May 2020
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )ASC,KSC,MSC,PSC,SSC,TSC

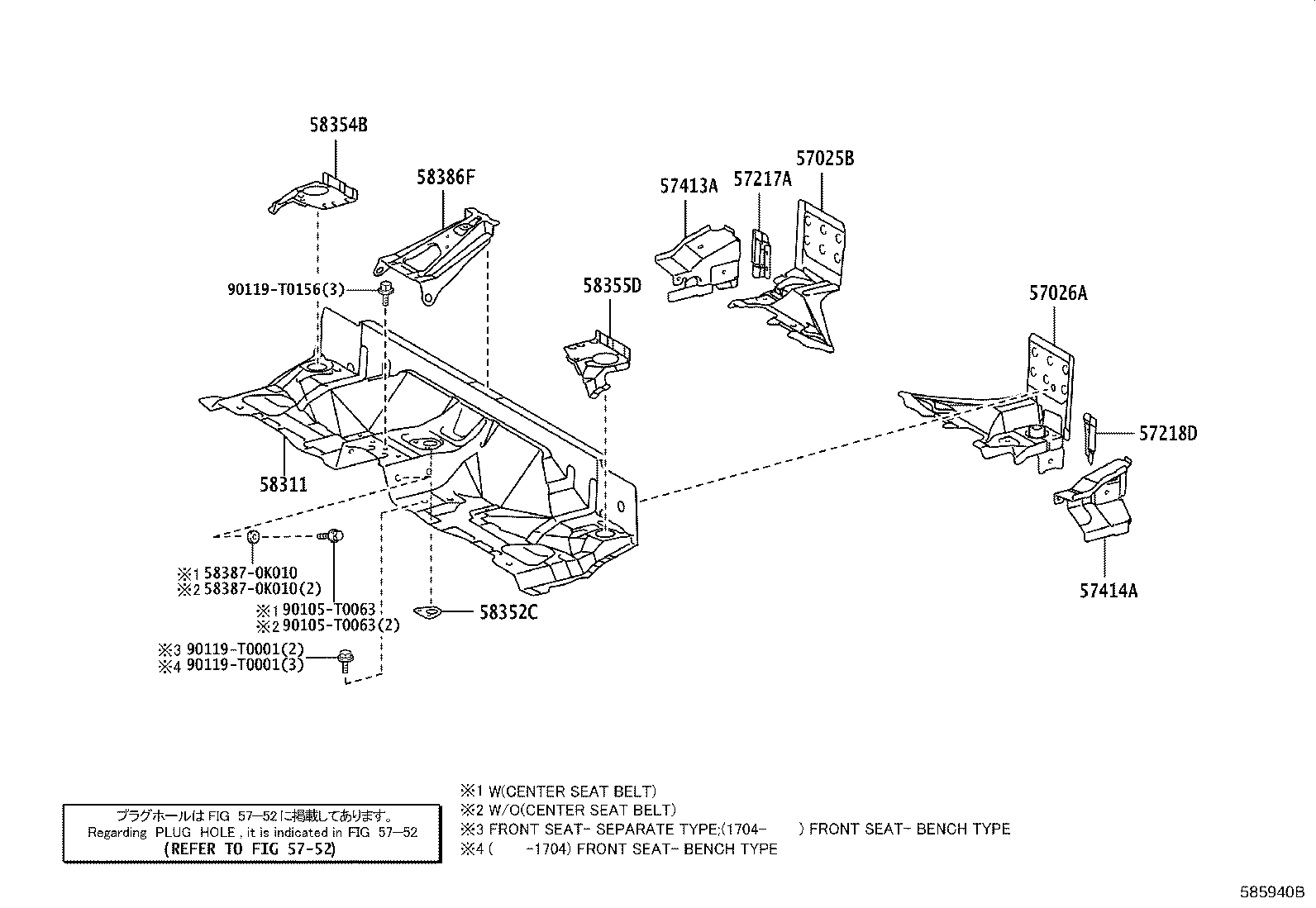

Click highlighted areas on diagram

diagram 57025B 57026A 57217A 57218D 57413A 57414A 5752 58311 58352C 58354B 58355D 58386F 583870K010 583870K010 90105T0063 90105T0063 90119T0001 90119T0001 90119T0156
Part # Description Qty Price
57025B - BRACKET SUB-ASSY, BODY MOUNTING, NO.3 RH
57025-KK010

TGN136..ASC,TSC;GUN112,12#,13#,KUN112,12#,135,LAN125,TGN11#,120,121,126..ASC,PSC,SSC,TSC

 1
57026A - BRACKET SUB-ASSY, BODY MOUNTING, NO.3 LH
57026-KK010

TGN136..ASC,TSC;GUN112,12#,13#,KUN112,12#,135,LAN125,TGN11#,120,121,126..ASC,PSC,SSC,TSC

 1
57217A - BRACKET, BODY MOUNTING, NO.4 RH
57217-0K020

TGN136..ASC,TSC;GUN112,12#,13#,KUN112,12#,135,LAN125,TGN11#,120,121,126..ASC,PSC,SSC,TSC

 1
57218D - BRACKET, BODY MOUNTING, NO.4 LH
57218-0K020

TGN136..ASC,TSC;GUN112,12#,13#,KUN112,12#,135,LAN125,TGN11#,120,121,126..ASC,PSC,SSC,TSC

 1
57413A - MEMBER, FLOOR SIDE, INNER REAR RH
57413-KK030

TGN136..ASC,TSC;GUN112,12#,13#,KUN112,12#,135,LAN125,TGN11#,120,121,126..ASC,PSC,SSC,TSC

 1
57414A - MEMBER, FLOOR SIDE, INNER REAR LH
57414-KK030

TGN136..ASC,TSC;GUN112,12#,13#,KUN112,12#,135,LAN125,TGN11#,120,121,126..ASC,PSC,SSC,TSC

 1
58311 - PAN, REAR FLOOR
58311-KK060

GUN125..TSC..6F..L..GEN;KUN125..TSC..(L,X)..GEN;GUN122,126,TGN121..RHD..(PSC,SSC,TSC)..(L,X)..(PKN,SA,TH);GUN112,125,135,KUN112,122,126,TGN110,120..RHD..(PSC,SSC,TSC)..(L,X)..(IDN,PKN,SA)

 1
58352C - REINFORCEMENT, REAR FLOOR PANEL, NO.2
58352-KK010

GUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
58354B - REINFORCEMENT, REAR FLOOR PANEL, NO.4
58354-0K050

TGN136..ASC,TSC;GUN112,12#,13#,KUN112,12#,135,LAN125,TGN11#,120,121,126..ASC,PSC,SSC,TSC

 1
58355D - REINFORCEMENT, REAR FLOOR PANEL, NO.5
58355-0K050

TGN136..ASC,TSC;GUN112,12#,13#,KUN112,12#,135,LAN125,TGN11#,120,121,126..ASC,PSC,SSC,TSC

 1
58386F - GUSSET, LOWER BACK PANEL, NO.2
58386-KK010

TGN136..ASC,TSC;GUN112,12#,13#,KUN112,12#,135,LAN125,TGN11#,120,121,126..ASC,PSC,SSC,TSC

 1
Common parts
58387-0K010
90105-T0063
90119-T0001
90119-T0156
Linked diagrams
5752
