GUN122L-DTMSYV (2015)
Toyota Hilux

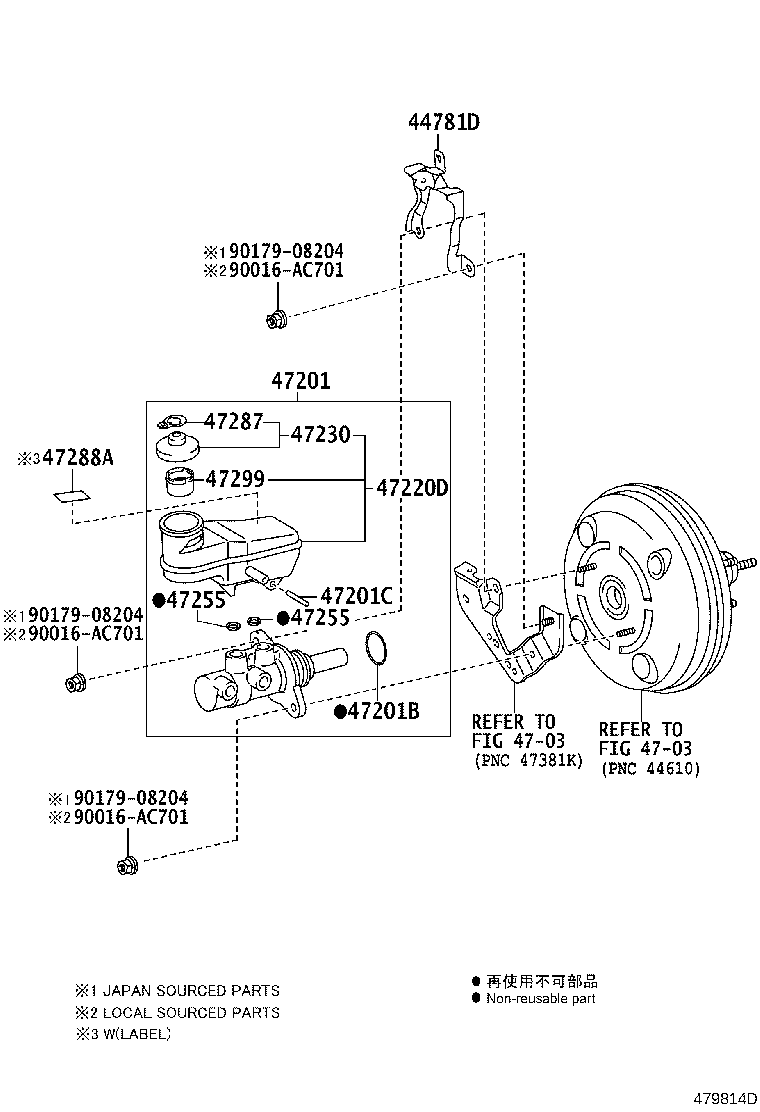

(1505- )TGN11#,12#,13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44781D - BRACKET, RESERVOIR HOSE | ||||
| 44781-KK050 |
TGN11#,12#,13# |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-0K410 |
KUN112..L;TGN126..TSC..LA;GUN112,122,125,KUN122,TGN11#,120,121,126..MTM..GCC |
1 | ||
| 47201-0K590 |
KUN112..L;TGN126..TSC..LA;GUN125,TGN126..MTM..M..GCC;GUN112,122,KUN122,TGN11#,120,121..5F..GCC VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90016-AH903 |
GUN125..TDC..6FC..ARL;GUN125..SDC,SSC,SXT,TSC,TXT;GUN135..MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,136..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 47201C - RING PIN, BRAKE MASTER CYLINDER | ||||
| 90029-15803 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-0K130 |
GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,136..LHD..(SDC,SSC,SXT,TDC,TSC,TXT)..MTM |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-0D221 |
TGN138..L;TGN13#..ADC..5F..M;TGN126..6FC..(M,S);GUN125,135..BZAGT..IV3;TGN126..(SDC,TDC,TSC)..5F;GUN125..SDC,SSC,SXT,TSC,TXT;GUN126,136..6F..(M,S)..IART;GUN135..MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,TGN126..(ADC,TDC)..(5F,6FC)..(ARL,BZAGT);GGN135,GUN112,120,122,123,KUN112,12#,13#,LAN125,TGN11#,120,121;GGN12#,GUN126,136,TGN136..(ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,PKN,SA,TAIW,TH,VN) |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90016-AT001 |
GUN125..TDC..6FC..ARL;GUN125..SDC,SSC,SXT,TSC,TXT;GUN135..MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,136..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90016-AT001 |
GUN125..TDC..6FC..ARL;GUN125..SDC,SSC,SXT,TSC,TXT;GUN135..MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,136..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
2 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-02360 |
TGN126..5F;TGN126..6FC..(M,S);GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,128,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 47288A - LABEL, BRAKE FLUID NOTICE | ||||
| 47288-71010 |
GGN125,GUN112,122,125,126,KUN112,122,125,TGN11#,120,121,126..GCC |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-0D100 |
TGN138..L;TGN13#..ADC..5F..M;TGN126..6FC..(M,S);GUN125,135..BZAGT..IV3;TGN126..(SDC,TDC,TSC)..5F;GUN125..SDC,SSC,SXT,TSC,TXT;GUN126,136..6F..(M,S)..IART;GUN135..MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,TGN126..(ADC,TDC)..(5F,6FC)..(ARL,BZAGT);GGN135,GUN112,120,122,123,KUN112,12#,13#,LAN125,TGN11#,120,121;GGN12#,GUN126,136,TGN136..(ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,PKN,SA,TAIW,TH,VN) |
1 | ||
| Common parts | ||||
| 90016-AC701 | ||||
| 90179-08204 | ||||
| Linked diagrams | ||||
| 4703 | ||||

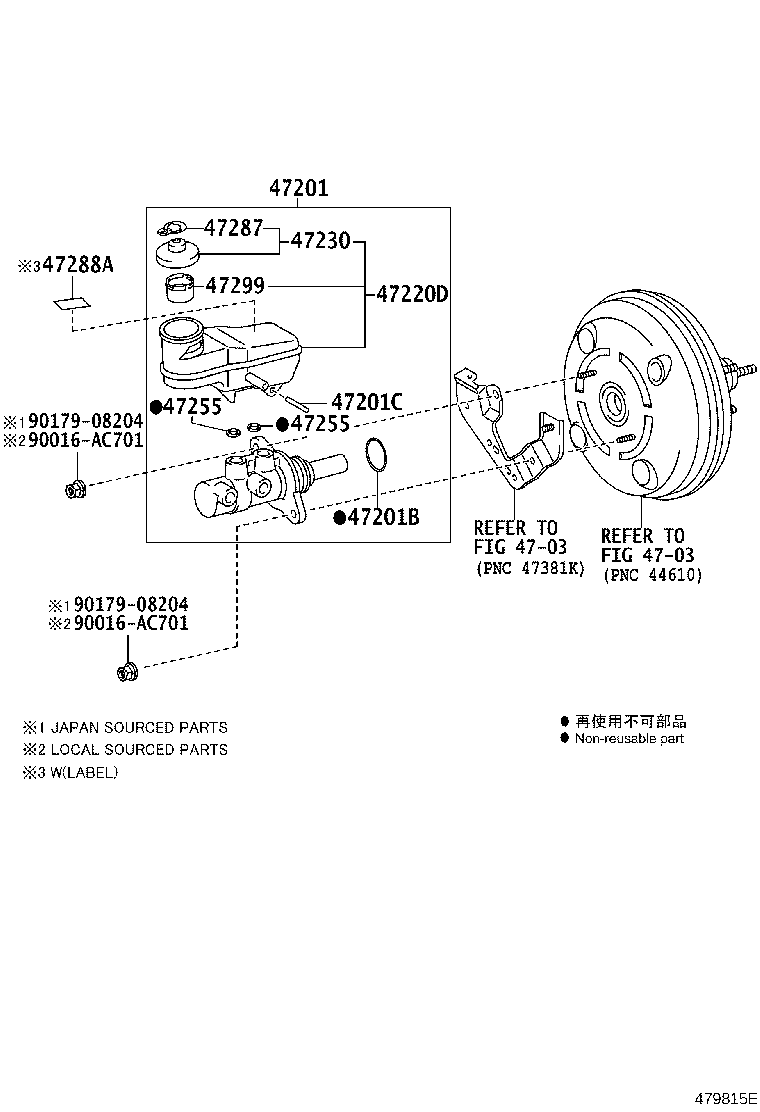

(1505- )GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-0K410 |
KUN112..L;TGN126..TSC..LA;GUN112,122,125,KUN122,TGN11#,120,121,126..MTM..GCC |
1 | ||
| 47201-0K590 |
KUN112..L;TGN126..TSC..LA;GUN125,TGN126..MTM..M..GCC;GUN112,122,KUN122,TGN11#,120,121..5F..GCC VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90016-AH903 |
GUN125..TDC..6FC..ARL;GUN125..SDC,SSC,SXT,TSC,TXT;GUN135..MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,136..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 47201C - RING PIN, BRAKE MASTER CYLINDER | ||||
| 90029-15803 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-0K130 |
GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,136..LHD..(SDC,SSC,SXT,TDC,TSC,TXT)..MTM |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-0D221 |
TGN138..L;TGN13#..ADC..5F..M;TGN126..6FC..(M,S);GUN125,135..BZAGT..IV3;TGN126..(SDC,TDC,TSC)..5F;GUN125..SDC,SSC,SXT,TSC,TXT;GUN126,136..6F..(M,S)..IART;GUN135..MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,TGN126..(ADC,TDC)..(5F,6FC)..(ARL,BZAGT);GGN135,GUN112,120,122,123,KUN112,12#,13#,LAN125,TGN11#,120,121;GGN12#,GUN126,136,TGN136..(ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,PKN,SA,TAIW,TH,VN) |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90016-AT001 |
GUN125..TDC..6FC..ARL;GUN125..SDC,SSC,SXT,TSC,TXT;GUN135..MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,136..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90016-AT001 |
GUN125..TDC..6FC..ARL;GUN125..SDC,SSC,SXT,TSC,TXT;GUN135..MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,136..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
2 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-02360 |
TGN126..5F;TGN126..6FC..(M,S);GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,128,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 47288A - LABEL, BRAKE FLUID NOTICE | ||||
| 47288-71010 |
GGN125,GUN112,122,125,126,KUN112,122,125,TGN11#,120,121,126..GCC |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-0D100 |
TGN138..L;TGN13#..ADC..5F..M;TGN126..6FC..(M,S);GUN125,135..BZAGT..IV3;TGN126..(SDC,TDC,TSC)..5F;GUN125..SDC,SSC,SXT,TSC,TXT;GUN126,136..6F..(M,S)..IART;GUN135..MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,TGN126..(ADC,TDC)..(5F,6FC)..(ARL,BZAGT);GGN135,GUN112,120,122,123,KUN112,12#,13#,LAN125,TGN11#,120,121;GGN12#,GUN126,136,TGN136..(ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,PKN,SA,TAIW,TH,VN) |
1 | ||
| Common parts | ||||
| 90016-AC701 | ||||
| 90179-08204 | ||||
| Linked diagrams | ||||
| 4703 | ||||

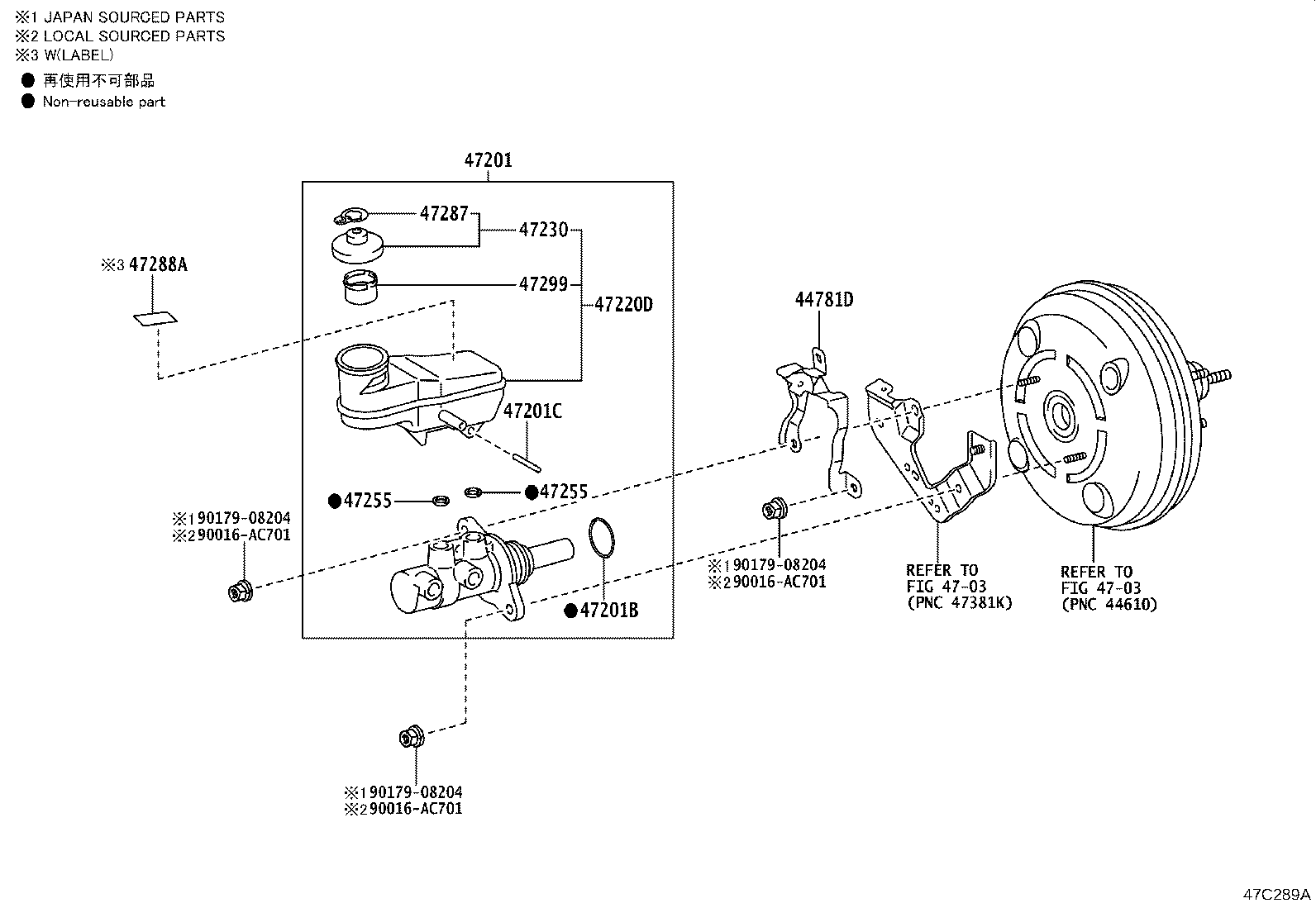

(2006- )TGN11#,12#,13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90016-AC701 | ||||
| 90179-08204 | ||||
| Linked diagrams | ||||
| 4703 | ||||

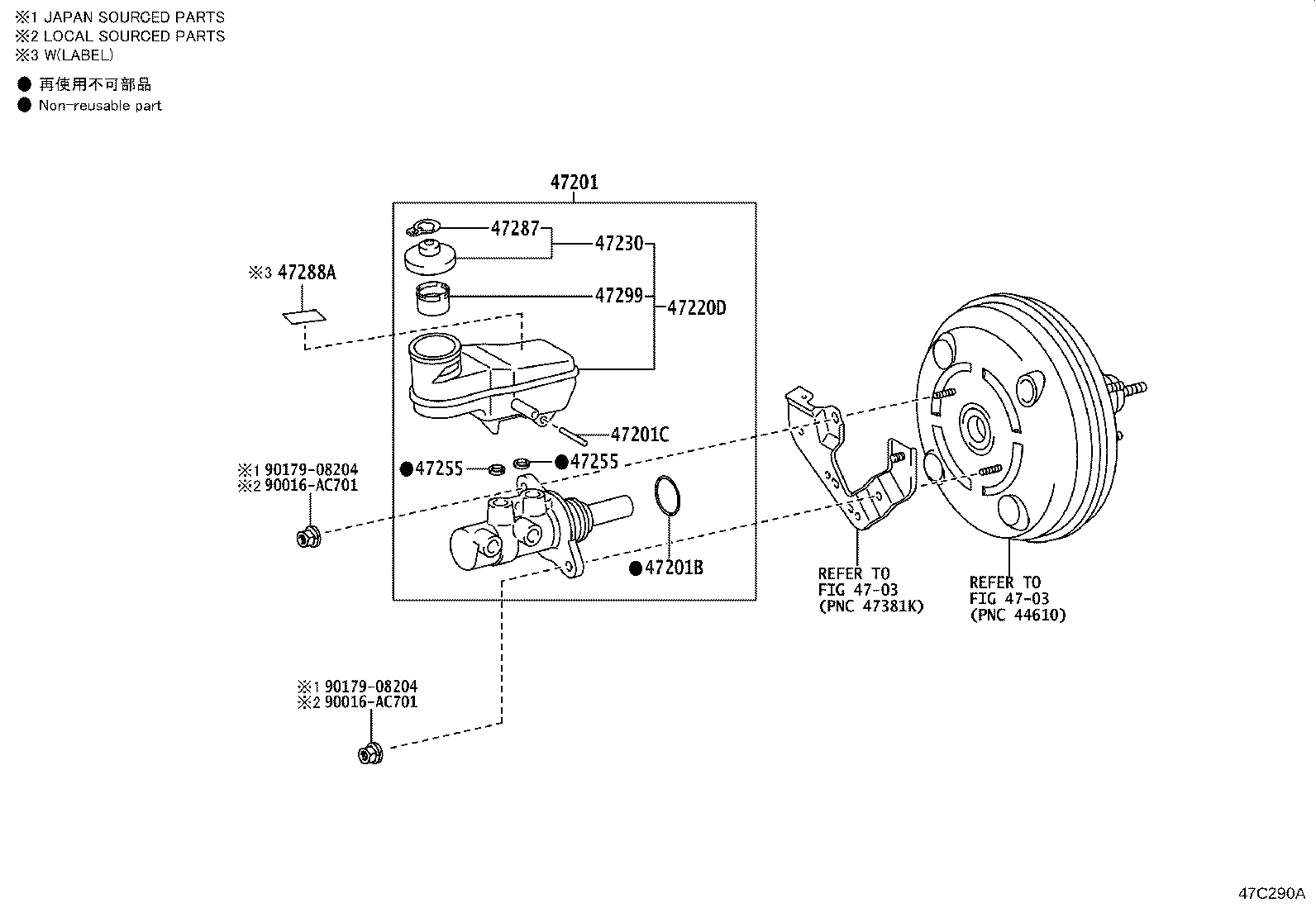

(2006- )GGN125,GUN112,12#,13#,LAN125..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90016-AC701 | ||||
| 90179-08204 | ||||
| Linked diagrams | ||||
| 4703 | ||||
