GUN122L-DTMSX (2020)
Toyota Hilux
ILLUST NO. 1 OF 2(2006- )GUN112,120,122,123,TGN11#,120,121..PS,SD,SS,TD,TS,TX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483A - SHACKLE KIT, REAR SPRING, RH | ||||
| 04483-KK000 |
GUN112,120,122,123,TGN11#,120,121..SD,SS,TD,TS,TX |
1 | ||
| 04483B - SHACKLE KIT, REAR SPRING, LH | ||||
| 04483-KK000 |
GUN112,120,122,123,TGN11#,120,121..SD,SS,TD,TS,TX |
1 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-0K011 |
GUN112,120,122,123,TGN11#,120,121..SD,SS,TD,TS,TX |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-T0003 |
GUN112,120,122,123,TGN11#,120,121..SD,SS,TD,TS,TX L=175 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-T0003 |
GUN112,120,122,123,TGN11#,120,121..SD,SS,TD,TS,TX L=175 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-0K011 |
GUN112,120,122,123,TGN11#,120,121..SD,SS,TD,TS,TX |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-T0014 |
GUN112,120,122,123,TGN11#,120,121..SD,SS,TD,TS,TX |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-T0014 |
GUN112,120,122,123,TGN11#,120,121..SD,SS,TD,TS,TX |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-T0017 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-T0017 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
4 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-0K090 |
GUN112,120,122,123,TGN11#,120,121..SD,SS,TD,TS,TX |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-09B20 |
GUN122..TX..L;GUN122,TGN120,121..TD..(5F,6FC) MARK 48531-0K510 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-T3001 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-T3001 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-T3002 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-T3002 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
4 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-T0019 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
8 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-T0019 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
8 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-T0019 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
8 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-T0019 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
8 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-09B20 |
GUN122..TX..L;GUN122,TGN120,121..TD..(5F,6FC) MARK 48531-0K510 |
1 | ||
| Common parts | ||||
| 48373-0K010 | ||||
| 90105-T0128 | ||||
| 90105-T0135 | ||||
| 90105-T0146 | ||||
| 90119-T0028 | ||||
| 90178-T0027 | ||||
| 90178-T0061 | ||||
| 90178-T0140 | ||||
| 90179-14069 | ||||
| 90201-T0006 | ||||
| 90201-T0012 | ||||
| 90201-T0014 | ||||

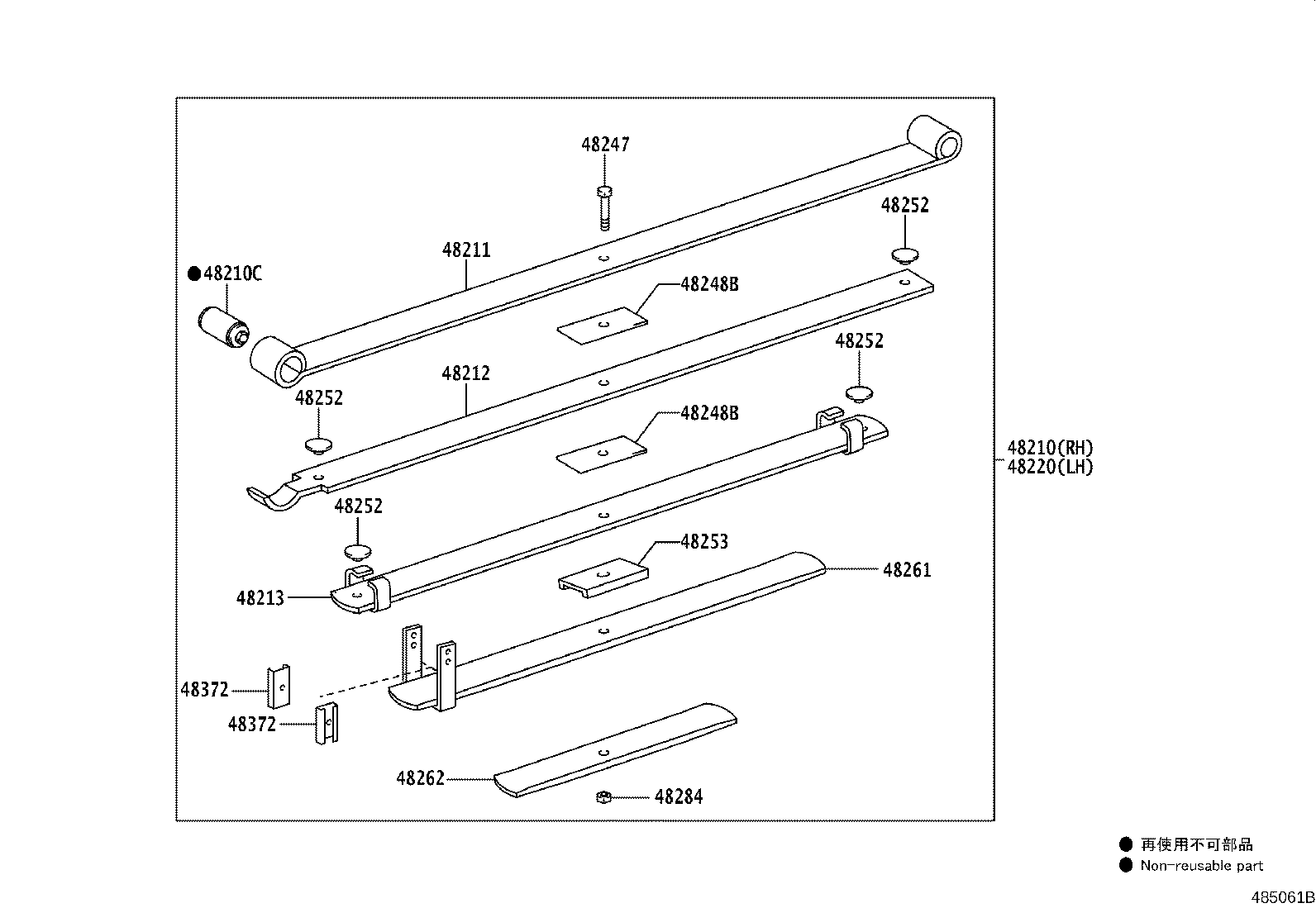

ILLUST NO. 2 OF 2(2006- )GUN122..TX..L ; (2006- )GUN122,TGN120,121..TD..5F,6FC
5-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-0K430 |
GUN122..TX..L;GUN122,TGN120,121..TD..(5F,6FC) 5-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-T0005 |
GUN120,122,TGN120,121..SD,TD,TX;GUN125,126,13#,LAN125,TGN126,136..AS,KS,MS,SS,TS |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-0K430 |
GUN122..TX..L;GUN122,TGN120,121..TD..(5F,6FC) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-0K430 |
GUN122..TX..L;GUN122,TGN120,121..TD..(5F,6FC) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48204-0K430 |
GUN122..TX..L;GUN122,TGN120,121..TD..(5F,6FC) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-0K430 |
GUN122..TX..L;GUN122,TGN120,121..TD..(5F,6FC) 5-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-0K350 |
GUN120,122,TGN120,121..TD,TX |
2 | ||
| 48248B - SPACER, REAR SPRING, NO.3 | ||||
| 48248-0K020 |
GUN122..TS..S;GUN122..TD..5F;TGN120,121..TD,TS;GUN122..(TS,TX)..L;GUN112,120,123,TGN11#..TS |
4 | ||
| 48248B - SPACER, REAR SPRING, NO.3 | ||||
| 48248-0K020 |
GUN122..TS..S;GUN122..TD..5F;TGN120,121..TD,TS;GUN122..(TS,TX)..L;GUN112,120,123,TGN11#..TS |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-0K010 |
GUN125,126,13#,TGN126..TS;GUN112,120,122,123,TGN11#,120,121..TD,TS,TX |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-0K010 |
GUN125,126,13#,TGN126..TS;GUN112,120,122,123,TGN11#,120,121..TD,TS,TX |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-0K010 |
GUN125,126,13#,TGN126..TS;GUN112,120,122,123,TGN11#,120,121..TD,TS,TX |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-0K010 |
GUN125,126,13#,TGN126..TS;GUN112,120,122,123,TGN11#,120,121..TD,TS,TX |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-0K010 |
GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS,TX |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-0K430 |
GUN122..TX..L;GUN122,TGN120,121..TD..(5F,6FC) |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48026-0K430 |
GUN122..TX..L;GUN122,TGN120,121..TD..(5F,6FC) |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0K310 |
GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS,TX |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-0K030 |
GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS,TX |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-0K030 |
GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS,TX |
4 | ||
