GUN112L-BTMLXV (2020)
Toyota Hilux

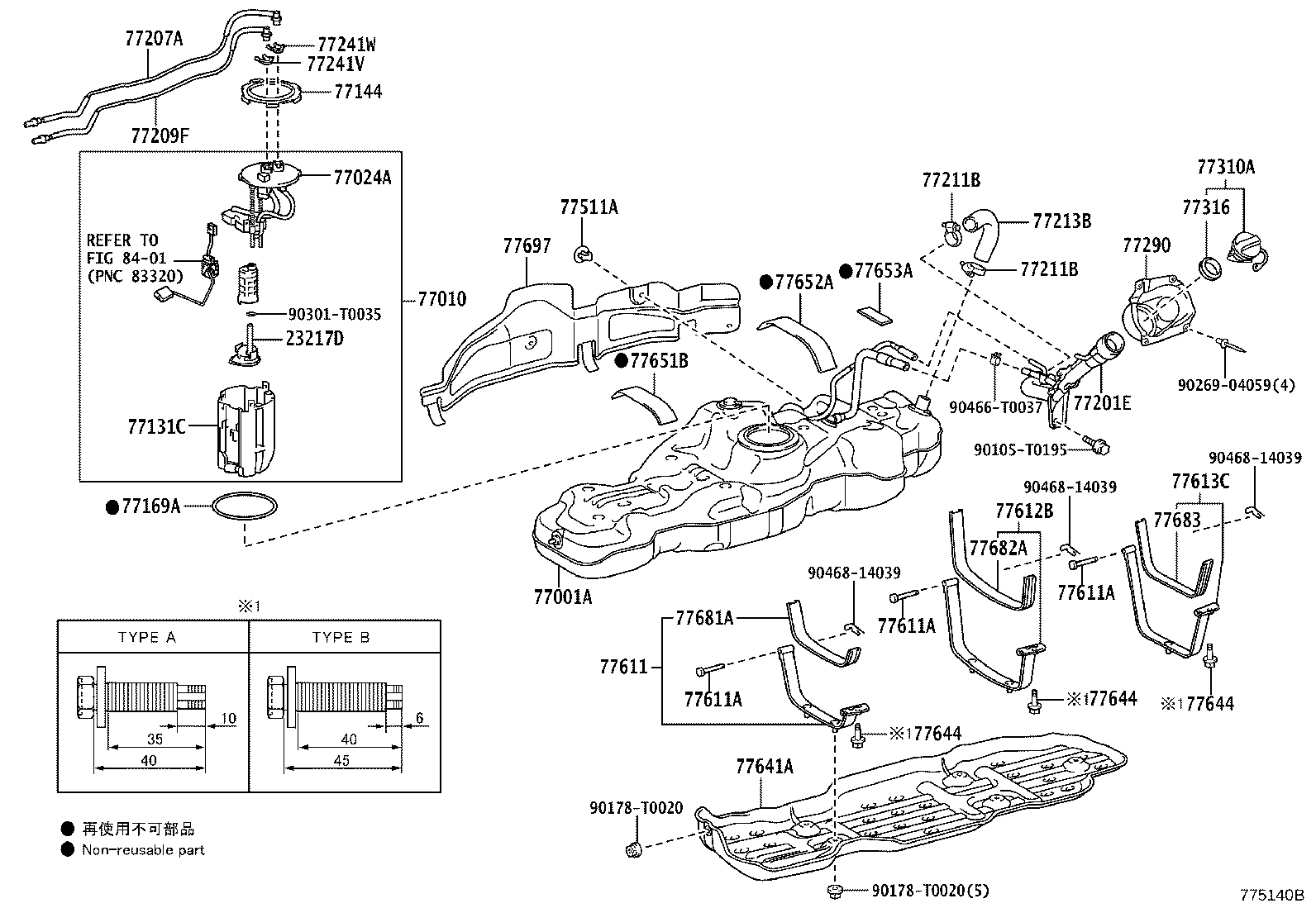

ILLUST NO. 1 OF 3(2006- )GUN112..GCC
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-0L020 |
1GDFTV,2GDFTV,5LE..GUN112,12#,13#,LAN125..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77001A - TANK SUB-ASSY, FUEL | ||||
| 77001-0K630 |
GUN112 |
1 | ||
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-0K230 |
GUN112 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-0K300 |
GUN112 |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-0K080 |
GUN112 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-0K040 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0K030 |
GGN125,TGN11#,12#,13#..AD,AS,SD,SS,TD,TS |
1 | ||
| 77169-0K040 |
GUN112,12#,13#,LAN125..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-KK210 |
GUN112..GCC |
1 | ||
| 77207A - TUBE SUB-ASSY, FUEL RETURN | ||||
| 77204-0K110 |
GUN112 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0K170 |
GUN112 |
1 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-46005 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
2 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-46005 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
2 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-KK030 |
GUN112,TGN11# |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-0K020 |
GUN112,12#,13#,LAN125..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-0K010 |
GUN112,12#,13#,LAN125..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77241-0K010 |
GGN125,TGN11#,12#,13#..AD,AS,SD,SS,TD,TS |
2 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-0K050 |
TGN126..TS..S;GUN122..TD..5F;GUN126..(TD,TS)..L;GUN135..(TD,TS)..L..LA;GUN120,122,125..(MS,TS)..CBU;GUN125..TD..6F..L..(GCC,GEN,LA,PH);GUN112,123,TGN11#,120,121,136..(TD,TS)..CBU;GUN125,TGN126..LHD..(TD,TS)..(5F,6FC)..L..CBU |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-0K020 |
GUN112,12#,13#,LAN125..(AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX)..CBU |
1 | ||
| 77300-0K010 |
GGN125,TGN11#,12#,13#..(AD,AS,SD,SS,TD,TS)..CBU |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-0K020 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..(AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX)..CBU |
1 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-0K010 |
GUN112,TGN11# |
3 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-KK080 |
GUN112,TGN11#..GCC |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K041 |
GUN112,TGN11#..GCC |
3 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K041 |
GUN112,TGN11#..GCC |
3 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K041 |
GUN112,TGN11#..GCC |
3 | ||
| 77612B - BAND, FUEL TANK, NO.2 | ||||
| 77602-KK060 |
GUN112,TGN11#..GCC |
1 | ||
| 77613C - BAND, FUEL TANK, NO.3 | ||||
| 77603-KK030 |
GUN112,TGN11#..GCC |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-0K210 |
GUN112,TGN11#..GCC |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10983 |
GUN112,TGN11#..GCC (J),TYPE B:REF ILL. |
3 | ||
| 77644-35030 |
GUN112,TGN11#..GCC TYPE A:REFER ILLUST. |
3 | ||
| 90119-A0249 |
GUN112,TGN11#..GCC (L),TYPE B:REF ILL. |
3 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10983 |
GUN112,TGN11#..GCC (J),TYPE B:REF ILL. |
3 | ||
| 77644-35030 |
GUN112,TGN11#..GCC TYPE A:REFER ILLUST. |
3 | ||
| 90119-A0249 |
GUN112,TGN11#..GCC (L),TYPE B:REF ILL. |
3 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10983 |
GUN112,TGN11#..GCC (J),TYPE B:REF ILL. |
3 | ||
| 77644-35030 |
GUN112,TGN11#..GCC TYPE A:REFER ILLUST. |
3 | ||
| 90119-A0249 |
GUN112,TGN11#..GCC (L),TYPE B:REF ILL. |
3 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-0K050 |
GUN112,TGN11# |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77654-0K060 |
GUN112,TGN11# |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-0K060 |
GUN112,TGN11# |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-KK010 |
GUN112,TGN11# |
1 | ||
| 77682A - SEAT, FUEL TANK BAND, NO.2 | ||||
| 77682-71020 |
GUN112,TGN11#..GCC |
1 | ||
| 77683 - SEAT, FUEL TANK BAND, NO.3 | ||||
| 77683-KK020 |
GUN112,TGN11#..GCC |
1 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-0K060 |
GUN112,TGN11# |
1 | ||
| Common parts | ||||
| 90105-T0195 | ||||
| 90178-T0020 | ||||
| 90269-04059 | ||||
| 90301-T0035 | ||||
| 90466-T0037 | ||||
| 90468-14039 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 3(2006- )GUN112,136..ARL,BZAG,GCC,LA,SA..CBU
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-0L020 |
1GDFTV,2GDFTV,5LE..GUN112,12#,13#,LAN125..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 23217-0L020 |
1GDFTV,2GDFTV,5LE..GUN112,12#,13#,LAN125..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77001A - TANK SUB-ASSY, FUEL | ||||
| 77001-0K630 |
GUN112 |
1 | ||
| 77001-0K630 |
GUN112 |
1 | ||
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-0K230 |
GUN112 |
1 | ||
| 77010-0K230 |
GUN112 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-0K300 |
GUN112 |
1 | ||
| 77024-0K300 |
GUN112 |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-0K080 |
GUN112 |
1 | ||
| 77131-0K080 |
GUN112 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-0K040 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77144-0K040 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0K030 |
GGN125,TGN11#,12#,13#..AD,AS,SD,SS,TD,TS |
1 | ||
| 77169-0K030 |
GGN125,TGN11#,12#,13#..AD,AS,SD,SS,TD,TS |
1 | ||
| 77169-0K040 |
GUN112,12#,13#,LAN125..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77169-0K040 |
GUN112,12#,13#,LAN125..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-KK210 |
GUN112..GCC |
1 | ||
| 77201-KK210 |
GUN112..GCC |
1 | ||
| 77207A - TUBE SUB-ASSY, FUEL RETURN | ||||
| 77204-0K110 |
GUN112 |
1 | ||
| 77204-0K110 |
GUN112 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0K170 |
GUN112 |
1 | ||
| 77209-0K170 |
GUN112 |
1 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-46005 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
2 | ||
| 90460-46005 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
2 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-46005 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
2 | ||
| 90460-46005 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
2 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-KK030 |
GUN112,TGN11# |
1 | ||
| 77213-KK030 |
GUN112,TGN11# |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-0K020 |
GUN112,12#,13#,LAN125..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77241-0K020 |
GUN112,12#,13#,LAN125..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-0K010 |
GUN112,12#,13#,LAN125..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77241-0K010 |
GUN112,12#,13#,LAN125..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77241-0K010 |
GGN125,TGN11#,12#,13#..AD,AS,SD,SS,TD,TS |
2 | ||
| 77241-0K010 |
GGN125,TGN11#,12#,13#..AD,AS,SD,SS,TD,TS |
2 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-0K050 |
TGN126..TS..S;GUN122..TD..5F;GUN126..(TD,TS)..L;GUN135..(TD,TS)..L..LA;GUN120,122,125..(MS,TS)..CBU;GUN125..TD..6F..L..(GCC,GEN,LA,PH);GUN112,123,TGN11#,120,121,136..(TD,TS)..CBU;GUN125,TGN126..LHD..(TD,TS)..(5F,6FC)..L..CBU |
1 | ||
| 77290-0K050 |
TGN126..TS..S;GUN122..TD..5F;GUN126..(TD,TS)..L;GUN135..(TD,TS)..L..LA;GUN120,122,125..(MS,TS)..CBU;GUN125..TD..6F..L..(GCC,GEN,LA,PH);GUN112,123,TGN11#,120,121,136..(TD,TS)..CBU;GUN125,TGN126..LHD..(TD,TS)..(5F,6FC)..L..CBU |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-0K020 |
GUN112,12#,13#,LAN125..(AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX)..CBU |
1 | ||
| 77300-0K020 |
GUN112,12#,13#,LAN125..(AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX)..CBU |
1 | ||
| 77300-0K010 |
GGN125,TGN11#,12#,13#..(AD,AS,SD,SS,TD,TS)..CBU |
1 | ||
| 77300-0K010 |
GGN125,TGN11#,12#,13#..(AD,AS,SD,SS,TD,TS)..CBU |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-0K020 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..(AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX)..CBU |
1 | ||
| 77316-0K020 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..(AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX)..CBU |
1 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-0K010 |
GUN112,TGN11# |
3 | ||
| 77512-0K010 |
GUN112,TGN11# |
3 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-KK080 |
GUN112,TGN11#..GCC |
1 | ||
| 77601-KK080 |
GUN112,TGN11#..GCC |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K041 |
GUN112,TGN11#..GCC |
3 | ||
| 77653-0K041 |
GUN112,TGN11#..GCC |
3 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K041 |
GUN112,TGN11#..GCC |
3 | ||
| 77653-0K041 |
GUN112,TGN11#..GCC |
3 | ||
| 77612B - BAND, FUEL TANK, NO.2 | ||||
| 77602-KK060 |
GUN112,TGN11#..GCC |
1 | ||
| 77602-KK060 |
GUN112,TGN11#..GCC |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-0K210 |
GUN112,TGN11#..GCC |
1 | ||
| 77641-0K210 |
GUN112,TGN11#..GCC |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10983 |
GUN112,TGN11#..GCC (J),TYPE B:REF ILL. |
3 | ||
| 90119-10983 |
GUN112,TGN11#..GCC (J),TYPE B:REF ILL. |
3 | ||
| 77644-35030 |
GUN112,TGN11#..GCC TYPE A:REFER ILLUST. |
3 | ||
| 77644-35030 |
GUN112,TGN11#..GCC TYPE A:REFER ILLUST. |
3 | ||
| 90119-A0249 |
GUN112,TGN11#..GCC (L),TYPE B:REF ILL. |
3 | ||
| 90119-A0249 |
GUN112,TGN11#..GCC (L),TYPE B:REF ILL. |
3 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10983 |
GUN112,TGN11#..GCC (J),TYPE B:REF ILL. |
3 | ||
| 90119-10983 |
GUN112,TGN11#..GCC (J),TYPE B:REF ILL. |
3 | ||
| 77644-35030 |
GUN112,TGN11#..GCC TYPE A:REFER ILLUST. |
3 | ||
| 77644-35030 |
GUN112,TGN11#..GCC TYPE A:REFER ILLUST. |
3 | ||
| 90119-A0249 |
GUN112,TGN11#..GCC (L),TYPE B:REF ILL. |
3 | ||
| 90119-A0249 |
GUN112,TGN11#..GCC (L),TYPE B:REF ILL. |
3 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-0K050 |
GUN112,TGN11# |
1 | ||
| 77651-0K050 |
GUN112,TGN11# |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77654-0K060 |
GUN112,TGN11# |
1 | ||
| 77654-0K060 |
GUN112,TGN11# |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-KK010 |
GUN112,TGN11# |
1 | ||
| 77681-KK010 |
GUN112,TGN11# |
1 | ||
| 77682A - SEAT, FUEL TANK BAND, NO.2 | ||||
| 77682-71020 |
GUN112,TGN11#..GCC |
1 | ||
| 77682-71020 |
GUN112,TGN11#..GCC |
1 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-0K060 |
GUN112,TGN11# |
1 | ||
| 77697-0K060 |
GUN112,TGN11# |
1 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90105-T0195 | ||||
| 90178-T0020 | ||||
| 90179-06146 | ||||
| 90182-T0024 | ||||
| 90269-04059 | ||||
| 90301-T0035 | ||||
| 90466-T0037 | ||||
| 90468-14039 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(2006- )GUN112
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-KK030 |
GUN112 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-KK030 |
GUN112 |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 95338-08018 |
GUN112 |
1 | ||
| 77278E - HOSE, FUEL | ||||
| 95338-10020 |
GUN112 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K130 |
GGN125,TGN11#,12#,13#..AD,AS,SD,SS,TD,TS |
1 | ||
| 77285-0K160 |
GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K230 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0K170 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
1 | ||
| Common parts | ||||
| 90182-T0026 | ||||
| 90466-T0038 | ||||
| 90466-T0041 | ||||
| Linked diagrams | ||||
| 2202 | ||||
ILLUST NO. 3 OF 3(2006- )AS,KS,MS,PS,SS,SX,TS,TX
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0K430 |
GUN112,TGN11#..GCC |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0K430 |
GUN112,TGN11#..GCC |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K190 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..(AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX)..CBU |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K190 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..(AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX)..CBU |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0K100 |
GGN125,GUN112,12#,13#,TGN11#,12#,13#..(AD,AS,MD,MMD,MS,TD,TS,TX)..CBU |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0K100 |
GGN125,GUN112,12#,13#,TGN11#,12#,13#..(AD,AS,MD,MMD,MS,TD,TS,TX)..CBU |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-KK030 |
GUN135..(AS,KS,SS,TS)..L..CBU;GUN126..(AS,SS,TS)..(L,S)..CBU;GUN112,120,123,TGN11#,126,136..(AS,TS)..CBU;GUN122,125,LAN125,TGN120,121..(AS,KS,MS,SS,TS)..CBU |
1 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-0K010 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..(AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX)..CBU |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0D080 |
GGN125,GUN112,12#,13#,TGN11#,12#,13#..(AD,AS,MD,MMD,MS,TD,TS,TX)..CBU |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0D080 |
GGN125,GUN112,12#,13#,TGN11#,12#,13#..(AD,AS,MD,MMD,MS,TD,TS,TX)..CBU |
1 | ||
| Common parts | ||||
| 90080-54035 | ||||
| 90269-06017 | ||||
| 90929-01382 | ||||
| 90959-T1001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
