Toyota Hilux GGN25 CLUTCH PEDAL & FLEXIBLE HOSE

Manufacturers Home
Toyota
GR
HILUX
GGN25L-PRASKG (2009)
3102 - CLUTCH PEDAL & FLEXIBLE HOSE

GGN25L-PRASKG (2009)

Toyota Hilux

Production Mar 2009 - Sep 2010

Engine 1GRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

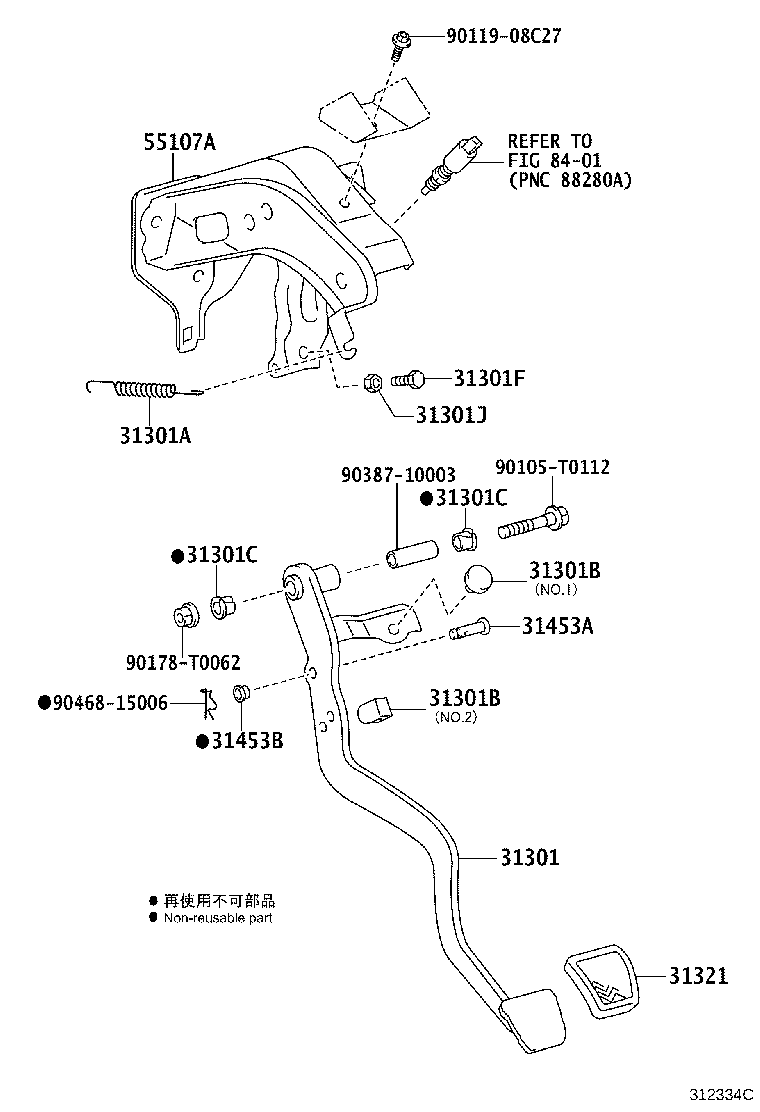

ILLUST NO. 1 OF 2(0408- )LAN15,25,35,TGN1#,26,36..5F ; (0411-1009)KUN15..PHL..CBU ; (0504-1010)KU

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-0K160	GGN15,25..5F..SR;KUN26,36..XTR..SA;KUN15,25,35..RHD..HDCR..(GEN,PKN,TH);KUN16,26,36..RHD..5F..(ARL,GEN,IDN,TH)	08/2010 - 12/2999	1
31301-0K160	GGN15,25..5F..SR;KUN26,36..XTR..SA;KUN15,25,35..RHD..HDCR..(GEN,PKN,TH);KUN16,26,36..RHD..5F..(ARL,GEN,IDN,TH)	08/2010 - 12/2999	1
31301A - SPRING(FOR CLUTCH PEDAL)
90905-06079	KUN16..XTR..TH;KUN36..DCB..DLX;KUN16..(DCB,SCB)..5F;KUN2#..SCB..5F..(ARL,MA);KUN26..(DCB,THDCB,XTR)..5F;KUN25,36..(DCB,SCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15..(DCB,SCB,XTR)..5F..(HDCR,HTWC) NO.2	08/2004 - 12/2008	1
90905-06079	KUN16..XTR..TH;KUN36..DCB..DLX;KUN16..(DCB,SCB)..5F;KUN2#..SCB..5F..(ARL,MA);KUN26..(DCB,THDCB,XTR)..5F;KUN25,36..(DCB,SCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15..(DCB,SCB,XTR)..5F..(HDCR,HTWC) NO.2	08/2004 - 12/2008	1
90949-T3001	KUN16..XTR..TH;KUN36..DCB..DLX;KUN16..(DCB,SCB)..5F;KUN2#..SCB..5F..(ARL,MA);KUN26..(DCB,THDCB,XTR)..5F;KUN25,36..(DCB,SCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15..(DCB,SCB,XTR)..5F..(HDCR,HTWC) NO.1	08/2004 - 12/2008	1
90949-T3001	KUN16..XTR..TH;KUN36..DCB..DLX;KUN16..(DCB,SCB)..5F;KUN2#..SCB..5F..(ARL,MA);KUN26..(DCB,THDCB,XTR)..5F;KUN25,36..(DCB,SCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15..(DCB,SCB,XTR)..5F..(HDCR,HTWC) NO.1	08/2004 - 12/2008	1
90507-T0001	TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN10,LAN15,25,35,TGN10,11..CBU;TGN15,16,26..5F..(ANCOM,ARL,GCC,GEN,SA);KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)	08/2004 - 02/2012	1
90507-T0001	TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN10,LAN15,25,35,TGN10,11..CBU;TGN15,16,26..5F..(ANCOM,ARL,GCC,GEN,SA);KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)	08/2004 - 02/2012	1
90949-T3001	GGN15,25..5F..SR;KUN26,36..XTR..SA;KUN16,26,36..5F..(ARL,GEN,IDN,TH);KUN15,25,35..HDCR..(GCC,GEN,PHL,PKN,TH)	08/2010 - 12/2999	1
90949-T3001	GGN15,25..5F..SR;KUN26,36..XTR..SA;KUN16,26,36..5F..(ARL,GEN,IDN,TH);KUN15,25,35..HDCR..(GCC,GEN,PHL,PKN,TH)	08/2010 - 12/2999	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-0K010	KUN16..XTR..TH;KUN36..DCB..DLX;KUN16..(DCB,SCB)..5F;KUN2#..SCB..5F..(ARL,MA);KUN26..(DCB,THDCB,XTR)..5F;KUN25,36..(DCB,SCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15..(DCB,SCB,XTR)..5F..(HDCR,HTWC)	08/2004 - 12/2008	1
55107-0K010	KUN16..XTR..TH;KUN36..DCB..DLX;KUN16..(DCB,SCB)..5F;KUN2#..SCB..5F..(ARL,MA);KUN26..(DCB,THDCB,XTR)..5F;KUN25,36..(DCB,SCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15..(DCB,SCB,XTR)..5F..(HDCR,HTWC)	08/2004 - 12/2008	1
55107-0K020	TGN36..SCB;KUN15..DLX..SA;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10,11..CBU;TGN15,16,26..5F..(ANCOM,ARL,GCC,GEN,SA);KUN15..(DCB,SCB,XTR)..(DLX,SR)..DCR..(GCC,GEN,PHL,TH)	08/2004 - 09/2010	1
55107-0K020	TGN36..SCB;KUN15..DLX..SA;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10,11..CBU;TGN15,16,26..5F..(ANCOM,ARL,GCC,GEN,SA);KUN15..(DCB,SCB,XTR)..(DLX,SR)..DCR..(GCC,GEN,PHL,TH)	08/2004 - 09/2010	1
55107-0K060	GGN15,25..5F..SR;KUN26,36..XTR..SA;KUN16,26,36..5F..(ARL,GEN,IDN,TH);KUN15,25,35..HDCR..(GCC,GEN,PHL,PKN,TH)	08/2010 - 12/2999	1
55107-0K060	GGN15,25..5F..SR;KUN26,36..XTR..SA;KUN16,26,36..5F..(ARL,GEN,IDN,TH);KUN15,25,35..HDCR..(GCC,GEN,PHL,PKN,TH)	08/2010 - 12/2999	1
Common parts
90105-T0112
90119-08C27
90178-T0062
90387-10003
90468-15006

ILLUST NO. 1 OF 2(0408-1008)KUN15..GCC..IV3 ; (0408-1008)KUN10,15..DLX..GCC,GEN,TH..CBU ; (0408-

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-0K160	GGN15,25..5F..SR;KUN26,36..XTR..SA;KUN15,25,35..RHD..HDCR..(GEN,PKN,TH);KUN16,26,36..RHD..5F..(ARL,GEN,IDN,TH)	08/2010 - 12/2999	1
31301-0K160	GGN15,25..5F..SR;KUN26,36..XTR..SA;KUN15,25,35..RHD..HDCR..(GEN,PKN,TH);KUN16,26,36..RHD..5F..(ARL,GEN,IDN,TH)	08/2010 - 12/2999	1
31301A - SPRING(FOR CLUTCH PEDAL)
90905-06079	KUN16..XTR..TH;KUN36..DCB..DLX;KUN16..(DCB,SCB)..5F;KUN2#..SCB..5F..(ARL,MA);KUN26..(DCB,THDCB,XTR)..5F;KUN25,36..(DCB,SCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15..(DCB,SCB,XTR)..5F..(HDCR,HTWC) NO.2	08/2004 - 12/2008	1
90905-06079	KUN16..XTR..TH;KUN36..DCB..DLX;KUN16..(DCB,SCB)..5F;KUN2#..SCB..5F..(ARL,MA);KUN26..(DCB,THDCB,XTR)..5F;KUN25,36..(DCB,SCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15..(DCB,SCB,XTR)..5F..(HDCR,HTWC) NO.2	08/2004 - 12/2008	1
90949-T3001	KUN16..XTR..TH;KUN36..DCB..DLX;KUN16..(DCB,SCB)..5F;KUN2#..SCB..5F..(ARL,MA);KUN26..(DCB,THDCB,XTR)..5F;KUN25,36..(DCB,SCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15..(DCB,SCB,XTR)..5F..(HDCR,HTWC) NO.1	08/2004 - 12/2008	1
90949-T3001	KUN16..XTR..TH;KUN36..DCB..DLX;KUN16..(DCB,SCB)..5F;KUN2#..SCB..5F..(ARL,MA);KUN26..(DCB,THDCB,XTR)..5F;KUN25,36..(DCB,SCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15..(DCB,SCB,XTR)..5F..(HDCR,HTWC) NO.1	08/2004 - 12/2008	1
90507-T0001	TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN10,LAN15,25,35,TGN10,11..CBU;TGN15,16,26..5F..(ANCOM,ARL,GCC,GEN,SA);KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)	08/2004 - 02/2012	1
90507-T0001	TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN10,LAN15,25,35,TGN10,11..CBU;TGN15,16,26..5F..(ANCOM,ARL,GCC,GEN,SA);KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)	08/2004 - 02/2012	1
90949-T3001	GGN15,25..5F..SR;KUN26,36..XTR..SA;KUN16,26,36..5F..(ARL,GEN,IDN,TH);KUN15,25,35..HDCR..(GCC,GEN,PHL,PKN,TH)	08/2010 - 12/2999	1
90949-T3001	GGN15,25..5F..SR;KUN26,36..XTR..SA;KUN16,26,36..5F..(ARL,GEN,IDN,TH);KUN15,25,35..HDCR..(GCC,GEN,PHL,PKN,TH)	08/2010 - 12/2999	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-0K010	KUN16..XTR..TH;KUN36..DCB..DLX;KUN16..(DCB,SCB)..5F;KUN2#..SCB..5F..(ARL,MA);KUN26..(DCB,THDCB,XTR)..5F;KUN25,36..(DCB,SCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15..(DCB,SCB,XTR)..5F..(HDCR,HTWC)	08/2004 - 12/2008	1
55107-0K010	KUN16..XTR..TH;KUN36..DCB..DLX;KUN16..(DCB,SCB)..5F;KUN2#..SCB..5F..(ARL,MA);KUN26..(DCB,THDCB,XTR)..5F;KUN25,36..(DCB,SCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15..(DCB,SCB,XTR)..5F..(HDCR,HTWC)	08/2004 - 12/2008	1
55107-0K020	TGN36..SCB;KUN15..DLX..SA;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10,11..CBU;TGN15,16,26..5F..(ANCOM,ARL,GCC,GEN,SA);KUN15..(DCB,SCB,XTR)..(DLX,SR)..DCR..(GCC,GEN,PHL,TH)	08/2004 - 09/2010	1
55107-0K020	TGN36..SCB;KUN15..DLX..SA;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10,11..CBU;TGN15,16,26..5F..(ANCOM,ARL,GCC,GEN,SA);KUN15..(DCB,SCB,XTR)..(DLX,SR)..DCR..(GCC,GEN,PHL,TH)	08/2004 - 09/2010	1
55107-0K060	GGN15,25..5F..SR;KUN26,36..XTR..SA;KUN16,26,36..5F..(ARL,GEN,IDN,TH);KUN15,25,35..HDCR..(GCC,GEN,PHL,PKN,TH)	08/2010 - 12/2999	1
55107-0K060	GGN15,25..5F..SR;KUN26,36..XTR..SA;KUN16,26,36..5F..(ARL,GEN,IDN,TH);KUN15,25,35..HDCR..(GCC,GEN,PHL,PKN,TH)	08/2010 - 12/2999	1
Common parts
90105-T0112
90119-08C27
90178-T0062
90387-10003
90468-15006

ILLUST NO. 1 OF 2(1008- )PHL..IV3 ; (1008- )KUN15..LHD..GEN; (1008- )KUN10,15..GCC,PKN ; (

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-0K160	GGN15,25..5F..SR;KUN26,36..XTR..SA;KUN15,25,35..RHD..HDCR..(GEN,PKN,TH);KUN16,26,36..RHD..5F..(ARL,GEN,IDN,TH)	08/2010 - 12/2999	1
31301A - SPRING(FOR CLUTCH PEDAL)
90905-06079	KUN16..XTR..TH;KUN36..DCB..DLX;KUN16..(DCB,SCB)..5F;KUN2#..SCB..5F..(ARL,MA);KUN26..(DCB,THDCB,XTR)..5F;KUN25,36..(DCB,SCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15..(DCB,SCB,XTR)..5F..(HDCR,HTWC) NO.2	08/2004 - 12/2008	1
90949-T3001	KUN16..XTR..TH;KUN36..DCB..DLX;KUN16..(DCB,SCB)..5F;KUN2#..SCB..5F..(ARL,MA);KUN26..(DCB,THDCB,XTR)..5F;KUN25,36..(DCB,SCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15..(DCB,SCB,XTR)..5F..(HDCR,HTWC) NO.1	08/2004 - 12/2008	1
90507-T0001	TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN10,LAN15,25,35,TGN10,11..CBU;TGN15,16,26..5F..(ANCOM,ARL,GCC,GEN,SA);KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)	08/2004 - 02/2012	1
90949-T3001	GGN15,25..5F..SR;KUN26,36..XTR..SA;KUN16,26,36..5F..(ARL,GEN,IDN,TH);KUN15,25,35..HDCR..(GCC,GEN,PHL,PKN,TH)	08/2010 - 12/2999	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-0K010	KUN16..XTR..TH;KUN36..DCB..DLX;KUN16..(DCB,SCB)..5F;KUN2#..SCB..5F..(ARL,MA);KUN26..(DCB,THDCB,XTR)..5F;KUN25,36..(DCB,SCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15..(DCB,SCB,XTR)..5F..(HDCR,HTWC)	08/2004 - 12/2008	1
55107-0K020	TGN36..SCB;KUN15..DLX..SA;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10,11..CBU;TGN15,16,26..5F..(ANCOM,ARL,GCC,GEN,SA);KUN15..(DCB,SCB,XTR)..(DLX,SR)..DCR..(GCC,GEN,PHL,TH)	08/2004 - 09/2010	1
55107-0K060	GGN15,25..5F..SR;KUN26,36..XTR..SA;KUN16,26,36..5F..(ARL,GEN,IDN,TH);KUN15,25,35..HDCR..(GCC,GEN,PHL,PKN,TH)	08/2010 - 12/2999	1
Common parts
90105-T0112
90119-08C27
90178-T0062
90387-10003
90468-15006
Linked diagrams
8401

ILLUST NO. 1 OF 2(1008- )GGN15,25..5F..SR ; (1008- )KUN26,36..XTR..SA ; (1008- )RHD..HDCR..

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-0K160	GGN15,25..5F..SR;KUN26,36..XTR..SA;KUN15,25,35..RHD..HDCR..(GEN,PKN,TH);KUN16,26,36..RHD..5F..(ARL,GEN,IDN,TH)	08/2010 - 12/2999	1
31301-0K160	GGN15,25..5F..SR;KUN26,36..XTR..SA;KUN15,25,35..RHD..HDCR..(GEN,PKN,TH);KUN16,26,36..RHD..5F..(ARL,GEN,IDN,TH)	08/2010 - 12/2999	1
31301A - SPRING(FOR CLUTCH PEDAL)
90905-06079	KUN16..XTR..TH;KUN36..DCB..DLX;KUN16..(DCB,SCB)..5F;KUN2#..SCB..5F..(ARL,MA);KUN26..(DCB,THDCB,XTR)..5F;KUN25,36..(DCB,SCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15..(DCB,SCB,XTR)..5F..(HDCR,HTWC) NO.2	08/2004 - 12/2008	1
90905-06079	KUN16..XTR..TH;KUN36..DCB..DLX;KUN16..(DCB,SCB)..5F;KUN2#..SCB..5F..(ARL,MA);KUN26..(DCB,THDCB,XTR)..5F;KUN25,36..(DCB,SCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15..(DCB,SCB,XTR)..5F..(HDCR,HTWC) NO.2	08/2004 - 12/2008	1
90949-T3001	KUN16..XTR..TH;KUN36..DCB..DLX;KUN16..(DCB,SCB)..5F;KUN2#..SCB..5F..(ARL,MA);KUN26..(DCB,THDCB,XTR)..5F;KUN25,36..(DCB,SCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15..(DCB,SCB,XTR)..5F..(HDCR,HTWC) NO.1	08/2004 - 12/2008	1
90949-T3001	KUN16..XTR..TH;KUN36..DCB..DLX;KUN16..(DCB,SCB)..5F;KUN2#..SCB..5F..(ARL,MA);KUN26..(DCB,THDCB,XTR)..5F;KUN25,36..(DCB,SCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15..(DCB,SCB,XTR)..5F..(HDCR,HTWC) NO.1	08/2004 - 12/2008	1
90507-T0001	TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN10,LAN15,25,35,TGN10,11..CBU;TGN15,16,26..5F..(ANCOM,ARL,GCC,GEN,SA);KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)	08/2004 - 02/2012	1
90507-T0001	TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN10,LAN15,25,35,TGN10,11..CBU;TGN15,16,26..5F..(ANCOM,ARL,GCC,GEN,SA);KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)	08/2004 - 02/2012	1
90949-T3001	GGN15,25..5F..SR;KUN26,36..XTR..SA;KUN16,26,36..5F..(ARL,GEN,IDN,TH);KUN15,25,35..HDCR..(GCC,GEN,PHL,PKN,TH)	08/2010 - 12/2999	1
90949-T3001	GGN15,25..5F..SR;KUN26,36..XTR..SA;KUN16,26,36..5F..(ARL,GEN,IDN,TH);KUN15,25,35..HDCR..(GCC,GEN,PHL,PKN,TH)	08/2010 - 12/2999	1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90389-06055	KUN36..DCB..DLX;KUN36..SR..(LA,SA);GGN25,KUN2#,35..5F..(LA,SA)	08/2004 - 10/2008	1
90389-06055	KUN36..DCB..DLX;KUN36..SR..(LA,SA);GGN25,KUN2#,35..5F..(LA,SA)	08/2004 - 10/2008	1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-26010	KUN36..DCB..DLX;KUN36..SR..(LA,SA);GGN25,KUN2#,35..5F..(LA,SA)	08/2004 - 10/2008	1
31353-26010	KUN36..DCB..DLX;KUN36..SR..(LA,SA);GGN25,KUN2#,35..5F..(LA,SA)	08/2004 - 10/2008	1
31395A - HOOK, PEDAL SPRING, NO.1
31395-33020	KUN36..DCB..DLX;KUN36..SR..(LA,SA);GGN25,KUN2#,35..5F..(LA,SA)	08/2004 - 10/2008	1
31395-33020	KUN36..DCB..DLX;KUN36..SR..(LA,SA);GGN25,KUN2#,35..5F..(LA,SA)	08/2004 - 10/2008	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-0K010	KUN16..XTR..TH;KUN36..DCB..DLX;KUN16..(DCB,SCB)..5F;KUN2#..SCB..5F..(ARL,MA);KUN26..(DCB,THDCB,XTR)..5F;KUN25,36..(DCB,SCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15..(DCB,SCB,XTR)..5F..(HDCR,HTWC)	08/2004 - 12/2008	1
55107-0K010	KUN16..XTR..TH;KUN36..DCB..DLX;KUN16..(DCB,SCB)..5F;KUN2#..SCB..5F..(ARL,MA);KUN26..(DCB,THDCB,XTR)..5F;KUN25,36..(DCB,SCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15..(DCB,SCB,XTR)..5F..(HDCR,HTWC)	08/2004 - 12/2008	1
55107-0K020	TGN36..SCB;KUN15..DLX..SA;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10,11..CBU;TGN15,16,26..5F..(ANCOM,ARL,GCC,GEN,SA);KUN15..(DCB,SCB,XTR)..(DLX,SR)..DCR..(GCC,GEN,PHL,TH)	08/2004 - 09/2010	1
55107-0K020	TGN36..SCB;KUN15..DLX..SA;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10,11..CBU;TGN15,16,26..5F..(ANCOM,ARL,GCC,GEN,SA);KUN15..(DCB,SCB,XTR)..(DLX,SR)..DCR..(GCC,GEN,PHL,TH)	08/2004 - 09/2010	1
55107-0K060	GGN15,25..5F..SR;KUN26,36..XTR..SA;KUN16,26,36..5F..(ARL,GEN,IDN,TH);KUN15,25,35..HDCR..(GCC,GEN,PHL,PKN,TH)	08/2010 - 12/2999	1
55107-0K060	GGN15,25..5F..SR;KUN26,36..XTR..SA;KUN16,26,36..5F..(ARL,GEN,IDN,TH);KUN15,25,35..HDCR..(GCC,GEN,PHL,PKN,TH)	08/2010 - 12/2999	1
Common parts
90105-T0112
90119-08C27
90178-T0062
90387-10003
90468-15006
Linked diagrams
8401

GGN25L-PRASKG (2009)

ILLUST NO. 1 OF 2(0408- )LAN15,25,35,TGN1#,26,36..5F ; (0411-1009)KUN15..PHL..CBU ; (0504-1010)KU

ILLUST NO. 1 OF 2(0408-1008)KUN15..GCC..IV3 ; (0408-1008)KUN10,15..DLX..GCC,GEN,TH..CBU ; (0408-

ILLUST NO. 1 OF 2(1008- )PHL..IV3 ; (1008- )KUN15..LHD..GEN; (1008- )KUN10,15..GCC,PKN ; (

ILLUST NO. 1 OF 2(1008- )GGN15,25..5F..SR ; (1008- )KUN26,36..XTR..SA ; (1008- )RHD..HDCR..
