GGN15R-TRMDKQ3 (2008)

Toyota Hilux

Production Aug 2008 - Jul 2011
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )GGN15,25..5F..ARL

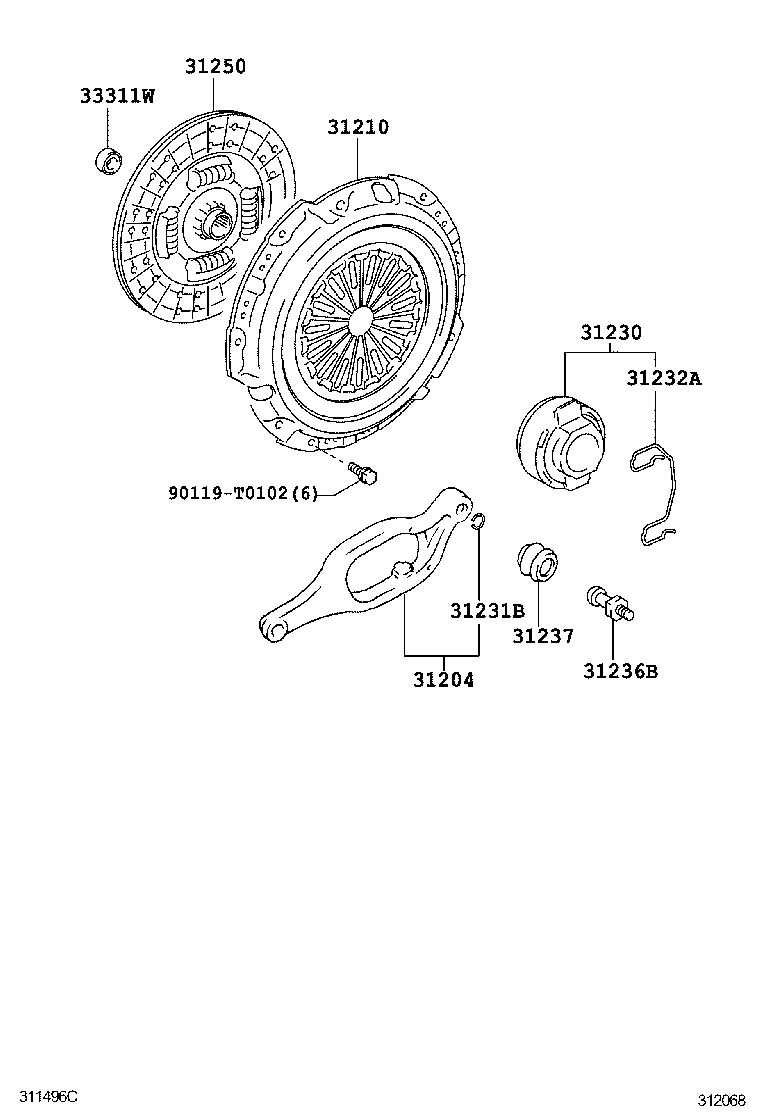

Click highlighted areas on diagram

diagram 31204 31210 31230 31231B 31232A 31236B 31237 31250 33311W 90119T0102
Part # Description Qty Price
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-0K061

GGN15,25..5F

TYPE D:REFER 33-01,TYPE B:REFER 33-01

 1
31204-0K100

GGN15,25..5F..ARL

TYPE D:REFER 33-01,TYPE B:REFER 33-01

 1
31210 - COVER ASSY, CLUTCH
31210-0K200

GGN15,25..5F..ARL

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-71040

GGN15,25..5F..ARL

TYPE D:REFER 33-01,TYPE B:REFER 33-01

 1
31231B - RING, SNAP(FOR CLUTCH RELEASE HUB)
90521-22003

GGN15,25..5F..ARL

TYPE C:REFER 33-01

 1
90521-22003

GGN15..5F

 1
90521-22003

GGN15,25..5F..ARL

TYPE D:REFER 33-01

 1
31232A - CLIP, RELEASE BEARING HUB
31232-71040

GGN15,25..5F..ARL

TYPE B:REFER 33-01,TYPE D:REFER 33-01

 1
31236B - SUPPORT, RELEASE FORK
31236-60060

GGN15,25..5F..ARL

TYPE C:REFER 33-01

 1
31236-60060

GGN15,25..5F..ARL

TYPE D:REFER 33-01,TYPE B:REFER 33-01

 1
31236-71010

KUN1#..5F..(ARL,GCC,GEN,PHL,TH);KUN2#,3#..5F..(ARL,GCC,GEN,LA,MA,PHL,SA,TH)

TYPE D:REFER 33-01

 1
31237 - BOOT, CLUTCH RELEASE FORK SUPPORT
31237-60010

GGN15,25..5F..ARL

TYPE B:REFER 33-01

 1
31237-0K010

GGN15..5F..DLX;KUN36..RHD..5F;KUN16..SCB,SMT,XTR;KUN10,15..GCC,GEN,PHL,TH;GGN25,KUN16..DCB..5F..ARL;KUN2#,35..5F..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,SA,TH)

TYPE D:REFER 33-01

 1
31250 - DISC ASSY, CLUTCH
31250-0K230

GGN15,25..5F..ARL

 1
31250-0K231

GGN15,25..5F

 1
31250-0K220

KUN16,3#..5F..(ARL,TH);KUN26..5F..(ARL,GEN,IDN,PHL,TH)

OD=275

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-T0006

KUN16..XTR..TH;KUN25..SCB..MA;KUN25..ANCOM,GCC,GEN;KUN25..(DCB,XTR)..5F..SR;KUN15,26,36,TGN16,26..(DCB,SCB,THDCB,XTR)..5F..(ARL,GCC,GEN,PHL,TH);KUN10,16,35,TGN10,11,15..(DCB,SCB,THDCB)..5F..(ANCOM,ARL,GCC,GEN,IDN,TH)

 1
90363-12002

GGN25..5F..ARL;KUN26..(DCB,SCB)..5F..SA;GGN15,KUN15,25,3#,LAN15,25,35..(DCB,SCB)..5F..(ARL,SA)

 1
90363-T0006

KUN15,26,36..XTR..SA;TGN26..5F..(GCC,GEN);KUN25..5F..(ANCOM,GCC,GEN,MA,PKN,TH);KUN1#,26,3#,TGN1#..5F..(ANCOM,ARL,GCC,GEN,IDN,PHL,TH)

 1
Common parts
90119-T0102
