GGN15R-TRMDKQ3 (2008)
Toyota Hilux
(0812- )1GRFE..GGN15,25..ARL
12V 1.4KW

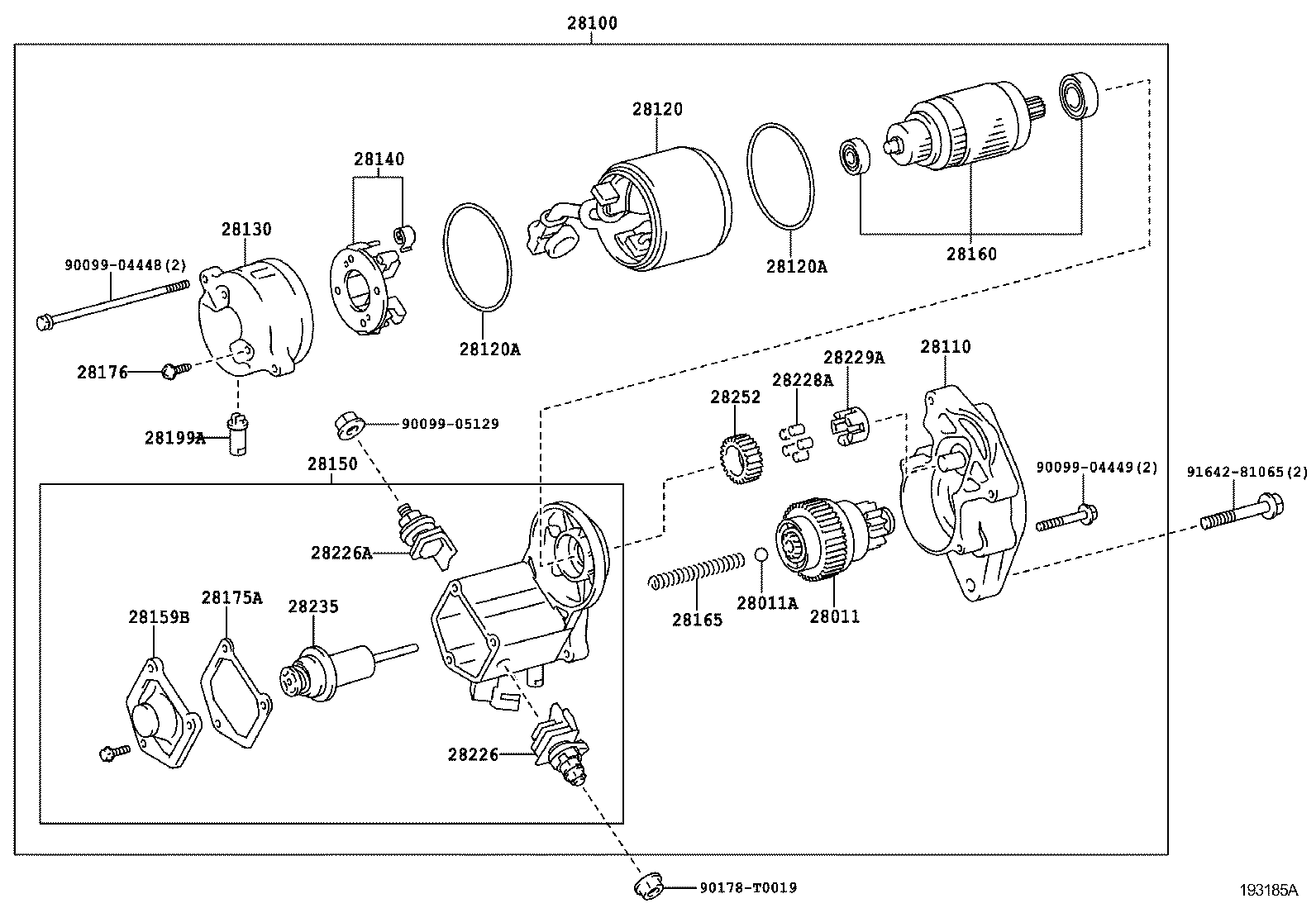

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-66020 |
1GRFE..GGN15,25..ARL |
1 | ||
| 28011A - BALL, STARTER CLUTCH | ||||
| 90099-12009 |
1GRFE..GGN15,25..ARL |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-31040 |
1GRFE..GGN15,25..ARL 12V 1.6KW |
1 | ||
| 28100-31110 |
1GRFE..GGN15,25..ARL 12V 1.4KW |
1 | ||
| 28100-31111 |
1GRFE..GGN15,25..ARL 12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-31110 |
1GRFE..GGN15,25..ARL |
1 | ||
| 28110-31040 |
1GRFE..GGN15,25..ARL |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-28060 |
1GRFE..GGN15,25..ARL |
1 | ||
| 28120-66040 |
1GRFE..GGN15,25..ARL |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
1GRFE..GGN15,25..ARL |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
1GRFE..GGN15,25..ARL |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-31110 |
1GRFE..GGN15,25..ARL |
1 | ||
| 28130-31040 |
1GRFE..GGN15,25..ARL |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-35060 |
1GRFE..GGN15,25..ARL |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-31110 |
1GRFE..GGN15,25..ARL |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-55050 |
1GRFE..GGN15,25..ARL |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-21060 |
1GRFE..GGN15,25..ARL |
1 | ||
| 28160-74070 |
1GRFE..GGN15,25..ARL |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-76070 |
1GRFE..GGN15,25..ARL |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-55050 |
1GRFE..GGN15,25..ARL |
1 | ||
| 28176 - SCREW, STARTER | ||||
| 90099-00270 |
1GRFE..GGN15,25..ARL |
2 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-74110 |
1GRFE..GGN15,25..ARL |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-64370 |
1GRFE..GGN15,25..ARL |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-74070 |
1GRFE..GGN15,25..ARL |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
1GRFE..GGN15,25..ARL |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-74070 |
1GRFE..GGN15,25..ARL |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-55050 |
1GRFE..GGN15,25..ARL |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-74070 |
1GRFE..GGN15,25..ARL |
1 | ||
| Common parts | ||||
| 90099-04448 | ||||
| 90099-04449 | ||||
| 90099-05129 | ||||
| 90178-T0019 | ||||
| 91642-81065 | ||||
