Toyota Hilux GGN15 BATTERY & BATTERY CABLE

GGN15R-TRMDKQ (2011)

Toyota Hilux

Production Jul 2011 - Aug 2013

Engine 1GRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90178-T0019

Click highlighted areas on diagram

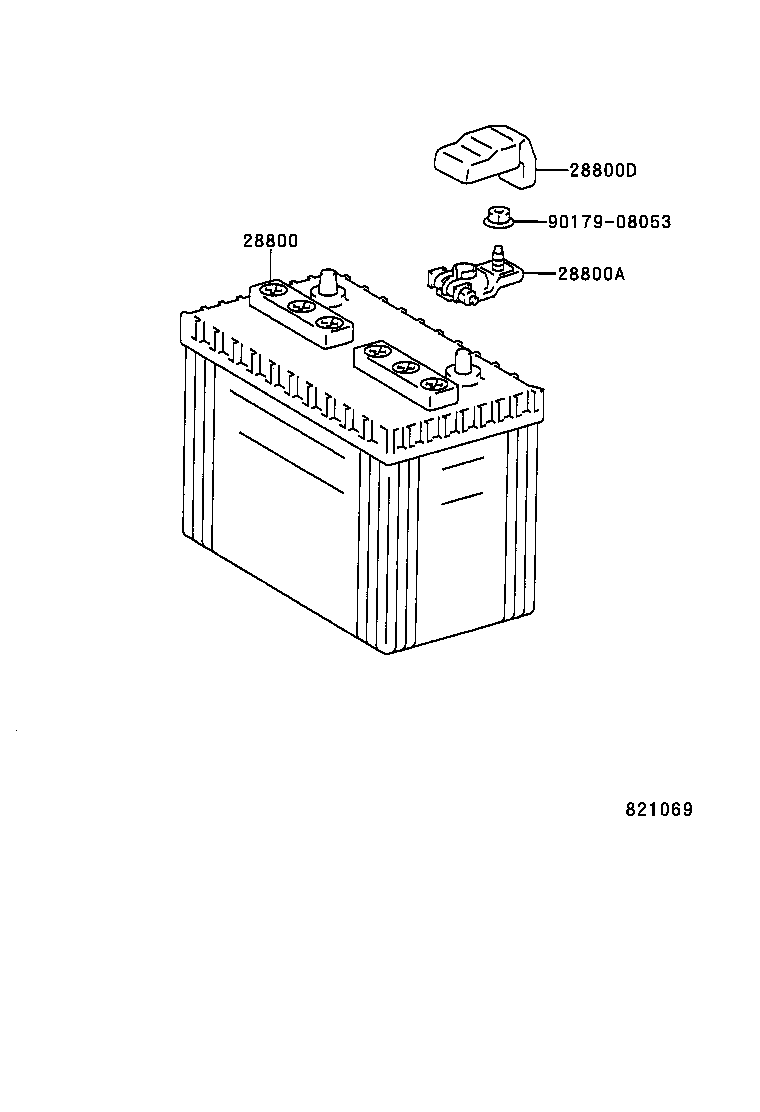

1-BATTERY

Part #	Description	Period	Qty
28800 - BATTERY
28800-0L010	2KDFTV..KUN35..5F..(GEN,PHL,TH);1GRFE,2KDFTV..GGN15,25,KUN10,15,25..(5F,5FC)..(ARL,GCC,GEN,IDN,PHL,TH) 80D26L,GS	07/2011 - 04/2015	1
28800-0L120	2KDFTV..KUN35..5F..(GEN,PHL,TH);1GRFE,2KDFTV..GGN15,25,KUN10,15,25..(5F,5FC)..(ARL,GCC,GEN,IDN,PHL,TH) 80D26L,YUASA	07/2011 - 04/2015	1
28800-0L360	2KDFTV..KUN35..5F..(GEN,PHL,TH);1GRFE,2KDFTV..GGN15,25,KUN10,15,25..(5F,5FC)..(ARL,GCC,GEN,IDN,PHL,TH) 80D26L,PANASONIC	07/2011 - 04/2015	1
28800A - TERMINAL, BATTERY POSITIVE
90982-05054	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-0K040	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06059	1GRFE,1KDFTV,2KDFTV..GGN15,25,35,KUN1#,25..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KUN26,3#,LAN15,25,35,TGN1#,26,36..DCB,SCB,SMT,THDCB,XTR	07/2011 - 12/2999	1
Common parts
90178-T0019

Click highlighted areas on diagram

1-BATTERY

Click highlighted areas on diagram

2-BATTERY
