Toyota Hilux GGN15 SEAT & SEAT TRACK

Manufacturers Home
Toyota
GR
HILUX
GGN15R-TRMDKQ (2011)
7151 - SEAT & SEAT TRACK

GGN15R-TRMDKQ (2011)

Toyota Hilux

Production Jul 2011 - Aug 2013

Engine 1GRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9708- )

Click highlighted areas on diagram

FRONT BENCH SEAT

Part #	Description	Period	Qty	Price
Common parts
90080-10143
90468-18071

ILLUST NO. 2 OF 3(9708- )

Click highlighted areas on diagram

FRONT BENCH SEAT

Part #	Description	Period	Qty	Price
Common parts
90119-08830
90119-10825
90119-T0108

ILLUST NO. 1 OF 2(9708- )

Click highlighted areas on diagram

FRONT 6:4 SPLIT SEAT

Part #	Description	Period	Qty	Price
Common parts
90468-18071
94185-60800

ILLUST NO. 2 OF 2(9708- )

Click highlighted areas on diagram

FRONT 6:4 SPLIT SEAT

Part #	Description	Period	Qty	Price
Common parts
90119-10825
90119-T0108
90168-40043
91512-61018
91615-60825
93249-54006
93249-54008

ILLUST NO. 2 OF 3(9708- )

Click highlighted areas on diagram

FRONT SEPARATE SEAT

Part #	Description	Period	Qty	Price
Common parts
90119-10825
90119-T0108
90168-40011
90168-40043
91512-61018
91615-60825
93249-54006
93249-54008

ILLUST NO. 1 OF 3(9708- )

Click highlighted areas on diagram

FRONT SEPARATE SEAT

Part #	Description	Period	Qty	Price
Common parts
90468-18071
90520-01006
91651-60614

ILLUST NO. 1 OF 3(0408- )RHD

Click highlighted areas on diagram

DRIVER SEAT

Part #	Description	Period	Qty	Price
Common parts
90119-10921
90119-T0001
90167-40044
91621-B0816
91622-B1018
Linked diagrams
7152

ILLUST NO. 2 OF 3(0408- )RHD..DCB,SCB

Click highlighted areas on diagram

PASSENGER SEAT(FOR ONE PERSON TYPE)

Part #	Description	Period	Qty	Price
Common parts
90119-10921
90119-T0001
90167-40044
91621-B0816
91622-B1018
Linked diagrams
7152

ILLUST NO. 1 OF 3(0408- )RHD

Click highlighted areas on diagram

DRIVER SEAT W(VERTICAL ADJUSTER)

Part #	Description	Period	Qty	Price
Common parts
44344-0K010
72702-0K100
90119-10921
90119-T0001
90167-40044
91621-B0816
91622-B1018
96160-00600
Linked diagrams
7152

ILLUST NO. 3 OF 3(1107- )DCB,SADCB,SCB,THDCB,THSCB

Click highlighted areas on diagram

REAR SEAT

Part #	Description	Period	Qty	Price
Common parts
90099-05179
90109-08127
90119-T0206
90167-40044
90179-08275
93560-55018

ILLUST NO. 1 OF 3(1107- )RHD

Click highlighted areas on diagram

DRIVER SEAT W/O(VERTICAL ADJUSTER)

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-0K050	TGN26..4FC;KUN26..5F..TH;KUN35..DCB..LA;GGN15..XTR..SR;TGN16..ARL,SA,TH;KUN25,TGN16..LHD..4FC;KUN35..CO,GEN,PHL,SA,TH;TGN36..(DCB,THDCB)..DLX;GGN15,KUN15..DLX..(ARL,PHL);KUN26..DCR..(ARL,CO,GEN,LA,PHL,SA);KUN15,25,TGN16,26..(THDCB,XTR)..GEN;KUN15,25,TGN36..(DCB,SCB)..SR..(GEN,LA,PHL,SA);KUN15,16,25,LAN15,25..RHD..(4FC,5F)..(ARL,GEN,MA,SA,TH);GGN25,35,KUN10,36,LAN35,TGN10,15..ANCOM,ARL,GEN,IDN,LA,SA,TH;KUN2#,TGN26..DCB..(5F,5FC)..(HDCR,HTWC,HTWCF,IART)..(ANCOM,CO,IDN,LA)	07/2011 - 12/2999	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0K080B4	TGN16..4FC..SR;GGN15,KUN16..(SCB,XTR)..DLX..ARL;KUN15,26,35,TGN26..LHD..(DCB,THDCB)..(4FC,5F)..SR..GEN MID. GRAY,TRIM1#	07/2011 - 04/2015	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0K780B2	GGN15,KUN16..SCB..ARL MID. GRAY,TRIM1#	07/2011 - 04/2015	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-0K050	KUN35..SR..TH;KUN36..5F..SA;GGN15..XTR..SR;TGN26..4FC..HTWC;KUN26..RHD..4FC..GEN;KUN25,TGN16..LHD..4FC;KUN35..DLX..(CO,GEN,SA,TH);KUN26..RHD..5F..(GEN,SA,TH);KUN15,36..SR..DCR..(GEN,TH);KUN25..RHD..(GEN,MA,PKN,SA,TH);GGN15,KUN25..DLX..(ARL,CO,IDN);TGN26..DCB..DLX..HTWC..(ANCOM,LA);KUN15,2#,TGN26..(SADCB,THDCB,XTR)..DLX..GEN;KUN1#,LAN15,25,35,TGN10,15,16,36..RHD..(4FC,5F)	07/2011 - 12/2999	1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-0K020	KUN26..MA;KUN25,35..IV3;KUN26..5FC..TH;LAN15,25,35,TGN15;KUN25..LHD..5F..DLX..SA;TGN16..DCB..5F..(GCC,GEN);KUN15..DCB..DLX..(GCC,GEN,SA);KUN2#..SR..(HDCR,IART)..(IDN,LA);KUN35,TGN26..DCB..5F..DLX..(GCC,SA);KUN25,TGN16..SCB..5F..(ARL,GCC,MA,TH);KUN25..(DCB,SCB,THSCB)..5F..(GCC,GEN,PKN);GGN15,KUN1#,TGN10,11,26,36..SCB..5F..(DLX,STD)..(DCR,HDCR,HTWC)	07/2011 - 09/2016	2
71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH
71537-71010	TGN26..4FC;KUN26..5F..TH;KUN35..DCB..LA;GGN15..XTR..SR;TGN16..ARL,SA,TH;KUN25,TGN16..LHD..4FC;KUN35..CO,GEN,PHL,SA,TH;TGN36..(DCB,THDCB)..DLX;GGN15,KUN15..DLX..(ARL,PHL);KUN26..DCR..(ARL,CO,GEN,LA,PHL,SA);KUN15,25,TGN16,26..(THDCB,XTR)..GEN;KUN15,25,TGN36..(DCB,SCB)..SR..(GEN,LA,PHL,SA);KUN15,16,25,LAN15,25..RHD..(4FC,5F)..(ARL,GEN,MA,PKN,SA,TH);GGN25,35,KUN10,36,LAN35,TGN10,15..ANCOM,ARL,GEN,IDN,LA,SA,TH;KUN2#,TGN26..DCB..(5F,5FC)..(HDCR,HTWC,HTWCF,IART)..(ANCOM,CO,IDN,LA)	07/2011 - 12/2999	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0K020	KUN36..5F..SA;KUN16..ARL,GEN;GGN15..XTR..SR;TGN16..SCB..SA;KUN36..GEN,LA,TH;KUN26..THDCB..4FC;KUN35..SR..(GEN,PHL,TH);TGN36..(DCB,THDCB)..DLX;KUN25..RHD..SCB..(PKN,SA);TGN16..(DCB,SMT)..(SA,TH);KUN26,35..DCB..5F..(HDCR,IART)..LA;KUN15,25,TGN16,26..(THDCB,XTR)..GEN;KUN26..5F..DCR..(CO,GEN,LA,PHL,SA,TH);GGN15,KUN35..DLX..(ARL,CO,GEN,PHL,SA,TH);KUN25,TGN16,26..4FC..(GCC,GEN,LA,MA,PKN,SA);KUN25..RHD..(DCB,SMT)..5F..(IDN,MA,PKN,SA,TH);KUN26..(DCB,SADCB)..(4FC,5FC)..(CO,GEN,LA,PHL);KUN15,16..RHD..(DCB,SMT,XTR)..(4FC,5F)..(SA,TH);KUN15,25,TGN36..(DCB,SCB)..(SR,STD)..(GEN,LA,PKN,SA);GGN25,KUN15,25,TGN26..DCB..(5F,5FC)..(ANCOM,CO,LA,PHL)	07/2011 - 12/2999	1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-0K040	TGN26..4FC;KUN36..5F..SA;GGN15..XTR..SR;KUN35..DCB..LA;TGN16..ARL,SA,TH;KUN25,TGN26..THDCB;KUN25,TGN16..LHD..4FC;KUN35..SR..(GEN,PHL,TH);TGN36..(DCB,THDCB)..DLX;GGN15,KUN15..DLX..(ARL,PHL);KUN35..DLX..(CO,GEN,PHL,SA,TH);KUN26..(4FC,5FC)..(CO,GEN,LA,PHL);KUN26..5F..DCR..(CO,GEN,LA,PHL,SA,TH);GGN25,KUN10,36,TGN10..ANCOM,GEN,IDN,LA,TH;KUN15,25,TGN36..(DCB,SCB)..SR..(GEN,LA,PHL,SA);KUN2#,TGN26..DCB..5F..(HDCR,HTWC,HTWCF,IART)..(ANCOM,CO,IDN,LA);KUN15,16,25,LAN15,25,35,TGN15..RHD..(4FC,5F)..(ARL,GEN,MA,PKN,SA,TH)	07/2011 - 12/2999	1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0K020B1	TGN26..THDCB;TGN16..DCB..SA;KUN26..5FC..DLX;KUN15..RHD..DCB..DCR;KUN15,25..SR..(GEN,SA);KUN25..(SCB,THDCB)..GEN;KUN25,TGN16,26..LHD..4FC;KUN25..RHD..DCB..5F..GEN;KUN26..LHD..(DCB,SADCB)..SR;KUN35..DLX..(CO,GEN,PHL,SA);TGN26..DCB..5F..(ANCOM,CO,LA);TGN16..(SCB,SMT)..(ARL,SA,TH);KUN15..RHD..(SCB,SMT)..(DLX,STD);GGN25,KUN10,36,TGN10..ANCOM,IDN,LA;KUN15,2#..DCB..5F..DLX..(CO,LA,PHL);KUN25,LAN25,35..RHD..DLX..(MA,PKN,SA);KUN35,TGN36..LHD..DCB..(ANCOM,GEN,LA);KUN26,36,TGN36..(SCB,THDCB,XTR)..(GEN,SA);KUN26..(SADCB,SCB,XTR)..(4FC,5F)..DLX..DCR;GGN15,KUN16,LAN15,TGN15..RHD..(SCB,XTR)..DLX MD.GRAY,TRIM1#	07/2011 - 12/2999	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0K020B1	TGN16..4FC..IV3;KUN26..5FC..DLX..ARL;KUN15..RHD..DCB..DCR;TGN26..DCB..DLX..ANCOM;KUN25..RHD..DCB..5F..GEN;KUN15,25..DLX..(PHL,PKN);TGN16,26..(THDCB,XTR)..DLX;GGN25,KUN10,TGN10..ANCOM,IDN;KUN26,TGN16,26..4FC..(CO,GCC);KUN15,35,TGN26..SR..(ANCOM,GEN);LAN25,35,TGN16..RHD..DLX..(SA,TH);GGN15,KUN16,LAN15..RHD..(SCB,XTR)..DLX;KUN26..LHD..(DCB,THDCB)..SR..(GEN,PHL);KUN15..RHD..(SCB,SMT)..(DLX,STD)..(GEN,PKN,TH);KUN2#..(SCB,THDCB,XTR)..(4FC,5F)..DLX..(ARL,GEN);KUN15,35,TGN36..(DCB,THDCB,XTR)..DLX..(HDCR,HTWC)..(ANCOM,GEN,PHL) MD.GRAY,TRIM1#	07/2011 - 12/2999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K690B3	GGN15,KUN16..SCB..5F..ARL MD.GRAY,TRIM1#,RH	07/2011 - 04/2015	1
71910-0K710B1	GGN15,KUN16..SCB..5F..ARL MD.GRAY,TRIM1#,LH	07/2011 - 04/2015	1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B5	KUN26..4FC..CO;KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);GGN15,KUN10,16,TGN10,11..SCB,SMT,XTR;KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);GGN25,KUN25,36,TGN15,26,36..ANCOM,GCC,GEN,IDN;KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH) W/O(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71930-02050B5	KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN25,36,TGN15,26..GCC,GEN,IDN;KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH);KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);GGN15,KUN10,16,TGN10,11,36..(SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,IDN,TH) W(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B5	KUN26..4FC..CO;KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);GGN15,KUN10,16,TGN10,11..SCB,SMT,XTR;KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);GGN25,KUN25,36,TGN15,26,36..ANCOM,GCC,GEN,IDN;KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH) W/O(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71930-02050B5	KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN25,36,TGN15,26..GCC,GEN,IDN;KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH);KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);GGN15,KUN10,16,TGN10,11,36..(SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,IDN,TH) W(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-0K010	TGN26..THDCB;KUN35..SR..PHL;KUN26..DLX..DCR;KUN15..SMT..DLX..HDCR;KUN25..(SCB,THDCB)..GEN;TGN16..DLX..(ARL,SA,TH);GGN25,KUN15,25..LHD..SR;KUN15,36..RHD..(SCB,XTR);KUN25..RHD..DCB..5F..GEN;KUN15..RHD..(DCB,SMT)..DCR;KUN35..DLX..(CO,GEN,PHL,SA);KUN25..RHD..DLX..(MA,PKN,SA);TGN36..(SCB,THDCB)..(GEN,SA);KUN15,25..DCB..DLX..(CO,LA,PHL);KUN36,TGN26..DCB..5F..(ANCOM,CO,LA);KUN26..(SCB,THDCB,XTR)..SR..(GEN,SA);KUN26..LHD..(DCB,SADCB)..5F..SR..DCR;KUN2#,TGN16,26..LHD..(DCB,SADCB)..(4FC,5FC);GGN15,25,KUN10,16,LAN15,25,35,TGN10,15..RHD..(DLX,STD);KUN26,35,TGN36..LHD..DCB..(4FC,5F)..(HDCR,HTWC,HTWCF,IART)..(ANCOM,GEN,LA)	07/2011 - 12/2999	1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-0K010	TGN26..THDCB;KUN35..SR..PHL;KUN26..DLX..DCR;KUN15..SMT..DLX..HDCR;KUN25..(SCB,THDCB)..GEN;TGN16..DLX..(ARL,SA,TH);GGN25,KUN15,25..LHD..SR;KUN15,36..RHD..(SCB,XTR);KUN25..RHD..DCB..5F..GEN;KUN15..RHD..(DCB,SMT)..DCR;KUN35..DLX..(CO,GEN,PHL,SA);KUN25..RHD..DLX..(MA,PKN,SA);TGN36..(SCB,THDCB)..(GEN,SA);KUN15,25..DCB..DLX..(CO,LA,PHL);KUN36,TGN26..DCB..5F..(ANCOM,CO,LA);KUN26..(SCB,THDCB,XTR)..SR..(GEN,SA);KUN26..LHD..(DCB,SADCB)..5F..SR..DCR;KUN2#,TGN16,26..LHD..(DCB,SADCB)..(4FC,5FC);GGN15,25,KUN10,16,LAN15,25,35,TGN10,15..RHD..(DLX,STD);KUN26,35,TGN36..LHD..DCB..(4FC,5F)..(HDCR,HTWC,HTWCF,IART)..(ANCOM,GEN,LA)	07/2011 - 12/2999	1
72201A - HANDLE SUB-ASSY, SEAT TRACK RH
72211-0K010	KUN26..5F..TH;GGN15..XTR..SR;TGN16..ARL,SA,TH;TGN26..4FC..HTWC;TGN26..DCB..DLX..ANCOM;KUN26,TGN36..ARL,GEN,PHL,SA;GGN15,KUN15,25..DLX..(ARL,IDN,PHL);KUN25,TGN16,36..LHD..4FC..(HDCR,HTWC);KUN15,25,TGN16,26..(THDCB,XTR)..DLX..GEN;KUN15,25,TGN26..LHD..SR..(ANCOM,GEN,PHL,SA);KUN15,16,25,LAN15,25..RHD..(4FC,5F)..(ARL,GEN,PKN,SA,TH);GGN25,35,KUN10,3#,LAN35,TGN10,15..ANCOM,ARL,GEN,IDN,PHL,SA,TH	07/2011 - 12/2999	1
72503 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH
72503-0K030	KUN35..SR..PHL;KUN26..DLX..DCR;TGN16,26..THDCB,XTR;TGN16..DLX..(ARL,SA,TH);GGN25,KUN15,25..LHD..SR;KUN15,36..RHD..(SCB,XTR);KUN25..RHD..DCB..5F..GEN;KUN15..RHD..(DCB,SMT)..DCR;KUN15..(SMT,XTR)..DLX..HDCR;KUN25..(SCB,THDCB,XTR)..GEN;KUN35..DLX..(CO,GEN,PHL,SA);KUN25..RHD..DLX..(MA,PKN,SA);TGN36..(SCB,THDCB)..(GEN,SA);KUN15,25..DCB..DLX..(CO,LA,PHL);KUN36,TGN26..DCB..5F..(ANCOM,CO,LA);KUN26..(SCB,THDCB,XTR)..SR..(GEN,SA);KUN26..LHD..(DCB,SADCB)..5F..SR..DCR;KUN2#,TGN16,26..LHD..(DCB,SADCB)..(4FC,5FC);GGN15,25,KUN10,16,LAN15,25,35,TGN10,15..RHD..(DLX,STD);KUN26,35,TGN36..LHD..DCB..(4FC,5F)..(HDCR,HTWC,HTWCF,IART)..(ANCOM,GEN,LA)	07/2011 - 12/2999	1
72504 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
72504-0K040	GGN15..5F;GGN15..DCB..5FC..DLX;KUN16..(DCB,SCB)..DLX..CBU;KUN26,TGN16..DCB..DLX..ARL;GGN25,KUN15..DLX..(DCR,HTWC)..(ARL,TH)	07/2011 - 11/2013	1
72504 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
72504-0K040	GGN15..5F;GGN15..DCB..5FC..DLX;KUN16..(DCB,SCB)..DLX..CBU;KUN26,TGN16..DCB..DLX..ARL;GGN25,KUN15..DLX..(DCR,HTWC)..(ARL,TH)	07/2011 - 11/2013	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0K040B1	KUN26..5FC..(ARL,GEN);KUN35..DLX..(GEN,PHL);KUN26,TGN16..4FC..(CO,GCC);KUN25..RHD..DLX..(GEN,IDN,PKN);KUN36,TGN26..4FC..(GCC,GEN,TH);KUN26..(SCB,XTR)..(4FC,5F)..ARL;KUN35,TGN16..(SCB,SMT)..(4FC,5FC);LAN25,35,TGN16..RHD..DLX..(SA,TH);KUN15,TGN26..DCB..DLX..(ANCOM,PHL);GGN25,KUN15,3#,TGN26..SR..(ANCOM,GEN);KUN15,25,TGN16,26..(THDCB,XTR)..DLX..GEN;KUN15,16..RHD..DCB..(4FC,5F)..DCR..(GEN,TH);GGN15,KUN10,16,LAN15,TGN10..RHD..(SCB,SMT,XTR);KUN15..RHD..(SCB,SMT)..(DLX,STD)..(GEN,PKN,TH);KUN26,TGN36..(DCB,THDCB)..(4FC,5F)..(ANCOM,GEN,PHL) MD.GRAY,TRIM1#	07/2011 - 12/2999	1
72637F - SPRING, SEAT BACK, RH
72637-0K010	TGN26..4FC;KUN26..5F..TH;KUN35..DCB..LA;GGN15..XTR..SR;TGN16..ARL,SA,TH;KUN25,TGN16..LHD..4FC;KUN35..CO,GEN,PHL,SA,TH;TGN36..(DCB,THDCB)..DLX;GGN15,KUN15..DLX..(ARL,PHL);KUN26..DCR..(ARL,CO,GEN,LA,PHL,SA);KUN15,25,TGN16,26..(THDCB,XTR)..GEN;KUN15,25,TGN36..(DCB,SCB)..SR..(GEN,LA,PHL,SA);KUN15,16,25,LAN15,25..RHD..(4FC,5F)..(ARL,GEN,MA,PKN,SA,TH);GGN25,35,KUN10,36,LAN35,TGN10,15..ANCOM,ARL,GEN,IDN,LA,SA,TH;KUN2#,TGN26..DCB..(5F,5FC)..(HDCR,HTWC,HTWCF,IART)..(ANCOM,CO,IDN,LA)	07/2011 - 12/2999	1
72991 - COVER, FRONT SEAT CUSHION, RH
72991-0K051	TGN16..ARL,SA,TH;KUN26..LHD..SADCB;KUN15,25..LHD..SR;KUN36,TGN26..4FC,5FC;KUN26..(SCB,XTR)..SA;KUN36..5F..(GEN,LA,TH);GGN15,LAN15,25..RHD..DLX;KUN2#,TGN16..4FC..(GCC,SA);GGN15,KUN36..(SCB,XTR)..SR;TGN36..(SCB,THDCB)..(GEN,SA);TGN26..DCB..5F..(ANCOM,CO,LA);KUN15,25..DCB..DLX..(CO,LA,PHL);KUN15,25..RHD..(GEN,IDN,MA,SA,TH);KUN15,25,TGN16,26..(THDCB,XTR)..GEN;KUN26,35,TGN36..DCB..(HDCR,HTWC,HTWCF,IART)..(ANCOM,LA);KUN26..(DCB,SCB,SMT,THDCB,XTR)..DCR..(ARL,CO,GEN,LA,MA,PHL,TH);GGN25,35,KUN10,16,35,LAN35,TGN10,15..ANCOM,ARL,CO,GEN,IDN,PHL,SA,TH	07/2011 - 12/2999	1
Common parts
90119-T0001
90167-40044
90167-T0019
91621-B0816
91622-B1018
Linked diagrams
7152

ILLUST NO. 1 OF 3(1107- )RHD

Click highlighted areas on diagram

DRIVER SEAT W(VERTICAL ADJUSTER)

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-0K050	TGN26..4FC;KUN26..5F..TH;KUN35..DCB..LA;GGN15..XTR..SR;TGN16..ARL,SA,TH;KUN25,TGN16..LHD..4FC;KUN35..CO,GEN,PHL,SA,TH;TGN36..(DCB,THDCB)..DLX;GGN15,KUN15..DLX..(ARL,PHL);KUN26..DCR..(ARL,CO,GEN,LA,PHL,SA);KUN15,25,TGN16,26..(THDCB,XTR)..GEN;KUN15,25,TGN36..(DCB,SCB)..SR..(GEN,LA,PHL,SA);KUN15,16,25,LAN15,25..RHD..(4FC,5F)..(ARL,GEN,MA,SA,TH);GGN25,35,KUN10,36,LAN35,TGN10,15..ANCOM,ARL,GEN,IDN,LA,SA,TH;KUN2#,TGN26..DCB..(5F,5FC)..(HDCR,HTWC,HTWCF,IART)..(ANCOM,CO,IDN,LA)	07/2011 - 12/2999	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0K080B4	TGN16..4FC..SR;GGN15,KUN16..(SCB,XTR)..DLX..ARL;KUN15,26,35,TGN26..LHD..(DCB,THDCB)..(4FC,5F)..SR..GEN MID. GRAY,TRIM1#	07/2011 - 04/2015	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0K780B2	GGN15,KUN16..SCB..ARL MID. GRAY,TRIM1#	07/2011 - 04/2015	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-0K050	KUN35..SR..TH;KUN36..5F..SA;GGN15..XTR..SR;TGN26..4FC..HTWC;KUN26..RHD..4FC..GEN;KUN25,TGN16..LHD..4FC;KUN35..DLX..(CO,GEN,SA,TH);KUN26..RHD..5F..(GEN,SA,TH);KUN15,36..SR..DCR..(GEN,TH);KUN25..RHD..(GEN,MA,PKN,SA,TH);GGN15,KUN25..DLX..(ARL,CO,IDN);TGN26..DCB..DLX..HTWC..(ANCOM,LA);KUN15,2#,TGN26..(SADCB,THDCB,XTR)..DLX..GEN;KUN1#,LAN15,25,35,TGN10,15,16,36..RHD..(4FC,5F)	07/2011 - 12/2999	1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-0K020	KUN26..MA;KUN25,35..IV3;KUN26..5FC..TH;LAN15,25,35,TGN15;KUN25..LHD..5F..DLX..SA;TGN16..DCB..5F..(GCC,GEN);KUN15..DCB..DLX..(GCC,GEN,SA);KUN2#..SR..(HDCR,IART)..(IDN,LA);KUN35,TGN26..DCB..5F..DLX..(GCC,SA);KUN25,TGN16..SCB..5F..(ARL,GCC,MA,TH);KUN25..(DCB,SCB,THSCB)..5F..(GCC,GEN,PKN);GGN15,KUN1#,TGN10,11,26,36..SCB..5F..(DLX,STD)..(DCR,HDCR,HTWC)	07/2011 - 09/2016	2
71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH
71537-71010	TGN26..4FC;KUN26..5F..TH;KUN35..DCB..LA;GGN15..XTR..SR;TGN16..ARL,SA,TH;KUN25,TGN16..LHD..4FC;KUN35..CO,GEN,PHL,SA,TH;TGN36..(DCB,THDCB)..DLX;GGN15,KUN15..DLX..(ARL,PHL);KUN26..DCR..(ARL,CO,GEN,LA,PHL,SA);KUN15,25,TGN16,26..(THDCB,XTR)..GEN;KUN15,25,TGN36..(DCB,SCB)..SR..(GEN,LA,PHL,SA);KUN15,16,25,LAN15,25..RHD..(4FC,5F)..(ARL,GEN,MA,PKN,SA,TH);GGN25,35,KUN10,36,LAN35,TGN10,15..ANCOM,ARL,GEN,IDN,LA,SA,TH;KUN2#,TGN26..DCB..(5F,5FC)..(HDCR,HTWC,HTWCF,IART)..(ANCOM,CO,IDN,LA)	07/2011 - 12/2999	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0K020	KUN36..5F..SA;KUN16..ARL,GEN;GGN15..XTR..SR;TGN16..SCB..SA;KUN36..GEN,LA,TH;KUN26..THDCB..4FC;KUN35..SR..(GEN,PHL,TH);TGN36..(DCB,THDCB)..DLX;KUN25..RHD..SCB..(PKN,SA);TGN16..(DCB,SMT)..(SA,TH);KUN26,35..DCB..5F..(HDCR,IART)..LA;KUN15,25,TGN16,26..(THDCB,XTR)..GEN;KUN26..5F..DCR..(CO,GEN,LA,PHL,SA,TH);GGN15,KUN35..DLX..(ARL,CO,GEN,PHL,SA,TH);KUN25,TGN16,26..4FC..(GCC,GEN,LA,MA,PKN,SA);KUN25..RHD..(DCB,SMT)..5F..(IDN,MA,PKN,SA,TH);KUN26..(DCB,SADCB)..(4FC,5FC)..(CO,GEN,LA,PHL);KUN15,16..RHD..(DCB,SMT,XTR)..(4FC,5F)..(SA,TH);KUN15,25,TGN36..(DCB,SCB)..(SR,STD)..(GEN,LA,PKN,SA);GGN25,KUN15,25,TGN26..DCB..(5F,5FC)..(ANCOM,CO,LA,PHL)	07/2011 - 12/2999	1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-0K040	TGN26..4FC;KUN36..5F..SA;GGN15..XTR..SR;KUN35..DCB..LA;TGN16..ARL,SA,TH;KUN25,TGN26..THDCB;KUN25,TGN16..LHD..4FC;KUN35..SR..(GEN,PHL,TH);TGN36..(DCB,THDCB)..DLX;GGN15,KUN15..DLX..(ARL,PHL);KUN35..DLX..(CO,GEN,PHL,SA,TH);KUN26..(4FC,5FC)..(CO,GEN,LA,PHL);KUN26..5F..DCR..(CO,GEN,LA,PHL,SA,TH);GGN25,KUN10,36,TGN10..ANCOM,GEN,IDN,LA,TH;KUN15,25,TGN36..(DCB,SCB)..SR..(GEN,LA,PHL,SA);KUN2#,TGN26..DCB..5F..(HDCR,HTWC,HTWCF,IART)..(ANCOM,CO,IDN,LA);KUN15,16,25,LAN15,25,35,TGN15..RHD..(4FC,5F)..(ARL,GEN,MA,PKN,SA,TH)	07/2011 - 12/2999	1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0K020B1	TGN26..THDCB;TGN16..DCB..SA;KUN26..5FC..DLX;KUN15..RHD..DCB..DCR;KUN15,25..SR..(GEN,SA);KUN25..(SCB,THDCB)..GEN;KUN25,TGN16,26..LHD..4FC;KUN25..RHD..DCB..5F..GEN;KUN26..LHD..(DCB,SADCB)..SR;KUN35..DLX..(CO,GEN,PHL,SA);TGN26..DCB..5F..(ANCOM,CO,LA);TGN16..(SCB,SMT)..(ARL,SA,TH);KUN15..RHD..(SCB,SMT)..(DLX,STD);GGN25,KUN10,36,TGN10..ANCOM,IDN,LA;KUN15,2#..DCB..5F..DLX..(CO,LA,PHL);KUN25,LAN25,35..RHD..DLX..(MA,PKN,SA);KUN35,TGN36..LHD..DCB..(ANCOM,GEN,LA);KUN26,36,TGN36..(SCB,THDCB,XTR)..(GEN,SA);KUN26..(SADCB,SCB,XTR)..(4FC,5F)..DLX..DCR;GGN15,KUN16,LAN15,TGN15..RHD..(SCB,XTR)..DLX MD.GRAY,TRIM1#	07/2011 - 12/2999	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0K020B1	TGN16..4FC..IV3;KUN26..5FC..DLX..ARL;KUN15..RHD..DCB..DCR;TGN26..DCB..DLX..ANCOM;KUN25..RHD..DCB..5F..GEN;KUN15,25..DLX..(PHL,PKN);TGN16,26..(THDCB,XTR)..DLX;GGN25,KUN10,TGN10..ANCOM,IDN;KUN26,TGN16,26..4FC..(CO,GCC);KUN15,35,TGN26..SR..(ANCOM,GEN);LAN25,35,TGN16..RHD..DLX..(SA,TH);GGN15,KUN16,LAN15..RHD..(SCB,XTR)..DLX;KUN26..LHD..(DCB,THDCB)..SR..(GEN,PHL);KUN15..RHD..(SCB,SMT)..(DLX,STD)..(GEN,PKN,TH);KUN2#..(SCB,THDCB,XTR)..(4FC,5F)..DLX..(ARL,GEN);KUN15,35,TGN36..(DCB,THDCB,XTR)..DLX..(HDCR,HTWC)..(ANCOM,GEN,PHL) MD.GRAY,TRIM1#	07/2011 - 12/2999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K690B3	GGN15,KUN16..SCB..5F..ARL MD.GRAY,TRIM1#,RH	07/2011 - 04/2015	1
71910-0K710B1	GGN15,KUN16..SCB..5F..ARL MD.GRAY,TRIM1#,LH	07/2011 - 04/2015	1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B5	KUN26..4FC..CO;KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);GGN15,KUN10,16,TGN10,11..SCB,SMT,XTR;KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);GGN25,KUN25,36,TGN15,26,36..ANCOM,GCC,GEN,IDN;KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH) W/O(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71930-02050B5	KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN25,36,TGN15,26..GCC,GEN,IDN;KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH);KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);GGN15,KUN10,16,TGN10,11,36..(SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,IDN,TH) W(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B5	KUN26..4FC..CO;KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);GGN15,KUN10,16,TGN10,11..SCB,SMT,XTR;KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);GGN25,KUN25,36,TGN15,26,36..ANCOM,GCC,GEN,IDN;KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH) W/O(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71930-02050B5	KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN25,36,TGN15,26..GCC,GEN,IDN;KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH);KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);GGN15,KUN10,16,TGN10,11,36..(SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,IDN,TH) W(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-0K010	TGN26..THDCB;KUN35..SR..PHL;KUN26..DLX..DCR;KUN15..SMT..DLX..HDCR;KUN25..(SCB,THDCB)..GEN;TGN16..DLX..(ARL,SA,TH);GGN25,KUN15,25..LHD..SR;KUN15,36..RHD..(SCB,XTR);KUN25..RHD..DCB..5F..GEN;KUN15..RHD..(DCB,SMT)..DCR;KUN35..DLX..(CO,GEN,PHL,SA);KUN25..RHD..DLX..(MA,PKN,SA);TGN36..(SCB,THDCB)..(GEN,SA);KUN15,25..DCB..DLX..(CO,LA,PHL);KUN36,TGN26..DCB..5F..(ANCOM,CO,LA);KUN26..(SCB,THDCB,XTR)..SR..(GEN,SA);KUN26..LHD..(DCB,SADCB)..5F..SR..DCR;KUN2#,TGN16,26..LHD..(DCB,SADCB)..(4FC,5FC);GGN15,25,KUN10,16,LAN15,25,35,TGN10,15..RHD..(DLX,STD);KUN26,35,TGN36..LHD..DCB..(4FC,5F)..(HDCR,HTWC,HTWCF,IART)..(ANCOM,GEN,LA)	07/2011 - 12/2999	1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-0K010	TGN26..THDCB;KUN35..SR..PHL;KUN26..DLX..DCR;KUN15..SMT..DLX..HDCR;KUN25..(SCB,THDCB)..GEN;TGN16..DLX..(ARL,SA,TH);GGN25,KUN15,25..LHD..SR;KUN15,36..RHD..(SCB,XTR);KUN25..RHD..DCB..5F..GEN;KUN15..RHD..(DCB,SMT)..DCR;KUN35..DLX..(CO,GEN,PHL,SA);KUN25..RHD..DLX..(MA,PKN,SA);TGN36..(SCB,THDCB)..(GEN,SA);KUN15,25..DCB..DLX..(CO,LA,PHL);KUN36,TGN26..DCB..5F..(ANCOM,CO,LA);KUN26..(SCB,THDCB,XTR)..SR..(GEN,SA);KUN26..LHD..(DCB,SADCB)..5F..SR..DCR;KUN2#,TGN16,26..LHD..(DCB,SADCB)..(4FC,5FC);GGN15,25,KUN10,16,LAN15,25,35,TGN10,15..RHD..(DLX,STD);KUN26,35,TGN36..LHD..DCB..(4FC,5F)..(HDCR,HTWC,HTWCF,IART)..(ANCOM,GEN,LA)	07/2011 - 12/2999	1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-0K010	TGN26..THDCB;KUN35..SR..PHL;KUN26..DLX..DCR;KUN15..SMT..DLX..HDCR;KUN25..(SCB,THDCB)..GEN;TGN16..DLX..(ARL,SA,TH);GGN25,KUN15,25..LHD..SR;KUN15,36..RHD..(SCB,XTR);KUN25..RHD..DCB..5F..GEN;KUN15..RHD..(DCB,SMT)..DCR;KUN35..DLX..(CO,GEN,PHL,SA);KUN25..RHD..DLX..(MA,PKN,SA);TGN36..(SCB,THDCB)..(GEN,SA);KUN15,25..DCB..DLX..(CO,LA,PHL);KUN36,TGN26..DCB..5F..(ANCOM,CO,LA);KUN26..(SCB,THDCB,XTR)..SR..(GEN,SA);KUN26..LHD..(DCB,SADCB)..5F..SR..DCR;KUN2#,TGN16,26..LHD..(DCB,SADCB)..(4FC,5FC);GGN15,25,KUN10,16,LAN15,25,35,TGN10,15..RHD..(DLX,STD);KUN26,35,TGN36..LHD..DCB..(4FC,5F)..(HDCR,HTWC,HTWCF,IART)..(ANCOM,GEN,LA)	07/2011 - 12/2999	1
72201A - HANDLE SUB-ASSY, SEAT TRACK RH
72211-0K010	KUN26..5F..TH;GGN15..XTR..SR;TGN16..ARL,SA,TH;TGN26..4FC..HTWC;TGN26..DCB..DLX..ANCOM;KUN26,TGN36..ARL,GEN,PHL,SA;GGN15,KUN15,25..DLX..(ARL,IDN,PHL);KUN25,TGN16,36..LHD..4FC..(HDCR,HTWC);KUN15,25,TGN16,26..(THDCB,XTR)..DLX..GEN;KUN15,25,TGN26..LHD..SR..(ANCOM,GEN,PHL,SA);KUN15,16,25,LAN15,25..RHD..(4FC,5F)..(ARL,GEN,PKN,SA,TH);GGN25,35,KUN10,3#,LAN35,TGN10,15..ANCOM,ARL,GEN,IDN,PHL,SA,TH	07/2011 - 12/2999	1
72503 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH
72503-0K030	KUN35..SR..PHL;KUN26..DLX..DCR;TGN16,26..THDCB,XTR;TGN16..DLX..(ARL,SA,TH);GGN25,KUN15,25..LHD..SR;KUN15,36..RHD..(SCB,XTR);KUN25..RHD..DCB..5F..GEN;KUN15..RHD..(DCB,SMT)..DCR;KUN15..(SMT,XTR)..DLX..HDCR;KUN25..(SCB,THDCB,XTR)..GEN;KUN35..DLX..(CO,GEN,PHL,SA);KUN25..RHD..DLX..(MA,PKN,SA);TGN36..(SCB,THDCB)..(GEN,SA);KUN15,25..DCB..DLX..(CO,LA,PHL);KUN36,TGN26..DCB..5F..(ANCOM,CO,LA);KUN26..(SCB,THDCB,XTR)..SR..(GEN,SA);KUN26..LHD..(DCB,SADCB)..5F..SR..DCR;KUN2#,TGN16,26..LHD..(DCB,SADCB)..(4FC,5FC);GGN15,25,KUN10,16,LAN15,25,35,TGN10,15..RHD..(DLX,STD);KUN26,35,TGN36..LHD..DCB..(4FC,5F)..(HDCR,HTWC,HTWCF,IART)..(ANCOM,GEN,LA)	07/2011 - 12/2999	1
72504 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
72504-0K040	GGN15..5F;GGN15..DCB..5FC..DLX;KUN16..(DCB,SCB)..DLX..CBU;KUN26,TGN16..DCB..DLX..ARL;GGN25,KUN15..DLX..(DCR,HTWC)..(ARL,TH)	07/2011 - 11/2013	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0K040B1	KUN26..5FC..(ARL,GEN);KUN35..DLX..(GEN,PHL);KUN26,TGN16..4FC..(CO,GCC);KUN25..RHD..DLX..(GEN,IDN,PKN);KUN36,TGN26..4FC..(GCC,GEN,TH);KUN26..(SCB,XTR)..(4FC,5F)..ARL;KUN35,TGN16..(SCB,SMT)..(4FC,5FC);LAN25,35,TGN16..RHD..DLX..(SA,TH);KUN15,TGN26..DCB..DLX..(ANCOM,PHL);GGN25,KUN15,3#,TGN26..SR..(ANCOM,GEN);KUN15,25,TGN16,26..(THDCB,XTR)..DLX..GEN;KUN15,16..RHD..DCB..(4FC,5F)..DCR..(GEN,TH);GGN15,KUN10,16,LAN15,TGN10..RHD..(SCB,SMT,XTR);KUN15..RHD..(SCB,SMT)..(DLX,STD)..(GEN,PKN,TH);KUN26,TGN36..(DCB,THDCB)..(4FC,5F)..(ANCOM,GEN,PHL) MD.GRAY,TRIM1#	07/2011 - 12/2999	1
72637F - SPRING, SEAT BACK, RH
72637-0K010	TGN26..4FC;KUN26..5F..TH;KUN35..DCB..LA;GGN15..XTR..SR;TGN16..ARL,SA,TH;KUN25,TGN16..LHD..4FC;KUN35..CO,GEN,PHL,SA,TH;TGN36..(DCB,THDCB)..DLX;GGN15,KUN15..DLX..(ARL,PHL);KUN26..DCR..(ARL,CO,GEN,LA,PHL,SA);KUN15,25,TGN16,26..(THDCB,XTR)..GEN;KUN15,25,TGN36..(DCB,SCB)..SR..(GEN,LA,PHL,SA);KUN15,16,25,LAN15,25..RHD..(4FC,5F)..(ARL,GEN,MA,PKN,SA,TH);GGN25,35,KUN10,36,LAN35,TGN10,15..ANCOM,ARL,GEN,IDN,LA,SA,TH;KUN2#,TGN26..DCB..(5F,5FC)..(HDCR,HTWC,HTWCF,IART)..(ANCOM,CO,IDN,LA)	07/2011 - 12/2999	1
72991 - COVER, FRONT SEAT CUSHION, RH
72991-0K051	TGN16..ARL,SA,TH;KUN26..LHD..SADCB;KUN15,25..LHD..SR;KUN36,TGN26..4FC,5FC;KUN26..(SCB,XTR)..SA;KUN36..5F..(GEN,LA,TH);GGN15,LAN15,25..RHD..DLX;KUN2#,TGN16..4FC..(GCC,SA);GGN15,KUN36..(SCB,XTR)..SR;TGN36..(SCB,THDCB)..(GEN,SA);TGN26..DCB..5F..(ANCOM,CO,LA);KUN15,25..DCB..DLX..(CO,LA,PHL);KUN15,25..RHD..(GEN,IDN,MA,SA,TH);KUN15,25,TGN16,26..(THDCB,XTR)..GEN;KUN26,35,TGN36..DCB..(HDCR,HTWC,HTWCF,IART)..(ANCOM,LA);KUN26..(DCB,SCB,SMT,THDCB,XTR)..DCR..(ARL,CO,GEN,LA,MA,PHL,TH);GGN25,35,KUN10,16,35,LAN35,TGN10,15..ANCOM,ARL,CO,GEN,IDN,PHL,SA,TH	07/2011 - 12/2999	1
Common parts
44344-0K010
72702-0K100
90119-T0001
90167-40044
90167-T0019
90520-01006
91621-B0816
91622-B1018
96160-00600
Linked diagrams
7152

ILLUST NO. 1 OF 3(1107- )RHD

Click highlighted areas on diagram

DRIVER SEAT W(POWER SEAT)

Part #	Description	Period	Qty
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0K080B4	TGN16..4FC..SR;GGN15,KUN16..(SCB,XTR)..DLX..ARL;KUN15,26,35,TGN26..LHD..(DCB,THDCB)..(4FC,5F)..SR..GEN MID. GRAY,TRIM1#	07/2011 - 04/2015	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0K780B2	GGN15,KUN16..SCB..ARL MID. GRAY,TRIM1#	07/2011 - 04/2015	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-0K050	KUN35..SR..TH;KUN36..5F..SA;GGN15..XTR..SR;TGN26..4FC..HTWC;KUN26..RHD..4FC..GEN;KUN25,TGN16..LHD..4FC;KUN35..DLX..(CO,GEN,SA,TH);KUN26..RHD..5F..(GEN,SA,TH);KUN15,36..SR..DCR..(GEN,TH);KUN25..RHD..(GEN,MA,PKN,SA,TH);GGN15,KUN25..DLX..(ARL,CO,IDN);TGN26..DCB..DLX..HTWC..(ANCOM,LA);KUN15,2#,TGN26..(SADCB,THDCB,XTR)..DLX..GEN;KUN1#,LAN15,25,35,TGN10,15,16,36..RHD..(4FC,5F)	07/2011 - 12/2999	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0K020	KUN36..5F..SA;KUN16..ARL,GEN;GGN15..XTR..SR;TGN16..SCB..SA;KUN36..GEN,LA,TH;KUN26..THDCB..4FC;KUN35..SR..(GEN,PHL,TH);TGN36..(DCB,THDCB)..DLX;KUN25..RHD..SCB..(PKN,SA);TGN16..(DCB,SMT)..(SA,TH);KUN26,35..DCB..5F..(HDCR,IART)..LA;KUN15,25,TGN16,26..(THDCB,XTR)..GEN;KUN26..5F..DCR..(CO,GEN,LA,PHL,SA,TH);GGN15,KUN35..DLX..(ARL,CO,GEN,PHL,SA,TH);KUN25,TGN16,26..4FC..(GCC,GEN,LA,MA,PKN,SA);KUN25..RHD..(DCB,SMT)..5F..(IDN,MA,PKN,SA,TH);KUN26..(DCB,SADCB)..(4FC,5FC)..(CO,GEN,LA,PHL);KUN15,16..RHD..(DCB,SMT,XTR)..(4FC,5F)..(SA,TH);KUN15,25,TGN36..(DCB,SCB)..(SR,STD)..(GEN,LA,PKN,SA);GGN25,KUN15,25,TGN26..DCB..(5F,5FC)..(ANCOM,CO,LA,PHL)	07/2011 - 12/2999	1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-0K040	TGN26..4FC;KUN36..5F..SA;GGN15..XTR..SR;KUN35..DCB..LA;TGN16..ARL,SA,TH;KUN25,TGN26..THDCB;KUN25,TGN16..LHD..4FC;KUN35..SR..(GEN,PHL,TH);TGN36..(DCB,THDCB)..DLX;GGN15,KUN15..DLX..(ARL,PHL);KUN35..DLX..(CO,GEN,PHL,SA,TH);KUN26..(4FC,5FC)..(CO,GEN,LA,PHL);KUN26..5F..DCR..(CO,GEN,LA,PHL,SA,TH);GGN25,KUN10,36,TGN10..ANCOM,GEN,IDN,LA,TH;KUN15,25,TGN36..(DCB,SCB)..SR..(GEN,LA,PHL,SA);KUN2#,TGN26..DCB..5F..(HDCR,HTWC,HTWCF,IART)..(ANCOM,CO,IDN,LA);KUN15,16,25,LAN15,25,35,TGN15..RHD..(4FC,5F)..(ARL,GEN,MA,PKN,SA,TH)	07/2011 - 12/2999	1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0K020B1	TGN26..THDCB;TGN16..DCB..SA;KUN26..5FC..DLX;KUN15..RHD..DCB..DCR;KUN15,25..SR..(GEN,SA);KUN25..(SCB,THDCB)..GEN;KUN25,TGN16,26..LHD..4FC;KUN25..RHD..DCB..5F..GEN;KUN26..LHD..(DCB,SADCB)..SR;KUN35..DLX..(CO,GEN,PHL,SA);TGN26..DCB..5F..(ANCOM,CO,LA);TGN16..(SCB,SMT)..(ARL,SA,TH);KUN15..RHD..(SCB,SMT)..(DLX,STD);GGN25,KUN10,36,TGN10..ANCOM,IDN,LA;KUN15,2#..DCB..5F..DLX..(CO,LA,PHL);KUN25,LAN25,35..RHD..DLX..(MA,PKN,SA);KUN35,TGN36..LHD..DCB..(ANCOM,GEN,LA);KUN26,36,TGN36..(SCB,THDCB,XTR)..(GEN,SA);KUN26..(SADCB,SCB,XTR)..(4FC,5F)..DLX..DCR;GGN15,KUN16,LAN15,TGN15..RHD..(SCB,XTR)..DLX MD.GRAY,TRIM1#	07/2011 - 12/2999	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0K020B1	TGN16..4FC..IV3;KUN26..5FC..DLX..ARL;KUN15..RHD..DCB..DCR;TGN26..DCB..DLX..ANCOM;KUN25..RHD..DCB..5F..GEN;KUN15,25..DLX..(PHL,PKN);TGN16,26..(THDCB,XTR)..DLX;GGN25,KUN10,TGN10..ANCOM,IDN;KUN26,TGN16,26..4FC..(CO,GCC);KUN15,35,TGN26..SR..(ANCOM,GEN);LAN25,35,TGN16..RHD..DLX..(SA,TH);GGN15,KUN16,LAN15..RHD..(SCB,XTR)..DLX;KUN26..LHD..(DCB,THDCB)..SR..(GEN,PHL);KUN15..RHD..(SCB,SMT)..(DLX,STD)..(GEN,PKN,TH);KUN2#..(SCB,THDCB,XTR)..(4FC,5F)..DLX..(ARL,GEN);KUN15,35,TGN36..(DCB,THDCB,XTR)..DLX..(HDCR,HTWC)..(ANCOM,GEN,PHL) MD.GRAY,TRIM1#	07/2011 - 12/2999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K690B3	GGN15,KUN16..SCB..5F..ARL MD.GRAY,TRIM1#,RH	07/2011 - 04/2015	1
71910-0K710B1	GGN15,KUN16..SCB..5F..ARL MD.GRAY,TRIM1#,LH	07/2011 - 04/2015	1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B5	KUN26..4FC..CO;KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);GGN15,KUN10,16,TGN10,11..SCB,SMT,XTR;KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);GGN25,KUN25,36,TGN15,26,36..ANCOM,GCC,GEN,IDN;KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH) W/O(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71930-02050B5	KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN25,36,TGN15,26..GCC,GEN,IDN;KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH);KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);GGN15,KUN10,16,TGN10,11,36..(SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,IDN,TH) W(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B5	KUN26..4FC..CO;KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);GGN15,KUN10,16,TGN10,11..SCB,SMT,XTR;KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);GGN25,KUN25,36,TGN15,26,36..ANCOM,GCC,GEN,IDN;KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH) W/O(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71930-02050B5	KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN25,36,TGN15,26..GCC,GEN,IDN;KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH);KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);GGN15,KUN10,16,TGN10,11,36..(SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,IDN,TH) W(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
72991 - COVER, FRONT SEAT CUSHION, RH
72991-0K051	TGN16..ARL,SA,TH;KUN26..LHD..SADCB;KUN15,25..LHD..SR;KUN36,TGN26..4FC,5FC;KUN26..(SCB,XTR)..SA;KUN36..5F..(GEN,LA,TH);GGN15,LAN15,25..RHD..DLX;KUN2#,TGN16..4FC..(GCC,SA);GGN15,KUN36..(SCB,XTR)..SR;TGN36..(SCB,THDCB)..(GEN,SA);TGN26..DCB..5F..(ANCOM,CO,LA);KUN15,25..DCB..DLX..(CO,LA,PHL);KUN15,25..RHD..(GEN,IDN,MA,SA,TH);KUN15,25,TGN16,26..(THDCB,XTR)..GEN;KUN26,35,TGN36..DCB..(HDCR,HTWC,HTWCF,IART)..(ANCOM,LA);KUN26..(DCB,SCB,SMT,THDCB,XTR)..DCR..(ARL,CO,GEN,LA,MA,PHL,TH);GGN25,35,KUN10,16,35,LAN35,TGN10,15..ANCOM,ARL,CO,GEN,IDN,PHL,SA,TH	07/2011 - 12/2999	1
Common parts
79169-0K100
90119-T0001
90167-40044
90167-40048
90168-50078
91622-B1018
93530-54010
Linked diagrams
7152
8202
8401

ILLUST NO. 1 OF 3(1107- )RHD

Click highlighted areas on diagram

DRIVER SEAT W(SRS SIDE AIR BAG)

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-0K050	TGN26..4FC;KUN26..5F..TH;KUN35..DCB..LA;GGN15..XTR..SR;TGN16..ARL,SA,TH;KUN25,TGN16..LHD..4FC;KUN35..CO,GEN,PHL,SA,TH;TGN36..(DCB,THDCB)..DLX;GGN15,KUN15..DLX..(ARL,PHL);KUN26..DCR..(ARL,CO,GEN,LA,PHL,SA);KUN15,25,TGN16,26..(THDCB,XTR)..GEN;KUN15,25,TGN36..(DCB,SCB)..SR..(GEN,LA,PHL,SA);KUN15,16,25,LAN15,25..RHD..(4FC,5F)..(ARL,GEN,MA,SA,TH);GGN25,35,KUN10,36,LAN35,TGN10,15..ANCOM,ARL,GEN,IDN,LA,SA,TH;KUN2#,TGN26..DCB..(5F,5FC)..(HDCR,HTWC,HTWCF,IART)..(ANCOM,CO,IDN,LA)	07/2011 - 12/2999	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0K080B4	TGN16..4FC..SR;GGN15,KUN16..(SCB,XTR)..DLX..ARL;KUN15,26,35,TGN26..LHD..(DCB,THDCB)..(4FC,5F)..SR..GEN MID. GRAY,TRIM1#	07/2011 - 04/2015	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0K780B2	GGN15,KUN16..SCB..ARL MID. GRAY,TRIM1#	07/2011 - 04/2015	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-0K050	KUN35..SR..TH;KUN36..5F..SA;GGN15..XTR..SR;TGN26..4FC..HTWC;KUN26..RHD..4FC..GEN;KUN25,TGN16..LHD..4FC;KUN35..DLX..(CO,GEN,SA,TH);KUN26..RHD..5F..(GEN,SA,TH);KUN15,36..SR..DCR..(GEN,TH);KUN25..RHD..(GEN,MA,PKN,SA,TH);GGN15,KUN25..DLX..(ARL,CO,IDN);TGN26..DCB..DLX..HTWC..(ANCOM,LA);KUN15,2#,TGN26..(SADCB,THDCB,XTR)..DLX..GEN;KUN1#,LAN15,25,35,TGN10,15,16,36..RHD..(4FC,5F)	07/2011 - 12/2999	1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-0K020	KUN26..MA;KUN25,35..IV3;KUN26..5FC..TH;LAN15,25,35,TGN15;KUN25..LHD..5F..DLX..SA;TGN16..DCB..5F..(GCC,GEN);KUN15..DCB..DLX..(GCC,GEN,SA);KUN2#..SR..(HDCR,IART)..(IDN,LA);KUN35,TGN26..DCB..5F..DLX..(GCC,SA);KUN25,TGN16..SCB..5F..(ARL,GCC,MA,TH);KUN25..(DCB,SCB,THSCB)..5F..(GCC,GEN,PKN);GGN15,KUN1#,TGN10,11,26,36..SCB..5F..(DLX,STD)..(DCR,HDCR,HTWC)	07/2011 - 09/2016	2
71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH
71537-71010	TGN26..4FC;KUN26..5F..TH;KUN35..DCB..LA;GGN15..XTR..SR;TGN16..ARL,SA,TH;KUN25,TGN16..LHD..4FC;KUN35..CO,GEN,PHL,SA,TH;TGN36..(DCB,THDCB)..DLX;GGN15,KUN15..DLX..(ARL,PHL);KUN26..DCR..(ARL,CO,GEN,LA,PHL,SA);KUN15,25,TGN16,26..(THDCB,XTR)..GEN;KUN15,25,TGN36..(DCB,SCB)..SR..(GEN,LA,PHL,SA);KUN15,16,25,LAN15,25..RHD..(4FC,5F)..(ARL,GEN,MA,PKN,SA,TH);GGN25,35,KUN10,36,LAN35,TGN10,15..ANCOM,ARL,GEN,IDN,LA,SA,TH;KUN2#,TGN26..DCB..(5F,5FC)..(HDCR,HTWC,HTWCF,IART)..(ANCOM,CO,IDN,LA)	07/2011 - 12/2999	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0K020	KUN36..5F..SA;KUN16..ARL,GEN;GGN15..XTR..SR;TGN16..SCB..SA;KUN36..GEN,LA,TH;KUN26..THDCB..4FC;KUN35..SR..(GEN,PHL,TH);TGN36..(DCB,THDCB)..DLX;KUN25..RHD..SCB..(PKN,SA);TGN16..(DCB,SMT)..(SA,TH);KUN26,35..DCB..5F..(HDCR,IART)..LA;KUN15,25,TGN16,26..(THDCB,XTR)..GEN;KUN26..5F..DCR..(CO,GEN,LA,PHL,SA,TH);GGN15,KUN35..DLX..(ARL,CO,GEN,PHL,SA,TH);KUN25,TGN16,26..4FC..(GCC,GEN,LA,MA,PKN,SA);KUN25..RHD..(DCB,SMT)..5F..(IDN,MA,PKN,SA,TH);KUN26..(DCB,SADCB)..(4FC,5FC)..(CO,GEN,LA,PHL);KUN15,16..RHD..(DCB,SMT,XTR)..(4FC,5F)..(SA,TH);KUN15,25,TGN36..(DCB,SCB)..(SR,STD)..(GEN,LA,PKN,SA);GGN25,KUN15,25,TGN26..DCB..(5F,5FC)..(ANCOM,CO,LA,PHL)	07/2011 - 12/2999	1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0K020B1	TGN26..THDCB;TGN16..DCB..SA;KUN26..5FC..DLX;KUN15..RHD..DCB..DCR;KUN15,25..SR..(GEN,SA);KUN25..(SCB,THDCB)..GEN;KUN25,TGN16,26..LHD..4FC;KUN25..RHD..DCB..5F..GEN;KUN26..LHD..(DCB,SADCB)..SR;KUN35..DLX..(CO,GEN,PHL,SA);TGN26..DCB..5F..(ANCOM,CO,LA);TGN16..(SCB,SMT)..(ARL,SA,TH);KUN15..RHD..(SCB,SMT)..(DLX,STD);GGN25,KUN10,36,TGN10..ANCOM,IDN,LA;KUN15,2#..DCB..5F..DLX..(CO,LA,PHL);KUN25,LAN25,35..RHD..DLX..(MA,PKN,SA);KUN35,TGN36..LHD..DCB..(ANCOM,GEN,LA);KUN26,36,TGN36..(SCB,THDCB,XTR)..(GEN,SA);KUN26..(SADCB,SCB,XTR)..(4FC,5F)..DLX..DCR;GGN15,KUN16,LAN15,TGN15..RHD..(SCB,XTR)..DLX MD.GRAY,TRIM1#	07/2011 - 12/2999	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0K020B1	TGN16..4FC..IV3;KUN26..5FC..DLX..ARL;KUN15..RHD..DCB..DCR;TGN26..DCB..DLX..ANCOM;KUN25..RHD..DCB..5F..GEN;KUN15,25..DLX..(PHL,PKN);TGN16,26..(THDCB,XTR)..DLX;GGN25,KUN10,TGN10..ANCOM,IDN;KUN26,TGN16,26..4FC..(CO,GCC);KUN15,35,TGN26..SR..(ANCOM,GEN);LAN25,35,TGN16..RHD..DLX..(SA,TH);GGN15,KUN16,LAN15..RHD..(SCB,XTR)..DLX;KUN26..LHD..(DCB,THDCB)..SR..(GEN,PHL);KUN15..RHD..(SCB,SMT)..(DLX,STD)..(GEN,PKN,TH);KUN2#..(SCB,THDCB,XTR)..(4FC,5F)..DLX..(ARL,GEN);KUN15,35,TGN36..(DCB,THDCB,XTR)..DLX..(HDCR,HTWC)..(ANCOM,GEN,PHL) MD.GRAY,TRIM1#	07/2011 - 12/2999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K690B3	GGN15,KUN16..SCB..5F..ARL MD.GRAY,TRIM1#,RH	07/2011 - 04/2015	1
71910-0K710B1	GGN15,KUN16..SCB..5F..ARL MD.GRAY,TRIM1#,LH	07/2011 - 04/2015	1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B5	KUN26..4FC..CO;KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);GGN15,KUN10,16,TGN10,11..SCB,SMT,XTR;KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);GGN25,KUN25,36,TGN15,26,36..ANCOM,GCC,GEN,IDN;KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH) W/O(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71930-02050B5	KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN25,36,TGN15,26..GCC,GEN,IDN;KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH);KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);GGN15,KUN10,16,TGN10,11,36..(SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,IDN,TH) W(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B5	KUN26..4FC..CO;KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);GGN15,KUN10,16,TGN10,11..SCB,SMT,XTR;KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);GGN25,KUN25,36,TGN15,26,36..ANCOM,GCC,GEN,IDN;KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH) W/O(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71930-02050B5	KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN25,36,TGN15,26..GCC,GEN,IDN;KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH);KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);GGN15,KUN10,16,TGN10,11,36..(SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,IDN,TH) W(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-0K010	TGN26..THDCB;KUN35..SR..PHL;KUN26..DLX..DCR;KUN15..SMT..DLX..HDCR;KUN25..(SCB,THDCB)..GEN;TGN16..DLX..(ARL,SA,TH);GGN25,KUN15,25..LHD..SR;KUN15,36..RHD..(SCB,XTR);KUN25..RHD..DCB..5F..GEN;KUN15..RHD..(DCB,SMT)..DCR;KUN35..DLX..(CO,GEN,PHL,SA);KUN25..RHD..DLX..(MA,PKN,SA);TGN36..(SCB,THDCB)..(GEN,SA);KUN15,25..DCB..DLX..(CO,LA,PHL);KUN36,TGN26..DCB..5F..(ANCOM,CO,LA);KUN26..(SCB,THDCB,XTR)..SR..(GEN,SA);KUN26..LHD..(DCB,SADCB)..5F..SR..DCR;KUN2#,TGN16,26..LHD..(DCB,SADCB)..(4FC,5FC);GGN15,25,KUN10,16,LAN15,25,35,TGN10,15..RHD..(DLX,STD);KUN26,35,TGN36..LHD..DCB..(4FC,5F)..(HDCR,HTWC,HTWCF,IART)..(ANCOM,GEN,LA)	07/2011 - 12/2999	1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-0K010	TGN26..THDCB;KUN35..SR..PHL;KUN26..DLX..DCR;KUN15..SMT..DLX..HDCR;KUN25..(SCB,THDCB)..GEN;TGN16..DLX..(ARL,SA,TH);GGN25,KUN15,25..LHD..SR;KUN15,36..RHD..(SCB,XTR);KUN25..RHD..DCB..5F..GEN;KUN15..RHD..(DCB,SMT)..DCR;KUN35..DLX..(CO,GEN,PHL,SA);KUN25..RHD..DLX..(MA,PKN,SA);TGN36..(SCB,THDCB)..(GEN,SA);KUN15,25..DCB..DLX..(CO,LA,PHL);KUN36,TGN26..DCB..5F..(ANCOM,CO,LA);KUN26..(SCB,THDCB,XTR)..SR..(GEN,SA);KUN26..LHD..(DCB,SADCB)..5F..SR..DCR;KUN2#,TGN16,26..LHD..(DCB,SADCB)..(4FC,5FC);GGN15,25,KUN10,16,LAN15,25,35,TGN10,15..RHD..(DLX,STD);KUN26,35,TGN36..LHD..DCB..(4FC,5F)..(HDCR,HTWC,HTWCF,IART)..(ANCOM,GEN,LA)	07/2011 - 12/2999	1
72201A - HANDLE SUB-ASSY, SEAT TRACK RH
72211-0K010	KUN26..5F..TH;GGN15..XTR..SR;TGN16..ARL,SA,TH;TGN26..4FC..HTWC;TGN26..DCB..DLX..ANCOM;KUN26,TGN36..ARL,GEN,PHL,SA;GGN15,KUN15,25..DLX..(ARL,IDN,PHL);KUN25,TGN16,36..LHD..4FC..(HDCR,HTWC);KUN15,25,TGN16,26..(THDCB,XTR)..DLX..GEN;KUN15,25,TGN26..LHD..SR..(ANCOM,GEN,PHL,SA);KUN15,16,25,LAN15,25..RHD..(4FC,5F)..(ARL,GEN,PKN,SA,TH);GGN25,35,KUN10,3#,LAN35,TGN10,15..ANCOM,ARL,GEN,IDN,PHL,SA,TH	07/2011 - 12/2999	1
72503 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH
72503-0K030	KUN35..SR..PHL;KUN26..DLX..DCR;TGN16,26..THDCB,XTR;TGN16..DLX..(ARL,SA,TH);GGN25,KUN15,25..LHD..SR;KUN15,36..RHD..(SCB,XTR);KUN25..RHD..DCB..5F..GEN;KUN15..RHD..(DCB,SMT)..DCR;KUN15..(SMT,XTR)..DLX..HDCR;KUN25..(SCB,THDCB,XTR)..GEN;KUN35..DLX..(CO,GEN,PHL,SA);KUN25..RHD..DLX..(MA,PKN,SA);TGN36..(SCB,THDCB)..(GEN,SA);KUN15,25..DCB..DLX..(CO,LA,PHL);KUN36,TGN26..DCB..5F..(ANCOM,CO,LA);KUN26..(SCB,THDCB,XTR)..SR..(GEN,SA);KUN26..LHD..(DCB,SADCB)..5F..SR..DCR;KUN2#,TGN16,26..LHD..(DCB,SADCB)..(4FC,5FC);GGN15,25,KUN10,16,LAN15,25,35,TGN10,15..RHD..(DLX,STD);KUN26,35,TGN36..LHD..DCB..(4FC,5F)..(HDCR,HTWC,HTWCF,IART)..(ANCOM,GEN,LA)	07/2011 - 12/2999	1
72504 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
72504-0K040	GGN15..5F;GGN15..DCB..5FC..DLX;KUN16..(DCB,SCB)..DLX..CBU;KUN26,TGN16..DCB..DLX..ARL;GGN25,KUN15..DLX..(DCR,HTWC)..(ARL,TH)	07/2011 - 11/2013	1
72504 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
72504-0K040	GGN15..5F;GGN15..DCB..5FC..DLX;KUN16..(DCB,SCB)..DLX..CBU;KUN26,TGN16..DCB..DLX..ARL;GGN25,KUN15..DLX..(DCR,HTWC)..(ARL,TH)	07/2011 - 11/2013	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0K040B1	KUN26..5FC..(ARL,GEN);KUN35..DLX..(GEN,PHL);KUN26,TGN16..4FC..(CO,GCC);KUN25..RHD..DLX..(GEN,IDN,PKN);KUN36,TGN26..4FC..(GCC,GEN,TH);KUN26..(SCB,XTR)..(4FC,5F)..ARL;KUN35,TGN16..(SCB,SMT)..(4FC,5FC);LAN25,35,TGN16..RHD..DLX..(SA,TH);KUN15,TGN26..DCB..DLX..(ANCOM,PHL);GGN25,KUN15,3#,TGN26..SR..(ANCOM,GEN);KUN15,25,TGN16,26..(THDCB,XTR)..DLX..GEN;KUN15,16..RHD..DCB..(4FC,5F)..DCR..(GEN,TH);GGN15,KUN10,16,LAN15,TGN10..RHD..(SCB,SMT,XTR);KUN15..RHD..(SCB,SMT)..(DLX,STD)..(GEN,PKN,TH);KUN26,TGN36..(DCB,THDCB)..(4FC,5F)..(ANCOM,GEN,PHL) MD.GRAY,TRIM1#	07/2011 - 12/2999	1
72637F - SPRING, SEAT BACK, RH
72637-0K010	TGN26..4FC;KUN26..5F..TH;KUN35..DCB..LA;GGN15..XTR..SR;TGN16..ARL,SA,TH;KUN25,TGN16..LHD..4FC;KUN35..CO,GEN,PHL,SA,TH;TGN36..(DCB,THDCB)..DLX;GGN15,KUN15..DLX..(ARL,PHL);KUN26..DCR..(ARL,CO,GEN,LA,PHL,SA);KUN15,25,TGN16,26..(THDCB,XTR)..GEN;KUN15,25,TGN36..(DCB,SCB)..SR..(GEN,LA,PHL,SA);KUN15,16,25,LAN15,25..RHD..(4FC,5F)..(ARL,GEN,MA,PKN,SA,TH);GGN25,35,KUN10,36,LAN35,TGN10,15..ANCOM,ARL,GEN,IDN,LA,SA,TH;KUN2#,TGN26..DCB..(5F,5FC)..(HDCR,HTWC,HTWCF,IART)..(ANCOM,CO,IDN,LA)	07/2011 - 12/2999	1
72991 - COVER, FRONT SEAT CUSHION, RH
72991-0K051	TGN16..ARL,SA,TH;KUN26..LHD..SADCB;KUN15,25..LHD..SR;KUN36,TGN26..4FC,5FC;KUN26..(SCB,XTR)..SA;KUN36..5F..(GEN,LA,TH);GGN15,LAN15,25..RHD..DLX;KUN2#,TGN16..4FC..(GCC,SA);GGN15,KUN36..(SCB,XTR)..SR;TGN36..(SCB,THDCB)..(GEN,SA);TGN26..DCB..5F..(ANCOM,CO,LA);KUN15,25..DCB..DLX..(CO,LA,PHL);KUN15,25..RHD..(GEN,IDN,MA,SA,TH);KUN15,25,TGN16,26..(THDCB,XTR)..GEN;KUN26,35,TGN36..DCB..(HDCR,HTWC,HTWCF,IART)..(ANCOM,LA);KUN26..(DCB,SCB,SMT,THDCB,XTR)..DCR..(ARL,CO,GEN,LA,MA,PHL,TH);GGN25,35,KUN10,16,35,LAN35,TGN10,15..ANCOM,ARL,CO,GEN,IDN,PHL,SA,TH	07/2011 - 12/2999	1
Common parts
90119-T0001
90167-40044
90167-T0019
91621-B0816
91622-B1018
Linked diagrams
7152

ILLUST NO. 1 OF 3(1107- )RHD

Click highlighted areas on diagram

*DRS W(POWER & SRS SIDE AIR BAG)

Part #	Description	Period	Qty
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0K080B4	TGN16..4FC..SR;GGN15,KUN16..(SCB,XTR)..DLX..ARL;KUN15,26,35,TGN26..LHD..(DCB,THDCB)..(4FC,5F)..SR..GEN MID. GRAY,TRIM1#	07/2011 - 04/2015	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0K780B2	GGN15,KUN16..SCB..ARL MID. GRAY,TRIM1#	07/2011 - 04/2015	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-0K050	KUN35..SR..TH;KUN36..5F..SA;GGN15..XTR..SR;TGN26..4FC..HTWC;KUN26..RHD..4FC..GEN;KUN25,TGN16..LHD..4FC;KUN35..DLX..(CO,GEN,SA,TH);KUN26..RHD..5F..(GEN,SA,TH);KUN15,36..SR..DCR..(GEN,TH);KUN25..RHD..(GEN,MA,PKN,SA,TH);GGN15,KUN25..DLX..(ARL,CO,IDN);TGN26..DCB..DLX..HTWC..(ANCOM,LA);KUN15,2#,TGN26..(SADCB,THDCB,XTR)..DLX..GEN;KUN1#,LAN15,25,35,TGN10,15,16,36..RHD..(4FC,5F)	07/2011 - 12/2999	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0K020	KUN36..5F..SA;KUN16..ARL,GEN;GGN15..XTR..SR;TGN16..SCB..SA;KUN36..GEN,LA,TH;KUN26..THDCB..4FC;KUN35..SR..(GEN,PHL,TH);TGN36..(DCB,THDCB)..DLX;KUN25..RHD..SCB..(PKN,SA);TGN16..(DCB,SMT)..(SA,TH);KUN26,35..DCB..5F..(HDCR,IART)..LA;KUN15,25,TGN16,26..(THDCB,XTR)..GEN;KUN26..5F..DCR..(CO,GEN,LA,PHL,SA,TH);GGN15,KUN35..DLX..(ARL,CO,GEN,PHL,SA,TH);KUN25,TGN16,26..4FC..(GCC,GEN,LA,MA,PKN,SA);KUN25..RHD..(DCB,SMT)..5F..(IDN,MA,PKN,SA,TH);KUN26..(DCB,SADCB)..(4FC,5FC)..(CO,GEN,LA,PHL);KUN15,16..RHD..(DCB,SMT,XTR)..(4FC,5F)..(SA,TH);KUN15,25,TGN36..(DCB,SCB)..(SR,STD)..(GEN,LA,PKN,SA);GGN25,KUN15,25,TGN26..DCB..(5F,5FC)..(ANCOM,CO,LA,PHL)	07/2011 - 12/2999	1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0K020B1	TGN26..THDCB;TGN16..DCB..SA;KUN26..5FC..DLX;KUN15..RHD..DCB..DCR;KUN15,25..SR..(GEN,SA);KUN25..(SCB,THDCB)..GEN;KUN25,TGN16,26..LHD..4FC;KUN25..RHD..DCB..5F..GEN;KUN26..LHD..(DCB,SADCB)..SR;KUN35..DLX..(CO,GEN,PHL,SA);TGN26..DCB..5F..(ANCOM,CO,LA);TGN16..(SCB,SMT)..(ARL,SA,TH);KUN15..RHD..(SCB,SMT)..(DLX,STD);GGN25,KUN10,36,TGN10..ANCOM,IDN,LA;KUN15,2#..DCB..5F..DLX..(CO,LA,PHL);KUN25,LAN25,35..RHD..DLX..(MA,PKN,SA);KUN35,TGN36..LHD..DCB..(ANCOM,GEN,LA);KUN26,36,TGN36..(SCB,THDCB,XTR)..(GEN,SA);KUN26..(SADCB,SCB,XTR)..(4FC,5F)..DLX..DCR;GGN15,KUN16,LAN15,TGN15..RHD..(SCB,XTR)..DLX MD.GRAY,TRIM1#	07/2011 - 12/2999	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0K020B1	TGN16..4FC..IV3;KUN26..5FC..DLX..ARL;KUN15..RHD..DCB..DCR;TGN26..DCB..DLX..ANCOM;KUN25..RHD..DCB..5F..GEN;KUN15,25..DLX..(PHL,PKN);TGN16,26..(THDCB,XTR)..DLX;GGN25,KUN10,TGN10..ANCOM,IDN;KUN26,TGN16,26..4FC..(CO,GCC);KUN15,35,TGN26..SR..(ANCOM,GEN);LAN25,35,TGN16..RHD..DLX..(SA,TH);GGN15,KUN16,LAN15..RHD..(SCB,XTR)..DLX;KUN26..LHD..(DCB,THDCB)..SR..(GEN,PHL);KUN15..RHD..(SCB,SMT)..(DLX,STD)..(GEN,PKN,TH);KUN2#..(SCB,THDCB,XTR)..(4FC,5F)..DLX..(ARL,GEN);KUN15,35,TGN36..(DCB,THDCB,XTR)..DLX..(HDCR,HTWC)..(ANCOM,GEN,PHL) MD.GRAY,TRIM1#	07/2011 - 12/2999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K690B3	GGN15,KUN16..SCB..5F..ARL MD.GRAY,TRIM1#,RH	07/2011 - 04/2015	1
71910-0K710B1	GGN15,KUN16..SCB..5F..ARL MD.GRAY,TRIM1#,LH	07/2011 - 04/2015	1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B5	KUN26..4FC..CO;KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);GGN15,KUN10,16,TGN10,11..SCB,SMT,XTR;KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);GGN25,KUN25,36,TGN15,26,36..ANCOM,GCC,GEN,IDN;KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH) W/O(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71930-02050B5	KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN25,36,TGN15,26..GCC,GEN,IDN;KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH);KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);GGN15,KUN10,16,TGN10,11,36..(SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,IDN,TH) W(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B5	KUN26..4FC..CO;KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);GGN15,KUN10,16,TGN10,11..SCB,SMT,XTR;KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);GGN25,KUN25,36,TGN15,26,36..ANCOM,GCC,GEN,IDN;KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH) W/O(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71930-02050B5	KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN25,36,TGN15,26..GCC,GEN,IDN;KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH);KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);GGN15,KUN10,16,TGN10,11,36..(SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,IDN,TH) W(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
72991 - COVER, FRONT SEAT CUSHION, RH
72991-0K051	TGN16..ARL,SA,TH;KUN26..LHD..SADCB;KUN15,25..LHD..SR;KUN36,TGN26..4FC,5FC;KUN26..(SCB,XTR)..SA;KUN36..5F..(GEN,LA,TH);GGN15,LAN15,25..RHD..DLX;KUN2#,TGN16..4FC..(GCC,SA);GGN15,KUN36..(SCB,XTR)..SR;TGN36..(SCB,THDCB)..(GEN,SA);TGN26..DCB..5F..(ANCOM,CO,LA);KUN15,25..DCB..DLX..(CO,LA,PHL);KUN15,25..RHD..(GEN,IDN,MA,SA,TH);KUN15,25,TGN16,26..(THDCB,XTR)..GEN;KUN26,35,TGN36..DCB..(HDCR,HTWC,HTWCF,IART)..(ANCOM,LA);KUN26..(DCB,SCB,SMT,THDCB,XTR)..DCR..(ARL,CO,GEN,LA,MA,PHL,TH);GGN25,35,KUN10,16,35,LAN35,TGN10,15..ANCOM,ARL,CO,GEN,IDN,PHL,SA,TH	07/2011 - 12/2999	1
Common parts
79169-0K100
90119-T0001
90167-40044
90167-40048
90168-50078
91622-B1018
93530-54010
Linked diagrams
7152
8202
8401

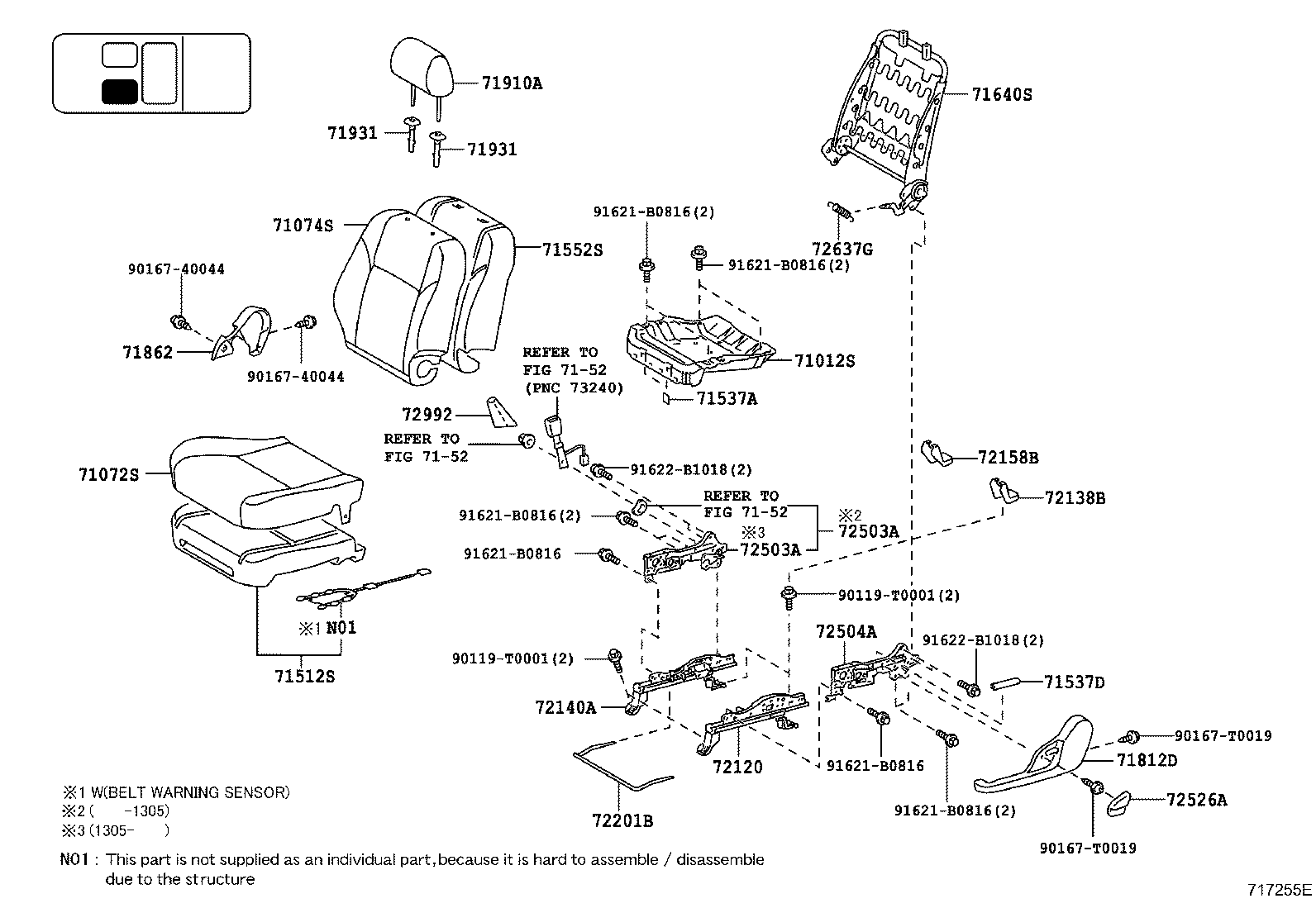

ILLUST NO. 2 OF 3(1107- )RHD..DCB,SADCB,SCB,SMT

Click highlighted areas on diagram

*PAS (FOR ONE PERSON TYPE)

Part #	Description	Period	Qty
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71012-0K010	LAN25,35..RHD;KUN25..SCB..MA;KUN35..DCB..DLX..SA;KUN15..RHD..DCB..GEN;KUN25..RHD..5F..(GEN,PKN);GGN15,KUN1#,LAN15,TGN10,15,16..RHD..SCB..5F	07/2011 - 09/2016	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0KA30B1	GGN15,KUN16..SCB..5F..ARL MID. GRAY,TRIM1#	07/2011 - 04/2015	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0K130B1	GGN15,KUN16..SCB..5F..ARL MID. GRAY,TRIM1#	07/2011 - 04/2015	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71052-0K010	GGN15,KUN16,TGN16..SCB..5F..ARL	07/2011 - 04/2015	1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-0K020	KUN26..MA;KUN25,35..IV3;KUN26..5FC..TH;LAN15,25,35,TGN15;KUN25..LHD..5F..DLX..SA;TGN16..DCB..5F..(GCC,GEN);KUN15..DCB..DLX..(GCC,GEN,SA);KUN2#..SR..(HDCR,IART)..(IDN,LA);KUN35,TGN26..DCB..5F..DLX..(GCC,SA);KUN25,TGN16..SCB..5F..(ARL,GCC,MA,TH);KUN25..(DCB,SCB,THSCB)..5F..(GCC,GEN,PKN);GGN15,KUN1#,TGN10,11,26,36..SCB..5F..(DLX,STD)..(DCR,HDCR,HTWC)	07/2011 - 09/2016	2
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-0K010	LAN25,35..RHD;KUN25..SCB..MA;KUN35..DCB..DLX..SA;KUN15..RHD..DCB..GEN;KUN25..RHD..5F..(GEN,PKN);GGN15,KUN1#,LAN15,TGN10,15,16..RHD..SCB..5F	07/2011 - 09/2016	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-0K010	LAN25,35..RHD;KUN25..SCB..MA;KUN35..DCB..DLX..SA;KUN15..RHD..DCB..GEN;KUN25..RHD..5F..(GEN,PKN);GGN15,KUN1#,LAN15,TGN10,15,16..RHD..SCB..5F	07/2011 - 09/2016	1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71811-0K010B1	LAN25,35..RHD;KUN25..SCB..MA;KUN35..DCB..DLX..SA;KUN15..RHD..DCB..GEN;KUN25..RHD..5F..(GEN,PKN);GGN15,KUN1#,LAN15,TGN10,15,16..RHD..SCB..5F MD.GRAY,TRIM1#	07/2011 - 09/2016	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71861-0K010B1	KUN15..RHD..DCB..GEN;KUN25..RHD..5F..(GEN,PKN);KUN15..RHD..SCB..(GEN,PKN,TH);GGN15,KUN10,16,LAN15,TGN10..RHD..SCB..5F;LAN25,35,TGN16..RHD..(DCB,SCB)..DLX..(SA,TH) MD.GRAY,TRIM1#	07/2011 - 12/2999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K690B3	GGN15,KUN16..SCB..5F..ARL MD.GRAY,TRIM1#,RH	07/2011 - 04/2015	1
71910-0K710B1	GGN15,KUN16..SCB..5F..ARL MD.GRAY,TRIM1#,LH	07/2011 - 04/2015	1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B5	KUN26..4FC..CO;KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);GGN15,KUN10,16,TGN10,11..SCB,SMT,XTR;KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);GGN25,KUN25,36,TGN15,26,36..ANCOM,GCC,GEN,IDN;KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH) W/O(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71930-02050B5	KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN25,36,TGN15,26..GCC,GEN,IDN;KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH);KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);GGN15,KUN10,16,TGN10,11,36..(SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,IDN,TH) W(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B5	KUN26..4FC..CO;KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);GGN15,KUN10,16,TGN10,11..SCB,SMT,XTR;KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);GGN25,KUN25,36,TGN15,26,36..ANCOM,GCC,GEN,IDN;KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH) W/O(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71930-02050B5	KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN25,36,TGN15,26..GCC,GEN,IDN;KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH);KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);GGN15,KUN10,16,TGN10,11,36..(SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,IDN,TH) W(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72525-0K010B1	KUN15..RHD..DCB..GEN;KUN25..RHD..5F..(GEN,PKN);KUN15..RHD..SCB..(GEN,PKN,TH);GGN15,KUN10,16,LAN15,TGN10..RHD..SCB..5F;LAN25,35,TGN16..RHD..(DCB,SCB)..DLX..(SA,TH) MD.GRAY,TRIM1#	07/2011 - 12/2999	1
Common parts
90119-T0001
90167-40044
90167-T0019
91621-B0816
91622-B1018
Linked diagrams
7152

ILLUST NO. 2 OF 3(1107- )RHD..DCB,SADCB,SCB,SMT

Click highlighted areas on diagram

*PAS (FOR TWO PEOPLE TYPE)

Part #	Description	Period	Qty
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71012-0K010	LAN25,35..RHD;KUN25..SCB..MA;KUN35..DCB..DLX..SA;KUN15..RHD..DCB..GEN;KUN25..RHD..5F..(GEN,PKN);GGN15,KUN1#,LAN15,TGN10,15,16..RHD..SCB..5F	07/2011 - 09/2016	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0KA30B1	GGN15,KUN16..SCB..5F..ARL MID. GRAY,TRIM1#	07/2011 - 04/2015	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0K130B1	GGN15,KUN16..SCB..5F..ARL MID. GRAY,TRIM1#	07/2011 - 04/2015	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71052-0K010	GGN15,KUN16,TGN16..SCB..5F..ARL	07/2011 - 04/2015	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-0K010	LAN25,35..RHD;KUN25..SCB..MA;KUN35..DCB..DLX..SA;KUN15..RHD..DCB..GEN;KUN25..RHD..5F..(GEN,PKN);GGN15,KUN1#,LAN15,TGN10,15,16..RHD..SCB..5F	07/2011 - 09/2016	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-0K010	LAN25,35..RHD;KUN25..SCB..MA;KUN35..DCB..DLX..SA;KUN15..RHD..DCB..GEN;KUN25..RHD..5F..(GEN,PKN);GGN15,KUN1#,LAN15,TGN10,15,16..RHD..SCB..5F	07/2011 - 09/2016	1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71811-0K010B1	LAN25,35..RHD;KUN25..SCB..MA;KUN35..DCB..DLX..SA;KUN15..RHD..DCB..GEN;KUN25..RHD..5F..(GEN,PKN);GGN15,KUN1#,LAN15,TGN10,15,16..RHD..SCB..5F MD.GRAY,TRIM1#	07/2011 - 09/2016	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71861-0K010B1	KUN15..RHD..DCB..GEN;KUN25..RHD..5F..(GEN,PKN);KUN15..RHD..SCB..(GEN,PKN,TH);GGN15,KUN10,16,LAN15,TGN10..RHD..SCB..5F;LAN25,35,TGN16..RHD..(DCB,SCB)..DLX..(SA,TH) MD.GRAY,TRIM1#	07/2011 - 12/2999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K690B3	GGN15,KUN16..SCB..5F..ARL MD.GRAY,TRIM1#,RH	07/2011 - 04/2015	1
71910-0K710B1	GGN15,KUN16..SCB..5F..ARL MD.GRAY,TRIM1#,LH	07/2011 - 04/2015	1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B5	KUN26..4FC..CO;KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);GGN15,KUN10,16,TGN10,11..SCB,SMT,XTR;KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);GGN25,KUN25,36,TGN15,26,36..ANCOM,GCC,GEN,IDN;KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH) W/O(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71930-02050B5	KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN25,36,TGN15,26..GCC,GEN,IDN;KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH);KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);GGN15,KUN10,16,TGN10,11,36..(SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,IDN,TH) W(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B5	KUN26..4FC..CO;KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);GGN15,KUN10,16,TGN10,11..SCB,SMT,XTR;KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);GGN25,KUN25,36,TGN15,26,36..ANCOM,GCC,GEN,IDN;KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH) W/O(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71930-02050B5	KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN25,36,TGN15,26..GCC,GEN,IDN;KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH);KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);GGN15,KUN10,16,TGN10,11,36..(SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,IDN,TH) W(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72525-0K010B1	KUN15..RHD..DCB..GEN;KUN25..RHD..5F..(GEN,PKN);KUN15..RHD..SCB..(GEN,PKN,TH);GGN15,KUN10,16,LAN15,TGN10..RHD..SCB..5F;LAN25,35,TGN16..RHD..(DCB,SCB)..DLX..(SA,TH) MD.GRAY,TRIM1#	07/2011 - 12/2999	1
Common parts
90119-T0001
90167-40044
90167-T0019
91515-81025
93240-56025

ILLUST NO. 2 OF 3(1107- )RHD

Click highlighted areas on diagram

PASSENGER SEAT W(SRS SIDE AIR BAG)

Part #	Description	Period	Qty
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71012-0K010	LAN25,35..RHD;KUN25..SCB..MA;KUN35..DCB..DLX..SA;KUN15..RHD..DCB..GEN;KUN25..RHD..5F..(GEN,PKN);GGN15,KUN1#,LAN15,TGN10,15,16..RHD..SCB..5F	07/2011 - 09/2016	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0KA30B1	GGN15,KUN16..SCB..5F..ARL MID. GRAY,TRIM1#	07/2011 - 04/2015	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0K130B1	GGN15,KUN16..SCB..5F..ARL MID. GRAY,TRIM1#	07/2011 - 04/2015	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71052-0K010	GGN15,KUN16,TGN16..SCB..5F..ARL	07/2011 - 04/2015	1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-0K020	KUN26..MA;KUN25,35..IV3;KUN26..5FC..TH;LAN15,25,35,TGN15;KUN25..LHD..5F..DLX..SA;TGN16..DCB..5F..(GCC,GEN);KUN15..DCB..DLX..(GCC,GEN,SA);KUN2#..SR..(HDCR,IART)..(IDN,LA);KUN35,TGN26..DCB..5F..DLX..(GCC,SA);KUN25,TGN16..SCB..5F..(ARL,GCC,MA,TH);KUN25..(DCB,SCB,THSCB)..5F..(GCC,GEN,PKN);GGN15,KUN1#,TGN10,11,26,36..SCB..5F..(DLX,STD)..(DCR,HDCR,HTWC)	07/2011 - 09/2016	2
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-0K010	LAN25,35..RHD;KUN25..SCB..MA;KUN35..DCB..DLX..SA;KUN15..RHD..DCB..GEN;KUN25..RHD..5F..(GEN,PKN);GGN15,KUN1#,LAN15,TGN10,15,16..RHD..SCB..5F	07/2011 - 09/2016	1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71811-0K010B1	LAN25,35..RHD;KUN25..SCB..MA;KUN35..DCB..DLX..SA;KUN15..RHD..DCB..GEN;KUN25..RHD..5F..(GEN,PKN);GGN15,KUN1#,LAN15,TGN10,15,16..RHD..SCB..5F MD.GRAY,TRIM1#	07/2011 - 09/2016	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71861-0K010B1	KUN15..RHD..DCB..GEN;KUN25..RHD..5F..(GEN,PKN);KUN15..RHD..SCB..(GEN,PKN,TH);GGN15,KUN10,16,LAN15,TGN10..RHD..SCB..5F;LAN25,35,TGN16..RHD..(DCB,SCB)..DLX..(SA,TH) MD.GRAY,TRIM1#	07/2011 - 12/2999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K690B3	GGN15,KUN16..SCB..5F..ARL MD.GRAY,TRIM1#,RH	07/2011 - 04/2015	1
71910-0K710B1	GGN15,KUN16..SCB..5F..ARL MD.GRAY,TRIM1#,LH	07/2011 - 04/2015	1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B5	KUN26..4FC..CO;KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);GGN15,KUN10,16,TGN10,11..SCB,SMT,XTR;KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);GGN25,KUN25,36,TGN15,26,36..ANCOM,GCC,GEN,IDN;KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH) W/O(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71930-02050B5	KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN25,36,TGN15,26..GCC,GEN,IDN;KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH);KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);GGN15,KUN10,16,TGN10,11,36..(SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,IDN,TH) W(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B5	KUN26..4FC..CO;KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);GGN15,KUN10,16,TGN10,11..SCB,SMT,XTR;KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);GGN25,KUN25,36,TGN15,26,36..ANCOM,GCC,GEN,IDN;KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH) W/O(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
71930-02050B5	KUN35..SR..GEN;KUN36..4FC..TH;TGN16..DLX..TH;KUN35..DLX..(GEN,PHL);KUN26..(SCB,XTR)..ARL;TGN16..5F..(ARL,GCC,GEN);KUN15,25..5F..DLX..(PHL,PKN);KUN25,36,TGN15,26..GCC,GEN,IDN;KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN35,TGN16..(SCB,SMT)..(4FC,5FC);KUN15,16..DCB..(4FC,5F)..DCR..(GCC,GEN,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH);KUN26,TGN16..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL,TH);GGN15,KUN10,16,TGN10,11,36..(SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,IDN,TH) W(LOCK),MD.GRAY,TRIM1#	07/2011 - 12/2999	2
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72525-0K010B1	KUN15..RHD..DCB..GEN;KUN25..RHD..5F..(GEN,PKN);KUN15..RHD..SCB..(GEN,PKN,TH);GGN15,KUN10,16,LAN15,TGN10..RHD..SCB..5F;LAN25,35,TGN16..RHD..(DCB,SCB)..DLX..(SA,TH) MD.GRAY,TRIM1#	07/2011 - 12/2999	1
Common parts
90119-T0001
90167-40044
90167-T0019
91621-B0816
91622-B1018
Linked diagrams
7152

(1505- )

Click highlighted areas on diagram

FRONT(LH MANUAL 4WAY HIGH BACK)

Part #	Description	Period	Qty	Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
90980-12373
94185-60600
Linked diagrams
7152

(1505- )

Click highlighted areas on diagram

FRONT(LH MANUAL 6WAY)

Part #	Description	Period	Qty	Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
90168-50078
90980-12373
93540-14006
94185-60600
Linked diagrams
7152
8202

(1505- )

Click highlighted areas on diagram

FRONT(LH POWER 8WAY)

Part #	Description	Period	Qty	Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
90980-12373
94185-60600
Linked diagrams
7152
8202
8401

(1505- )

Click highlighted areas on diagram

FRONT(LH BENCH)

Part #	Description	Period	Qty	Price
Common parts
90105-T0073
90119-10921
90119-T0001
93240-56025

(1505- )

Click highlighted areas on diagram

FRONT(RH MANUAL 4WAY)

Part #	Description	Period	Qty	Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
90980-12373
93540-14006
94185-60600
Linked diagrams
7152
8202

(1505- )

Click highlighted areas on diagram

FRONT(RH MANUAL 4WAY HIGH BACK)

Part #	Description	Period	Qty	Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
90980-12373
94185-60600
Linked diagrams
7152

(1505- )

Click highlighted areas on diagram

FRONT(RH MANUAL 6WAY HIGH BACK)

Part #	Description	Period	Qty	Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
90168-50078
90980-12373
94185-60600
Linked diagrams
7152

(1505- )

Click highlighted areas on diagram

FRONT(RH BENCH)

Part #	Description	Period	Qty	Price
Common parts
90105-T0073
90119-10921
90119-T0001
93240-56025

(1505- )

Click highlighted areas on diagram

SEAT COVER EDGE WIRE & CLIP

Part #	Description	Period	Qty	Price
Common parts
71149-30050
71191-0K010
90468-16019
90468-18008

(1505- )

Click highlighted areas on diagram

FRONT(RH MANUAL 6WAY)

Part #	Description	Period	Qty	Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
90168-50078
90980-12373
94185-60600
Linked diagrams
7152

(1505- )

Click highlighted areas on diagram

FRONT(RH POWER 8WAY)

Part #	Description	Period	Qty	Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
94185-60600
Linked diagrams
7152
8202
8401

(1505- )

Click highlighted areas on diagram

FRONT(LH MANUAL 4WAY)

Part #	Description	Period	Qty	Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90980-12373
94185-60600
Linked diagrams
7152

GGN15R-TRMDKQ (2011)

ILLUST NO. 1 OF 3(9708- )

ILLUST NO. 2 OF 3(9708- )

ILLUST NO. 1 OF 2(9708- )

ILLUST NO. 2 OF 2(9708- )

ILLUST NO. 2 OF 3(9708- )

ILLUST NO. 1 OF 3(9708- )

ILLUST NO. 1 OF 3(0408- )RHD

ILLUST NO. 2 OF 3(0408- )RHD..DCB,SCB

ILLUST NO. 1 OF 3(0408- )RHD

ILLUST NO. 3 OF 3(1107- )DCB,SADCB,SCB,THDCB,THSCB

ILLUST NO. 1 OF 3(1107- )RHD

ILLUST NO. 1 OF 3(1107- )RHD

ILLUST NO. 1 OF 3(1107- )RHD

ILLUST NO. 1 OF 3(1107- )RHD

ILLUST NO. 1 OF 3(1107- )RHD

ILLUST NO. 2 OF 3(1107- )RHD..DCB,SADCB,SCB,SMT

ILLUST NO. 2 OF 3(1107- )RHD..DCB,SADCB,SCB,SMT

ILLUST NO. 2 OF 3(1107- )RHD

(1505- )

(1505- )

(1505- )

(1505- )

(1505- )

(1505- )

(1505- )

(1505- )

(1505- )

(1505- )

(1505- )

(1505- )

Part Price Details
