GGN15R-TRMDKQ (2011)

Toyota Hilux

Production Jul 2011 - Aug 2013
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

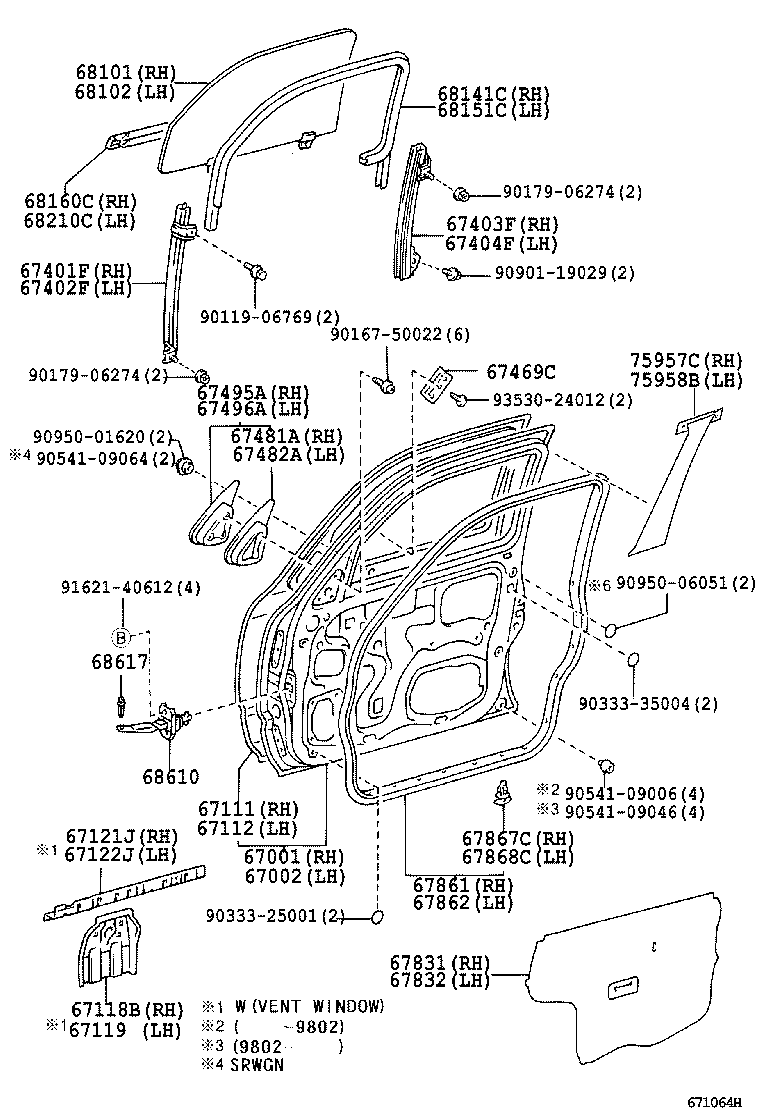

ILLUST NO. 1 OF 3(9708- )

Click highlighted areas on diagram

DOOR PANEL

diagram 67001 67002 67111 67112 67118B 67119 67121J 67122J 67401F 67402F 67403F 67404F 67469C 67481A 67482A 67495A 67496A 67831 67832 67861 67862 67867C 67868C 68101 68102 68141C 68151C 68160C 68210C 68610 68617 75957C 75958B 9011906769 9016750022 9017906274 9017906274 9033325001 9033335004 9054109006 9054109046 9054109064 9090119029 9095001620 9095006051 9162140612 9353024012
Part # Description Qty Price
Common parts
90119-06769
90167-50022
90179-06274
90333-25001
90333-35004
90541-09006
90541-09046
90541-09064
90901-19029
90950-01620
90950-06051
91621-40612
93530-24012

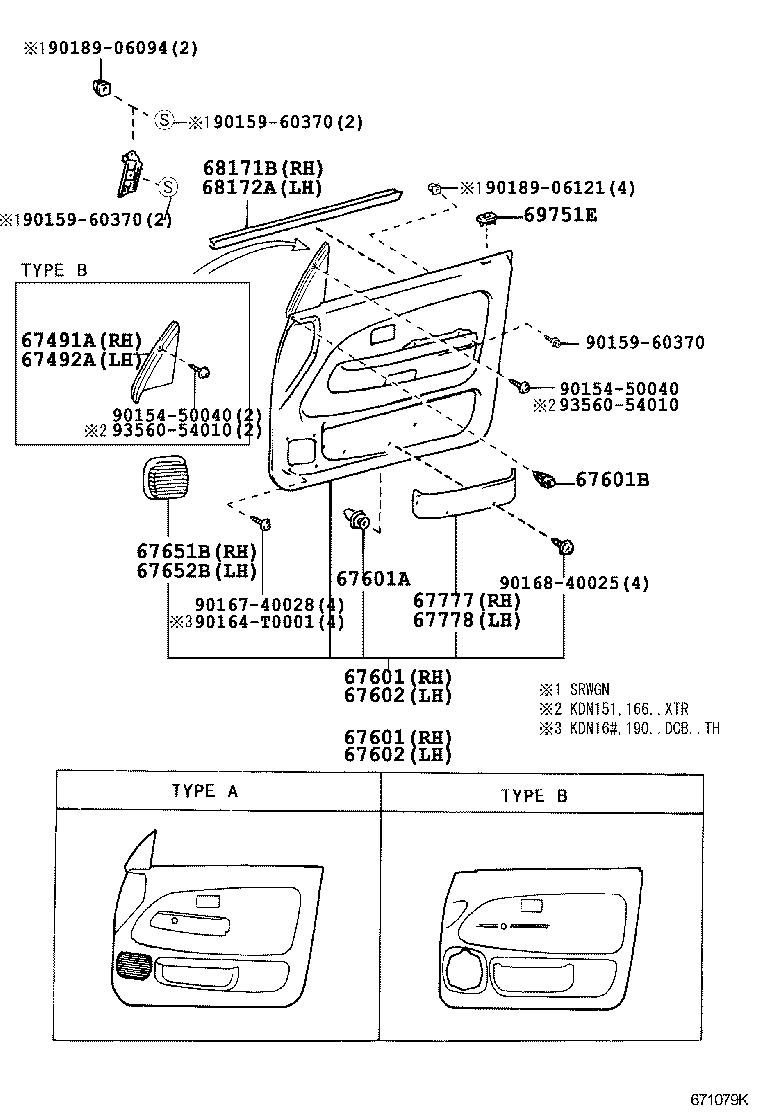

ILLUST NO. 2 OF 3(9708- )

Click highlighted areas on diagram

DOOR TRIM

diagram 67491A 67492A 67601 67601 67601A 67601B 67602 67602 67651B 67652B 67777 67778 68171B 68172A 69751E 9015450040 9015450040 9015960370 9015960370 9015960370 90164T0001 9016740028 9016840025 9018906094 9018906121 9356054010 9356054010
Part # Description Qty Price
Common parts
90154-50040
90159-60370
90164-T0001
90167-40028
90168-40025
90189-06094
90189-06121
93560-54010

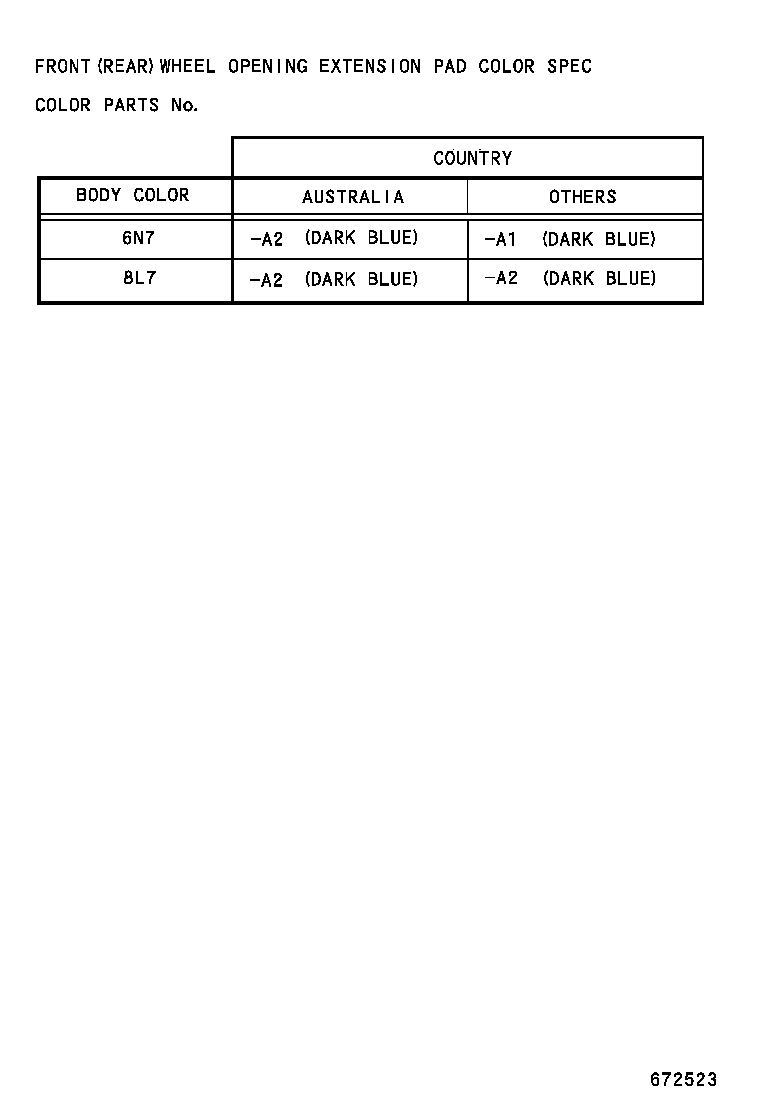

ILLUST NO. 3 OF 3(9708- )

Click highlighted areas on diagram

TRIM CODE

diagram
Part # Description Qty Price

ILLUST NO. 2 OF 2(0408- )

Click highlighted areas on diagram

DOOR TRIM

diagram 67491A 67492A 6753 67601 67601B 67601B 67601B 67601B 67601B 67602 67625A 6777158010 67773C 68171B 68172A 7451 7451 90159T0013 90164T0006 90189T0005 90189T0011 9046710161 90467T0016 90467T0021
Part # Description Qty Price
Common parts
67771-58010
90159-T0013
90164-T0006
90189-T0005
90189-T0011
90467-10161
90467-T0016
90467-T0021
Linked diagrams
6753
7451

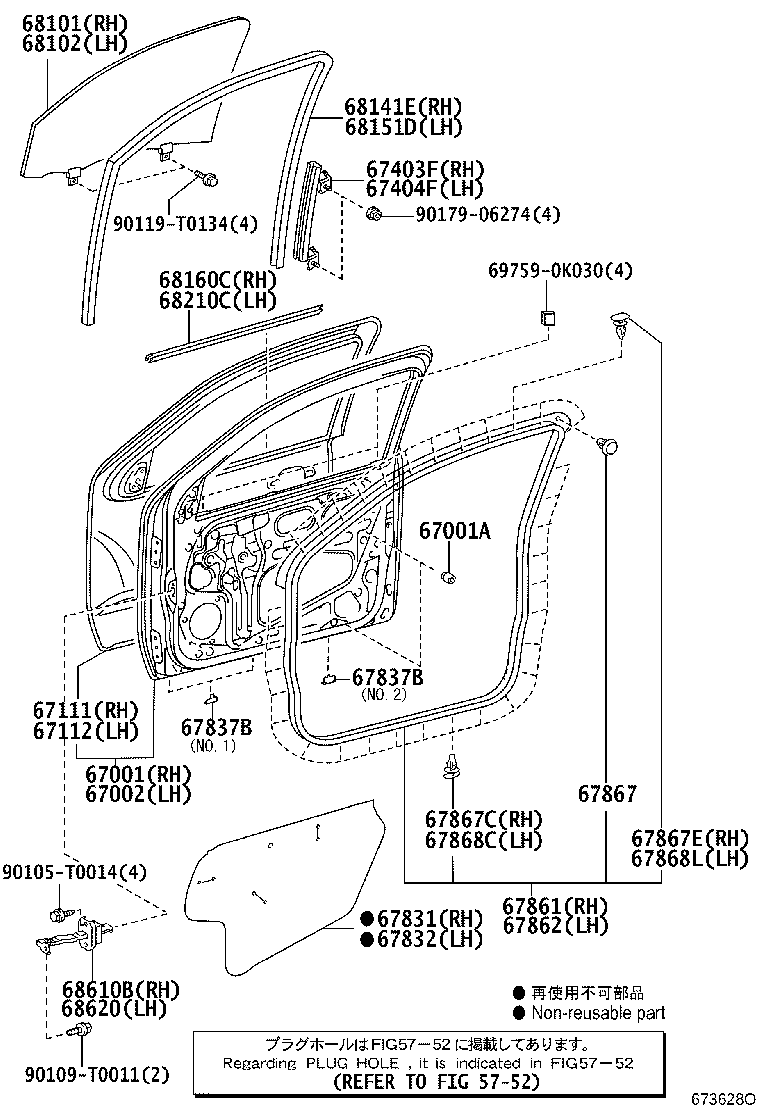

ILLUST NO. 1 OF 2(0408- )SCB,THSCB,XTR

Click highlighted areas on diagram

DOOR PANEL

diagram 67001 67001A 67002 67111 67112 67403F 67404F 67831 67832 67837B 67837B 67861 67862 67867 67867C 67867E 67868C 67868L 68101 68102 68141E 68151D 68160C 68210C 68610B 68620 697590K030 90105T0014 90109T0011 90119T0134 9017906274
Part # Description Qty Price
Common parts
69759-0K030
90105-T0014
90109-T0011
90119-T0134
90179-06274

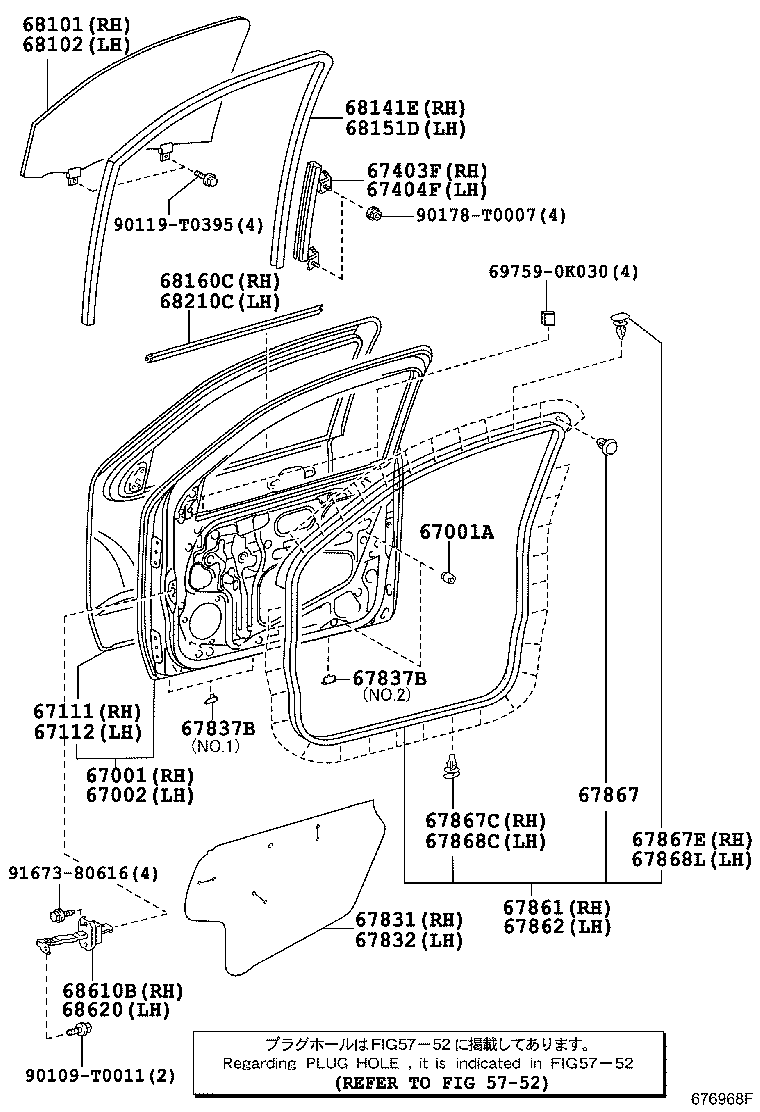

ILLUST NO. 1 OF 2(1107- )SCB,THSCB,XTR

Click highlighted areas on diagram

DOOR PANEL

diagram 67001 67001A 67002 67111 67112 67403F 67404F 67831 67832 67837B 67837B 67861 67862 67867 67867C 67867E 67868C 67868L 68101 68102 68141E 68151D 68160C 68210C 68610B 68620 697590K030 90109T0011 90119T0395 90178T0007 9167380616
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-0K020

GGN15,KUN1#,2#,TGN1#,26..(SCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09069

KUN26..5FC..IV3;KUN26..5FC..(CO,GEN,LA,TH);KUN25..DCB,THDCB,THSCB,XTR;KUN25..SCB..(GEN,LA,PKN,SA);KUN26..(DCB,SADCB,SCB,THDCB,XTR)..(4FC,5F);GGN15,25,35,KUN1#,3#,LAN15,25,35,TGN1#,26,36..DCB,SCB,THDCB,XTR

 4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-0K020

GGN15,KUN1#,2#,TGN1#,26..(SCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-0K020

GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB,XTR

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-0K020

GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB,XTR

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-0K010

KUN26..4FC,5F;KUN26..5FC..IV3;KUN26..5FC..(CO,GEN,LA,TH);GGN15,25,35,KUN1#,25,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-0K010

KUN26..4FC,5F;KUN26..5FC..IV3;KUN26..5FC..(CO,GEN,LA,TH);GGN15,25,35,KUN1#,25,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-0K040

TGN10..CBU;GGN15,KUN1#,2#,3#,TGN11,15,16,26..(SCB,SMT,THSCB,XTR)..(ARL,GCC,GEN,PHL,TH)

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-0K040

TGN10..CBU;GGN15,KUN1#,2#,3#,TGN11,15,16,26..(SCB,SMT,THSCB,XTR)..(ARL,GCC,GEN,PHL,TH)

 1
67837B - SEAL, FRONT DOOR DUST PROOF
67837-0K030

GGN15,KUN1#,2#,3#,TGN1#,26..(SCB,SMT,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH)

NO.1:REFER ILLUST.

 4
67837-71020

GGN15..XTR..DLX;KUN15,16..(SCB,XTR)..DCR..(ARL,GCC,GEN,PHL,PKN);KUN15,TGN16..(SCB,SMT,XTR)..(CNG,HDCR,HTWC)..(ARL,GCC,GEN,TH);KUN10,2#,3#,TGN10,11,15,26..(SCB,SMT,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,TH)

NO.2:REFER ILLUST.

 2
67837-71020

GGN15..SCB;GGN15..XTR..SR;KUN26..4FC..IV3;KUN15,16..(SCB,SMT,XTR)..DCR..TH;KUN15,2#,3#,LAN15,25,TGN15,16,26,36..(SCB,XTR)..(ANCOM,LA,SA)

NO.2:REFER ILLUST.

 2
67837B - SEAL, FRONT DOOR DUST PROOF
67837-0K030

GGN15,KUN1#,2#,3#,TGN1#,26..(SCB,SMT,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH)

NO.1:REFER ILLUST.

 4
67837-71020

GGN15..XTR..DLX;KUN15,16..(SCB,XTR)..DCR..(ARL,GCC,GEN,PHL,PKN);KUN15,TGN16..(SCB,SMT,XTR)..(CNG,HDCR,HTWC)..(ARL,GCC,GEN,TH);KUN10,2#,3#,TGN10,11,15,26..(SCB,SMT,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,TH)

NO.2:REFER ILLUST.

 2
67837-71020

GGN15..SCB;GGN15..XTR..SR;KUN26..4FC..IV3;KUN15,16..(SCB,SMT,XTR)..DCR..TH;KUN15,2#,3#,LAN15,25,TGN15,16,26,36..(SCB,XTR)..(ANCOM,LA,SA)

NO.2:REFER ILLUST.

 2
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-0K023

GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..(SCB,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH)

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-0K023

GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..(SCB,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH)

 1
67867 - CLIP, DOOR WEATHERSTRIP
90467-06084

KUN26..5FC..IV3;LAN15,25,35..RHD;KUN26..5FC..(CO,GEN,LA,TH);GGN15,25,KUN1#,25,3#,TGN1#,26,36..ARL,CO,GCC,GEN,IDN,LA,PHL,TH;KUN26..(DCB,SCB,SMT,THDCB,XTR)..(4FC,5F)..(ARL,CO,GEN,LA,PHL,TH)

 2
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

LAN15,25..RHD..SCB;GGN15,KUN1#,2#,35,TGN1#,26,36..(SCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,LA,PHL,TH)

 22
67867E - RETAINER, FRONT DOOR LOWER PROTECTOR, RH
67867-52020

LAN15,25..RHD..SCB;GGN15,KUN1#,2#,3#,TGN1#,26,36..(SCB,SMT,THSCB,XTR)..(ARL,GCC,GEN,IDN,LA,PHL,TH)

 12
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

LAN15,25..RHD..SCB;GGN15,KUN1#,2#,35,TGN1#,26,36..(SCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,LA,PHL,TH)

 22
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-52030

LAN15,25..RHD..SCB;GGN15,KUN1#,2#,35,TGN1#,26,36..(SCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,LA,PHL,TH)

 12
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-0K120

GGN15,KUN1#,2#,3#,TGN1#,26..SCB,SMT,THSCB,XTR

*TEM,T=3.5,GREEN

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-0K120

GGN15,KUN1#,2#,3#,TGN1#,26..(SCB,SMT,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH)

*TEM,T=3.5,GREEN

 1
68141E - RUN, FRONT DOOR GLASS, RH
68141-0K020

GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..(SCB,SMT,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,LA,PHL,PKN,SA,TH)

 1
68151D - RUN, FRONT DOOR GLASS, LH
68151-0K020

GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..(SCB,SMT,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,LA,PHL,PKN,SA,TH)

 1
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68161-0K020

GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..(SCB,SMT,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,LA,PHL,PKN,SA,TH)

 1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68162-0K020

GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..(SCB,SMT,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,LA,PHL,PKN,SA,TH)

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-0K010

GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68620-0K010

GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)

 1
Common parts
69759-0K030
90109-T0011
90119-T0395
90178-T0007
91673-80616

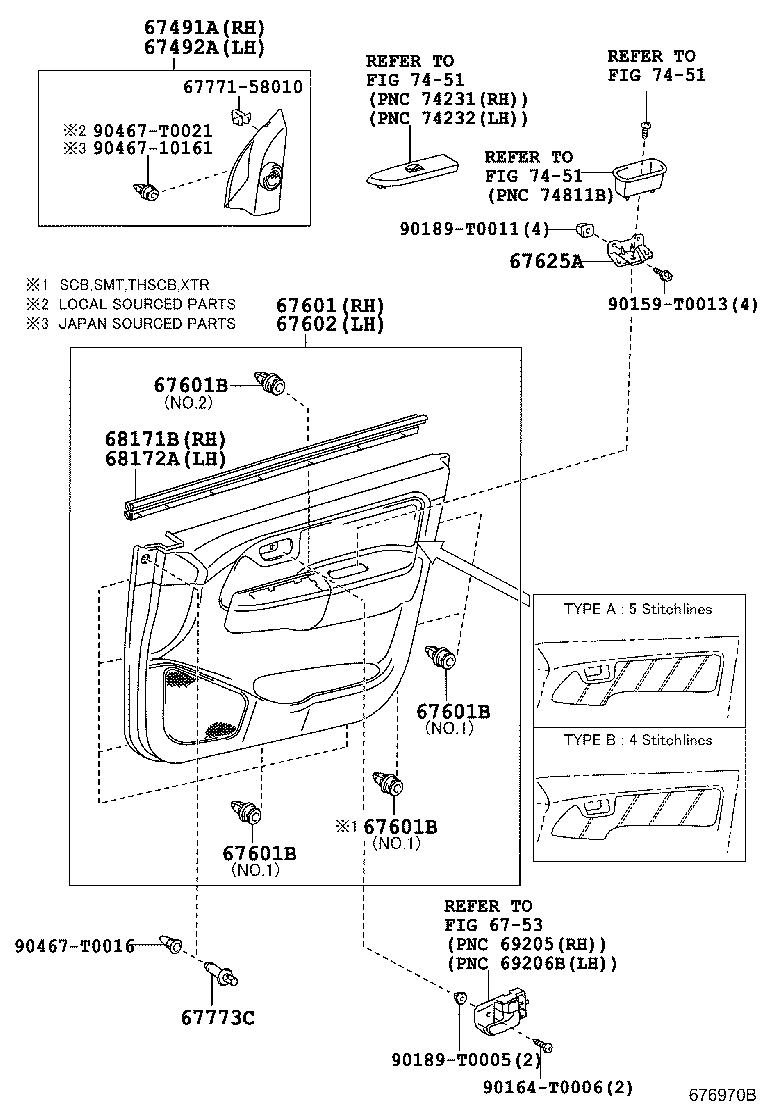

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

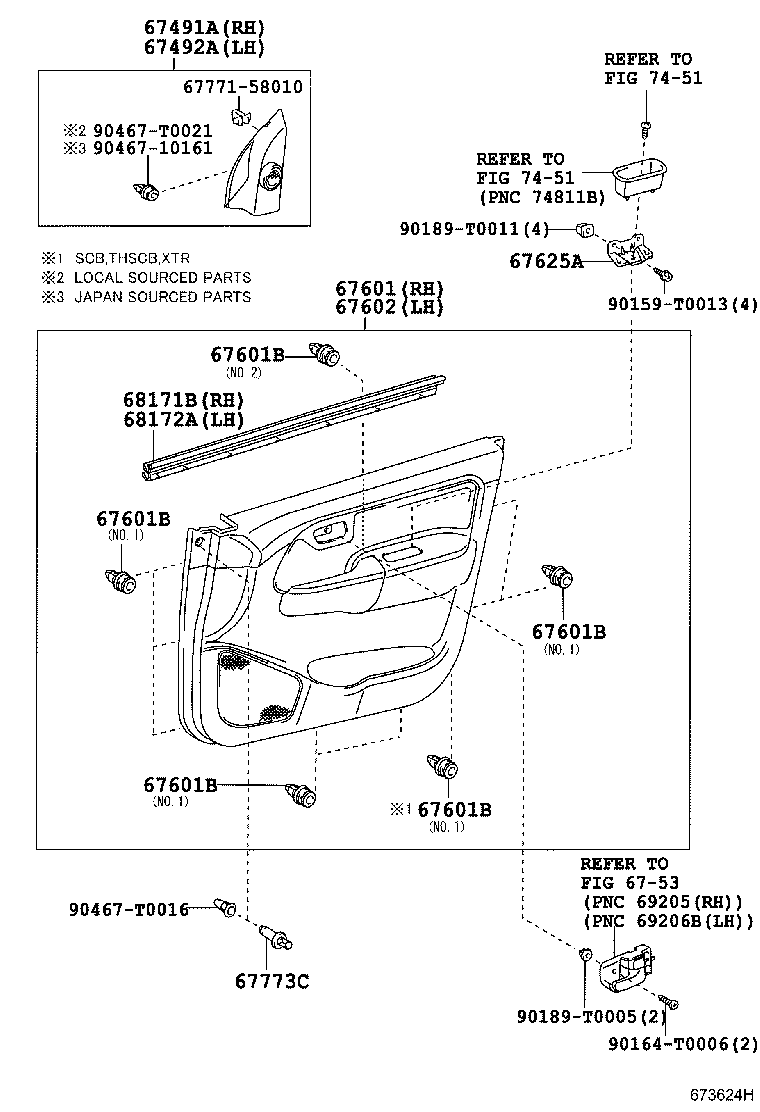

DOOR TRIM

diagram 67491A 67492A 6753 67601 67601B 67601B 67601B 67601B 67602 67625A 6777158010 67773C 68171B 68172A 7451 7451 7451 90159T0013 90164T0006 90189T0005 90189T0011 9046710161 90467T0016 90467T0021
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-0K010C0

GGN25..DLX;KUN26..4FC..DLX..CBU;GGN25,TGN26,36..ANCOM;KUN15..(SCB,XTR)..(PHL,TH);GGN15,KUN15..(DCB,SMT)..5F..(DCR,HTWC)..(ARL,TH);GGN15,KUN10,16,2#,TGN10,16..SCB..(ARL,IDN,MA,TH)

BLACK,TRIM1#

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-0K010C0

GGN25..DLX;KUN26..4FC..DLX..CBU;GGN25,TGN26,36..ANCOM;KUN15..(SCB,XTR)..(PHL,TH);GGN15,KUN15..(DCB,SMT)..5F..(DCR,HTWC)..(ARL,TH);GGN15,KUN10,16,2#,TGN10,16..SCB..(ARL,IDN,MA,TH)

BLACK,TRIM1#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-0K270B3

KUN16..(SCB,XTR)..ARL;KUN15,16,TGN16..(SCB,SMT)..SR;GGN15,KUN2#,3#..(SCB,SMT,XTR)..(ARL,TH)

MD.GRAY,TRIM1#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09203

KUN26..4FC..CO;LAN15,25,35..RHD;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,PHL,PKN,TH)

NO.2:REFER ILLUST.

 2
90467-T0019

LAN15,25..RHD..SCB;GGN15,KUN1#,2#,3#,TGN1#,26..(SCB,SMT,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH)

NO.1:REFER ILLUST.

 16
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09203

KUN26..4FC..CO;LAN15,25,35..RHD;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,PHL,PKN,TH)

NO.2:REFER ILLUST.

 2
90467-T0019

LAN15,25..RHD..SCB;GGN15,KUN1#,2#,3#,TGN1#,26..(SCB,SMT,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH)

NO.1:REFER ILLUST.

 16
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09203

KUN26..4FC..CO;LAN15,25,35..RHD;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,PHL,PKN,TH)

NO.2:REFER ILLUST.

 2
90467-T0019

LAN15,25..RHD..SCB;GGN15,KUN1#,2#,3#,TGN1#,26..(SCB,SMT,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH)

NO.1:REFER ILLUST.

 16
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09203

KUN26..4FC..CO;LAN15,25,35..RHD;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,PHL,PKN,TH)

NO.2:REFER ILLUST.

 2
90467-T0019

LAN15,25..RHD..SCB;GGN15,KUN1#,2#,3#,TGN1#,26..(SCB,SMT,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH)

NO.1:REFER ILLUST.

 16
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-0K270B3

KUN16..(SCB,XTR)..ARL;KUN15,16,TGN16..(SCB,SMT)..SR;GGN15,KUN2#,3#..(SCB,SMT,XTR)..(ARL,TH)

MD.GRAY,TRIM1#

 1
67625A - BRACKET, FRONT DOOR TRIM, NO.1
67625-0K010

GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH)

 2
67773C - CLIP, DOOR TRIM UPPER RETAINER, NO.1
90467-T0027B3

KUN16..4FC,5F;KUN35..SMT..5FC;KUN35..DLX..PHL;KUN15..SR..(GEN,SA);KUN35..CO,GEN,LA,SA;KUN26..(4FC,5FC)..TH;KUN15,TGN16..(DLX,STD)..(ARL,GEN,PHL,SA,TH);GGN15,25,35,KUN10,2#,36,LAN15,25,35,TGN10,15,26,36..ANCOM,ARL,CO,GEN,IDN,LA,MA,PHL,SA

MD.GRAY,TRIM1#

 2
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-0K020

GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..(SCB,SMT,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,LA,PHL,PKN,SA,TH)

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-0K020

GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..(SCB,SMT,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,LA,PHL,PKN,SA,TH)

 1
Common parts
67771-58010
90159-T0013
90164-T0006
90189-T0005
90189-T0011
90467-10161
90467-T0016
90467-T0021
Linked diagrams
6753
7451

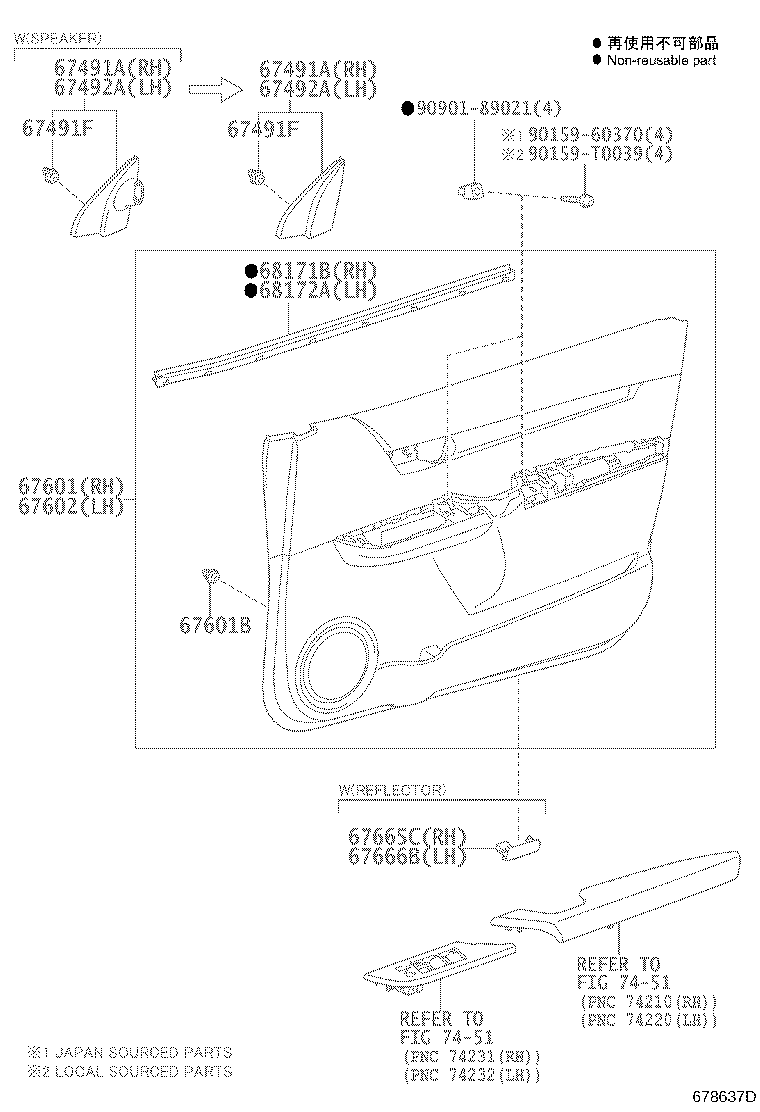

ILLUST NO. 2 OF 2(1505- )

Click highlighted areas on diagram

DOOR TRIM,W(POWER WINDOW)

diagram 67491A 67491A 67491F 67491F 67492A 67492A 67601 67601B 67602 67665C 67666B 68171B 68172A 7451 7451 9015960370 90159T0039 9090189021
Part # Description Qty Price
Common parts
90159-60370
90159-T0039
90901-89021
Linked diagrams
7451

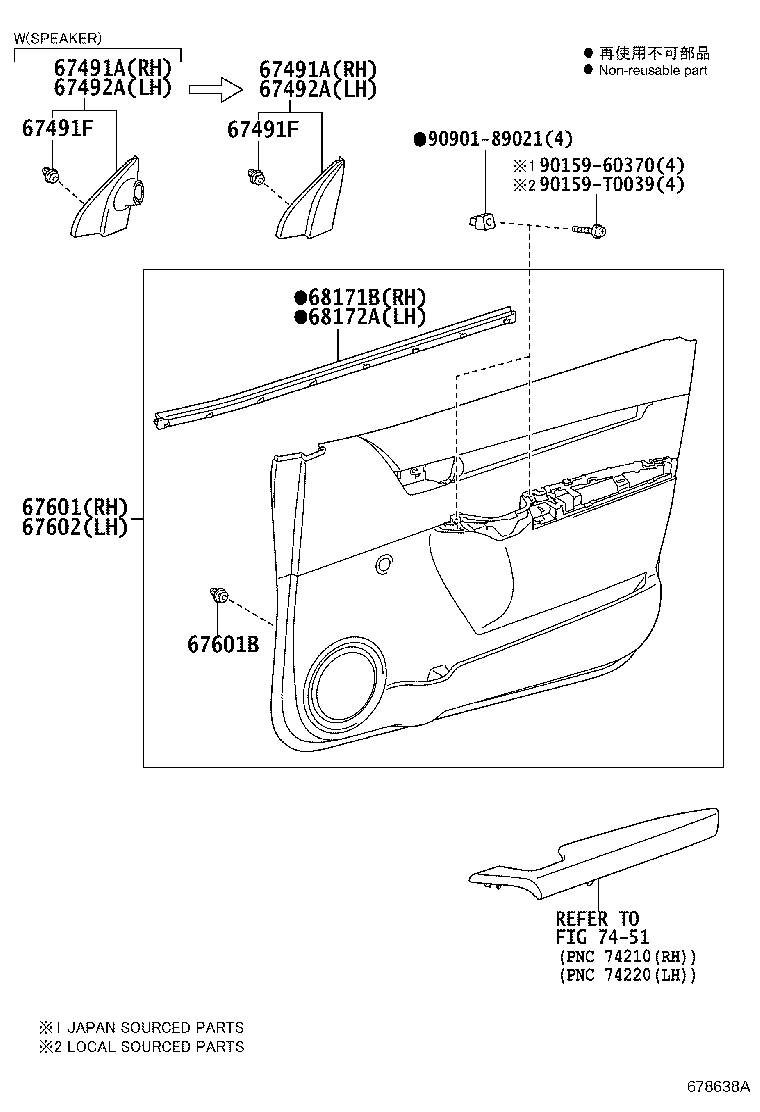

ILLUST NO. 2 OF 2(1505- )

Click highlighted areas on diagram

DOOR TRIM,W/O(POWER WINDOW)

diagram 67491A 67491A 67491F 67491F 67492A 67492A 67601 67601B 67602 68171B 68172A 7451 9015960370 90159T0039 9090189021
Part # Description Qty Price
Common parts
90159-60370
90159-T0039
90901-89021
Linked diagrams
7451
