GGN15R-TRMDKQ (2011)

Toyota Hilux

Production Jul 2011 - Aug 2013
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )SCB,THSCB

Click highlighted areas on diagram

diagram 51081 51082 51083 51084 51795A 51796 57023B 57024B 57025 57026 57051 57052 57401C 57402A 57411B 57412B 57417 57418 57427A 57428A 57486A 57487B 57512 57513 58111 58123A 58191 58193 58199A 58286 58287 58289E 58386A 58995A 58996B 9010508341 9010508341 9011506144 9015960038 9016850054 9017908096 9017908096 9018906029 9026905048 9033301008 9033320001 9033335002 9033335002 9095001086 9095001234 9095001872 9095001890 9095001890 9095006060 9095006060
Part # Description Qty Price
Common parts
90105-08341
90115-06144
90159-60038
90168-50054
90179-08096
90189-06029
90269-05048
90333-01008
90333-20001
90333-35002
90950-01086
90950-01234
90950-01872
90950-01890
90950-06060

ILLUST NO. 2 OF 3(1107- )SCB,THSCB

Click highlighted areas on diagram

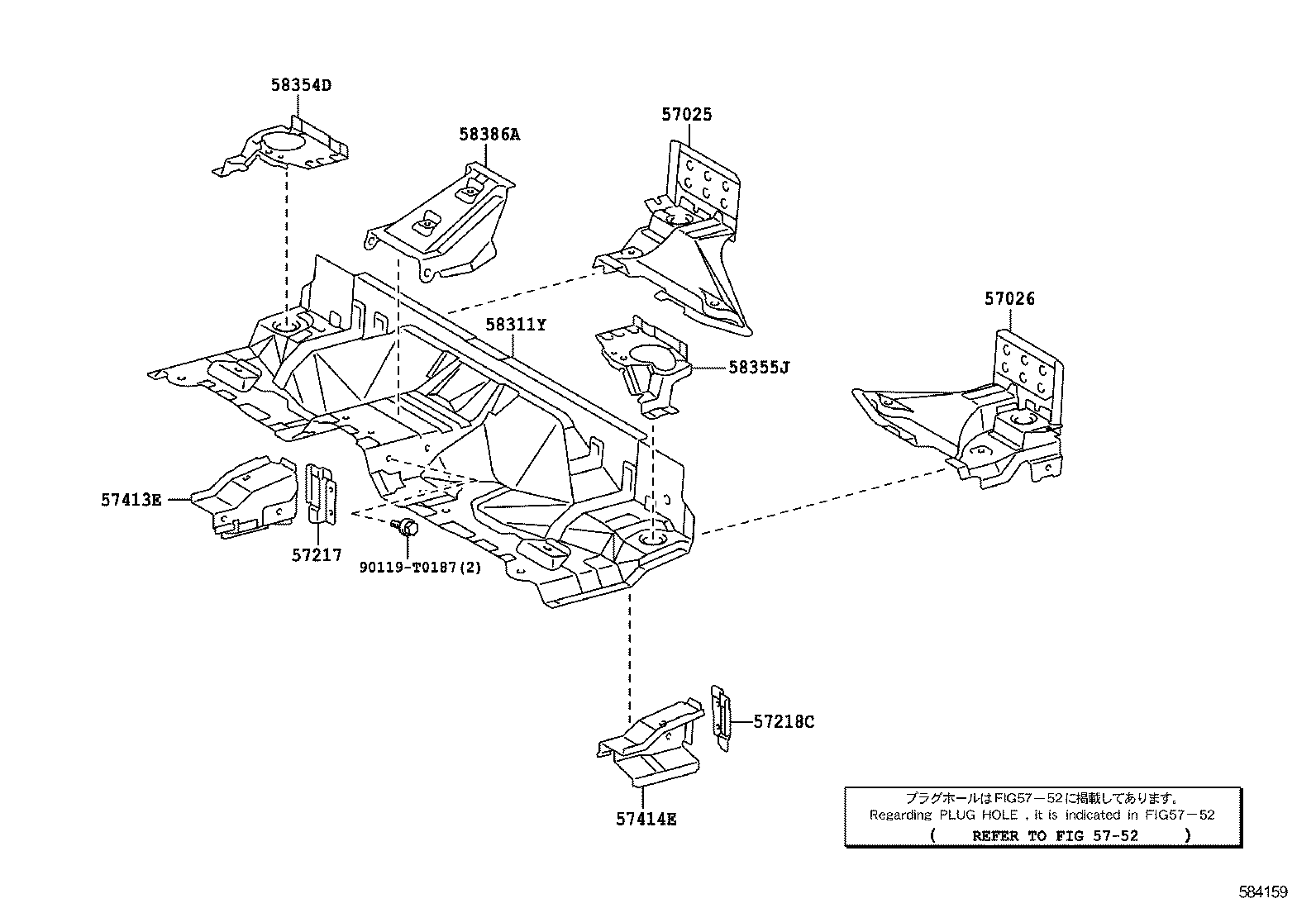

REAR FLOOR PANEL

diagram 57025 57026 57217 57218C 57413E 57414E 5752 58311Y 58354D 58355J 58386A 90119T0187
Part # Description Qty Price
57025 - BRACKET SUB-ASSY, BODY MOUNTING, NO.3 RH
57025-0K010

GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB

 1
57026 - BRACKET SUB-ASSY, BODY MOUNTING, NO.3 LH
57026-0K010

GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB

 1
57217 - BRACKET, BODY MOUNTING, NO.4 RH
57217-0K020

GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB

 1
57218C - BRACKET, BODY MOUNTING, NO.4 LH
57218-0K020

GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB

 1
57413E - MEMBER, FLOOR SIDE, INNER REAR RH
57413-0K020

GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB

 1
57414E - MEMBER, FLOOR SIDE, INNER REAR LH
57414-0K020

GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB

 1
58311Y - PAN, REAR FLOOR
58311-0K060

KUN25..SCB..(GEN,MA,PKN);GGN15,KUN1#,LAN15,25,TGN10,15,16..RHD..SCB..5F

 1
58354D - REINFORCEMENT, REAR FLOOR PANEL, NO.4
58354-0K050

GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB

 1
58355J - REINFORCEMENT, REAR FLOOR PANEL, NO.5
58355-0K050

GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB

 1
58386A - GUSSET, LOWER BACK PANEL, NO.2
58386-0K020

GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB

 1
Common parts
90119-T0187
Linked diagrams
5752

ILLUST NO. 3 OF 3(1107- )SCB,THSCB

Click highlighted areas on diagram

SIDE STEP

diagram 51081 51082 51083 51084 51773B 51773C 51774A 51774C 51797 51798 90105T0077 90105T0077 90105T0077 90168T0007 90168T0007 90182T0016 9026905048 9026905048
Part # Description Qty Price
Common parts
90105-T0077
90168-T0007
90182-T0016
90269-05048

ILLUST NO. 1 OF 3(1107- )

Click highlighted areas on diagram

FRONT FLOOR PANEL

diagram 57213H 57214B 57411A 57412A 57417 57418 57425 57426 57451A 57452 57465B 57466B 57468B 57468B 57509 57512 57513 57517A 5752 57535 57536 58102A 58111 58117A 58118C 58139A 58149A 58191 58227B 58228B 58280A 58280A 58280A 58387H 90105T0063 90105T0077 90105T0077 90105T0077 90105T0077 90115T0011 90159T0014 90159T0014 9017606027 9017606027 90189T0013 90189T0013 904670707122 90467T0001 90467T0009 90467T0018
Part # Description Qty Price
57213H - BRACKET, BODY MOUNTING, NO.2 RH
57213-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57214B - BRACKET, BODY MOUNTING, NO.2 LH
57214-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57411-0K010

GGN15;KUN25..SCB..MA;KUN15..XTR..DLX;KUN26..SCB..(LA,SA);KUN15..(DCB,SCB)..(GCC,GEN,PHL,SA,TH);KUN26..(DCB,SADCB,THDCB,XTR)..(ARL,CO,GEN,LA,PHL,SA,TH);GGN25,35,KUN10,16,25,3#,LAN15,25,35,TGN1#,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH)

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57412-0K010

GGN15;KUN25..SCB..MA;KUN15..XTR..DLX;KUN26..SCB..(LA,SA);KUN15..(DCB,SCB)..(GCC,GEN,PHL,SA,TH);KUN26..(DCB,SADCB,THDCB,XTR)..(ARL,CO,GEN,LA,PHL,SA,TH);GGN25,35,KUN10,16,25,3#,LAN15,25,35,TGN1#,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH)

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH
57425-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH
57426-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57451A - MEMBER, FRONT FLOOR CROSS, RH
57451-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..DCB,SCB,SMT;GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,PKN,SA,TH

 1
57452 - MEMBER, FRONT FLOOR CROSS, LH
57452-0K020

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57465B - BRACKET, FRONT SEAT, INNER
57465-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57466B - BRACKET, FRONT SEAT, INSIDE LH
57466-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57468B - BRACKET, FRONT SEAT, REAR
57468-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 2
57468B - BRACKET, FRONT SEAT, REAR
57468-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 2
57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57509-0K020

KUN15..XTR..DLX;KUN15..DCB,SCB,SMT;GGN15,KUN10,16,LAN15,TGN1#

 1
57512 - REINFORCEMENT, FRONT FLOOR, RH
57512-0K030

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57512-0K010

KUN15..XTR..TH;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
57513 - REINFORCEMENT, FRONT FLOOR, LH
57513-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57517A - RETAINER, FRONT FLOOR REINFORCEMENT, REAR
57517-0K020

KUN15..XTR..TH;KUN25..SCB..MA;KUN15..RHD..(DCB,SCB,SMT);GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN10,15,16,36..RHD..5F..(ARL,GEN,IDN,PKN,SA,TH)

 1
57535 - BRACE, FRONT FLOOR, RH
57535-0K010

KUN26..4FC..CO;LAN15,25,35..RHD;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH)

 1
57536 - BRACE, FRONT FLOOR, LH
57536-0K010

KUN26..4FC..CO;LAN15,25,35..RHD;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH)

 1
58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR
58102-0K020

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH)

 1
58111 - PAN, FRONT FLOOR
58111-0K030

KUN15..XTR..DLX;KUN15..DCB,SCB,SMT;GGN15,KUN10,16,3#,LAN15,35,TGN1#,36..5F

 1
58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH
58117-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH
58118-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
58139A - PLATE, FRONT FLOOR SIDE, REAR RH
58139-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
58149A - PLATE, FRONT FLOOR SIDE, REAR LH
58149-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
58191 - FOOTREST, FRONT FLOOR
58191-0K010

GGN15,25,KUN1#,2#,3#,TGN10,16,26..RHD..(DCB,SCB,SMT,XTR)..(ARL,GEN,IDN,MA,PKN,TH)

 1
58280A - BOOT ASSY, SHIFT LEVER
58280-0K060

GGN15..5F

 1
58280-0K010

TGN10,15

 1
58280A - BOOT ASSY, SHIFT LEVER
58280-0K060

GGN15..5F

 1
58280-0K010

TGN10,15

 1
58280A - BOOT ASSY, SHIFT LEVER
58280-0K060

GGN15..5F

 1
58280-0K010

TGN10,15

 1
58387H - PLATE, REAR FLOOR
58387-0K010

LAN15,25,35;KUN25,35..IV3;KUN25..LHD..5F..DLX..SA;KUN15..RHD..SCB..(GEN,TH);TGN16..DCB..5F..(GCC,GEN);KUN15..DCB..DLX..(GCC,GEN,SA);KUN35,TGN26..DCB..5F..DLX..(GCC,SA);KUN15,TGN26..LHD..SCB..DLX..(DCR,HTWC);KUN25,TGN15..(DCB,SCB,THSCB)..5F..(GCC,GEN,PKN);GGN15,KUN10,16,TGN10,11,16,36..SCB..5F..(CNG,DCR,HTWC)..(ANCOM,ARL,GCC,LA,TH)

 1
58387-0K010

TGN26..THDCB;KUN35..SR..SA;TGN16..SCB..SA;KUN26..5FC..IV3;KUN15..PHL..IV3;TGN16..DCB..(SA,TH);KUN15,35..RHD..SCB..SA;TGN36..(DCB,THDCB)..DLX;KUN26..5FC..(CO,GEN,LA,TH);KUN2#..DCB..5F..(HDCR,IART)..(CO,LA);KUN15,25..LHD..(SCB,THDCB)..HDCR..GEN;KUN25..RHD..(DCB,SCB)..(IDN,MA,SA,TH);KUN15,25,TGN36..(DCB,SCB)..SR..(GEN,LA,SA);KUN26..(DCB,SADCB,SCB,THDCB)..(4FC,5F)..DCR;KUN16,35..(DCB,THDCB)..(ARL,CO,GEN,LA,PHL,TH);GGN15,KUN15,TGN26..DCB..5F..(ANCOM,ARL,CO,LA,PHL,TH);GGN15,KUN25,TGN16,26..(DCB,SCB)..(4FC,5FC)..(ARL,GCC,GEN,LA,SA);GGN25,35,KUN10,36,TGN10,15..(DCB,SCB)..(ANCOM,ARL,GEN,IDN,LA,SA,TH)

 2
Common parts
90105-T0063
90105-T0077
90115-T0011
90159-T0014
90176-06027
90189-T0013
90467-0707122
90467-T0001
90467-T0009
90467-T0018
Linked diagrams
5752

ILLUST NO. 1 OF 3(1505- )

Click highlighted areas on diagram

FLOOR PANEL

diagram 57213H 57214B 57411A 57412A 57417 57418 57425 57426 57451A 57452 57465B 57465B 57468C 57469B 57486 57487 57509 57512 57513 57517A 5752 57535 57536 58102A 58111 58117A 58118E 58137D 58139A 58147 58149A 58221F 58222B 90115T0011 90119T0438 90119T0438 90119T0438 90119T0438
Part # Description Qty Price
Common parts
90115-T0011
90119-T0438
Linked diagrams
5752
