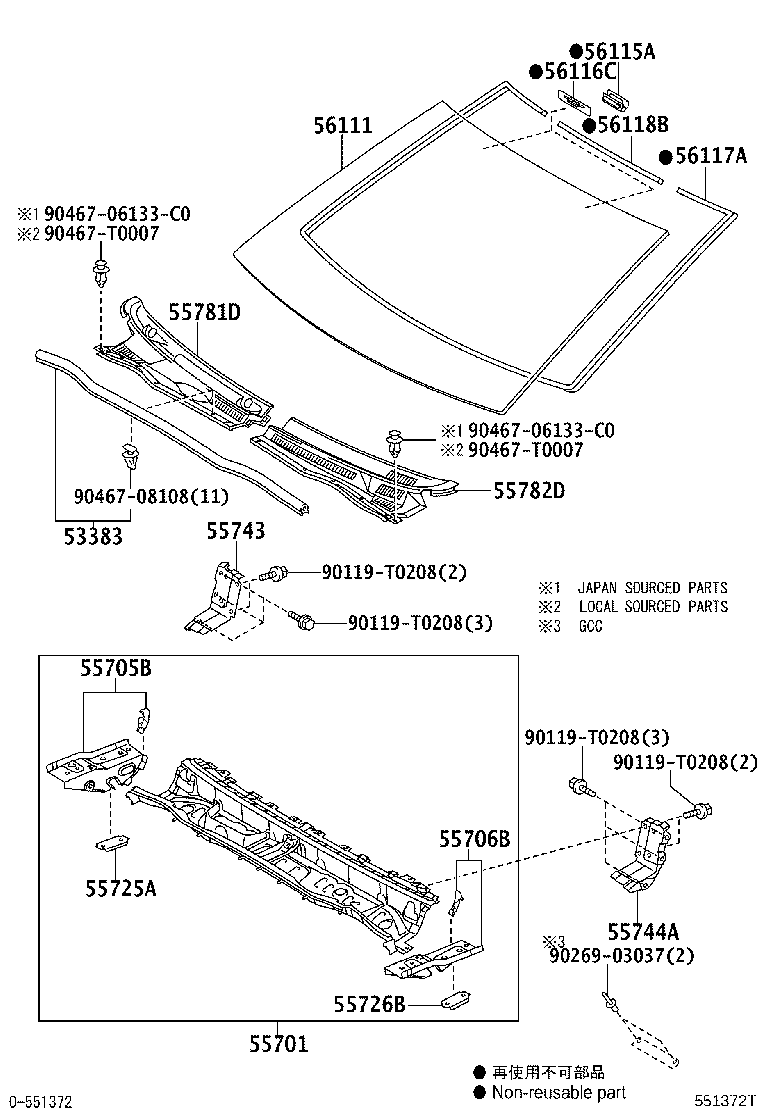

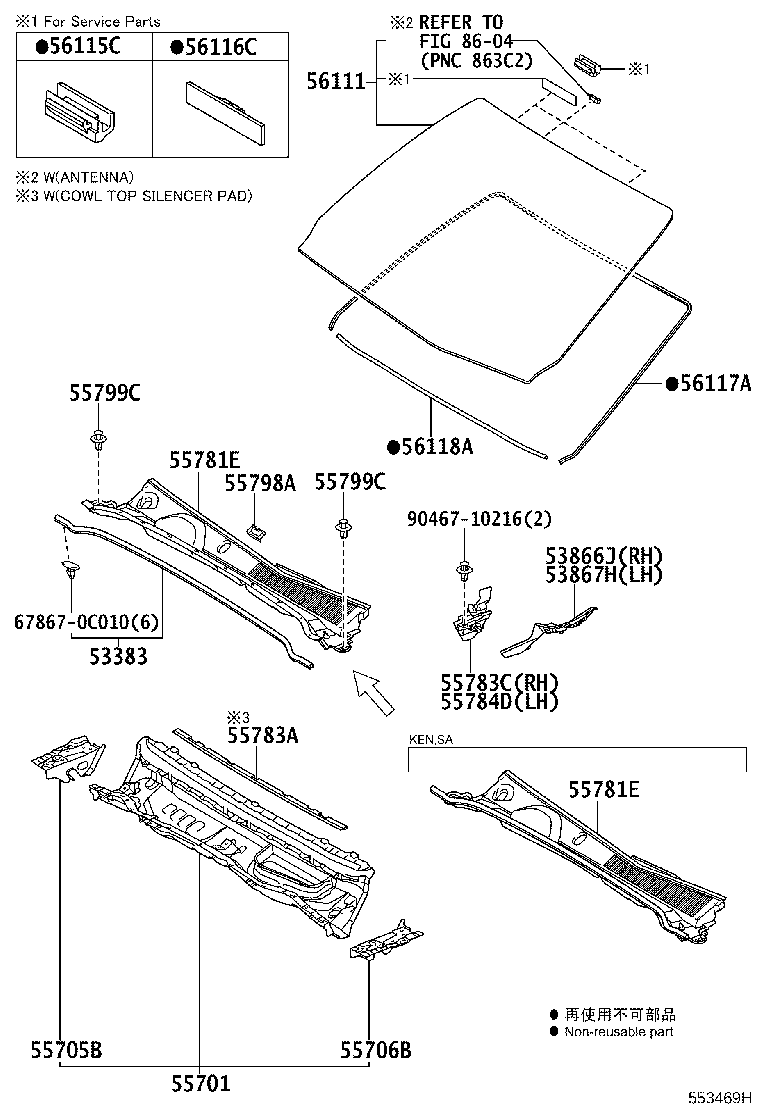

Toyota Hilux GGN15 COWL PANEL & WINDSHIELD GLASS

Part #	Description	Period	Qty
53383 - SEAL, HOOD TO COWL TOP
53383-0K010	KUN26..5FC..IV3;KUN26..5FC..(GEN,TH);KUN16,26..(4FC,5F)..(ARL,GEN,MA,PHL,SA,TH);GGN15,25,35,KUN10,15,25,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH	07/2011 - 12/2999	1
55701 - PANEL SUB-ASSY, COWL
55700-0K010	KUN36..4FC;KUN26..4FC..TH;KUN25..SCB..MA;TGN16..RHD..HTWC;KUN36..5F..(GEN,SA);KUN26..RHD..(GEN,SA);KUN15,25..RHD..HDCR..(GEN,IDN,PKN,SA);KUN15,16,TGN26..RHD..(4FC,5F)..(DCR,HTWC)..(GEN,PKN,SA,TH);GGN15,25,35,KUN10,35,LAN15,25,35,TGN10,15,36..RHD..(ARL,IDN,SA)	07/2011 - 09/2016	1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-0K050	KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH	07/2011 - 12/2999	1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-0K050	KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH	07/2011 - 12/2999	1
55725A - REINFORCEMENT, HOOD HINGE MOUNTING, RH
55725-0K010	KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH	07/2011 - 12/2999	1
55726B - REINFORCEMENT, HOOD HINGE MOUNTING, LH
55725-0K010	KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH	07/2011 - 12/2999	1
55743 - PANEL, COWL TOP OUTSIDE CORNER, RH
55743-0K010	KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH	07/2011 - 12/2999	1
55744A - REINFORCEMENT, PEDAL BRACKET MOUNTING
55744-0K010	KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH	07/2011 - 12/2999	1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55708-0K010	TGN16..ARL..IV3;KUN15,16..RHD..GEN;KUN36..(5F,5FC)..(GEN,TH);KUN26..RHD..(DCB,SMT)..(GEN,TH);GGN15,KUN10,16,26,TGN10..(SCB,XTR)..(5F,5FC)..(ARL,IDN);KUN15,25,35,TGN16,26..RHD..(CNG,HDCR,HTWC)..(GEN,IDN,TH)	07/2011 - 03/2013	1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55709-0K010	TGN16..ARL..IV3;KUN15,16..RHD..GEN;KUN36..(5F,5FC)..(GEN,TH);KUN26..RHD..(DCB,SMT)..(GEN,TH);GGN15,KUN10,16,26,TGN10..(SCB,XTR)..(5F,5FC)..(ARL,IDN);KUN15,25,35,TGN16,26..RHD..(CNG,HDCR,HTWC)..(GEN,IDN,TH)	07/2011 - 03/2013	1
56111 - GLASS, WINDSHIELD
56101-0K190	TGN16..XTR;TGN26..SR..GEN;KUN26..5FC..IV3;KUN26..(4FC,5F)..DLX..ARL;KUN25,35..(DCB,SCB)..DLX..(GEN,PHL,PKN);GGN15,25,KUN10,16,TGN10,16..RHD..(DLX,STD);KUN15,TGN26..DCB..5F..(DCR,HTWC)..(GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GEN,PHL,PKN,TH) *LAM,T=4.76,GREEN	07/2011 - 09/2016	1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-02020	KUN26..4FC,5F;KUN26..5FC..SR;KUN26..5FC..IV3;KUN26..5FC..DLX..LA;GGN15,25,35,KUN1#,25,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-02020	KUN26..4FC,5F;KUN26..5FC..SR;KUN26..5FC..IV3;KUN26..5FC..DLX..LA;GGN15,25,35,KUN1#,25,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-0K010	KUN26..4FC,5F;KUN26..5FC..SR;KUN26..5FC..IV3;KUN26..5FC..DLX..LA;GGN15,25,35,KUN1#,25,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH L=3089	07/2011 - 12/2999	1
56118B - DAM, WINDOW GLASS ADHESIVE, NO.2
56118-0K010	KUN26..4FC,5F;KUN26..5FC..SR;KUN26..5FC..IV3;KUN26..5FC..DLX..LA;GGN15,25,35,KUN1#,25,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH L=706	07/2011 - 12/2999	1
Common parts
90119-T0208
90269-03037
90467-08108
90467-T0007
90467-T0040

Part #	Description	Period	Qty	Price
Common parts
90080-46288
90080-46289
90119-06407
90164-40093
90189-04184
90269-03029
90467-0704522
90467-08184
90950-06119
91631-J0612

GGN15R-TRMDKQ (2011)

(9708- )

(0408- )ANCOM,ARL,GCC,GEN,IDN,LA,MA,PHL,PKN,TH

(1107- )DCB,SCB,SMT,THDCB,THSCB,XTR..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,PKN,TH

(1505- )RHD
