GGN15R-TRMDKQ (2011)

Toyota Hilux

Production Jul 2011 - Aug 2013
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

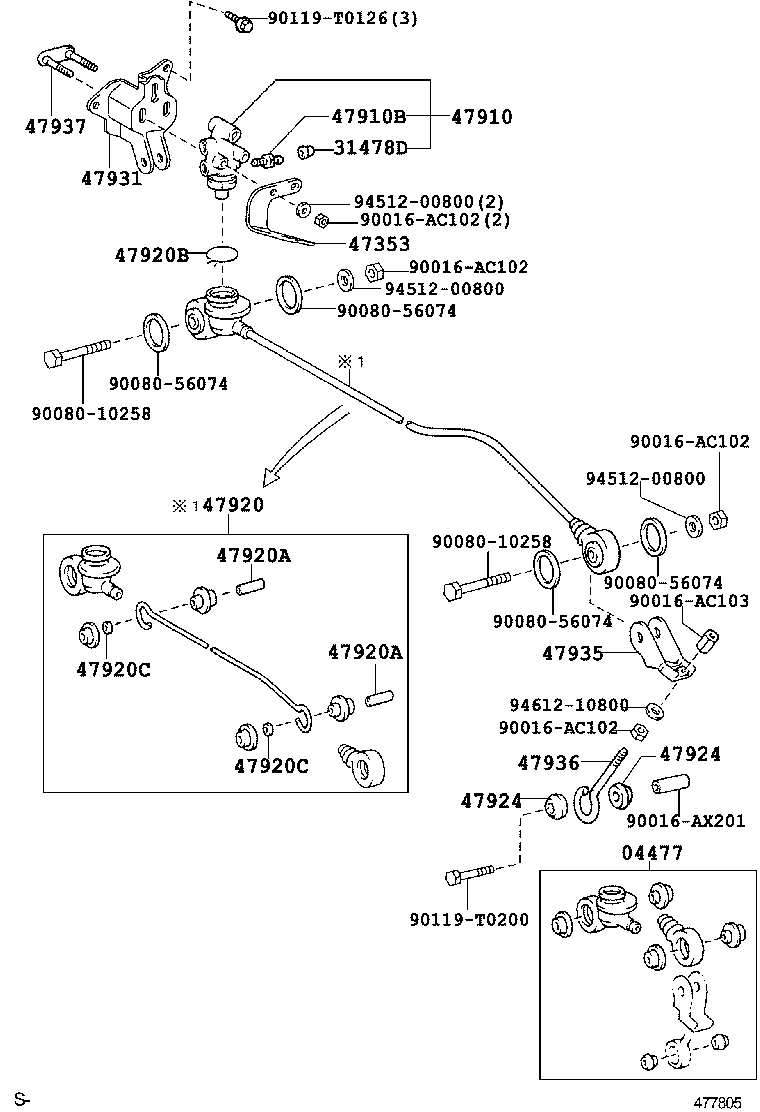

ILLUST NO. 3 OF 3(0408- )

Click highlighted areas on diagram

diagram 04477 31478D 47353 47910 47910B 47920 47920A 47920A 47920B 47920C 47920C 47924 47924 47931 47935 47936 47937 90016AC102 90016AC102 90016AC102 90016AC102 90016AC103 90016AX201 9008010258 9008010258 9008056074 9008056074 9008056074 9008056074 9011908B11 90119T0126 90119T0200 9451200800 9451200800 9451200800 9461210800
Part # Description Qty Price
Common parts
90016-AC102
90016-AC103
90016-AX201
90080-10258
90080-56074
90119-08B11
90119-T0126
90119-T0200
94512-00800
94612-10800

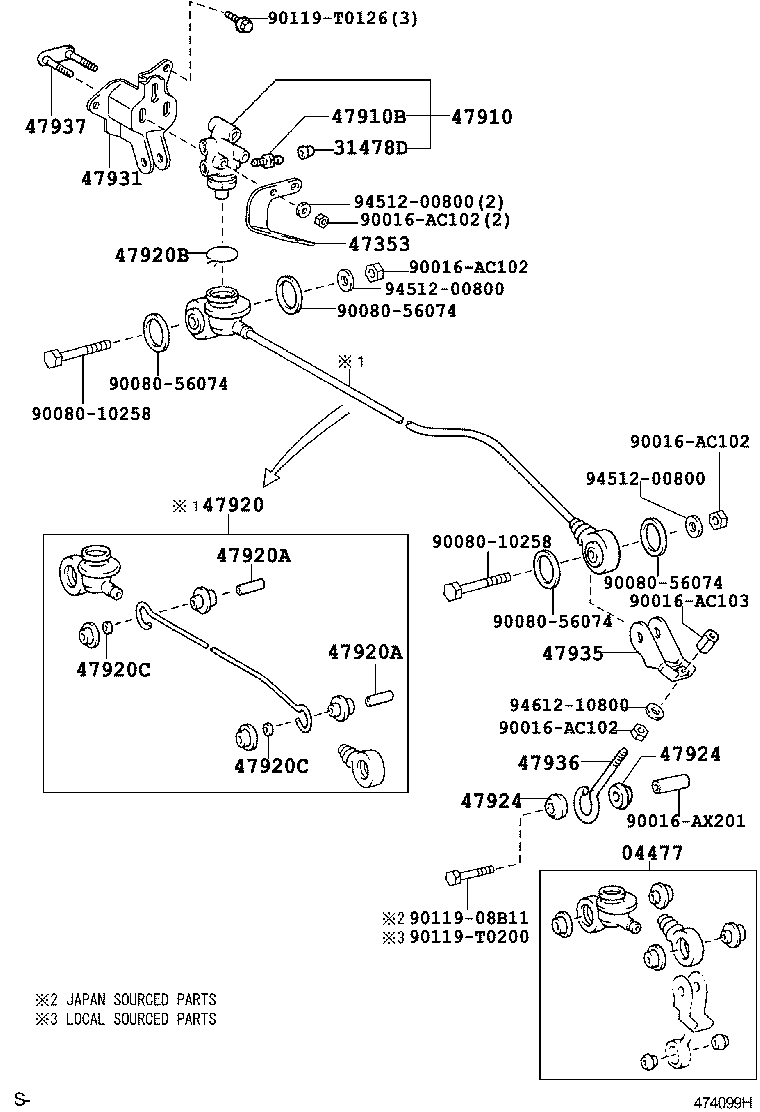

ILLUST NO. 3 OF 3(1107- )

Click highlighted areas on diagram

diagram 04477 31478D 47353 47910 47910B 47920 47920A 47920A 47920B 47920C 47920C 47924 47924 47931 47935 47936 47937 90016AC102 90016AC102 90016AC102 90016AC102 90016AC103 90016AX201 9008010258 9008010258 9008056074 9008056074 9008056074 9008056074 90119T0126 90119T0200 9451200800 9451200800 9451200800 9461210800
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-04010

GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
31478D - CAP, BLEEDER PLUG(FOR LSPV)
31478-0D040

GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47352-0K011

GGN15,KUN1#,LAN15,TGN1#

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-0K010

GGN15,KUN1#,LAN15,TGN1#

 1
47910B - PLUG, BLEEDER
47547-27030

GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
47920 - SPRING ASSY, LOAD SENSING
47920-0K010

GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90016-AX201

GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90016-AX201

GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90080-46308

GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90016-AH101

GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90016-AH101

GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 2
47924 - BUSH, LOAD SENSING VALVE
47924-04010

GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 2
47924 - BUSH, LOAD SENSING VALVE
47924-04010

GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-0K010

GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-04010

GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-04010

GGN15,KUN1#,LAN15,TGN1#

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-04010

GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
Common parts
90016-AC102
90016-AC103
90016-AX201
90080-10258
90080-56074
90119-T0126
90119-T0200
94512-00800
94612-10800

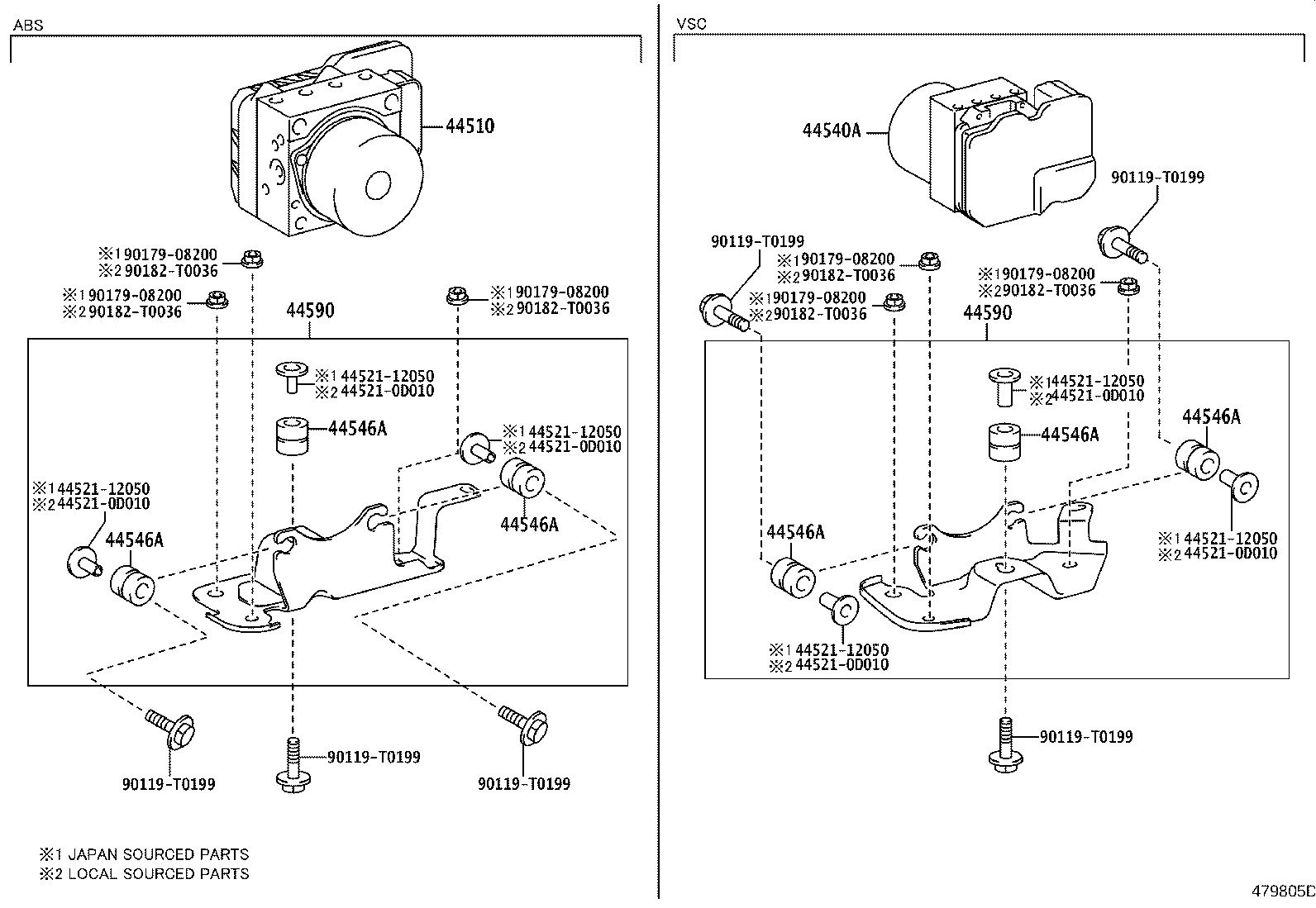

ILLUST NO. 2 OF 2(1505- )RHD

Click highlighted areas on diagram

BRAKE ACTUATOR

diagram 44510 445210D010 445210D010 445210D010 445210D010 445210D010 445210D010 4452112050 4452112050 4452112050 4452112050 4452112050 4452112050 44540A 44546A 44546A 44546A 44546A 44546A 44546A 44590 44590 90119T0199 90119T0199 90119T0199 90119T0199 90119T0199 90119T0199 9017908200 9017908200 9017908200 9017908200 9017908200 9017908200 90182T0036 90182T0036 90182T0036 90182T0036 90182T0036 90182T0036
Part # Description Qty Price
Common parts
44521-0D010
44521-12050
90119-T0199
90179-08200
90182-T0036
