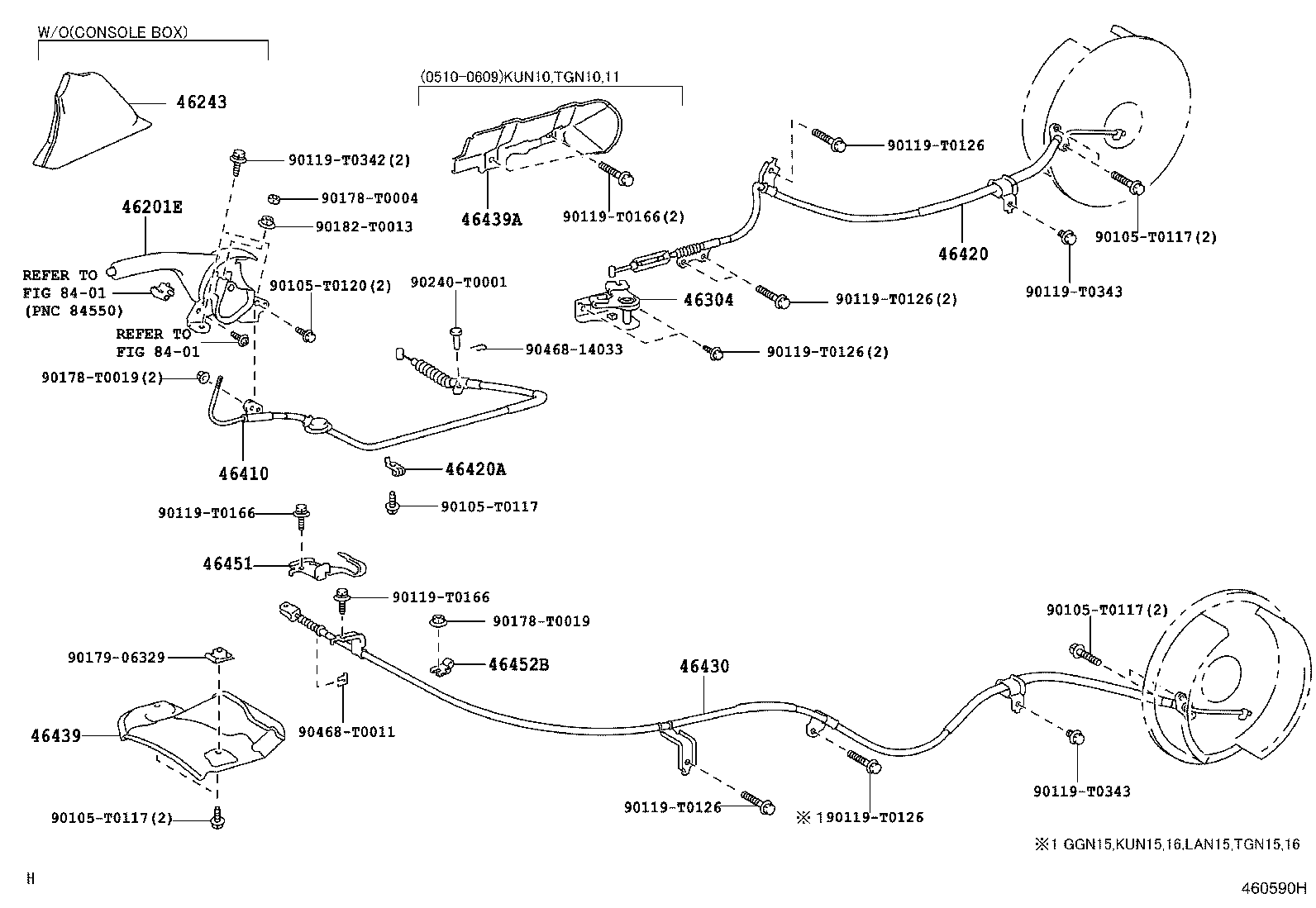

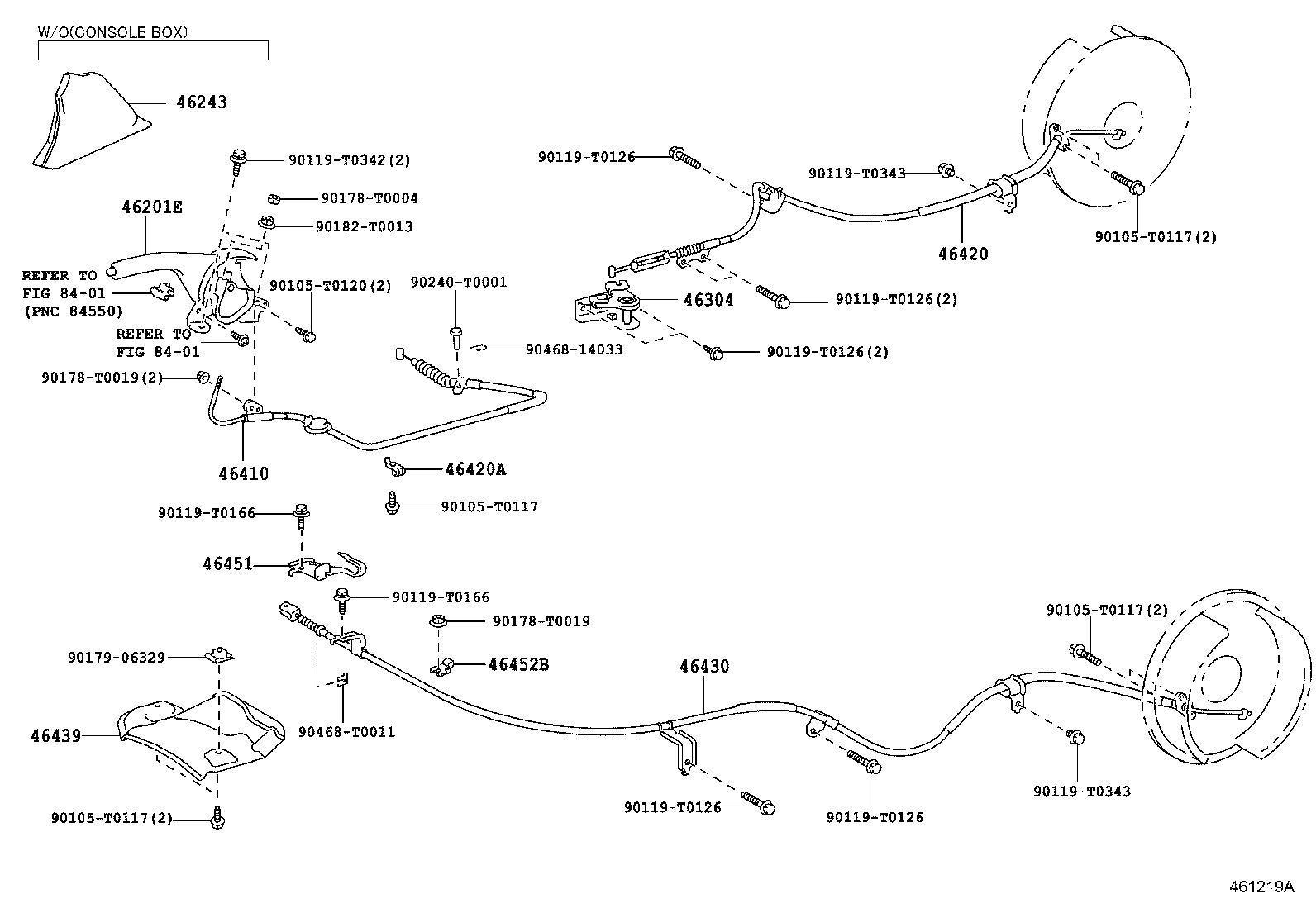

Toyota Hilux GGN15 PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-0K011B1	KUN16..4FC,5F;KUN36..4FC..TH;KUN35..SMT..5FC;KUN15,35..SR..GEN;KUN26..(4FC,5FC)..TH;KUN35..DLX..(GEN,PHL);KUN15,TGN16..(DLX,STD)..(ARL,GEN,PHL,PKN,TH);GGN15,25,KUN10,2#,36,TGN10,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GEN,IDN,MA,PHL,PKN) MD.GRAY,TRIM1#	07/2011 - 09/2016	1
46243 - COVER, PARKING BRAKE LEVER
46243-0K010B1	KUN25,35..IV3;TGN16..DCB..GEN;KUN35..DCB..DLX..SA;KUN25..LHD..5F..DLX..SA;LAN15,25,35,TGN26..5F..SA;KUN15..DCB..DLX..(GEN,SA);KUN25,TGN16..SCB..5F..(ARL,MA,TH);KUN25..(DCB,SCB,THSCB)..5F..(GEN,PKN);GGN15,KUN1#,TGN10,15,26,36..SCB..5F..(DLX,STD)..(DCR,HDCR,HTWC)..(ANCOM,ARL,GEN,IDN,LA,PHL,PKN,SA,TH) MD.GRAY,TRIM1#	07/2011 - 09/2016	1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-0K030	GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH)	07/2011 - 12/2999	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-0K041	GGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	03/2013 - 12/2999	1
46410-0K040	KUN15..HDCR;KUN2#,35,TGN16;KUN36..(5F,5FC)..TH;GGN15,25,35,KUN15,16,36,LAN15,25,35,TGN15,26,36..(DCR,DEFI,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,LA,PHL,PKN,SA)	07/2011 - 02/2013	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-0K030	GGN15,KUN15,16,LAN15,TGN15,16	07/2011 - 09/2016	1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01799	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-0K030	GGN15,KUN15,16,LAN15,TGN15,16	07/2011 - 09/2016	1
46439 - INSULATOR, PARKING BRAKE CABLE HEAT
46439-0K010	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	1
46451 - BRACKET, CABLE SUPPORT
46451-0K040	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	1
46452B - BRACKET, CABLE SUPPORT, NO.2
46452-0K010	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	1
Common parts
90105-T0117
90105-T0120
90119-T0126
90119-T0166
90119-T0342
90119-T0343
90178-T0004
90178-T0019
90179-06329
90182-T0013
90240-T0001
90468-14033
90468-T0011

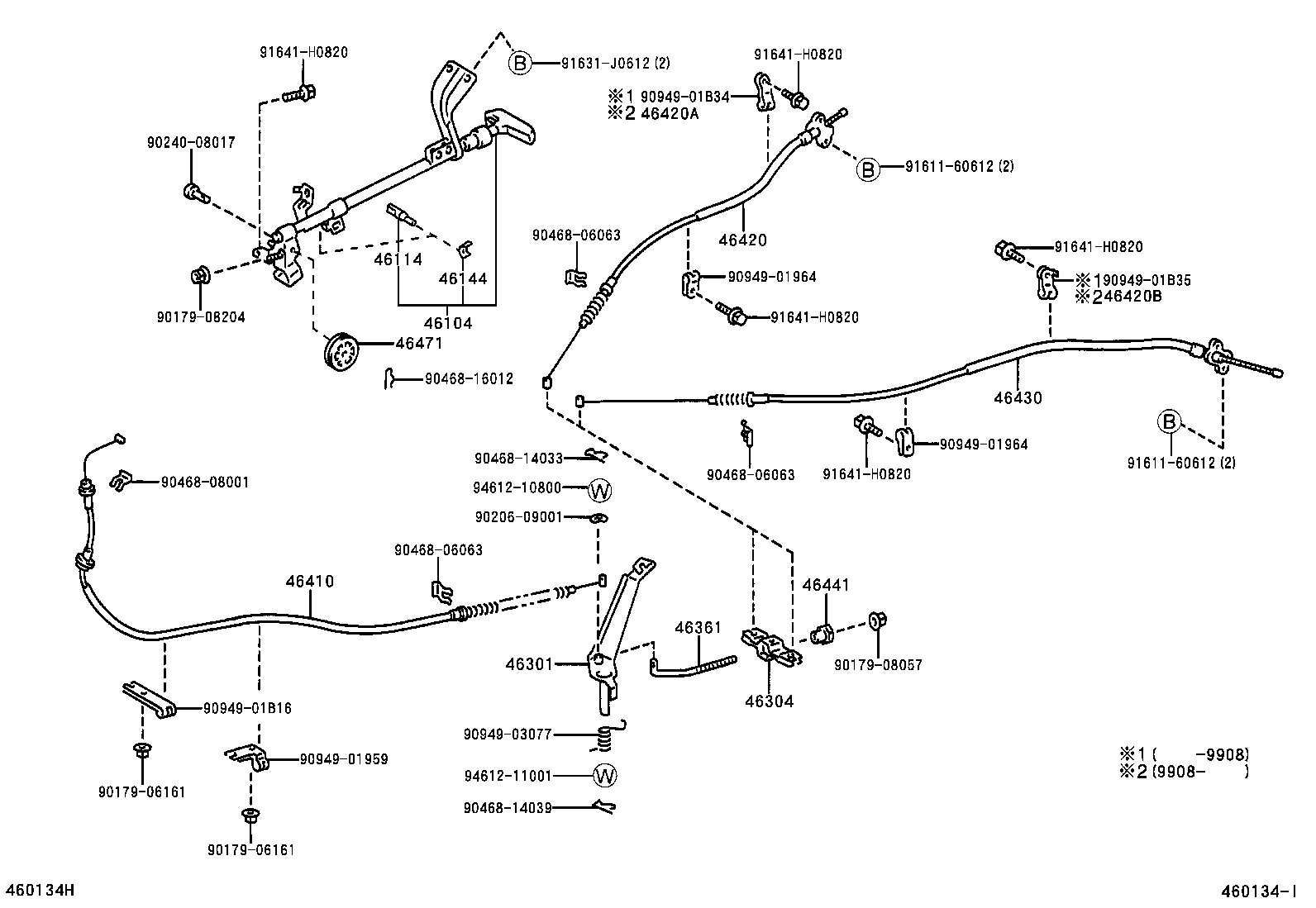

Linked diagrams
8401

Part #	Description	Period	Qty	Price
Common parts
90179-06161
90179-08057
90179-08204
90206-09001
90240-08017
90468-06063
90468-08001
90468-14033
90468-14039
90468-16012
90949-01959
90949-01964
90949-01B16
90949-01B34
90949-01B35
90949-03077
91611-60612
91631-J0612
91641-H0820
94612-10800
94612-11001

GGN15R-TRMDKQ (2011)

(9708- )KDN145,15#,LN140,145,147,15#,RZN142,147,149,154,YN140..RHD

(0408- )GGN15,KUN1#,LAN15,TGN1#

(1107- )GGN15,KUN15,16,LAN15,TGN15,16
