GGN15R-TRMDKQ (2011)
Toyota Hilux
(1107- )GGN15,KUN1#,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,PKN,TH

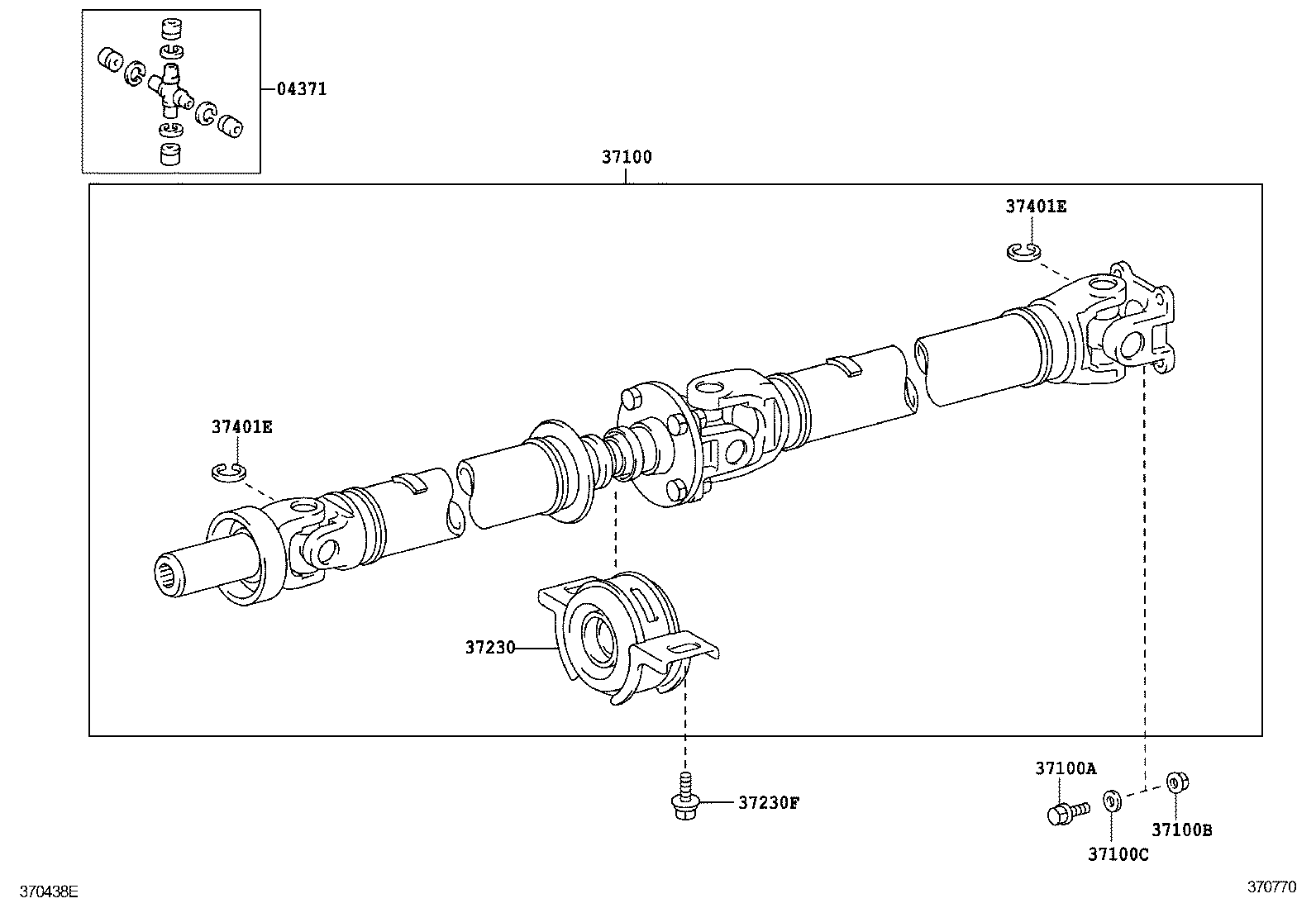

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
3 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-0K481 |
GGN15..5F |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-T0084 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90178-T0024 |
GGN15,35,KUN1#,3#,LAN15,35,TGN1#,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH |
4 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-T0003 |
GGN15,35,KUN1#,3#,LAN15,35,TGN1#,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH |
4 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-0K021 |
GGN15,KUN1#,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,PKN,TH |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-T0148 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0010 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.25,MARK J |
8 | ||
| 90520-T0007 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.19,MARK F |
8 | ||
| 90520-T0009 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.23,MARK H |
8 | ||
| 90520-T0012 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.29,MARK 1 |
8 | ||
| 90520-T0018 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.41,MARK 7 |
8 | ||
| 90520-T0017 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.39,MARK 6 |
8 | ||
| 90520-T0011 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.27,MARK K |
8 | ||
| 90520-T0013 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.31,MARK 2 |
8 | ||
| 90520-T0014 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.33,MARK 3 |
8 | ||
| 90520-T0015 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.35,MARK 4 |
8 | ||
| 90520-T0019 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.43,MARK 8 |
8 | ||
| 90520-T0021 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.47,MARK 10 |
8 | ||
| 90520-T0016 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.37,MARK 5 |
8 | ||
| 90520-T0023 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.51,MARK B |
8 | ||
| 90520-T0008 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.21,MARK G |
8 | ||
| 90520-T0020 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.45,MARK N |
8 | ||
| 90520-T0025 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.55,MARK D |
8 | ||
| 90520-T0024 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.53,MARK C |
8 | ||
| 90520-T0022 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.49,MARK A |
8 | ||
| 90520-T0026 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.57,MARK E |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0010 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.25,MARK J |
8 | ||
| 90520-T0007 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.19,MARK F |
8 | ||
| 90520-T0009 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.23,MARK H |
8 | ||
| 90520-T0012 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.29,MARK 1 |
8 | ||
| 90520-T0018 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.41,MARK 7 |
8 | ||
| 90520-T0017 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.39,MARK 6 |
8 | ||
| 90520-T0011 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.27,MARK K |
8 | ||
| 90520-T0013 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.31,MARK 2 |
8 | ||
| 90520-T0014 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.33,MARK 3 |
8 | ||
| 90520-T0015 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.35,MARK 4 |
8 | ||
| 90520-T0019 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.43,MARK 8 |
8 | ||
| 90520-T0021 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.47,MARK 10 |
8 | ||
| 90520-T0016 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.37,MARK 5 |
8 | ||
| 90520-T0023 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.51,MARK B |
8 | ||
| 90520-T0008 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.21,MARK G |
8 | ||
| 90520-T0020 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.45,MARK N |
8 | ||
| 90520-T0025 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.55,MARK D |
8 | ||
| 90520-T0024 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.53,MARK C |
8 | ||
| 90520-T0022 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.49,MARK A |
8 | ||
| 90520-T0026 |
KUN15..HDCR..(GEN,TH);GGN15,KUN10,16,3#,TGN1#,36..ARL,GCC,GEN,IDN,PHL,TH T=2.57,MARK E |
8 | ||
