GGN15R-TRMDKQ (2011)
Toyota Hilux
(0408- )KUN10,15,LAN15,25,35,TGN10,15..DCR,DEFI,HTWC
G50,G55,G58
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91611-60850 | ||||
| Linked diagrams | ||||
| 3303 | ||||
(1107- )KUN10,15,LAN15,25,35,TGN10,15..DCR,DEFI,HTWC
G50,G55,G58
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

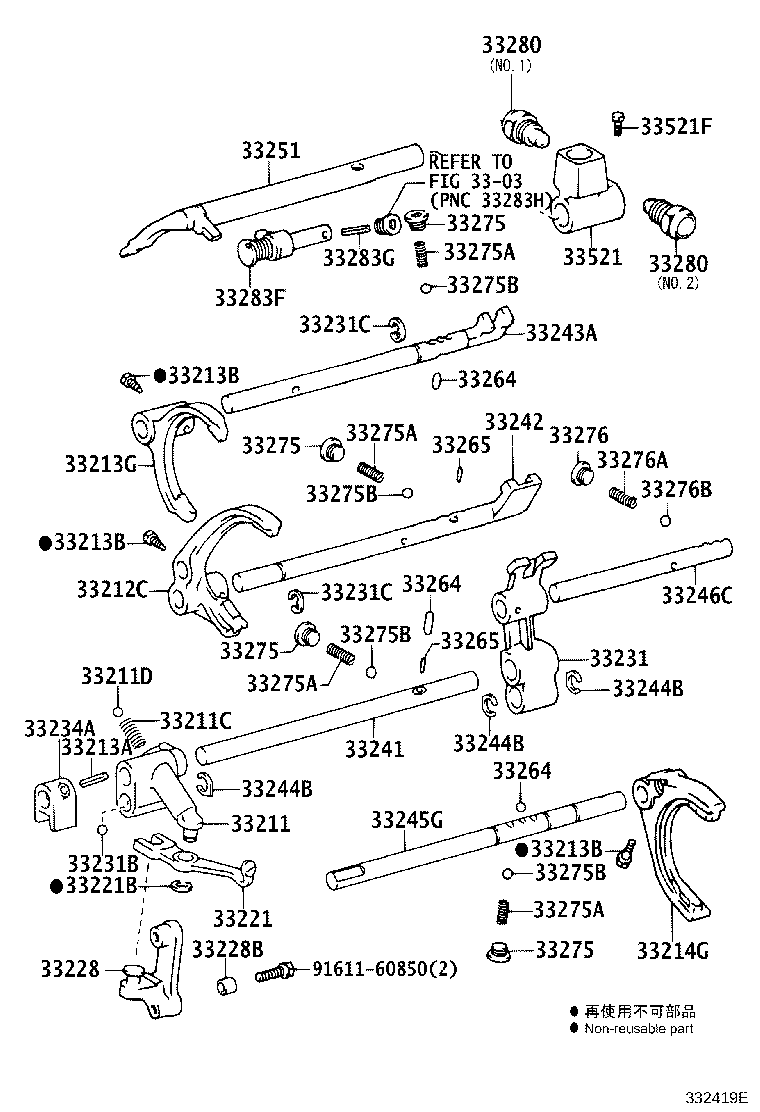

| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-0K040 |
KUN16..5F..TH;KUN26..5F..IART;GGN15,25,KUN25..5F..(ARL,IDN,MA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33211-0K030 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33211C - SPRING, COMPRESSION(FOR REVERSE SHIFT FORK RETURN) | ||||
| 90501-T0022 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90501-12166 |
KUN16..5F..TH;GGN15,25,KUN10,15,TGN10,15..5F..(DCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 33211D - BALL(FOR REVERSE SHIFT FORK) | ||||
| 90360-10003 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) OD=9.52,STEEL,TYPE B:SEE 33-01,(J) |
2 | ||
| 90360-10003 |
KUN16..5F..TH;KUN26..5F..IART;GGN15,25,KUN25..5F..(ARL,IDN,MA,TH) OD=9.52,STEEL,TYPE D:REFER 33-01 |
2 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,3#,TGN11,16,26,36..5F..(ARL,GCC,GEN,PHL,TH) TYPE B:SEE 33-01,(J) |
1 | ||
| 90254-T0004 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,3#,TGN11,16,26,36..5F..(ARL,GCC,GEN,PHL,TH) TYPE B:SEE 33-01,(L) |
1 | ||
| 90254-05016 |
KUN16,36,TGN36..5F..(DCR,HTWC);GGN15,25,KUN15,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,3#,TGN11,16,26,36..5F..(ARL,GCC,GEN,PHL,TH) TYPE B:SEE 33-01,(J) |
1 | ||
| 90254-T0004 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,3#,TGN11,16,26,36..5F..(ARL,GCC,GEN,PHL,TH) TYPE B:SEE 33-01,(L) |
1 | ||
| 90254-05016 |
KUN16,36,TGN36..5F..(DCR,HTWC);GGN15,25,KUN15,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06077 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
2 | ||
| 90105-06077 |
KUN16,25..5F..(IDN,MA,TH);KUN35..DCB..5F..SR..(PHL,SA,TH);KUN35..(DCB,SMT)..DLX..(GEN,PHL,TH);KUN15,TGN36..(DCB,SCB,SMT,THDCB)..5F..(HDCR,HTWC);GGN15,25,KUN26,TGN11,16,26..5F..(CNG,HTWC,HTWCF,IART) TYPE D:REFER 33-01 |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06077 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
2 | ||
| 90105-06077 |
KUN16,25..5F..(IDN,MA,TH);KUN35..DCB..5F..SR..(PHL,SA,TH);KUN35..(DCB,SMT)..DLX..(GEN,PHL,TH);KUN15,TGN36..(DCB,SCB,SMT,THDCB)..5F..(HDCR,HTWC);GGN15,25,KUN26,TGN11,16,26..5F..(CNG,HTWC,HTWCF,IART) TYPE D:REFER 33-01 |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06077 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
2 | ||
| 90105-06077 |
KUN16,25..5F..(IDN,MA,TH);KUN35..DCB..5F..SR..(PHL,SA,TH);KUN35..(DCB,SMT)..DLX..(GEN,PHL,TH);KUN15,TGN36..(DCB,SCB,SMT,THDCB)..5F..(HDCR,HTWC);GGN15,25,KUN26,TGN11,16,26..5F..(CNG,HTWC,HTWCF,IART) TYPE D:REFER 33-01 |
2 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-35040 |
KUN16..5F..TH;KUN26..5F..IART;GGN15,25,KUN25..5F..(ARL,IDN,MA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33213-35040 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33230-35011 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33230-35011 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-0K040 |
KUN16..5F..TH;KUN26..5F..IART;GGN15,25,KUN25..5F..(ARL,IDN,MA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33221-0K030 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33228 - BRACKET, REVERSE SHIFT ARM | ||||
| 33228-0K040 |
KUN16..5F..TH;KUN26..5F..IART;GGN15,25,KUN25..5F..(ARL,IDN,MA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33228-0K030 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-0K040 |
GGN15..5F |
1 | ||
| 33244-0K030 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-0K030 |
GGN15,25..5F TYPE B:REFER 33-01 |
1 | ||
| 33242-0K040 |
KUN16..5F..TH;KUN26..5F..IART;GGN15,25,KUN25..5F..(ARL,IDN,MA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-0K030 |
GGN15,25..5F TYPE B:REFER 33-01 |
1 | ||
| 33243-0K040 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
1 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-0K030 |
GGN15,25,TGN11,16,26,36..5F..(ARL,GCC,GEN,TH) TYPE B:REFER 33-01 |
1 | ||
| 33245-0K040 |
KUN16..5F..TH;KUN26..5F..IART;GGN15,25,KUN25..5F..(ARL,IDN,MA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-0K090 |
KUN15..HDCR..(GEN,TH);GGN15,KUN16,3#,TGN11,16,36..5F..(ARL,GCC,GEN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33251-0K070 |
KUN16,36..5F;GGN15,KUN15,35,TGN11,16,36..5F..(CNG,HDCR,HTWC) TYPE D:REFER 33-01 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-T0022 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=11.5,OD=4.8,TYPE B:REFER 33-01 |
1 | ||
| 90250-05029 |
KUN16..5F..TH;GGN15,25,TGN11,16,26..5F;KUN35..DCB..5F..SR..(PHL,SA,TH);KUN35..(DCB,SMT)..DLX..(GEN,PHL,TH);KUN15,TGN36..(DCB,SCB,SMT,THDCB)..5F..(HDCR,HTWC) L=11.5,OD=4.8,TYPE D:REFER 33-01 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-T0022 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=11.5,OD=4.8,TYPE B:REFER 33-01 |
1 | ||
| 90250-05029 |
KUN16..5F..TH;GGN15,25,TGN11,16,26..5F;KUN35..DCB..5F..SR..(PHL,SA,TH);KUN35..(DCB,SMT)..DLX..(GEN,PHL,TH);KUN15,TGN36..(DCB,SCB,SMT,THDCB)..5F..(HDCR,HTWC) L=11.5,OD=4.8,TYPE D:REFER 33-01 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-T0022 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=11.5,OD=4.8,TYPE B:REFER 33-01 |
1 | ||
| 90250-05029 |
KUN16..5F..TH;GGN15,25,TGN11,16,26..5F;KUN35..DCB..5F..SR..(PHL,SA,TH);KUN35..(DCB,SMT)..DLX..(GEN,PHL,TH);KUN15,TGN36..(DCB,SCB,SMT,THDCB)..5F..(HDCR,HTWC) L=11.5,OD=4.8,TYPE D:REFER 33-01 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
KUN16,26,36..5F;TGN36..DCB..5F..HTWCF;GGN15,25,KUN15,25,35,TGN11,16,26,36..5F..(HDCR,HTWC) L=33.8,TYPE D:REFER 33-01 |
3 | ||
| 90501-T0021 |
KUN15..HDCR..TH;GGN15,25,KUN16,2#,3#,TGN11,16,26,36..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=33.8,TYPE B:REFER 33-01 |
3 | ||
| 90501-16199 |
TGN26..SCB..ANCOM;KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=35.09,TYPE D:REFER 33-01 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
KUN16,26,36..5F;TGN36..DCB..5F..HTWCF;GGN15,25,KUN15,25,35,TGN11,16,26,36..5F..(HDCR,HTWC) L=33.8,TYPE D:REFER 33-01 |
3 | ||
| 90501-T0021 |
KUN15..HDCR..TH;GGN15,25,KUN16,2#,3#,TGN11,16,26,36..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=33.8,TYPE B:REFER 33-01 |
3 | ||
| 90501-16199 |
TGN26..SCB..ANCOM;KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=35.09,TYPE D:REFER 33-01 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
KUN16,26,36..5F;TGN36..DCB..5F..HTWCF;GGN15,25,KUN15,25,35,TGN11,16,26,36..5F..(HDCR,HTWC) L=33.8,TYPE D:REFER 33-01 |
3 | ||
| 90501-T0021 |
KUN15..HDCR..TH;GGN15,25,KUN16,2#,3#,TGN11,16,26,36..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=33.8,TYPE B:REFER 33-01 |
3 | ||
| 90501-16199 |
TGN26..SCB..ANCOM;KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=35.09,TYPE D:REFER 33-01 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
KUN16,26,36..5F;TGN36..DCB..5F..HTWCF;GGN15,25,KUN15,25,35,TGN11,16,26,36..5F..(HDCR,HTWC) L=33.8,TYPE D:REFER 33-01 |
3 | ||
| 90501-T0021 |
KUN15..HDCR..TH;GGN15,25,KUN16,2#,3#,TGN11,16,26,36..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=33.8,TYPE B:REFER 33-01 |
3 | ||
| 90501-16199 |
TGN26..SCB..ANCOM;KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=35.09,TYPE D:REFER 33-01 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:SEE 33-01,(J) |
3 | ||
| 90360-10003 |
KUN35..SMT..DLX;KUN35..(DCB,SCB,THDCB,XTR)..5F;KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:SEE 33-01,(J) |
3 | ||
| 90360-10003 |
KUN35..SMT..DLX;KUN35..(DCB,SCB,THDCB,XTR)..5F;KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:SEE 33-01,(J) |
3 | ||
| 90360-10003 |
KUN35..SMT..DLX;KUN35..(DCB,SCB,THDCB,XTR)..5F;KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:SEE 33-01,(J) |
3 | ||
| 90360-10003 |
KUN35..SMT..DLX;KUN35..(DCB,SCB,THDCB,XTR)..5F;KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
3 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-35130 |
KUN15..HDCR..(GEN,TH);GGN15,KUN16,3#,TGN11,16,36..5F..(ARL,GCC,GEN,PHL,TH) T/P B:SEE 33-01,NO.2 |
1 | ||
| 33280-35110 |
KUN15..HDCR..(GEN,TH);GGN15,KUN16,3#,TGN11,16,36..5F..(ARL,GCC,GEN,PHL,TH) T/P B:SEE 33-01,NO.1 |
1 | ||
| 33280-35110 |
KUN16,36..5F;GGN15,KUN15,35,TGN11,16,36..5F..(CNG,HDCR,HTWC) T/P D:SEE 33-01,NO.1 |
1 | ||
| 33280-35130 |
KUN16,36..5F;GGN15,KUN15,35,TGN11,16,36..5F..(CNG,HDCR,HTWC) T/P D:SEE 33-01,NO.2 |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-35130 |
KUN15..HDCR..(GEN,TH);GGN15,KUN16,3#,TGN11,16,36..5F..(ARL,GCC,GEN,PHL,TH) T/P B:SEE 33-01,NO.2 |
1 | ||
| 33280-35110 |
KUN15..HDCR..(GEN,TH);GGN15,KUN16,3#,TGN11,16,36..5F..(ARL,GCC,GEN,PHL,TH) T/P B:SEE 33-01,NO.1 |
1 | ||
| 33280-35110 |
KUN16,36..5F;GGN15,KUN15,35,TGN11,16,36..5F..(CNG,HDCR,HTWC) T/P D:SEE 33-01,NO.1 |
1 | ||
| 33280-35130 |
KUN16,36..5F;GGN15,KUN15,35,TGN11,16,36..5F..(CNG,HDCR,HTWC) T/P D:SEE 33-01,NO.2 |
1 | ||
| 33283F - PIN, REVERSE RESTRICT | ||||
| 33280-35100 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33280-35100 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05001 |
KUN15..HDCR..(GEN,TH);GGN15,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:SEE 33-01,(J) |
1 | ||
| 90254-05001 |
KUN15..HDCR..SA;TGN36..5F..HTWC;KUN15,TGN15..GCC,GEN,PHL,TH;GGN15,25,KUN10,16,2#,3#,TGN10,11,16,26..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-0K080 |
KUN15..HDCR..(GEN,TH);GGN15,KUN16,3#,TGN11,16,36..5F..(ARL,GCC,GEN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33521-0K110 |
KUN16,36..5F;GGN15,KUN15,35,TGN11,16,36..5F..(CNG,HDCR,HTWC) TYPE D:REFER 33-01 |
1 | ||
| 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 90109-08305 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,3#,TGN11,16,26,36..5F..(ARL,GCC,GEN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90109-08305 |
KUN16,36,TGN36..5F..(DCR,HTWC);GGN15,25,KUN15,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
1 | ||
| Common parts | ||||
| 91611-60850 | ||||
| Linked diagrams | ||||
| 3303 | ||||
(1107- )GGN15,25..5F
R150,R150F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

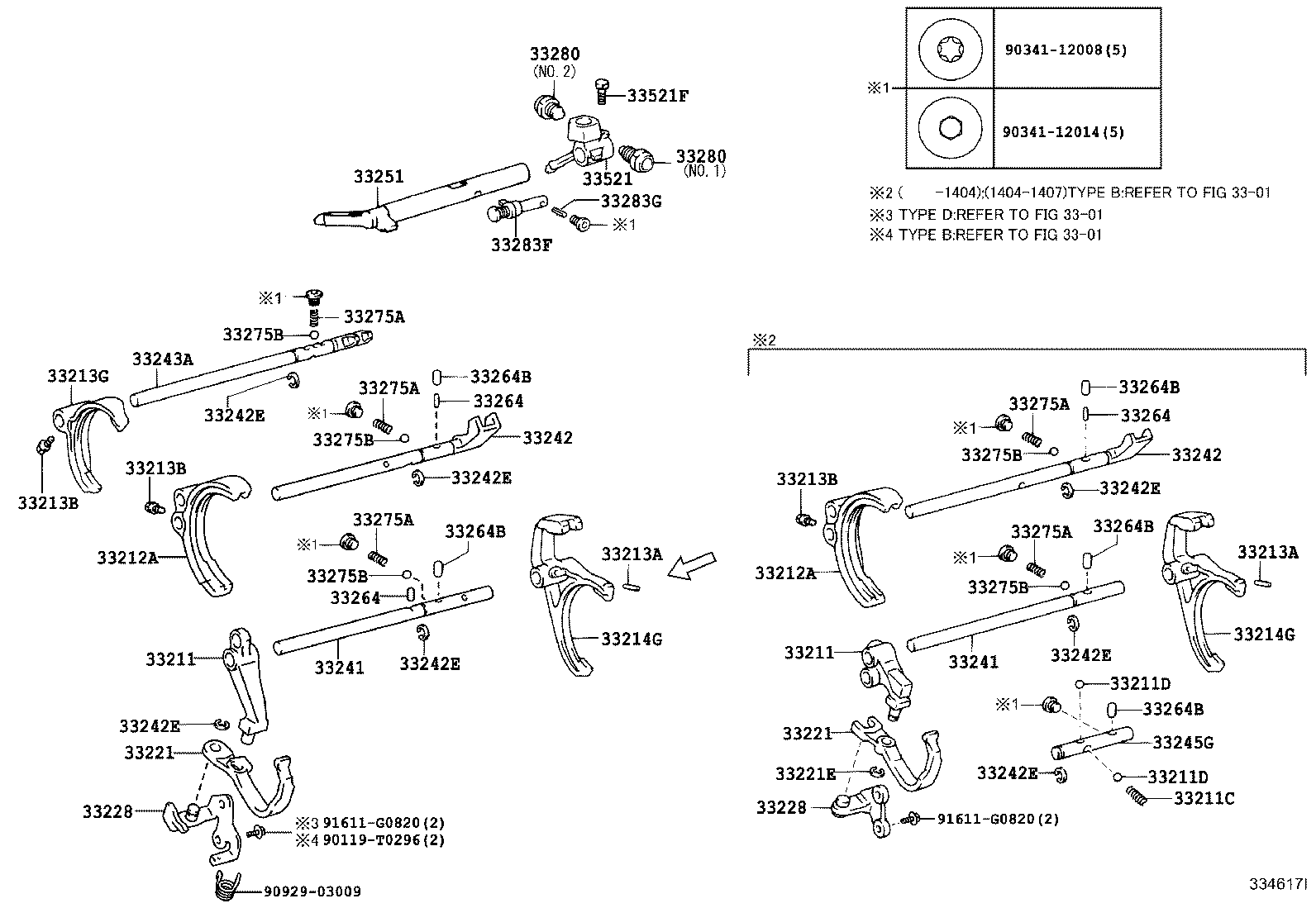

| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-0K040 |
KUN16..5F..TH;KUN26..5F..IART;GGN15,25,KUN25..5F..(ARL,IDN,MA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33211-0K030 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-0K040 |
KUN16..5F..TH;KUN26..5F..IART;GGN15,25,KUN25..5F..(ARL,IDN,MA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33211-0K030 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33211C - SPRING, COMPRESSION(FOR REVERSE SHIFT FORK RETURN) | ||||
| 90501-T0022 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90501-12166 |
KUN16..5F..TH;GGN15,25,KUN10,15,TGN10,15..5F..(DCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 33211D - BALL(FOR REVERSE SHIFT FORK) | ||||
| 90360-10003 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) OD=9.52,STEEL,TYPE B:SEE 33-01,(J) |
2 | ||
| 90360-10003 |
KUN16..5F..TH;KUN26..5F..IART;GGN15,25,KUN25..5F..(ARL,IDN,MA,TH) OD=9.52,STEEL,TYPE D:REFER 33-01 |
2 | ||
| 33211D - BALL(FOR REVERSE SHIFT FORK) | ||||
| 90360-10003 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) OD=9.52,STEEL,TYPE B:SEE 33-01,(J) |
2 | ||
| 90360-10003 |
KUN16..5F..TH;KUN26..5F..IART;GGN15,25,KUN25..5F..(ARL,IDN,MA,TH) OD=9.52,STEEL,TYPE D:REFER 33-01 |
2 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-0K020 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33212-0K030 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-0K020 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33212-0K030 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,3#,TGN11,16,26,36..5F..(ARL,GCC,GEN,PHL,TH) TYPE B:SEE 33-01,(J) |
1 | ||
| 90254-T0004 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,3#,TGN11,16,26,36..5F..(ARL,GCC,GEN,PHL,TH) TYPE B:SEE 33-01,(L) |
1 | ||
| 90254-05016 |
KUN16,36,TGN36..5F..(DCR,HTWC);GGN15,25,KUN15,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,3#,TGN11,16,26,36..5F..(ARL,GCC,GEN,PHL,TH) TYPE B:SEE 33-01,(J) |
1 | ||
| 90254-T0004 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,3#,TGN11,16,26,36..5F..(ARL,GCC,GEN,PHL,TH) TYPE B:SEE 33-01,(L) |
1 | ||
| 90254-05016 |
KUN16,36,TGN36..5F..(DCR,HTWC);GGN15,25,KUN15,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06077 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
2 | ||
| 90105-06077 |
KUN16,25..5F..(IDN,MA,TH);KUN35..DCB..5F..SR..(PHL,SA,TH);KUN35..(DCB,SMT)..DLX..(GEN,PHL,TH);KUN15,TGN36..(DCB,SCB,SMT,THDCB)..5F..(HDCR,HTWC);GGN15,25,KUN26,TGN11,16,26..5F..(CNG,HTWC,HTWCF,IART) TYPE D:REFER 33-01 |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06077 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
2 | ||
| 90105-06077 |
KUN16,25..5F..(IDN,MA,TH);KUN35..DCB..5F..SR..(PHL,SA,TH);KUN35..(DCB,SMT)..DLX..(GEN,PHL,TH);KUN15,TGN36..(DCB,SCB,SMT,THDCB)..5F..(HDCR,HTWC);GGN15,25,KUN26,TGN11,16,26..5F..(CNG,HTWC,HTWCF,IART) TYPE D:REFER 33-01 |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06077 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
2 | ||
| 90105-06077 |
KUN16,25..5F..(IDN,MA,TH);KUN35..DCB..5F..SR..(PHL,SA,TH);KUN35..(DCB,SMT)..DLX..(GEN,PHL,TH);KUN15,TGN36..(DCB,SCB,SMT,THDCB)..5F..(HDCR,HTWC);GGN15,25,KUN26,TGN11,16,26..5F..(CNG,HTWC,HTWCF,IART) TYPE D:REFER 33-01 |
2 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-35040 |
KUN16..5F..TH;KUN26..5F..IART;GGN15,25,KUN25..5F..(ARL,IDN,MA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33213-35040 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33230-35011 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33230-35011 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33230-35011 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33230-35011 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-0K040 |
KUN16..5F..TH;KUN26..5F..IART;GGN15,25,KUN25..5F..(ARL,IDN,MA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33221-0K030 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-0K040 |
KUN16..5F..TH;KUN26..5F..IART;GGN15,25,KUN25..5F..(ARL,IDN,MA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33221-0K030 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33221E - RING(FOR REVERSE SHIFT ARM END SHAFT) | ||||
| 96160-01000 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 96160-01000 |
KUN16..5F..TH;KUN26..5F..IART;GGN15,25,KUN25..5F..(ARL,IDN,MA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33228 - BRACKET, REVERSE SHIFT ARM | ||||
| 33228-0K040 |
KUN16..5F..TH;KUN26..5F..IART;GGN15,25,KUN25..5F..(ARL,IDN,MA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33228-0K030 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33228 - BRACKET, REVERSE SHIFT ARM | ||||
| 33228-0K040 |
KUN16..5F..TH;KUN26..5F..IART;GGN15,25,KUN25..5F..(ARL,IDN,MA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33228-0K030 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-0K040 |
GGN15..5F |
1 | ||
| 33244-0K030 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-0K040 |
GGN15..5F |
1 | ||
| 33244-0K030 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-0K030 |
GGN15,25..5F TYPE B:REFER 33-01 |
1 | ||
| 33242-0K040 |
KUN16..5F..TH;KUN26..5F..IART;GGN15,25,KUN25..5F..(ARL,IDN,MA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-0K030 |
GGN15,25..5F TYPE B:REFER 33-01 |
1 | ||
| 33242-0K040 |
KUN16..5F..TH;KUN26..5F..IART;GGN15,25,KUN25..5F..(ARL,IDN,MA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
4 | ||
| 90520-12003 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
4 | ||
| 90520-12003 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
4 | ||
| 90520-12003 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
4 | ||
| 90520-12003 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
4 | ||
| 90520-12003 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
4 | ||
| 90520-12003 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
4 | ||
| 90520-12003 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
4 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-0K030 |
GGN15,25..5F TYPE B:REFER 33-01 |
1 | ||
| 33243-0K040 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
1 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-0K030 |
GGN15,25,TGN11,16,26,36..5F..(ARL,GCC,GEN,TH) TYPE B:REFER 33-01 |
1 | ||
| 33245-0K040 |
KUN16..5F..TH;KUN26..5F..IART;GGN15,25,KUN25..5F..(ARL,IDN,MA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-0K090 |
KUN15..HDCR..(GEN,TH);GGN15,KUN16,3#,TGN11,16,36..5F..(ARL,GCC,GEN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33251-0K070 |
KUN16,36..5F;GGN15,KUN15,35,TGN11,16,36..5F..(CNG,HDCR,HTWC) TYPE D:REFER 33-01 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-T0022 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=11.5,OD=4.8,TYPE B:REFER 33-01 |
1 | ||
| 90250-05029 |
KUN16..5F..TH;GGN15,25,TGN11,16,26..5F;KUN35..DCB..5F..SR..(PHL,SA,TH);KUN35..(DCB,SMT)..DLX..(GEN,PHL,TH);KUN15,TGN36..(DCB,SCB,SMT,THDCB)..5F..(HDCR,HTWC) L=11.5,OD=4.8,TYPE D:REFER 33-01 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-T0022 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=11.5,OD=4.8,TYPE B:REFER 33-01 |
1 | ||
| 90250-05029 |
KUN16..5F..TH;GGN15,25,TGN11,16,26..5F;KUN35..DCB..5F..SR..(PHL,SA,TH);KUN35..(DCB,SMT)..DLX..(GEN,PHL,TH);KUN15,TGN36..(DCB,SCB,SMT,THDCB)..5F..(HDCR,HTWC) L=11.5,OD=4.8,TYPE D:REFER 33-01 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-T0022 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=11.5,OD=4.8,TYPE B:REFER 33-01 |
1 | ||
| 90250-05029 |
KUN16..5F..TH;GGN15,25,TGN11,16,26..5F;KUN35..DCB..5F..SR..(PHL,SA,TH);KUN35..(DCB,SMT)..DLX..(GEN,PHL,TH);KUN15,TGN36..(DCB,SCB,SMT,THDCB)..5F..(HDCR,HTWC) L=11.5,OD=4.8,TYPE D:REFER 33-01 |
1 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-T0003 |
KUN35..SMT..5F..SR;KUN15,35..LHD..(DCB,THDCB,XTR)..HDCR..GEN;GGN15,25,KUN16,2#,36,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=13.6,PIN,TYPE B:REFER 33-01 |
3 | ||
| 90361-10003 |
KUN16,25..5F..(IDN,MA,TH);KUN35..DCB..5F..SR..(PHL,SA,TH);KUN35..(DCB,SMT)..DLX..(GEN,PHL,TH);KUN15,TGN36..(DCB,SCB,SMT,THDCB)..5F..(HDCR,HTWC);GGN15,25,KUN26,TGN11,16,26..5F..(CNG,HTWC,HTWCF,IART) L=13.6,OD=9.5,TYPE D:REFER 33-01 |
3 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-T0003 |
KUN35..SMT..5F..SR;KUN15,35..LHD..(DCB,THDCB,XTR)..HDCR..GEN;GGN15,25,KUN16,2#,36,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=13.6,PIN,TYPE B:REFER 33-01 |
3 | ||
| 90361-10003 |
KUN16,25..5F..(IDN,MA,TH);KUN35..DCB..5F..SR..(PHL,SA,TH);KUN35..(DCB,SMT)..DLX..(GEN,PHL,TH);KUN15,TGN36..(DCB,SCB,SMT,THDCB)..5F..(HDCR,HTWC);GGN15,25,KUN26,TGN11,16,26..5F..(CNG,HTWC,HTWCF,IART) L=13.6,OD=9.5,TYPE D:REFER 33-01 |
3 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-T0003 |
KUN35..SMT..5F..SR;KUN15,35..LHD..(DCB,THDCB,XTR)..HDCR..GEN;GGN15,25,KUN16,2#,36,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=13.6,PIN,TYPE B:REFER 33-01 |
3 | ||
| 90361-10003 |
KUN16,25..5F..(IDN,MA,TH);KUN35..DCB..5F..SR..(PHL,SA,TH);KUN35..(DCB,SMT)..DLX..(GEN,PHL,TH);KUN15,TGN36..(DCB,SCB,SMT,THDCB)..5F..(HDCR,HTWC);GGN15,25,KUN26,TGN11,16,26..5F..(CNG,HTWC,HTWCF,IART) L=13.6,OD=9.5,TYPE D:REFER 33-01 |
3 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-T0003 |
KUN35..SMT..5F..SR;KUN15,35..LHD..(DCB,THDCB,XTR)..HDCR..GEN;GGN15,25,KUN16,2#,36,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=13.6,PIN,TYPE B:REFER 33-01 |
3 | ||
| 90361-10003 |
KUN16,25..5F..(IDN,MA,TH);KUN35..DCB..5F..SR..(PHL,SA,TH);KUN35..(DCB,SMT)..DLX..(GEN,PHL,TH);KUN15,TGN36..(DCB,SCB,SMT,THDCB)..5F..(HDCR,HTWC);GGN15,25,KUN26,TGN11,16,26..5F..(CNG,HTWC,HTWCF,IART) L=13.6,OD=9.5,TYPE D:REFER 33-01 |
3 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-T0003 |
KUN35..SMT..5F..SR;KUN15,35..LHD..(DCB,THDCB,XTR)..HDCR..GEN;GGN15,25,KUN16,2#,36,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=13.6,PIN,TYPE B:REFER 33-01 |
3 | ||
| 90361-10003 |
KUN16,25..5F..(IDN,MA,TH);KUN35..DCB..5F..SR..(PHL,SA,TH);KUN35..(DCB,SMT)..DLX..(GEN,PHL,TH);KUN15,TGN36..(DCB,SCB,SMT,THDCB)..5F..(HDCR,HTWC);GGN15,25,KUN26,TGN11,16,26..5F..(CNG,HTWC,HTWCF,IART) L=13.6,OD=9.5,TYPE D:REFER 33-01 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
KUN16,26,36..5F;TGN36..DCB..5F..HTWCF;GGN15,25,KUN15,25,35,TGN11,16,26,36..5F..(HDCR,HTWC) L=33.8,TYPE D:REFER 33-01 |
3 | ||
| 90501-T0021 |
KUN15..HDCR..TH;GGN15,25,KUN16,2#,3#,TGN11,16,26,36..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=33.8,TYPE B:REFER 33-01 |
3 | ||
| 90501-16199 |
TGN26..SCB..ANCOM;KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=35.09,TYPE D:REFER 33-01 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
KUN16,26,36..5F;TGN36..DCB..5F..HTWCF;GGN15,25,KUN15,25,35,TGN11,16,26,36..5F..(HDCR,HTWC) L=33.8,TYPE D:REFER 33-01 |
3 | ||
| 90501-T0021 |
KUN15..HDCR..TH;GGN15,25,KUN16,2#,3#,TGN11,16,26,36..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=33.8,TYPE B:REFER 33-01 |
3 | ||
| 90501-16199 |
TGN26..SCB..ANCOM;KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=35.09,TYPE D:REFER 33-01 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
KUN16,26,36..5F;TGN36..DCB..5F..HTWCF;GGN15,25,KUN15,25,35,TGN11,16,26,36..5F..(HDCR,HTWC) L=33.8,TYPE D:REFER 33-01 |
3 | ||
| 90501-T0021 |
KUN15..HDCR..TH;GGN15,25,KUN16,2#,3#,TGN11,16,26,36..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=33.8,TYPE B:REFER 33-01 |
3 | ||
| 90501-16199 |
TGN26..SCB..ANCOM;KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=35.09,TYPE D:REFER 33-01 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
KUN16,26,36..5F;TGN36..DCB..5F..HTWCF;GGN15,25,KUN15,25,35,TGN11,16,26,36..5F..(HDCR,HTWC) L=33.8,TYPE D:REFER 33-01 |
3 | ||
| 90501-T0021 |
KUN15..HDCR..TH;GGN15,25,KUN16,2#,3#,TGN11,16,26,36..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=33.8,TYPE B:REFER 33-01 |
3 | ||
| 90501-16199 |
TGN26..SCB..ANCOM;KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=35.09,TYPE D:REFER 33-01 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
KUN16,26,36..5F;TGN36..DCB..5F..HTWCF;GGN15,25,KUN15,25,35,TGN11,16,26,36..5F..(HDCR,HTWC) L=33.8,TYPE D:REFER 33-01 |
3 | ||
| 90501-T0021 |
KUN15..HDCR..TH;GGN15,25,KUN16,2#,3#,TGN11,16,26,36..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=33.8,TYPE B:REFER 33-01 |
3 | ||
| 90501-16199 |
TGN26..SCB..ANCOM;KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=35.09,TYPE D:REFER 33-01 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:SEE 33-01,(J) |
3 | ||
| 90360-10003 |
KUN35..SMT..DLX;KUN35..(DCB,SCB,THDCB,XTR)..5F;KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:SEE 33-01,(J) |
3 | ||
| 90360-10003 |
KUN35..SMT..DLX;KUN35..(DCB,SCB,THDCB,XTR)..5F;KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:SEE 33-01,(J) |
3 | ||
| 90360-10003 |
KUN35..SMT..DLX;KUN35..(DCB,SCB,THDCB,XTR)..5F;KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:SEE 33-01,(J) |
3 | ||
| 90360-10003 |
KUN35..SMT..DLX;KUN35..(DCB,SCB,THDCB,XTR)..5F;KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:SEE 33-01,(J) |
3 | ||
| 90360-10003 |
KUN35..SMT..DLX;KUN35..(DCB,SCB,THDCB,XTR)..5F;KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
3 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-35130 |
KUN15..HDCR..(GEN,TH);GGN15,KUN16,3#,TGN11,16,36..5F..(ARL,GCC,GEN,PHL,TH) T/P B:SEE 33-01,NO.2 |
1 | ||
| 33280-35110 |
KUN15..HDCR..(GEN,TH);GGN15,KUN16,3#,TGN11,16,36..5F..(ARL,GCC,GEN,PHL,TH) T/P B:SEE 33-01,NO.1 |
1 | ||
| 33280-35110 |
KUN16,36..5F;GGN15,KUN15,35,TGN11,16,36..5F..(CNG,HDCR,HTWC) T/P D:SEE 33-01,NO.1 |
1 | ||
| 33280-35130 |
KUN16,36..5F;GGN15,KUN15,35,TGN11,16,36..5F..(CNG,HDCR,HTWC) T/P D:SEE 33-01,NO.2 |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-35130 |
KUN15..HDCR..(GEN,TH);GGN15,KUN16,3#,TGN11,16,36..5F..(ARL,GCC,GEN,PHL,TH) T/P B:SEE 33-01,NO.2 |
1 | ||
| 33280-35110 |
KUN15..HDCR..(GEN,TH);GGN15,KUN16,3#,TGN11,16,36..5F..(ARL,GCC,GEN,PHL,TH) T/P B:SEE 33-01,NO.1 |
1 | ||
| 33280-35110 |
KUN16,36..5F;GGN15,KUN15,35,TGN11,16,36..5F..(CNG,HDCR,HTWC) T/P D:SEE 33-01,NO.1 |
1 | ||
| 33280-35130 |
KUN16,36..5F;GGN15,KUN15,35,TGN11,16,36..5F..(CNG,HDCR,HTWC) T/P D:SEE 33-01,NO.2 |
1 | ||
| 33283F - PIN, REVERSE RESTRICT | ||||
| 33280-35100 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33280-35100 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05001 |
KUN15..HDCR..(GEN,TH);GGN15,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:SEE 33-01,(J) |
1 | ||
| 90254-05001 |
KUN15..HDCR..SA;TGN36..5F..HTWC;KUN15,TGN15..GCC,GEN,PHL,TH;GGN15,25,KUN10,16,2#,3#,TGN10,11,16,26..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-0K080 |
KUN15..HDCR..(GEN,TH);GGN15,KUN16,3#,TGN11,16,36..5F..(ARL,GCC,GEN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33521-0K110 |
KUN16,36..5F;GGN15,KUN15,35,TGN11,16,36..5F..(CNG,HDCR,HTWC) TYPE D:REFER 33-01 |
1 | ||
| 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 90109-08305 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,3#,TGN11,16,26,36..5F..(ARL,GCC,GEN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90109-08305 |
KUN16,36,TGN36..5F..(DCR,HTWC);GGN15,25,KUN15,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
1 | ||
| Common parts | ||||
| 90119-T0296 | ||||
| 90341-12008 | ||||
| 90341-12014 | ||||
| 90929-03009 | ||||
| 91611-G0820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
