GGN15R-TRMDKQ (2011)

Toyota Hilux

Production Jul 2011 - Aug 2013
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

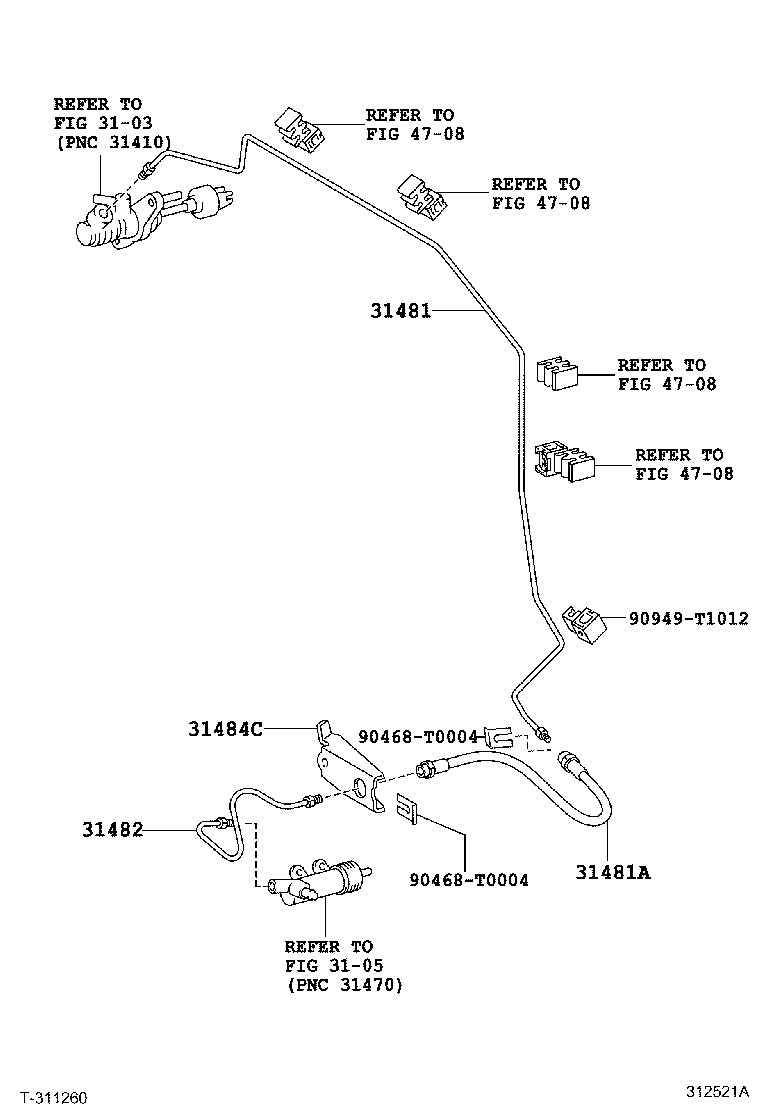

ILLUST NO. 2 OF 2(1107- )TGN10,15,16,36..RHD..5F

Click highlighted areas on diagram

diagram 3103 3105 31481 31481A 31482 31484C 4708 4708 4708 4708 90468T0004 90468T0004 90949T1012
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-0K050

GGN15,25..5F

 1
31481-0K010

TGN10,15,16,36..RHD..5F

 1
31481A - HOSE, CLUTCH, NO.1
90947-T2010

GGN15,25..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-0K060

GGN15,25..5F

 1
31482-0K010

TGN10,15

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-0K040

GGN15,25..5F

 1
Common parts
90468-T0004
90949-T1012
Linked diagrams
3103
3105
4708

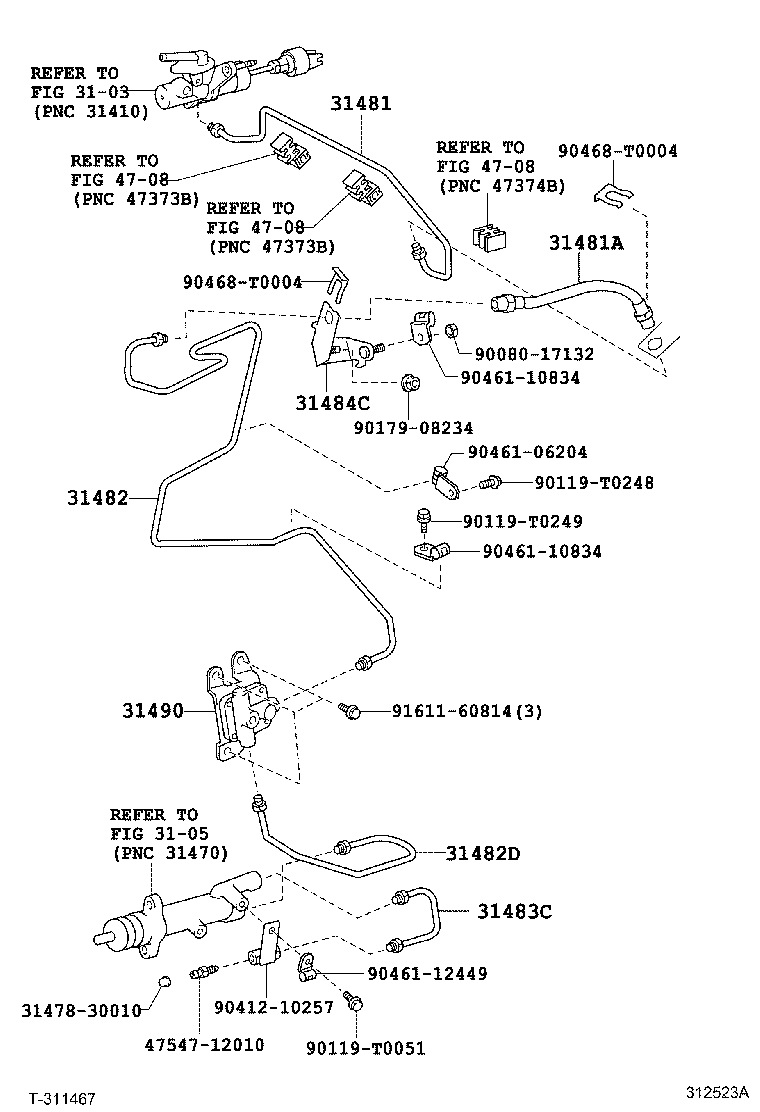

ILLUST NO. 2 OF 2(1107- )GGN15,25..5F

Click highlighted areas on diagram

diagram 3103 3105 3147830010 31481 31481A 31482 31482D 31483C 31484C 31490 4708 4708 4708 4754712010 9008017132 90119T0051 90119T0248 90119T0249 9017908234 9041210257 9046106204 9046110834 9046110834 9046112449 90468T0004 90468T0004 9161160814
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-0K050

GGN15,25..5F

 1
31481-0K010

TGN10,15,16,36..RHD..5F

 1
31481A - HOSE, CLUTCH, NO.1
90947-T2010

GGN15,25..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-0K060

GGN15,25..5F

 1
31482-0K010

TGN10,15

 1
31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR
31482-0K110

GGN15,25..5F

 1
31483C - TUBE, CLUTCH ACTUATOR TO RELEASE CYLINDER
31483-0K030

GGN15,25..5F

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-0K040

GGN15,25..5F

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-0K020

GGN15,25..5F

 1
Common parts
31478-30010
47547-12010
90080-17132
90119-T0051
90119-T0248
90119-T0249
90179-08234
90412-10257
90461-06204
90461-10834
90461-12449
90468-T0004
91611-60814
Linked diagrams
3103
3105
4708
