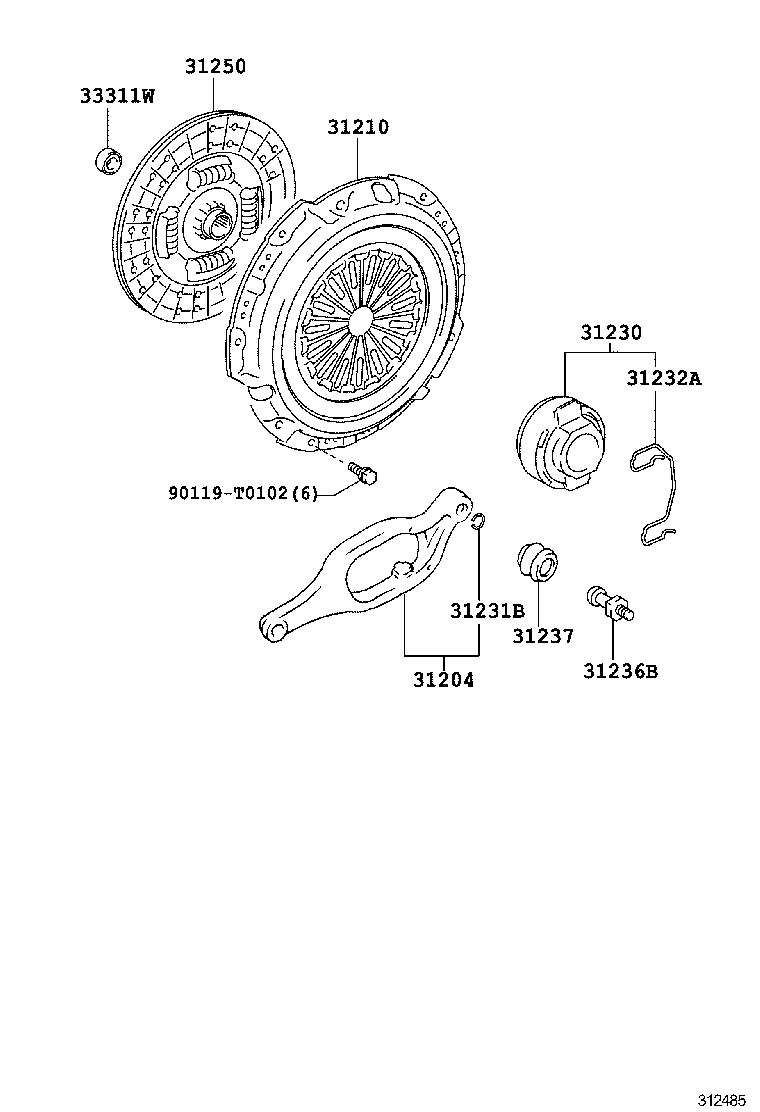

Toyota Hilux GGN15 CLUTCH & RELEASE FORK

Part #	Description	Period	Qty
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-0K061	GGN15,25..5F TYPE D:REFER 33-01,TYPE B:REFER 33-01	07/2011 - 11/2013	1
31204-20071	TGN10,15 TYPE A:REFER 33-01	07/2011 - 12/2015	1
31210 - COVER ASSY, CLUTCH
31210-0K200	GGN15,25..5F	07/2011 - 11/2013	1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-71040	GGN15,25..5F TYPE B:REFER 33-01,TYPE D:REFER 33-01	07/2011 - 11/2013	1
31230-35091	TGN10,15 TYPE A:REFER 33-01	07/2011 - 12/2015	1
31231B - RING, SNAP(FOR CLUTCH RELEASE HUB)
90521-22003	GGN15,25..5F TYPE B:REFER 33-01,TYPE D:REFER 33-01	07/2011 - 11/2013	1
31232A - CLIP, RELEASE BEARING HUB
31232-71040	GGN15,25..5F TYPE B:REFER 33-01,TYPE D:REFER 33-01	07/2011 - 11/2013	1
31232-35040	TGN10,15 TYPE B:REFER ILLUST.	07/2011 - 12/2015	1
31232-35020	LAN15,25,35,TGN10,15 TYPE A:REFER ILLUST.	07/2011 - 12/2015	1
31236B - SUPPORT, RELEASE FORK
31236-71011	KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01	07/2011 - 04/2015	1
31236-71011	KUN15..HDCR..SA;KUN15..GCC,GEN,PHL,PKN,TH;GGN15,25,KUN10,16,2#,3#..5F TYPE D:REFER 33-01	07/2011 - 04/2015	1
31236-26010	LAN15,25,35,TGN10,15 TYPE A:REFER 33-01	07/2011 - 12/2015	1
31237 - BOOT, CLUTCH RELEASE FORK SUPPORT
31237-0K010	KUN15..HDCR..SA;KUN15..GCC,GEN,PHL,PKN,TH;GGN15,25,KUN10,16,2#,3#..5F TYPE D:REFER 33-01	07/2011 - 04/2015	1
31237-60010	GGN15,25..5F TYPE B:REFER 33-01	07/2011 - 11/2013	1
31250 - DISC ASSY, CLUTCH
31250-0K231	GGN15,25..5F	07/2011 - 11/2013	1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002	GGN15,25,LAN15,25,35..5F	07/2011 - 12/2015	1
Common parts
90119-T0102

GGN15R-TRMDKQ (2011)

(1107- )GGN15,25..5F
