GGN15R-TRMDKQ (2011)
Toyota Hilux
Production
Jul 2011
-
Aug 2013
Engine
1GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

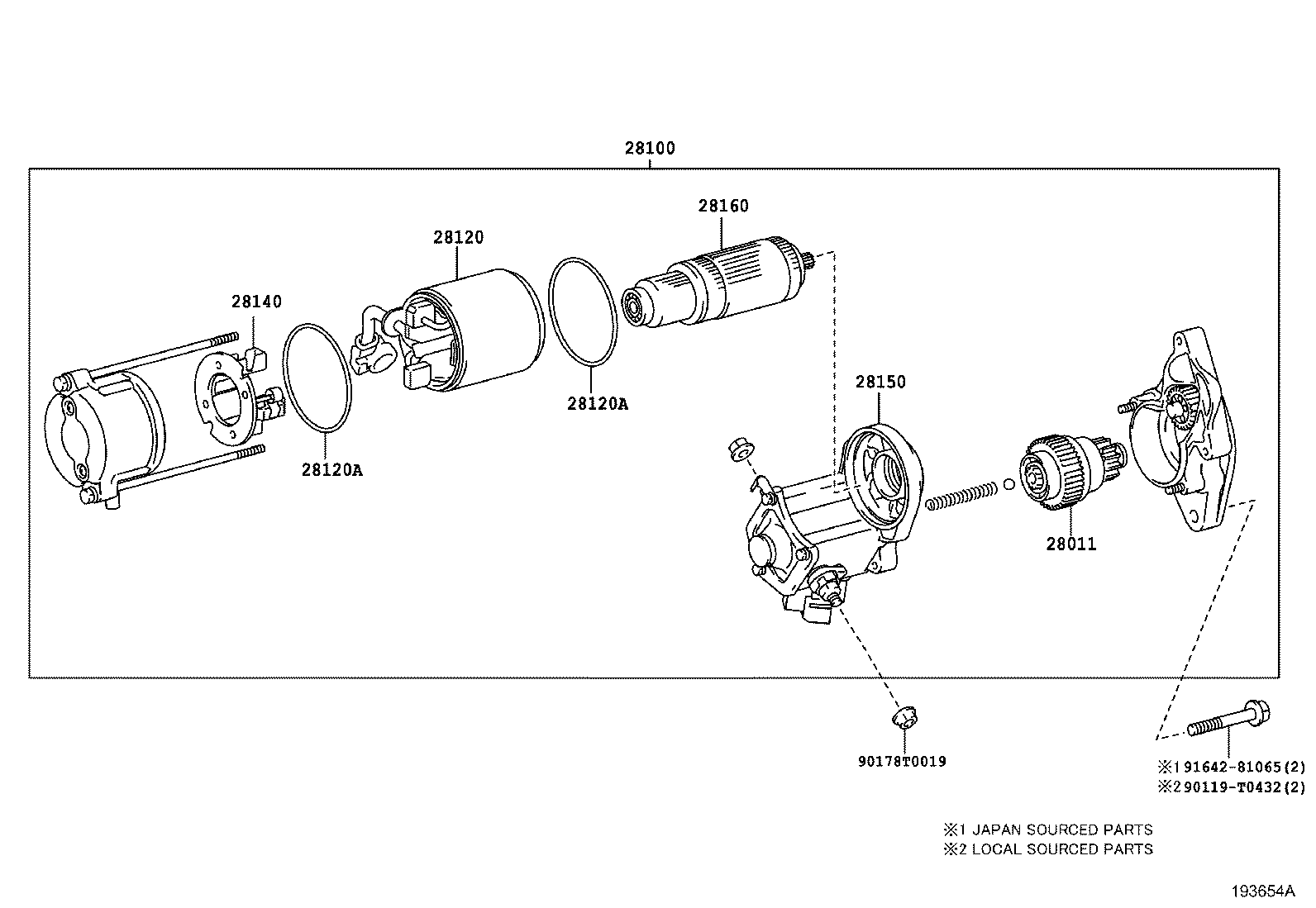

(1107- )1GRFE..GGN15,25..ARL
Click highlighted areas on diagram
12V 1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-66020 |
1GRFE..GGN15,25..ARL |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-31111 |
1GRFE..GGN15,25..ARL 12V 1.4KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-66040 |
2TRFE..TGN16..GCC;1GRFE,2TRFE..GGN15,25,TGN11,26..ARL,GCC |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-35060 |
1GRFE..GGN15,25..ARL |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-31110 |
1GRFE..GGN15,25..ARL |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-74070 |
2TRFE..TGN16..GCC;1GRFE,2TRFE..GGN15,25,TGN11,26..ARL,GCC |
1 | ||
| Common parts | ||||
| 90119-T0432 | ||||
| 91642-81065 | ||||

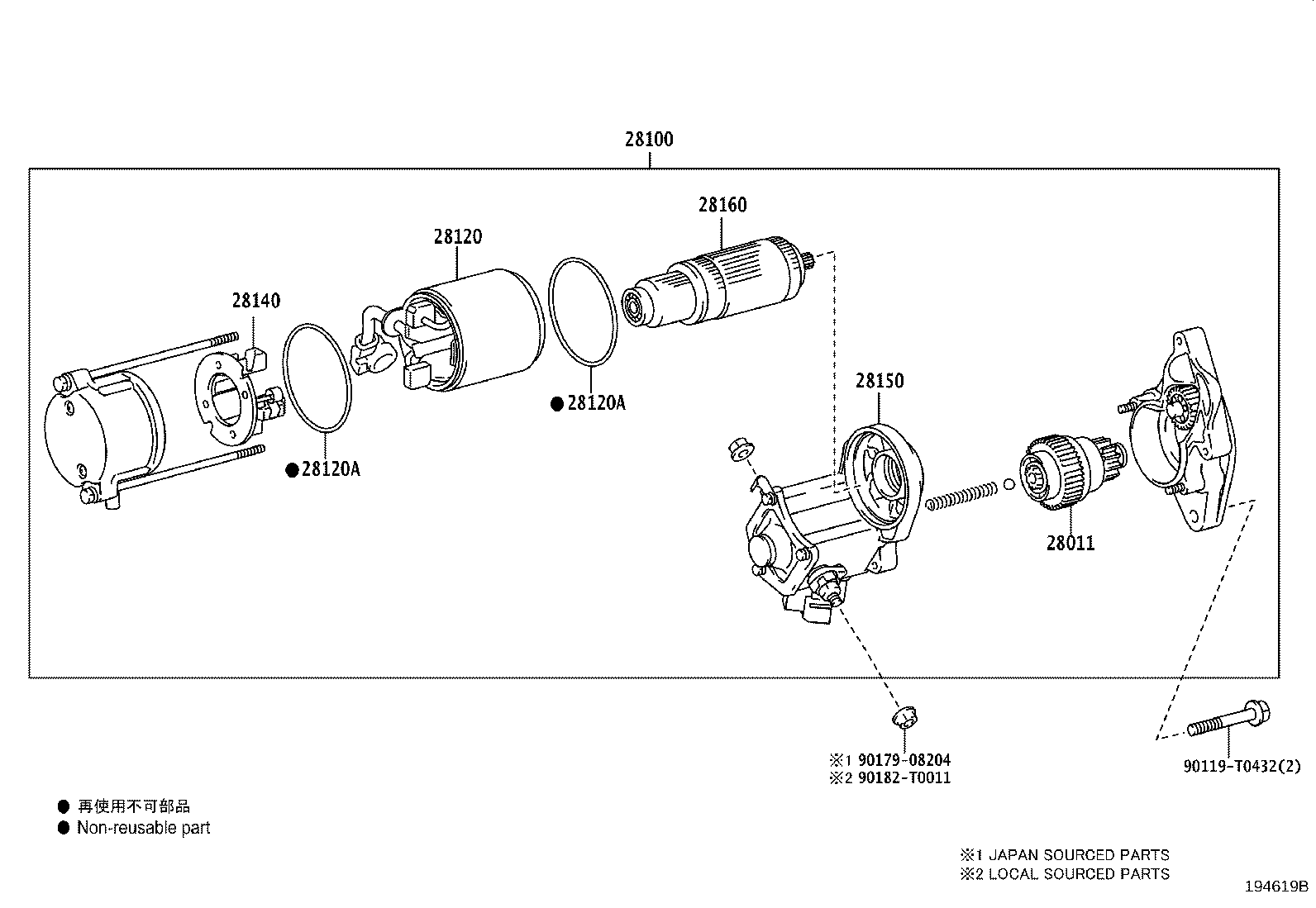

(1505- )1GRFE
Click highlighted areas on diagram
12V 1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0432 | ||||
| 90179-08204 | ||||
| 90182-T0011 | ||||
