GGN15R-TRMDKQ (2011)

Toyota Hilux

Production Jul 2011 - Aug 2013
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )1GRFE..GGN15,25..ARL

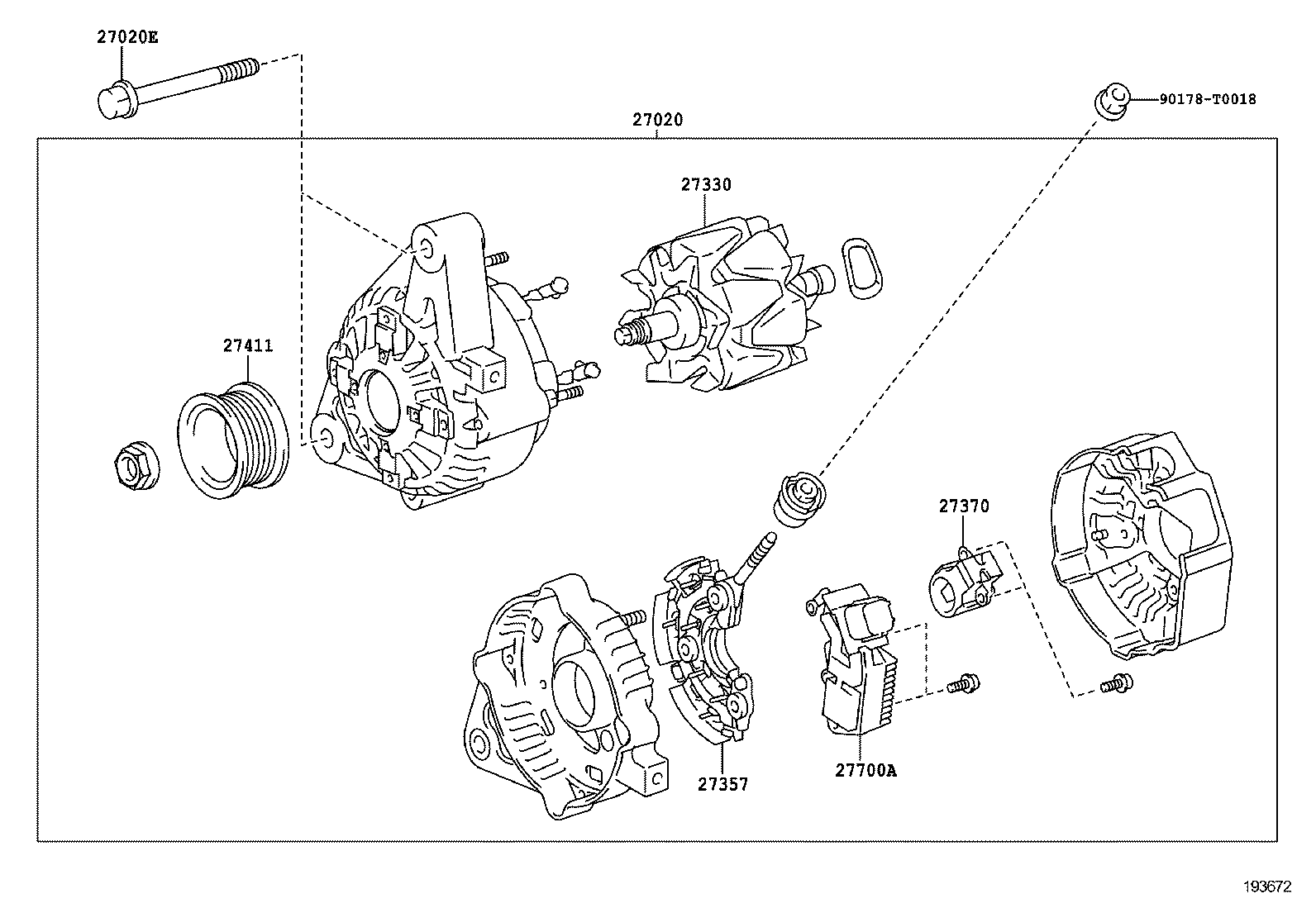

Click highlighted areas on diagram

12V 80A

diagram 27020 27020E 27330 27357 27370 27411 27700A 90178T0018
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-31011

1GRFE..GGN15,25..ARL

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
91672-81065

1GRFE..GGN15,25,35

 2
27330 - ROTOR ASSY, ALTERNATOR
27330-30130

1GRFE..GGN15,25..ARL

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-22200

1GRFE..GGN15,25..ARL

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

5LE..LAN15,25,35;1GRFE..GGN15,25..ARL

 1
27411 - PULLEY, ALTERNATOR
27411-31200

1GRFE..GGN15,25..ARL

 1
27700A - REGULATOR ASSY, GENERATOR
27700-31040

1GRFE..GGN15,25..ARL

 1
Common parts
90178-T0018
