GGN15R-PRASKQ (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )GGN15,35,KUN16,3#..5FC

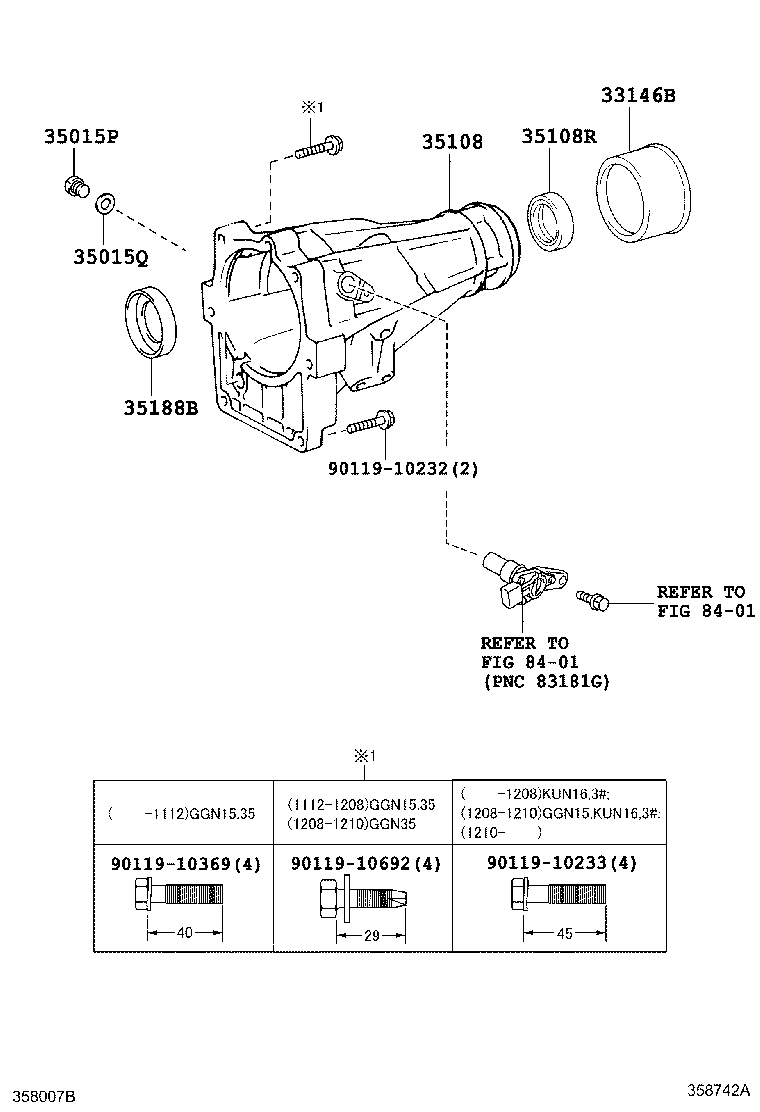

Click highlighted areas on diagram

A750E

diagram 33146B 35015P 35015Q 35108 35108R 35188B 8401 8401 9011910232 9011910233 9011910369 9011910692
Part # Description Qty Price
33146B - DEFLECTOR, EXTENSION HOUSING DUST
33146-30020

GGN15,35,KUN16,3#,TGN16,36..4FC,5FC

 1
35015P - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSMISSION CASE ADAPT
90341-18059

GGN15,35,KUN16,3#..5FC

 1
35015Q - RING, O(FOR TRANSMISSION CASE ADAPTER PLUG)
90301-15004

GGN15,35,KUN16,3#..5FC

 1
35108 - HOUSING SUB-ASSY, EXTENSION (ATM)
35108-71020

GGN15,35,KUN16,3#..5FC

 1
35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING
90311-40034

KUN36..(4FC,5FC)..TH;GGN15,35,KUN16,35..RHD..(4FC,5FC)

 1
35188B - RETAINER, EXTENSION HOUSING BUSH
35188-35010

GGN15,35,KUN16,3#..5FC

 1
Common parts
90119-10232
90119-10233
90119-10369
90119-10692
Linked diagrams
8401
