GGN135R-DNTMKN (2016)

Toyota Hilux

Production Jan 2016 - Jul 2018
Engine 1GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1505- )GGN125,135,GUN125,126,13#,KUN125,126,13#,LAN125,TGN126,127,128,13#

Click highlighted areas on diagram

diagram 04483A 04483B 48046 48046A 48046A 48047 48210A 48210A 48210G 48210G 48306 48516 48516 48516 48516 48517 48517 48517 48517 48530 48530B 48530B 48530C 48530C 48530H 48530H 48530H 48530H 48540 90105T0128 90105T0128 90105T0146 90178T0027 90178T0027 90178T0061 90178T0140 9017914069 90201T0006 90201T0012 90201T0014 90201T0014 9155281225 9155281225
Part # Description Qty Price
04483A - SHACKLE KIT, REAR SPRING, RH
04483-KK010

GUN135..L..MA;GUN125..ADC..6FC;GUN125..TDC..6FC..ARL;TGN136..SDC,TDC,TSC,TXT;GUN125..SDC,SSC,SXT,TSC,TXT;GGN125,135,LAN125..ADC,SDC,SSC,TDC;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,13#,KUN125,126,13#,TGN126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
04483B - SHACKLE KIT, REAR SPRING, LH
04483-KK010

GUN135..L..MA;GUN125..ADC..6FC;GUN125..TDC..6FC..ARL;TGN136..SDC,TDC,TSC,TXT;GUN125..SDC,SSC,SXT,TSC,TXT;GGN125,135,LAN125..ADC,SDC,SSC,TDC;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,13#,KUN125,126,13#,TGN126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-KK010

GUN135..L..MA;GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,135,GUN126,13#,KUN125,126,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-KK010

GUN135..L..MA;GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,135,GUN126,13#,KUN125,126,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-T0014

GUN135..L..MA;GUN125..ADC..6FC;GUN125..TDC..6FC..ARL;TGN136..SDC,TDC,TSC,TXT;GUN125..SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,13#,KUN125,126,13#,TGN126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,122,LAN125,TGN11#,120,121..ADC,PSC,SDC,SSC,TDC,TSC,TXT

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-T0014

GUN135..L..MA;GUN125..ADC..6FC;GUN125..TDC..6FC..ARL;TGN136..SDC,TDC,TSC,TXT;GUN125..SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,13#,KUN125,126,13#,TGN126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,122,LAN125,TGN11#,120,121..ADC,PSC,SDC,SSC,TDC,TSC,TXT

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-T0017

GUN135..L..MA;GUN125..ADC..6FC;GUN125..TDC..6FC..ARL;TGN136..SDC,TDC,TSC,TXT;GUN125..SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,13#,KUN125,126,13#,TGN126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,122,LAN125,TGN11#,120,121..ADC,PSC,SDC,SSC,TDC,TSC,TXT

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-T0017

GUN135..L..MA;GUN125..ADC..6FC;GUN125..TDC..6FC..ARL;TGN136..SDC,TDC,TSC,TXT;GUN125..SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,13#,KUN125,126,13#,TGN126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,122,LAN125,TGN11#,120,121..ADC,PSC,SDC,SSC,TDC,TSC,TXT

 4
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-0K050

GUN135..L..MA;GUN135..6FC..ARL;TGN136..SDC,TDC,TSC,TXT;GGN135,GUN136,KUN13#..(SDC,SSC,SXT,TDC,TSC,TXT)..CBU;GUN135..(KSC,SDC,SSC,SXT,TDC,TSC,TXT)..(GEN,KEN,LA,PH,SA,TH,VN)

 2
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-T3001

GUN135..TDC..S;GUN125,135..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,135..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..(MDC,TDC)..(H,L,M,X)..(GEN,LA,MA,PH,TH,VN);GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-T3001

GUN135..TDC..S;GUN125,135..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,135..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..(MDC,TDC)..(H,L,M,X)..(GEN,LA,MA,PH,TH,VN);GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-T3002

GUN135..TDC..S;GUN125,135..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,135..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..(MDC,TDC)..(H,L,M,X)..(GEN,LA,MA,PH,TH,VN);GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-T3002

GUN135..TDC..S;GUN125,135..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,135..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..(MDC,TDC)..(H,L,M,X)..(GEN,LA,MA,PH,TH,VN);GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 4
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0019

GUN135..TDC..S;GUN125..ADC..6FC;TGN136..SDC,TDC,TSC,TXT;GUN125,135..TDC..6FC..ARL;GUN125,135..SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..(MDC,TDC)..(H,L,M,X)..(GEN,LA,MA,PH,TH,VN);GUN126,136,KUN125,126,13#,TGN126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,122,LAN125,TGN11#,120,121..ADC,PSC,SDC,SSC,TDC,TSC,TXT

 8
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0019

GUN135..TDC..S;GUN125..ADC..6FC;TGN136..SDC,TDC,TSC,TXT;GUN125,135..TDC..6FC..ARL;GUN125,135..SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..(MDC,TDC)..(H,L,M,X)..(GEN,LA,MA,PH,TH,VN);GUN126,136,KUN125,126,13#,TGN126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,122,LAN125,TGN11#,120,121..ADC,PSC,SDC,SSC,TDC,TSC,TXT

 8
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0019

GUN135..TDC..S;GUN125..ADC..6FC;TGN136..SDC,TDC,TSC,TXT;GUN125,135..TDC..6FC..ARL;GUN125,135..SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..(MDC,TDC)..(H,L,M,X)..(GEN,LA,MA,PH,TH,VN);GUN126,136,KUN125,126,13#,TGN126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,122,LAN125,TGN11#,120,121..ADC,PSC,SDC,SSC,TDC,TSC,TXT

 8
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0019

GUN135..TDC..S;GUN125..ADC..6FC;TGN136..SDC,TDC,TSC,TXT;GUN125,135..TDC..6FC..ARL;GUN125,135..SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..(MDC,TDC)..(H,L,M,X)..(GEN,LA,MA,PH,TH,VN);GUN126,136,KUN125,126,13#,TGN126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,122,LAN125,TGN11#,120,121..ADC,PSC,SDC,SSC,TDC,TSC,TXT

 8
Common parts
90105-T0128
90105-T0146
90178-T0027
90178-T0061
90178-T0140
90179-14069
90201-T0006
90201-T0012
90201-T0014
91552-81225

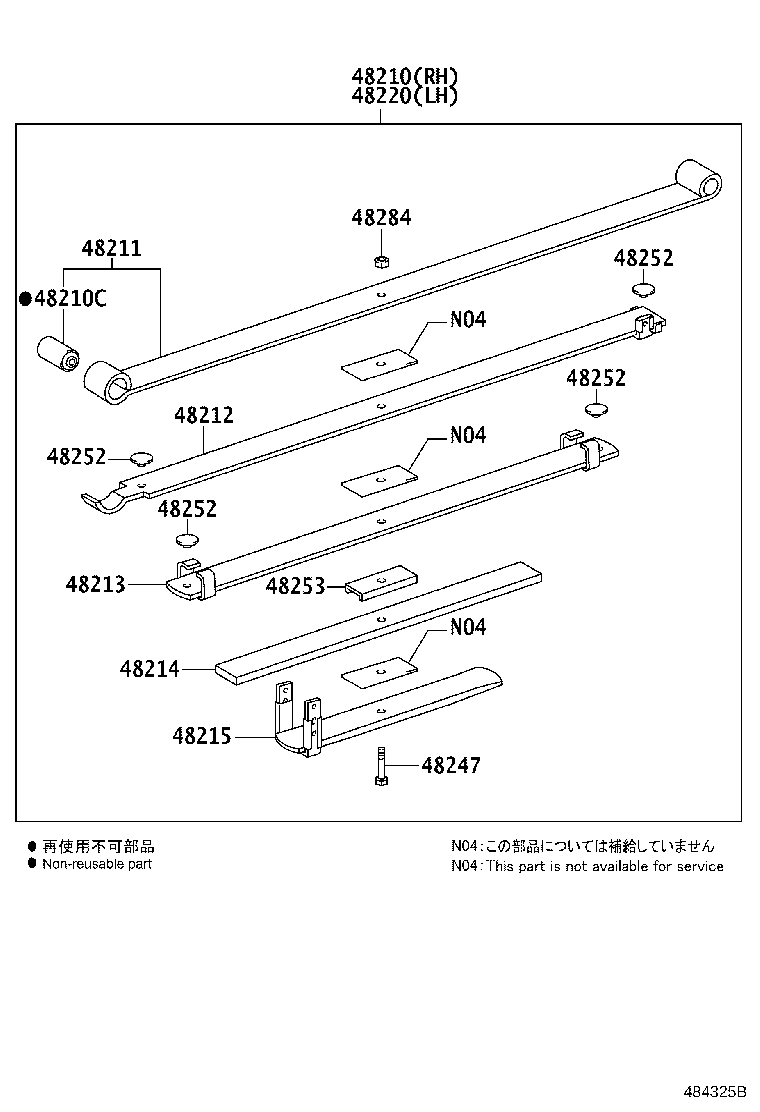

ILLUST NO. 2 OF 2(1601- )GGN125,135,GUN125,126,13#,KUN125,126,135,LAN125,TGN126,136..KEN,SA

Click highlighted areas on diagram

5-LEAF

diagram 48210 48210C 48211 48212 48213 48214 48215 48220 48247 48252 48252 48252 48252 48253 48284
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-0K850

GGN125,135,GUN125,126,13#,KUN125,126,135,LAN125,TGN126,136..SDC

5-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-T0005

GGN125,135,GUN125,126,13#,KUN125,126,135,LAN125,TGN126,136..SA

 4
90389-T0005

TGN136..SDC;GUN125..LHD..SSC..S;GUN125..LHD..SDC..(M,X);GUN126,136..RHD..SDC..M;GUN126,136..(SSC,SXT)..6F..M;GUN125,135..RHD..6F..S..SA..CBU;GGN125,135,KUN125,126,135,LAN125,TGN126..SA..CBU

 2
48212 - LEAF, REAR SPRING, NO.2
48212-0K850

GGN125,135,GUN125,126,13#,KUN125,126,135,LAN125,TGN126,136..SDC

 2
48220 - SPRING ASSY, REAR LH
48210-0K850

GGN125,135,GUN125,126,13#,KUN125,126,135,LAN125,TGN126,136..SDC

5-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-0K040

GGN125,135,GUN125,126,13#,KUN125,126,135,LAN125,TGN126,136..SDC,SXT

 2
