GGN135R-DNTMKN (2016)
Toyota Hilux
(1505- )GGN120,135,GUN120,13#,TGN121,13#..6FC
AC60E

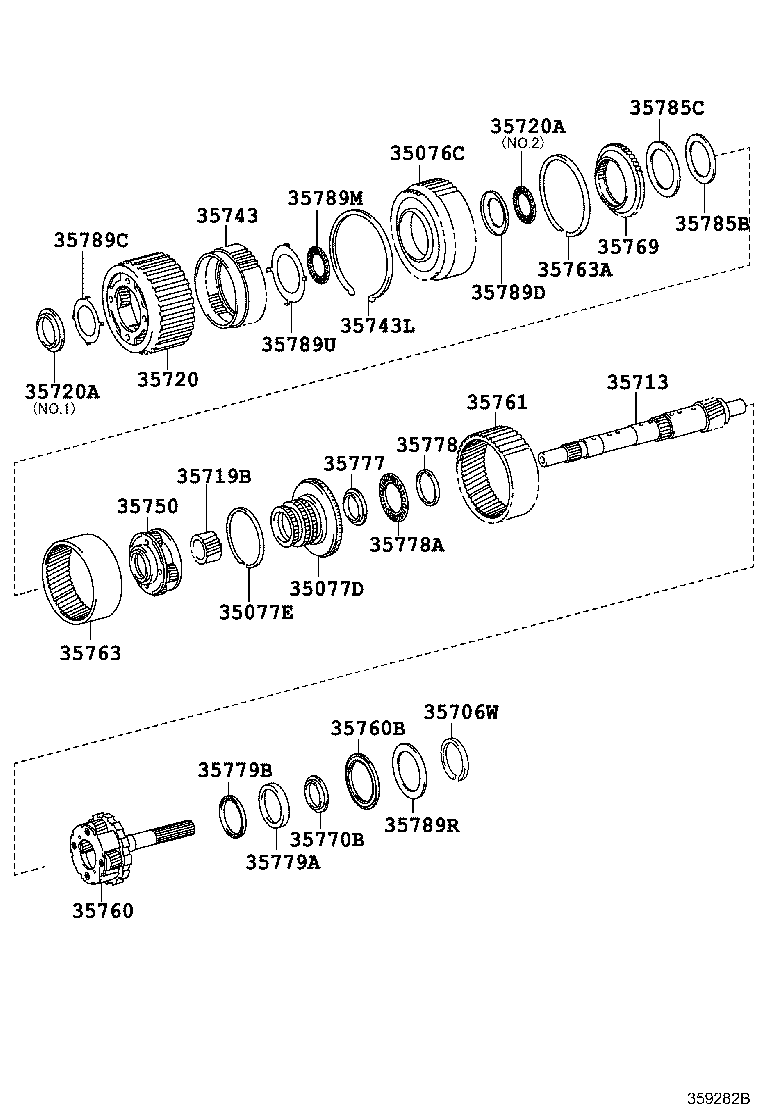

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35076C - FLANGE SUB-ASSY, FRONT PLANETARY RING GEAR | ||||
| 35076-71010 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
1 | ||
| 35077D - FLANGE SUB-ASSY, RR PLANETARY RING GEAR | ||||
| 35077-71010 |
GUN126..(ADC,PDC,SDC,SSC,SXT)..6FC;TGN126,136..6FC..(L,S)..(GEN,SA,TH);GUN125,136..(ADC,SDC,SSC,SXT,TSC)..6FC..(ARL,BZAGT,LA,SA);GGN12#,135,GUN135,TGN128,138..6FC..(H,L,M,S)..(ARL,BZAGT,LA,MA,SA) |
1 | ||
| 35077E - RING, SNAP (FOR REAR PLANETARY RING GEAR FLANGE) | ||||
| 90520-99073 |
GUN126..(ADC,PDC,SDC,SSC,SXT)..6FC;TGN126,136..6FC..(L,S)..(GEN,SA,TH);GUN125,136..(ADC,SDC,SSC,SXT,TSC)..6FC..(ARL,BZAGT,LA,SA);GGN12#,135,GUN135,TGN128,138..6FC..(H,L,M,S)..(ARL,BZAGT,LA,MA,SA) |
1 | ||
| 35706W - RING, SNAP (FOR PLANETARY SUN GEAR) | ||||
| 90520-34012 |
GGN120,135,GUN120,13#,TGN121,13#..6FC |
1 | ||
| 35713 - SHAFT, INTERMEDIATE | ||||
| 35713-71010 |
GUN126..(ADC,PDC,SDC,SSC,SXT)..6FC;TGN126,136..6FC..(L,S)..(GEN,SA,TH);GUN125,136..(ADC,SDC,SSC,SXT,TSC)..6FC..(ARL,BZAGT,LA,SA);GGN12#,135,GUN135,TGN128,138..6FC..(H,L,M,S)..(ARL,BZAGT,LA,MA,SA) |
1 | ||
| 35719B - GEAR, PLANETARY SUN | ||||
| 35719-71010 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
1 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-71010 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
1 | ||
| 35720A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR | ||||
| 90374-63002 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC NO.2:REFER ILLUST. |
1 | ||
| 90374-37009 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC NO.1:REFER ILLUST. |
1 | ||
| 35720A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR | ||||
| 90374-63002 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC NO.2:REFER ILLUST. |
1 | ||
| 90374-37009 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC NO.1:REFER ILLUST. |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-71010 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
1 | ||
| 35743L - RING, SNAP (FOR PLANETARY RING GEAR) | ||||
| 90520-99160 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
1 | ||
| 35750 - GEAR ASSY, CENTER PLANETARY | ||||
| 35750-71020 |
TGN121,126,128,13#..6FC |
1 | ||
| 35750-71010 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-71040 |
GGN120,135,GUN135..6FC..(L,M,S)..(ARL,MA,SA) |
1 | ||
| 35760B - BEARING, THRUST NEEDLE ROLLER(FOR REAR PLANETRAY SUN GE | ||||
| 90374-36001 |
GGN120,135,GUN120,13#,TGN121,13#..6FC |
1 | ||
| 35761 - GEAR, REAR PLANETARY RING | ||||
| 35761-71010 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
1 | ||
| 35763 - GEAR, CENTER PLANETARY RING | ||||
| 35763-71010 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
1 | ||
| 35763A - RING, SNAP(FOR CENTER PLANETARY RING GEAR) | ||||
| 90520-99161 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
1 | ||
| 35769 - FLANGE, PLANETARY RING GEAR, CTR | ||||
| 35769-71010 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
1 | ||
| 35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT) | ||||
| 35789-22190 |
GGN120,135,GUN120,13#,TGN121,13#..6FC |
1 | ||
| 35777 - RACE, THRUST BEARING, NO.7 | ||||
| 35777-60010 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,KUN125,126,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..ATM |
1 | ||
| 35778 - RACE, THRUST BEARING, NO.8 | ||||
| 35778-60010 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,KUN125,126,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..ATM |
1 | ||
| 35778A - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-32010 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,KUN125,126,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..ATM |
1 | ||
| 35779A - RACE, THRUST BEARING, NO.9 | ||||
| 35779-60011 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,KUN125,126,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..ATM |
1 | ||
| 35779B - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-43007 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,KUN125,126,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..ATM |
1 | ||
| 35785B - RACE, THRUST BEARING, NO.4 | ||||
| 35785-60010 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,KUN125,126,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..ATM |
1 | ||
| 35785C - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-55004 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,KUN125,126,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..ATM |
1 | ||
| 35789C - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT) | ||||
| 35789-71030 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
1 | ||
| 35789D - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR) | ||||
| 35789-71050 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
1 | ||
| 35789M - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-63002 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
1 | ||
| 35789R - RACE, THRUST BEARING (FOR REAR OUTPUT SHAFT) | ||||
| 35789-35070 |
GGN120,135,GUN120,13#,TGN121,13#..6FC T=3.90 |
1 | ||
| 35789-35080 |
GGN120,135,GUN120,13#,TGN121,13#..6FC T=4.00 |
1 | ||
| 35789-50070 |
GGN120,135,GUN120,13#,TGN121,13#..6FC T=3.85 |
1 | ||
| 35789-35060 |
GGN120,135,GUN120,13#,TGN121,13#..6FC T=3.80 |
1 | ||
| 35789-35090 |
GGN120,135,GUN120,13#,TGN121,13#..6FC T=4.10 |
1 | ||
| 35789-35100 |
GGN120,135,GUN120,13#,TGN121,13#..6FC T=4.20 |
1 | ||
| 35789-50080 |
GGN120,135,GUN120,13#,TGN121,13#..6FC T=3.95 |
1 | ||
| 35789-50100 |
GGN120,135,GUN120,13#,TGN121,13#..6FC T=4.15 |
1 | ||
| 35789-50110 |
GGN120,135,GUN120,13#,TGN121,13#..6FC T=4.25 |
1 | ||
| 35789-50120 |
GGN120,135,GUN120,13#,TGN121,13#..6FC T=4.30 |
1 | ||
| 35789-50090 |
GGN120,135,GUN120,13#,TGN121,13#..6FC T=4.05 |
1 | ||
| 35789-50130 |
GGN120,135,GUN120,13#,TGN121,13#..6FC T=4.35 |
1 | ||
| 35789U - RACE, THRUST BEARING | ||||
| 35789-71040 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
1 | ||
