GGN135R-DNTMKN (2016)

Toyota Hilux

Production Jan 2016 - Jul 2018
Engine 1GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )1GRFE

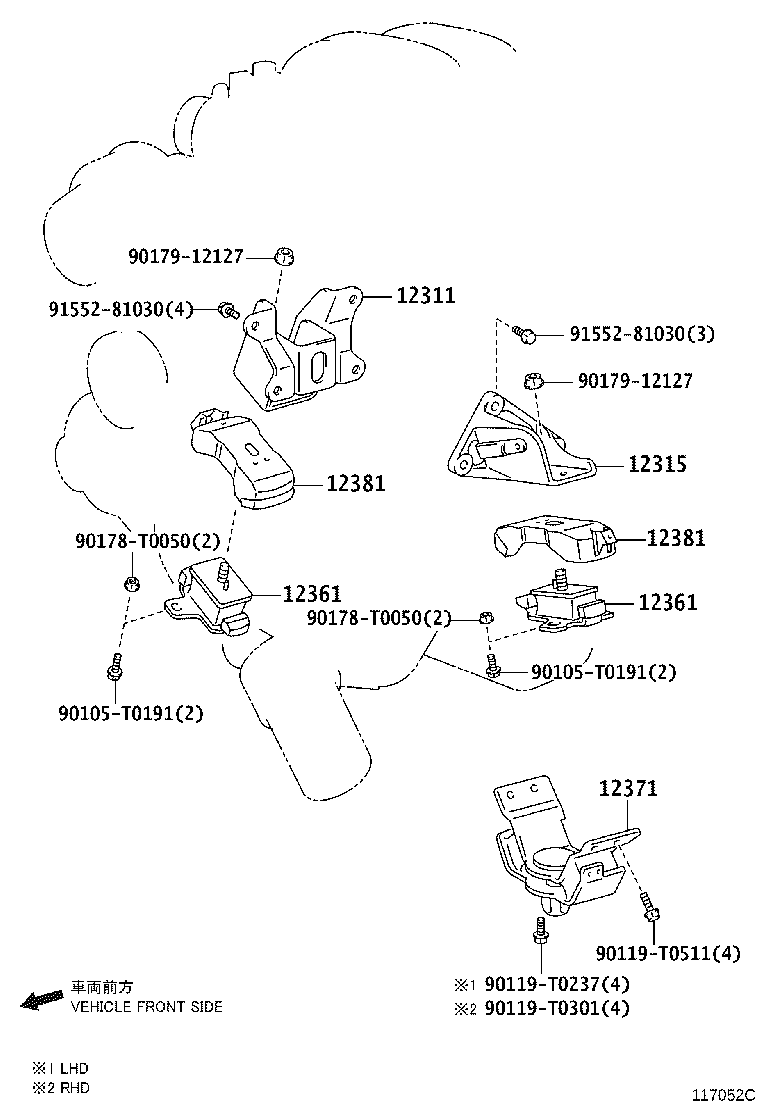

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 90105T0191 90105T0191 90119T0237 90119T0301 90119T0511 90178T0050 90178T0050 9017912127 9017912127 9155281030 9155281030
Part # Description Qty Price
Common parts
90105-T0191
90119-T0237
90119-T0301
90119-T0511
90178-T0050
90179-12127
91552-81030

(1505- )1GRFE

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371A 12380A 12380A 12381 12381 90119T0301 90119T0511 90178T0015 90178T0015 9155281030 9155281030 9415121241 9415121241
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-31031

1GRFE..GGN12#,135

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-31062

1GRFE..GGN12#,135

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31380

1GRFE..GGN12#,135

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31380

1GRFE..GGN12#,135

 2
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-0P210

1GRFE..GGN120,135

 1
12380A - BOLT(FOR ENGINE MOUNTING INSURATOR)
90910-03003

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1G#,2GDFTV..GGN12#,135,GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

TYPE B:REFER ILLUST.

 4
90105-T0174

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1G#,2GDFTV..GGN12#,135,GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

TYPE A:REFER ILLUST.

 4
12380A - BOLT(FOR ENGINE MOUNTING INSURATOR)
90910-03003

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1G#,2GDFTV..GGN12#,135,GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

TYPE B:REFER ILLUST.

 4
90105-T0174

2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1G#,2GDFTV..GGN12#,135,GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

TYPE A:REFER ILLUST.

 4
12381 - STABILIZER, ENGINE MOUNTING
12381-31090

1GRFE..GGN12#,135

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-31090

1GRFE..GGN12#,135

 2
Common parts
90119-T0301
90119-T0511
90178-T0015
91552-81030
94151-21241
