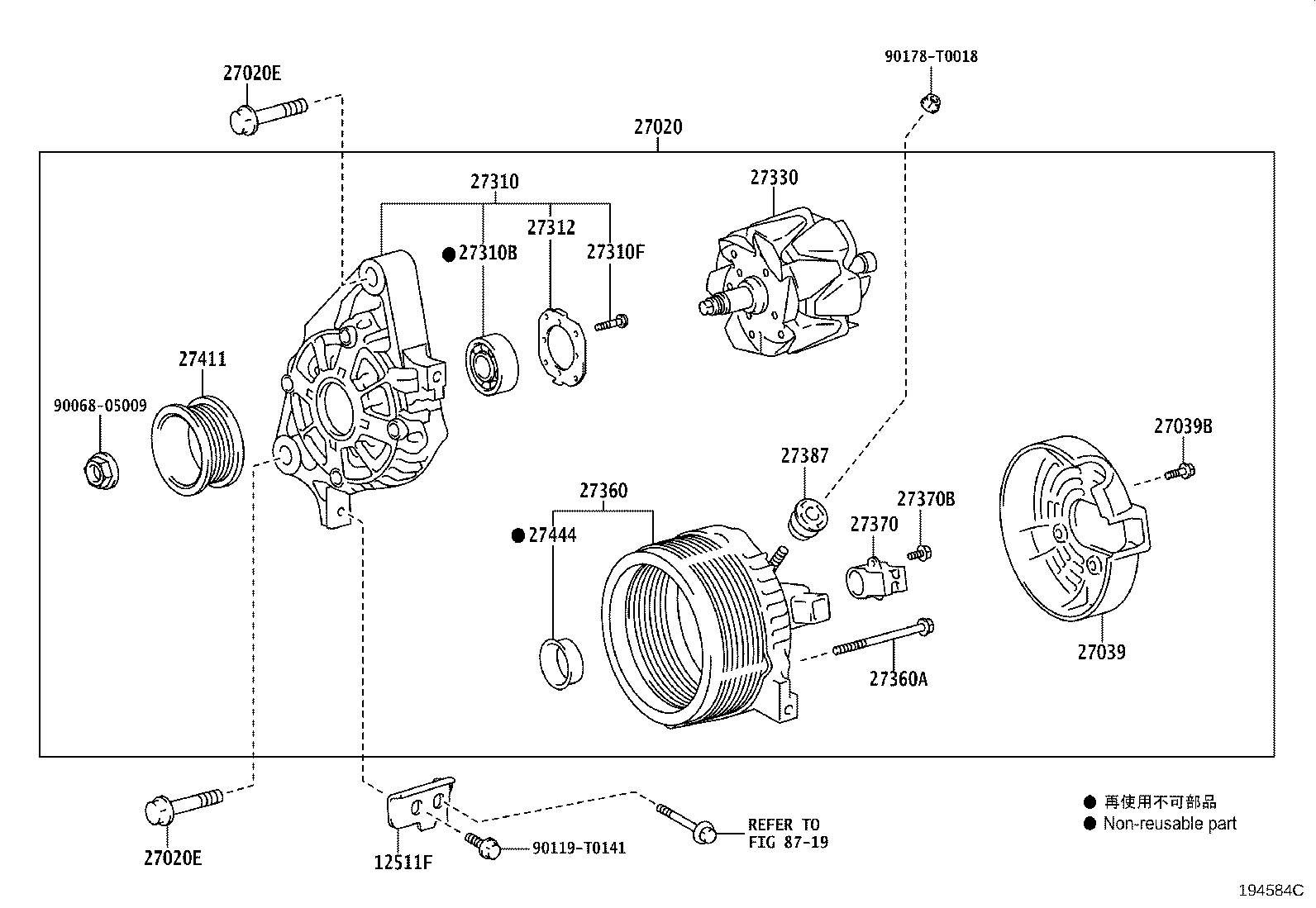

GGN125R-DTTSKQ (2015)
Toyota Hilux
(1505- )1GRFE..GGN12#..ADC,TDC,VDC
12V 100A(DENSO)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12511F - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-0P050 |
1GRFE..GGN12#,135 |
1 | ||
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0P290 |
1GRFE..GGN12#..ADC,TDC 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91672-81065 |
1GRFE..GGN12#,135 |
2 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91672-81065 |
1GRFE..GGN12#,135 |
2 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0V220 |
1GDFTV..GUN126..GCC;2GDFTV..GUN125..6F..GCC;2TRFE..TGN126..6FC..S..GCC;2GDFTV..GUN125..6FC..L..GCC;2GDFTV..GUN125..6FC..(M,S)..(GCC,GEN);1GRFE,2GDFTV..GGN12#,GUN112,122..(H,L,M,S)..(ARL,BZAGT,GCC,LA) |
1 | ||
| 27039B - BOLT(FOR ALTERNATOR REAR END COVER) | ||||
| 90068-04046 |
2GDFTV..GUN125..6F..GCC;2TRFE..TGN126..6FC..S..GCC;2GDFTV..GUN125..6FC..L..GCC;1GDFTV,2KDFTV..GUN126,KUN125..GCC;2GDFTV..GUN125..6FC..(M,S)..(GCC,GEN);1GRFE,2GDFTV,2KDFTV..GGN12#,GUN112,122,KUN112,122..(H,L,M,S)..(ARL,BZAGT,GCC,LA) |
3 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0P340 |
1GRFE..GGN12#..ADC,TDC |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10042 |
1GRFE..GGN12#..ARL;2TRFE..TGN126..6FC..S..GCC;2KDFTV..KUN112,122,125..GCC |
1 | ||
| 27310F - SCREW(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-00022 |
2GDFTV..GUN135..L..MA;2GDFTV..GUN125..TSC,TXT;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV..GUN126..H..(GEN,PKN,VN);2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X);1KDFTV,2KDFTV..KUN12#,135..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2GDFTV,1KDFTV,2TRFE..GUN13#,KUN136,TGN126,136..TDC,TSC,TXT;1G#,2GDFTV,2KDFTV,1TRFE,2TRFE..GGN12#,GUN112,120,122,123,KUN112,TGN11#,120,121..ADC,PSC,TDC,TSC,TXT |
4 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-0C020 |
2GDFTV..GUN135..L..MA;2GDFTV..GUN125..TSC,TXT;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV..GUN126..H..(GEN,PKN,VN);2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X);1KDFTV,2KDFTV..KUN12#,135..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2GDFTV,1KDFTV,2TRFE..GUN13#,KUN136,TGN126,136..TDC,TSC,TXT;1G#,2GDFTV,2KDFTV,1TRFE,2TRFE..GGN12#,GUN112,120,122,123,KUN112,TGN11#,120,121..ADC,PSC,TDC,TSC,TXT |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0L140 |
2GDFTV..GUN125..6F..GCC;2TRFE..TGN126..6FC..S..GCC;2GDFTV..GUN125..6FC..L..GCC;1GDFTV,2KDFTV..GUN126,KUN125..GCC;2GDFTV..GUN125..6FC..(M,S)..(GCC,GEN);1GRFE,2GDFTV,2KDFTV..GGN12#,GUN112,122,KUN112,122..(H,L,M,S)..(ARL,BZAGT,GCC,LA) |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0P340 |
1GRFE..GGN12#..ADC,TDC |
1 | ||
| 27360A - BOLT(FOR ALTERNATOR COIL) | ||||
| 90068-04048 |
2GDFTV..GUN135..L..MA;2GDFTV..GUN125..TSC,TXT;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV..GUN126..H..(GEN,PKN,VN);2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X);1KDFTV,2KDFTV..KUN12#,135..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2GDFTV,1KDFTV,2TRFE..GUN13#,KUN136,TGN126,136..TDC,TSC,TXT;1G#,2GDFTV,2KDFTV,1TRFE,2TRFE..GGN12#,GUN112,120,122,123,KUN112,TGN11#,120,121..ADC,PSC,TDC,TSC,TXT |
4 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0M040 |
2GDFTV..GUN135..L..MA;2GDFTV..GUN125..TSC,TXT;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV..GUN126..H..(GEN,PKN,VN);1GDFTV,2GDFTV..GUN13#..TDC,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X);1G#,2GDFTV..GGN12#,GUN112,120,122,123..ADC,PSC,TDC,TSC,TXT |
1 | ||
| 27370B - SCREW(FOR ALTERNATOR BRUSH HOLDER) | ||||
| 90068-00023 |
2GDFTV..GUN135..L..MA;2GDFTV..GUN125..TSC,TXT;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV..GUN126..H..(GEN,PKN,VN);2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X);1KDFTV,2KDFTV..KUN12#,135..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2GDFTV,1KDFTV,2TRFE..GUN13#,KUN136,TGN126,136..TDC,TSC,TXT;1G#,2GDFTV,2KDFTV,1TRFE,2TRFE..GGN12#,GUN112,120,122,123,KUN112,TGN11#,120,121..ADC,PSC,TDC,TSC,TXT |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-0C020 |
2GDFTV..GUN135..L..MA;2GDFTV..GUN125..TSC,TXT;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV..GUN126..H..(GEN,PKN,VN);2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X);1KDFTV,2KDFTV..KUN12#,135..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2GDFTV,1KDFTV,2TRFE..GUN13#,KUN136,TGN126,136..TDC,TSC,TXT;1G#,2GDFTV,2KDFTV,1TRFE,2TRFE..GGN12#,GUN112,120,122,123,KUN112,TGN11#,120,121..ADC,PSC,TDC,TSC,TXT |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-0C080 |
1GRFE..GGN12#..ADC,TDC |
1 | ||
| 27444 - PACKING, ALTERNATOR BEARING COVER | ||||
| 27444-0Y180 |
2GDFTV..GUN135..L..MA;2GDFTV..GUN125..TSC,TXT;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV..GUN126..H..(GEN,PKN,VN);2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X);1KDFTV,2KDFTV..KUN12#,135..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2GDFTV,1KDFTV,2TRFE..GUN13#,KUN136,TGN126,136..TDC,TSC,TXT;1G#,2GDFTV,2KDFTV,1TRFE,2TRFE..GGN12#,GUN112,120,122,123,KUN112,TGN11#,120,121..ADC,PSC,TDC,TSC,TXT |
1 | ||
| Common parts | ||||
| 90068-05009 | ||||
| 90119-T0141 | ||||
| 90178-T0018 | ||||
| Linked diagrams | ||||
| 8719 | ||||
