YN135R-GKMDS (1989)

Toyota Hilux/4runner (4wd)

Production Apr 1989 - Aug 1991
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8904-9108)4Y..YN135

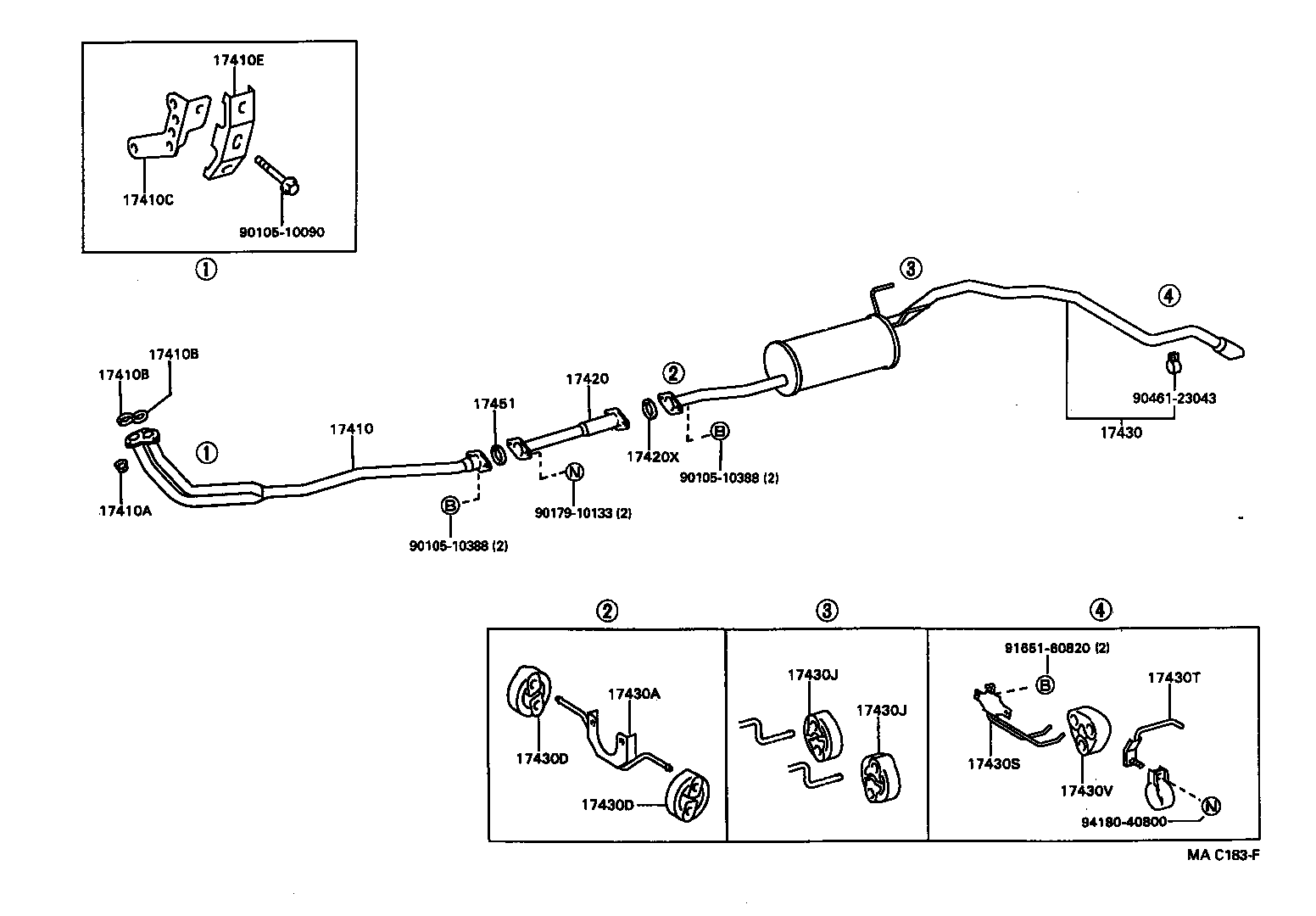

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17410C 17410E 17420 17420X 17430 17430A 17430D 17430D 17430J 17430J 17430S 17430T 17430V 17451 9010510090 9010510388 9010510388 9017910133 9046123043 9165160820 9418040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-35670

4Y..YN135

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

3L..LN111..ARL;22R#,3L,3VZE,4Y#..LN10#,13#,RN10#,110,13#,VZN130,YN106,13#

 3
17410B - GASKET, EXHAUST PIPE
90917-06038

22R#,4Y#..RN10#,110,13#,YN106,13#

 2
17410B - GASKET, EXHAUST PIPE
90917-06038

22R#,4Y#..RN10#,110,13#,YN106,13#

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-73040

4Y#..YN106,13#

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04030

4Y#..YN106,13#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-35040

4Y..YN135

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-3D150

4Y..YN135

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

22R#,3L,3VZE,4Y#..LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

22R#,3L,3VZE,4Y#..LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17565-35010

22R#,3L,3VZE,4Y#..LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17565-35010

22R#,3L,3VZE,4Y#..LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17585-71010

22R,3L,4Y#..LN10#,111,13#,RN10#,110,13#,YN106,13#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17566-35030

22R#,3L,3VZE,4Y#..LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
17451 - GASKET, EXHAUST PIPE
90917-06025

22R,4Y..RN105,135,YN106,135

 1
Common parts
90105-10090
90105-10388
90179-10133
90461-23043
91651-60820
94180-40800
