YN135L-GKMDS (1989)

Toyota Hilux/4runner (4wd)

Production Apr 1989 - Aug 1991
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

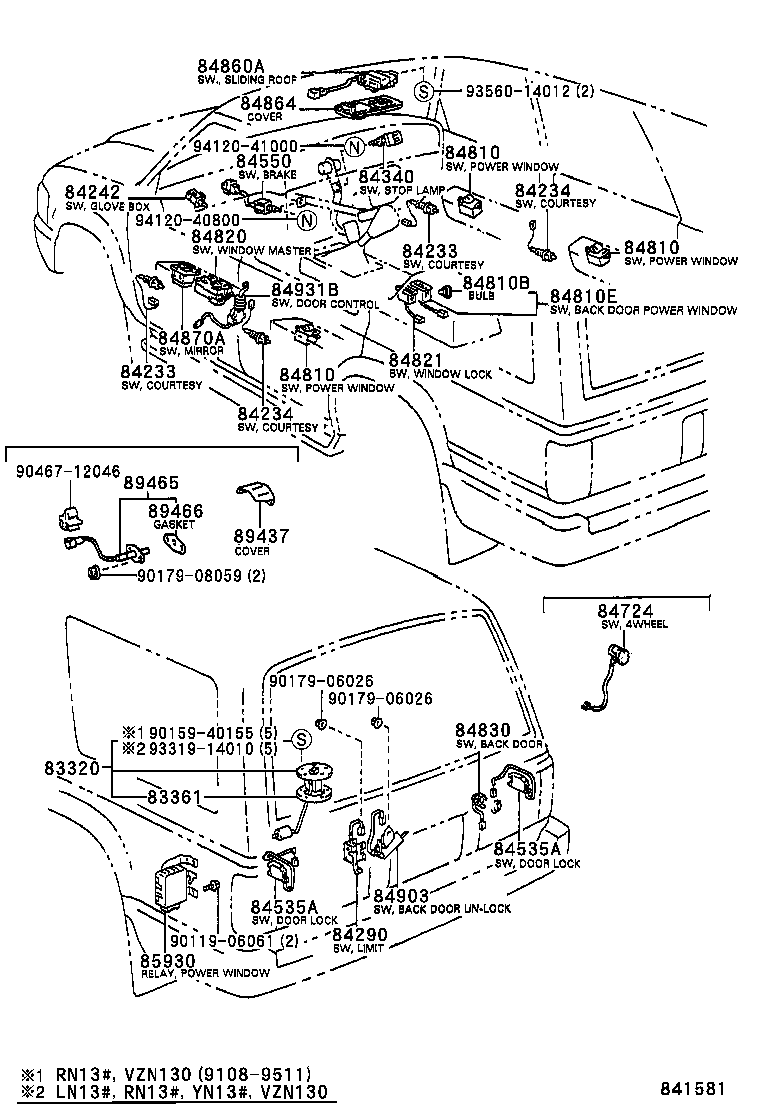

ILLUST NO. 4 OF 4(8904- )LN13#,RN13#,VZN130,YN13#

Click highlighted areas on diagram

ROOF,CONSOLE,DOOR & FLOOR

diagram 83320 83361 84233 84233 84234 84234 84242 84290 84340 84535A 84535A 84550 84724 84810 84810 84810 84810B 84810E 84820 84821 84830 84860A 84864 84870A 84903 84931B 85930 89437 89465 89466 9011906061 9015940155 9017906026 9017906026 9017908059 9046712046 9331914010 9356014012 9412040800 9412041000
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-80132

LN13#,RN13#,YN135

 1
83361 - GASKET, FUEL SENDER GAGE
83361-20030

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84230-12120

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84230-12120

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84230-12120

LN10#,13#,RN10#,13#,VZN130,YN106,13#..4D,TW1

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84230-12120

LN10#,13#,RN10#,13#,VZN130,YN106,13#..4D,TW1

 2
84242 - SWITCH, GLOVE BOX LAMP
84242-20030

LN13#,RN13#,YN135..LHD;LN10#,111,130,RN10#,110,130,VZN130,YN130..SR5..ARL

 1
84290 - SWITCH ASSY, LIMIT
84290-89102

LN13#,RN13#,VZN130,YN13#

 1
84340 - SWITCH ASSY, STOP LAMP
84340-30030

LN106,111,13#,RN105,110,13#,YN106,13#

 1
84535A - SWITCH, DOOR LOCK
84535-89104

LN13#,RN13#,VZN130,YN13#

LH

 1
84535A - SWITCH, DOOR LOCK
84535-89104

LN13#,RN13#,VZN130,YN13#

LH

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-35010

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
84810E - SWITCH ASSY, BACK DOOR POWER WINDOW REGULATOR
84810-89104

LN13#,RN13#,VZN130,YN13#

 1
84821 - SWITCH, POWER WINDOW LOCK
84821-89103

LN13#,RN13#,VZN130,YN13#

 1
84830 - SWITCH ASSY, TAIL GATE CONTROL
84830-89103

LN13#,RN13#,VZN130,YN13#

 1
84860A - SWITCH ASSY, SLIDING ROOF
84860-89101

LN13#,RN13#,VZN130,YN13#

 1
84864 - COVER, SLIDE ROOF MOTOR SWITCH
84864-8910104

LN13#,RN13#,VZN130,YN13#

BLUE,TRIM8#

 1
84864-8910106

LN13#,RN13#,VZN130,YN13#

BROWN,TRIM4#

 1
84903 - SWITCH SUB-ASSY, DOOR UN-LOCK
84903-89102

LN13#,RN13#,VZN130,YN13#

 1
84931B - SWITCH, DOOR CONTROL
84931-89101

LN135,RN135,YN135..LHD

 1
85930 - RELAY ASSY, POWER WINDOW
85930-89103

LN135,RN135,YN135

W(REAR WIPER)

 1
85930-89102

LN135,RN135,YN135

 1
Common parts
90119-06061
90159-40155
90179-06026
90179-08059
90467-12046
93319-14010
93560-14012
94120-40800
94120-41000
