YN135L-GKMDS (1989)

Toyota Hilux/4runner (4wd)

Production Apr 1989 - Aug 1991
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8904-9108)LN13#,RN13#,VZN130,YN13#

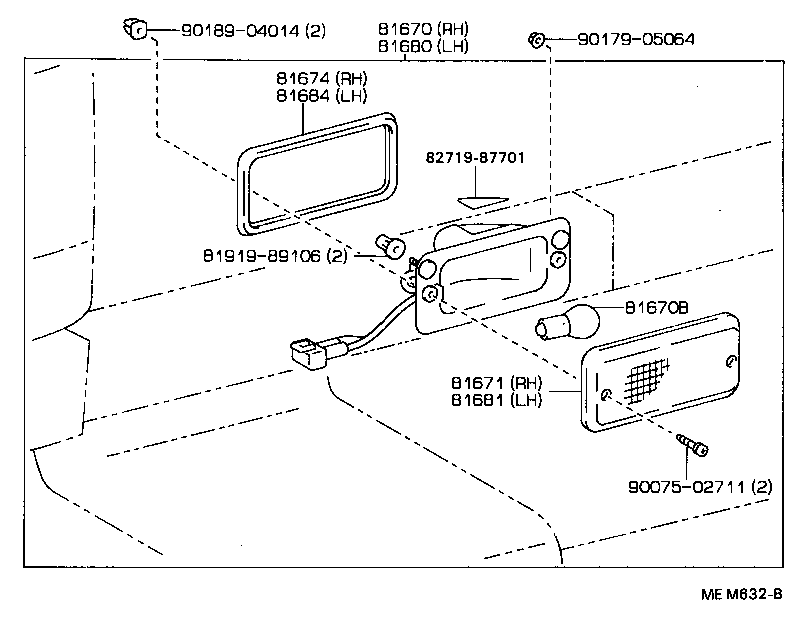

Click highlighted areas on diagram

diagram 81670 81670B 81671 81674 81680 81681 81684 8191989106 8271987701 9007502711 9017905064 9018904014
Part # Description Qty Price
81670 - LAMP ASSY, BACK-UP, RH
81670-89102

LN13#,RN13#,VZN130,YN13#

 1
81670B - BULB(FOR BACK-UP LAMP)
99132-11210

LN13#,RN13#,VZN130,YN13#

12V 21W

 2
81671 - LENS, BACK-UP LAMP, RH
81671-89102

LN13#,RN13#,VZN130,YN13#

 1
81674 - GASKET, BACK-UP LAMP BODY, RH
81674-89102

LN13#,RN13#,VZN130,YN13#

 1
81680 - LAMP ASSY, BACK UP, LH
81680-89103

LN13#,RN13#,VZN130,YN13#

 1
81681 - LENS, BACK-UP LAMP, LH
81671-89102

LN13#,RN13#,VZN130,YN13#

 1
81684 - GASKET, BACK UP LAMP BODY, LH
81674-89102

LN13#,RN13#,VZN130,YN13#

 1
Common parts
81919-89106
82719-87701
90075-02711
90179-05064
90189-04014
