YN135L-GKMDS (1989)

Toyota Hilux/4runner (4wd)

Production Apr 1989 - Aug 1991
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8904-9108)LN13#,RN13#,VZN130,YN13#

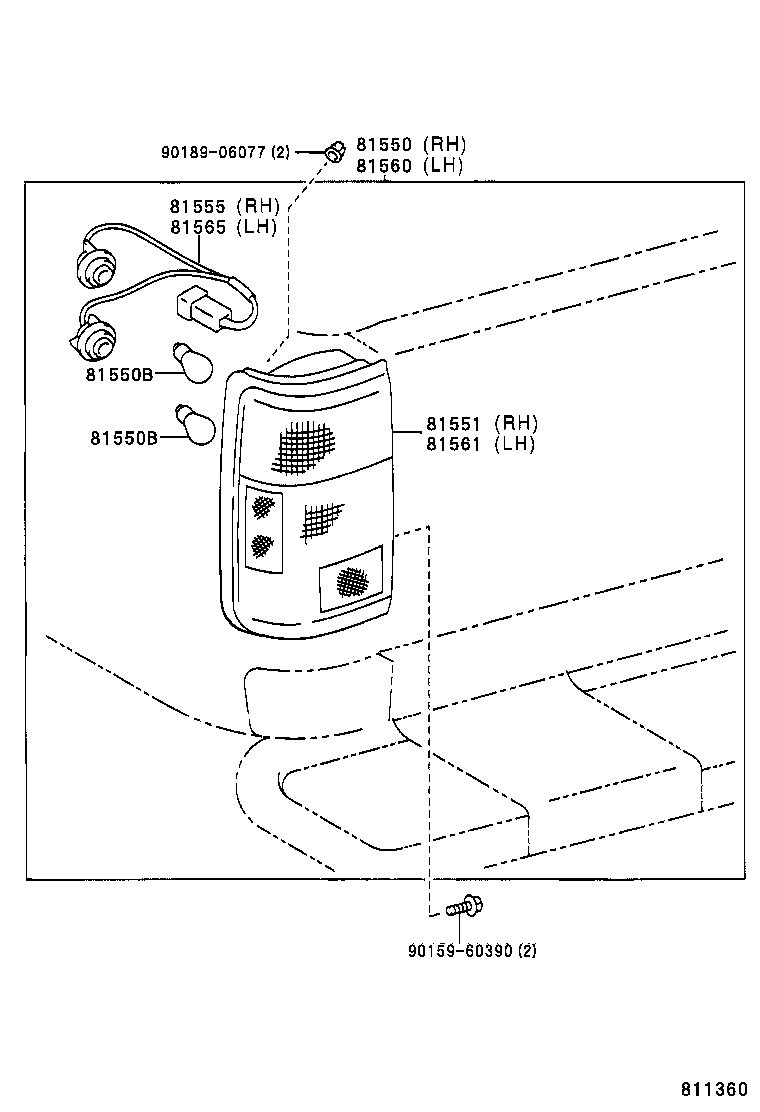

Click highlighted areas on diagram

TYPE 1,BACK UP LAMP SEPARATELY

diagram 81550 81550B 81550B 81551 81555 81560 81561 81565 9015960390 9018906077
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-89167

LN13#,RN13#,YN13#

TYPE 1

 1
81550-89167

LN135,RN135,YN135

TYPE 1

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

LN13#,RN13#,VZN130,YN13#

12V 21W

 2
99132-21210

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

LN13#,RN13#,VZN130,YN13#

12V 21W

 2
99132-21210

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

12V 21/5W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-89167

LN13#,RN13#,YN13#

TYPE 1

 1
81551-89167

LN135,RN135,YN135

TYPE 1

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-89167

LN135,RN135,YN135

TYPE 1

 1
81555-89167

LN13#,RN13#,YN13#

TYPE 1

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-89167

LN135,RN135,YN135

TYPE 1

 1
81560-89167

LN13#,RN13#,YN13#

TYPE 1

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-89167

LN135,RN135,YN135

TYPE 1

 1
81561-89167

LN13#,RN13#,YN13#

TYPE 1

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-89167

LN13#,RN13#,YN13#

TYPE 1

 1
81555-89167

LN135,RN135,YN135

TYPE 1

 1
Common parts
90159-60390
90189-06077
