YN135L-GKMDS (1989)
Toyota Hilux/4runner (4wd)

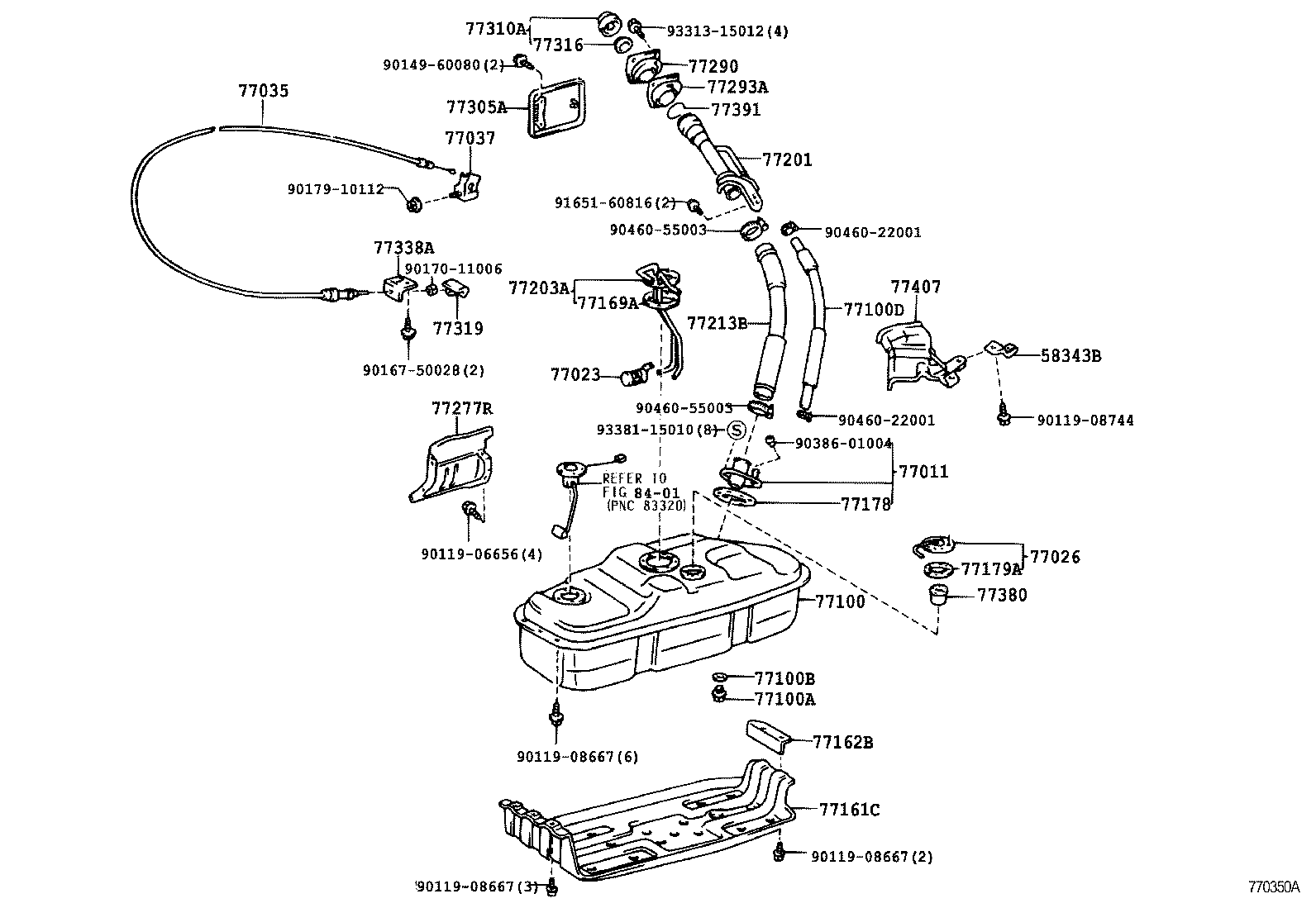

ILLUST NO. 1 OF 2(8904- )LN13#,RN13#,VZN130,YN13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-35140 |
LN13#,RN13#,YN13# |
1 | ||
| 77011-35140 |
VZN130;LN13#,RN13#,YN135..4D |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
RN105,110,13#,YN106,135 |
1 | ||
| 77023-22040 |
LN10#,111,13# |
1 | ||
| 77026 - COVER SUB-ASSY, FUEL SENDER GAGE | ||||
| 77026-35060 |
LN13#,RN13#,YN13# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-35982 |
YN135 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LN106,111,13#,RN105,110,13#,YN106,13# |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-35110 |
LN13#,RN13#,YN13# |
1 | ||
| 77162B - BRACKET, FUEL TANK REAR PROTECTOR | ||||
| 77162-35060 |
LN13#,RN13#,YN13# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
LN106,111,13#,RN105,110,13#,YN106,135 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-35030 |
LN13#,RN13#,YN13# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
LN13#,RN13#,YN13# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35430 |
LN13#,RN135,YN135 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-35420 |
RN13#,YN135 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-35240 |
LN13#,RN13#,VZN130,YN13# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
RN105,110,135,YN106,135..(4D,T1)..CBU |
1 | ||
| 77310-35061 |
LN106,111,13#..(2D,4D,T1)..CBU |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-12050 |
LN106,111,13#,RN105,110,135,YN106,135..(2D,4D,T1)..CBU |
1 | ||
| 77319 - KNOB, FUEL TANK CAP | ||||
| 77319-8910306 |
LN13#,RN13#,VZN130,YN13# BROWN,TRIM4# |
1 | ||
| 77319-8910303 |
LN13#,RN13#,VZN130,YN13# GRAY,TRIM1# |
1 | ||
| 77319-8910304 |
LN13#,RN13#,VZN130,YN13# BLUE,TRIM8# |
1 | ||
| 77319-8910302 |
LN135,YN135 RED,TRIM3# |
1 | ||
| 77338A - BRACKET, FUEL TANK CAP LOCK CONTROL ROD | ||||
| 77338-89105 |
LN106,YN106..T1..GEN..CBU;LN111,13#,RN105,110,13#,VZN130,YN13#..(2D,4D,T1)..(DLX,SR5)..CBU |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
LN13#,RN13#,YN13# |
1 | ||
| Common parts | ||||
| 90119-06656 | ||||
| 90119-08667 | ||||
| 90119-08744 | ||||
| 90149-60080 | ||||
| 90167-50028 | ||||
| 90170-11006 | ||||
| 90179-10112 | ||||
| 90386-01004 | ||||
| 90460-22001 | ||||
| 90460-55003 | ||||
| 91651-60816 | ||||
| 93313-15012 | ||||
| 93381-15010 | ||||
| Linked diagrams | ||||
| 8401 | ||||

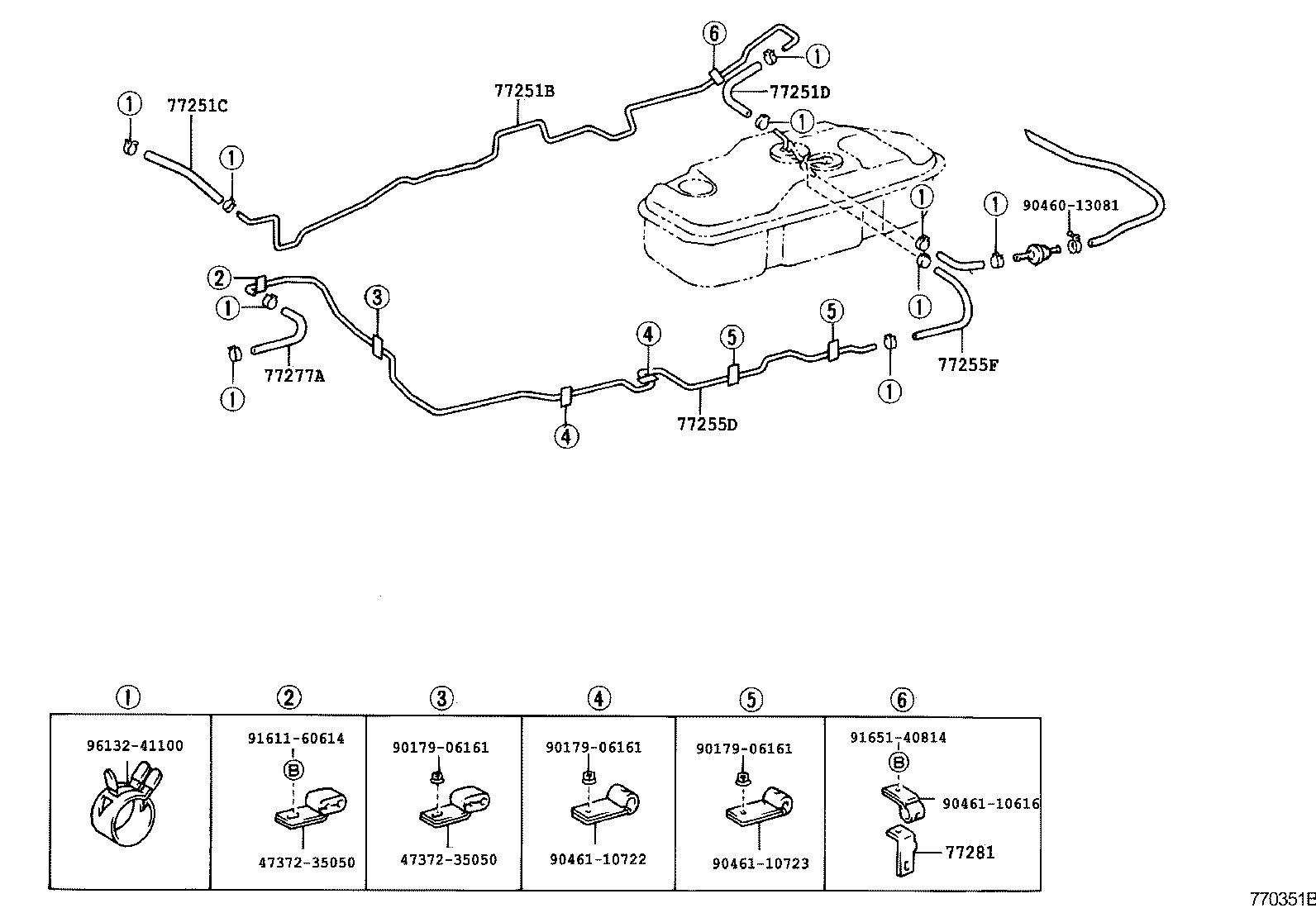

ILLUST NO. 2 OF 2(8904- )YN135
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-06020 |
RN13#,YN135 *H,L=190 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 90445-12231 |
RN13#,YN13# L=290 |
1 | ||
| Common parts | ||||
| 47372-35050 | ||||
| 90179-06161 | ||||
| 90460-13081 | ||||
| 90461-10616 | ||||
| 90461-10722 | ||||
| 90461-10723 | ||||
| 91611-60614 | ||||
| 91651-40814 | ||||
| 96132-41100 | ||||
