YN135L-GKMDS (1989)

Toyota Hilux/4runner (4wd)

Production Apr 1989 - Aug 1991
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8904- )4D

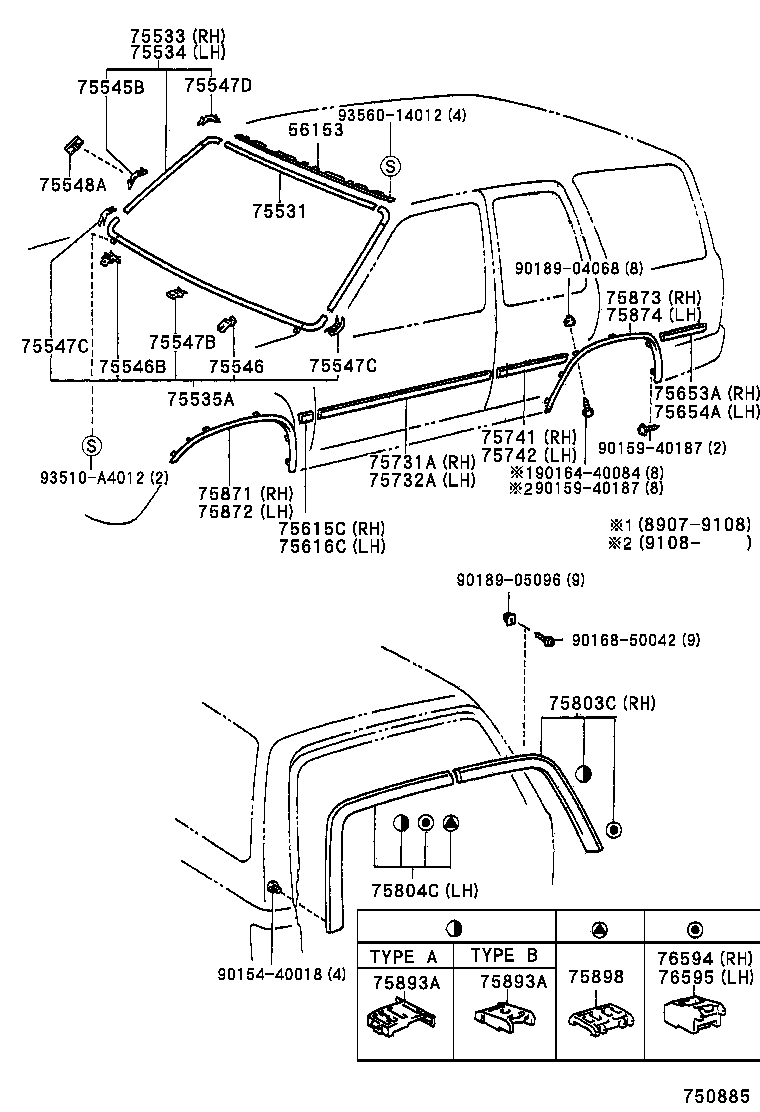

Click highlighted areas on diagram

diagram 56153 75531 75533 75534 75535A 75545B 75546 75546B 75547B 75547C 75547C 75547D 75548A 75615C 75616C 75653A 75654A 75731A 75732A 75741 75742 75803C 75804C 75871 75872 75873 75874 75893A 75893A 75898 76594 76595 9015440018 9015940187 9015940187 9016440084 9016850042 9018904068 9018905096 93510A4012 9356014012
Part # Description Qty Price
56153 - MOULDING, FRONT WINDOW, INNER CENTER
56153-35010

LN13#,RN13#,VZN130,YN135

 2
56153-89103

LN13#,RN13#,VZN130,YN13#

 1
56153-89102

LN13#,RN13#,YN13#

 1
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-89105

LN13#,RN130,VZN130,YN13#

NO PAINT REQ.,PLANT NO. P11

 1
75531-89105

LN135,YN135

NO PAINT REQ.,PLANT NO.P11

 1
75531-89106

LN135,YN135

PLATED,CHROME PLATED PACKAGE

 1
75531-89111

LN135,YN135

PLATED,CHROME PLATED PACKAGE

 1
75531-89109

LN13#,RN130,VZN130,YN13#

NO PAINT REQ.,PLANT NO. A51,A52

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
76503-89103

LN13#,RN130,VZN130,YN13#

PLANT NO. P11

 1
76503-89104

LN135,YN135

CHROME PLATED PACKAGE

 1
76503-89105

LN13#,RN130,VZN130,YN13#

PLANT NO. A51,A52

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
76504-89104

LN135,YN135

CHROME PLATED PACKAGE

 1
76504-89103

LN13#,RN130,VZN130,YN13#

PLANT NO. P11

 1
76504-89105

LN13#,RN130,VZN130,YN13#

PLANT NO. A51,A52

 1
75535A - MOULDING, WINDSHIELD, OUTSIDE LOWER
75504-89105

LN13#,RN130,VZN130,YN13#

PLANT NO. A51,A52

 1
75504-89104

LN135,YN135

CHROME PLATED PACKAGE

 1
75504-89103

LN13#,RN130,VZN130,YN13#

PLANT NO. P11

 1
75545B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75545-89102

LN135,YN135

CHROME PLATED PACKAGE

 6
75545-89102

LN13#,RN130,VZN130,YN13#

PLANT NO. P11

 6
75545-89103

LN13#,RN130,VZN130,YN13#

PLANT NO. A51,A52

 6
75546B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.2
75546-89103

LN13#,RN130,VZN130,YN13#

PLANT NO. P11

 5
75546-89103

LN135,YN135

CHROME PLATED PACKAGE

 5
75546-89105

LN13#,RN130,VZN130,YN13#

PLANT NO. A51,A52

 3
75547B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-89103

LN135,YN135

CHROME PLATED PACKAGE

 4
75547C - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-89107

LN135,YN135

CHROME PLATED PACKAGE,LH,TYPE A

 1
75547-89106

LN135,YN135

CHROME PLATED PACKAGE,RH,TYPE A

 1
75547C - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-89107

LN135,YN135

CHROME PLATED PACKAGE,LH,TYPE A

 1
75547-89106

LN135,YN135

CHROME PLATED PACKAGE,RH,TYPE A

 1
75547D - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-89104

LN135,YN135

CHROME PLATED PACKAGE,RH,TYPE A

 1
75547-89105

LN135,YN135

CHROME PLATED PACKAGE,LH,TYPE A

 1
75615C - MOULDING, FRONT FENDER, REAR RH
75615-89111

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#..CBU

 1
75616C - MOULDING, FRONT FENDER, REAR LH
75616-89111

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#..CBU

 1
75653A - MOULDING, QUARTER, OUTSIDE REAR RH
75653-89135

LN13#,RN13#,VZN130,YN13#

 1
75654A - MOULDING, QUARTER, OUTSIDE REAR LH
75654-89133

LN13#,RN13#,VZN130,YN13#

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-89110

LN106,13#,RN105,13#,VZN130,YN106,13#..(4D,TW1)..CBU

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-89110

LN106,13#,RN105,13#,VZN130,YN106,13#..(4D,TW1)..CBU

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-89110

LN13#,RN13#,VZN130,YN13#..4D

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-89110

LN13#,RN13#,VZN130,YN13#..4D

 1
75803C - MOULDING SUB-ASSY, BACK DOOR, OUTSIDE RH
75803-89101

LN13#,RN13#,YN13#

 1
75804C - MOULDING SUB-ASSY, BACK DOOR, OUTSIDE LH
75804-89101

LN13#,RN13#,YN13#

 1
Common parts
90154-40018
90159-40187
90164-40084
90168-50042
90189-04068
90189-05096
93510-A4012
93560-14012
