YN135L-GKMDS (1989)

Toyota Hilux/4runner (4wd)

Production Apr 1989 - Aug 1991
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8904- )LN13#,RN13#,VZN130,YN13#

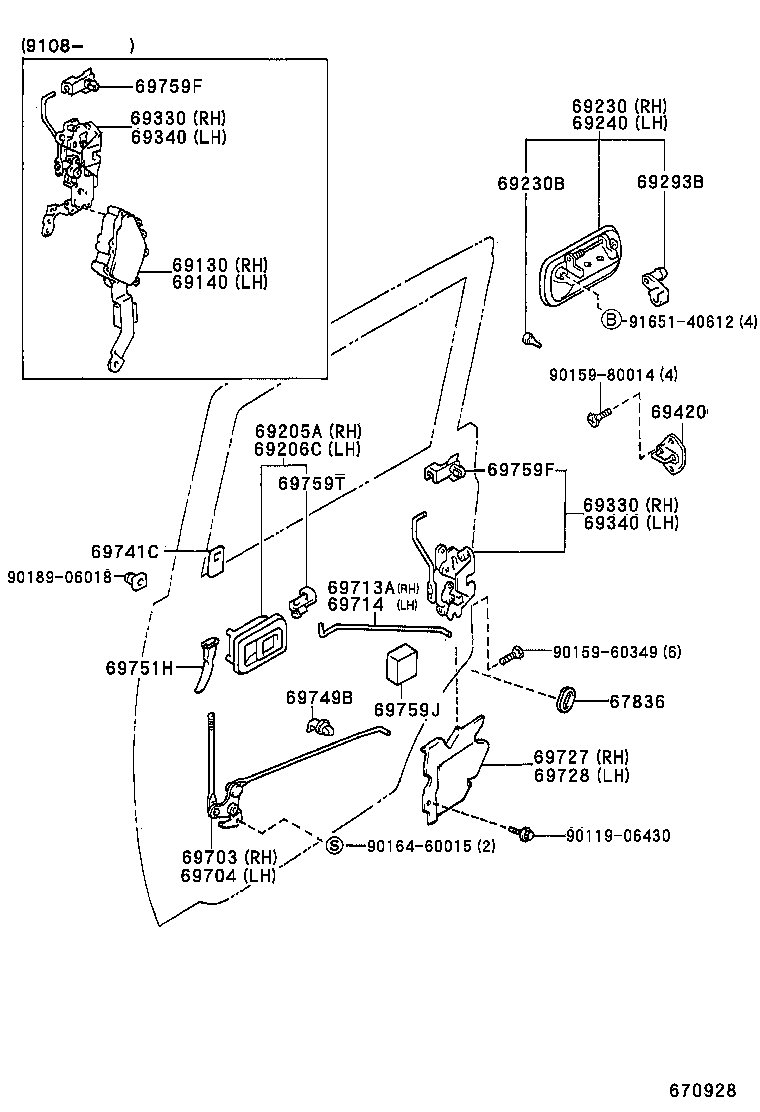

Click highlighted areas on diagram

diagram 67836 69130 69140 69205A 69206C 69230 69230B 69240 69293B 69330 69330 69340 69340 69420 69703 69704 69713A 69714 69727 69728 69741C 69749B 69751H 69759F 69759F 69759J 69759T 9011906430 9015960349 9015980014 9016460015 9018906018 9165140612
Part # Description Qty Price
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-8910704

LN13#,RN13#,VZN130,YN13#..4D

BLUE,TRIM8#

 1
69205-8910706

LN13#,RN13#,VZN130,YN13#..4D

BROWN,TRIM4#

 1
69205-8910702

LN135,YN135

RED,TRIM3#

 1
69205-8910703

LN13#,RN13#,VZN130,YN13#..4D

GRAY,TRIM1#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-8910703

LN13#,RN13#,VZN130,YN13#..4D

GRAY,TRIM1#

 1
69206-8910704

LN13#,RN13#,VZN130,YN13#..4D

BLUE,TRIM8#

 1
69206-8910706

LN13#,RN13#,VZN130,YN13#..4D

BROWN,TRIM4#

 1
69206-8910702

LN135,YN135

RED,TRIM3#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-89103

LN106,135,RN105,135,YN106,135..(4D,TW1)..(GEN,V)

PLATED

 1
69230-89102

LN106,135,RN105,135,YN106,135..4D,TW1

NO PAINT REQ.

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-04014

LN10#,13#,RN10#,13#,VZN130,YN106,13#..4D,TW1

 4
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-89101

LN106,135,RN105,135,YN106,135..4D,TW1

NO PAINT REQ.

 1
69240-89102

LN106,135,RN105,135,YN106,135..(4D,TW1)..(GEN,V)

PLATED

 1
69293B - SNAP, REAR DOOR OUTSIDE HANDLE
69293-12040

LN10#,13#,RN10#,13#,VZN130,YN106,13#..4D,TW1

LH

 1
69293-12030

LN10#,13#,RN10#,13#,VZN130,YN106,13#..4D,TW1

RH

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-89106

VZN130..4D;LN135,RN135,YN135..LHD

W(POWER WINDOW)

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-89106

VZN130..4D;LN135,RN135,YN135..LHD

W(POWER WINDOW)

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-89106

VZN130..4D;LN135,RN135,YN135..LHD

W(POWER WINDOW)

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-89106

VZN130..4D;LN135,RN135,YN135..LHD

W(POWER WINDOW)

 1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-87001

LN10#,13#,RN10#,13#,VZN130,YN106,13#..4D,TW1

 2
69741C - KNOB, REAR DOOR LOCK CONTROL
69741-90K00E1

LN106,13#,RN105,13#,YN106,13#..4D,TW1

BROWN,TRIM4#

 2
69741-90K00B1

LN106,13#,RN105,13#,YN106,13#..4D,TW1

MEDIUM GRAY,TRIM1#

 2
69741-8910402

LN135,YN135

RED,TRIM3#

 2
69741-90K00J1

LN106,13#,RN105,13#,YN106,13#..4D,TW1

MEDIUM BLUE,TRIM8#

 2
69741-8910406

LN106,13#,RN105,13#,VZN130,YN106,135..4D,TW1

BROWN,TRIM4#

 2
69741-8910403

LN106,13#,RN105,13#,VZN130,YN106,13#..4D,TW1

GRAY,TRIM1#

 2
69741-8910404

LN106,13#,RN105,13#,VZN130,YN106,135..4D,TW1

BLUE,TRIM8#

 2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-89101

LN10#,13#,RN10#,13#,VZN130,YN106,13#..4D,TW1

 4
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-20110

VZN130..4D;LN135,RN135,YN135..LHD

NATURAL

 1
69759-20100

LN135,YN135..LHD;LN106,RN105,135,VZN130,YN106..4D,TW1

RED

 1
69759-20040

LN10#,13#,RN10#,13#,VZN130,YN106,13#..4D,TW1

YELLOW

 2
69759-20050

LN10#,13#,RN10#,13#,VZN130,YN106,13#..4D,TW1

BROWN

 2
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-20110

VZN130..4D;LN135,RN135,YN135..LHD

NATURAL

 1
69759-20100

LN135,YN135..LHD;LN106,RN105,135,VZN130,YN106..4D,TW1

RED

 1
69759-20040

LN10#,13#,RN10#,13#,VZN130,YN106,13#..4D,TW1

YELLOW

 2
69759-20050

LN10#,13#,RN10#,13#,VZN130,YN106,13#..4D,TW1

BROWN

 2
69759T - SNAP, REAR DOOR INSIDE HANDLE
69759-20060

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#..2D,4D,T1

RH

 1
69759-20070

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#..2D,4D,T1

LH

 1
Common parts
90119-06430
90159-60349
90159-80014
90164-60015
90189-06018
91651-40612
