YN135L-GKMDS (1989)

Toyota Hilux/4runner (4wd)

Production Apr 1989 - Aug 1991
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8904- )4D

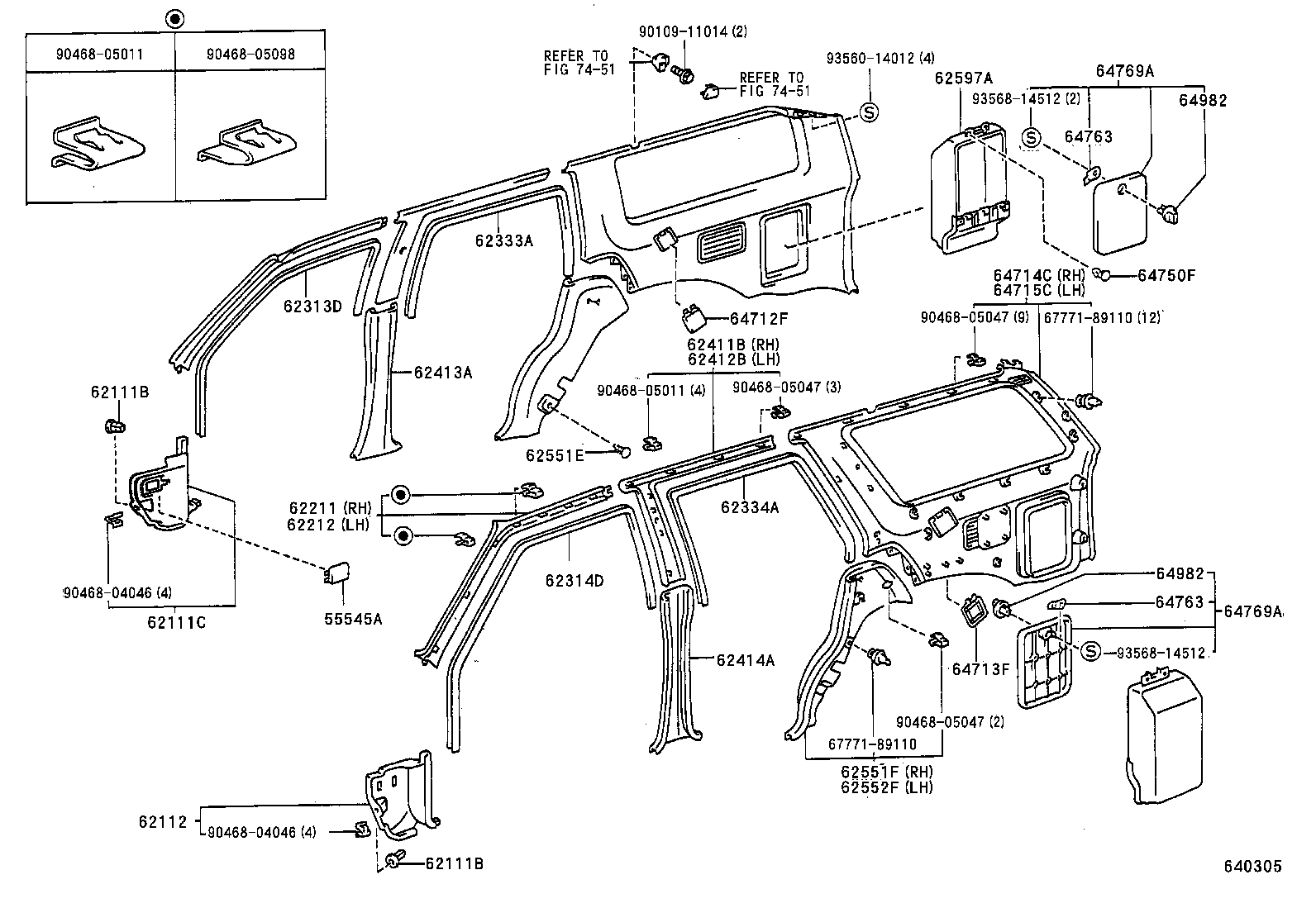

Click highlighted areas on diagram

diagram 55545A 62111B 62111B 62111C 62112 62211 62212 62313D 62314D 62333A 62334A 62411B 62412B 62413A 62414A 62551E 62551F 62552F 62597A 64712F 64713F 64714C 64715C 64750F 64763 64763 64769A 64769A 64982 64982 6777189110 6777189110 7451 7451 9010911014 9046804046 9046804046 9046805011 9046805011 9046805047 9046805047 9046805047 9046805098 9356014012 9356814512 9356814512
Part # Description Qty Price
55545A - COVER, FUSE BOX OPENING
55545-8910202

LN135,YN135

RED,TRIM3#

 1
62111B - CLIP(FOR COWL SIDE TRIM)
90467-0505102

LN135,YN135

RED,TRIM3#

 2
62111B - CLIP(FOR COWL SIDE TRIM)
90467-0505102

LN135,YN135

RED,TRIM3#

 2
62111C - BOARD, COWL SIDE TRIM, RH
62111-8911902

LN135,YN135..LHD

RED,TRIM3#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-8911702

LN135,YN135..LHD

RED,TRIM3#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-8910504

LN13#,RN13#,VZN130,YN13#..4D

BLUE,TRIM8#

 1
62211-8910503

LN13#,RN13#,VZN130,YN13#..4D

GRAY,TRIM1#

 1
62211-8910506

LN13#,RN13#,VZN130,YN13#..4D

BROWN,TRIM4#

 1
62211-8910502

LN135,YN135

RED,TRIM3#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-8910504

LN13#,RN130,YN135..DLX

BLUE,TRIM8#

 1
62212-8910506

LN13#,RN13#,VZN130,YN13#..4D

BROWN,TRIM4#

 1
62212-8910503

LN13#,RN13#,VZN130,YN13#..4D

GRAY,TRIM1#

 1
62212-8910502

LN135,YN135

RED,TRIM3#

 1
62212-8910504

LN13#,RN13#,VZN130,YN135..4D

BLUE,TRIM8#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-8911706

LN13#,RN13#,VZN130,YN13#..4D

BROWN,TRIM4#

 1
62313-8911702

LN135,YN135

RED,TRIM3#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-8911702

LN135,YN135

RED,TRIM3#

 1
62313-8911706

LN13#,RN13#,VZN130,YN13#..4D

BROWN,TRIM4#

 1
62333A - TRIM, REAR DOOR OPENING, RH
62333-8910702

LN135,YN135

RED,TRIM3#

 1
62333-8910706

LN13#,RN13#,VZN130,YN13#..4D

BROWN,TRIM4#

 1
62334A - TRIM, REAR DOOR OPENING, LH
62334-8910206

LN13#,RN13#,VZN130,YN13#..4D

BROWN,TRIM4#

 1
62334-8910202

LN135,YN135

RED,TRIM3#

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-8910106

LN13#,RN13#,VZN130,YN13#..4D

BROWN,TRIM4#

 1
62411-8910102

LN135,YN135

RED,TRIM3#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-8910106

LN13#,RN13#,VZN130,YN13#..4D

BROWN,TRIM4#

 1
62412-8910102

LN135,YN135

RED,TRIM3#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-8910206

LN13#,RN13#,VZN130,YN13#..4D

BROWN,TRIM4#

 1
62413-8910202

LN135,YN135

RED,TRIM3#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-8910202

LN135,YN135

RED,TRIM3#

 1
62414-8910206

LN13#,RN13#,VZN130,YN13#..4D

BROWN,TRIM4#

 1
62551E - CLIP(FOR REAR SEAT SIDE GARNISH)
90467-1003446

LN13#,RN13#,VZN130,YN13#..4D

BROWN,TRIM4#

 2
90467-1003402

LN135,YN135

RED,TRIM3#

 2
90467-1003444

LN13#,RN13#,VZN130,YN13#..4D

BLUE,TRIM8#

 2
62551F - GARNISH, REAR SEAT SIDE, RH
62551-8910306

LN13#,RN13#,VZN130,YN13#..4D

BROWN,TRIM4#

 1
62551-8910302

LN135,YN135

RED,TRIM3#

 1
62552F - GARNISH, REAR SEAT SIDE, LH
62552-8910306

LN13#,RN13#,VZN130,YN13#..4D

BROWN,TRIM4#

 1
62552-8910302

LN135,YN135

RED,TRIM3#

 1
64712F - COVER, DECK SIDE TRIM, FRONT RH
64712-8910202

LN135,YN135

RED,TRIM3#

 1
64712-8910206

LN135,RN135,YN135

BROWN,TRIM4#

 1
64713F - COVER, DECK SIDE TRIM, FRONT LH
64713-8910202

LN135,YN135

RED,TRIM3#

 1
64713-8910204

LN135,RN135,YN135

BLUE,TRIM8#

 1
64713-8910206

LN135,RN135,YN135

BROWN,TRIM4#

 1
64714C - COVER, DECK SIDE TRIM, RH
64714-8910104

LN135,RN135,YN135..LHD

BLUE,TRIM8#

 1
64714-8910106

LN135,RN135,YN135

BROWN,TRIM4#

 1
64714-8910506

LN135,RN135,YN135..LHD

W(3 POINT TYPE REAR SEAT BELT & REAR SPEAKER),BROWN,TRIM4#

 1
64714-8910504

LN135,RN135,YN135..LHD

W(3 POINT TYPE REAR SEAT BELT & REAR SPEAKER),BLUE,TRIM8#

 1
64714-8910502

LN135,YN135..LHD

W(3 POINT TYPE REAR SEAT BELT & REAR SPEAKER),RED,TRIM3#

 1
64714-8910306

LN135,RN135,YN135

W(3 POINT TYPE REAR SEAT BELT),BROWN,TRIM4#

 1
64714-8910102

LN135,YN135

RED,TRIM3#

 1
64714-8910302

LN135,YN135

W(3 POINT TYPE REAR SEAT BELT),RED,TRIM3#

 1
64714-8910503

LN135,RN135,YN135..LHD

W(3 POINT TYPE REAR SEAT BELT & REAR SPEAKER),GRAY,TRIM1#

 1
64715C - COVER, DECK SIDE TRIM, LH
64715-8910503

LN135,RN135,YN135..LHD

W(3 POINT TYPE REAR SEAT BELT & REAR SPEAKER),GRAY,TRIM1#

 1
64715-8910506

LN135,RN135,YN135..LHD

W(3 POINT TYPE REAR SEAT BELT & REAR SPEAKER),BROWN,TRIM4#

 1
64715-8910504

LN135,RN135,YN135..LHD

W(3 POINT TYPE REAR SEAT BELT & REAR SPEAKER),BLUE,TRIM8#

 1
64715-8910502

LN135,YN135..LHD

W(3 POINT TYPE REAR SEAT BELT & REAR SPEAKER),RED,TRIM3#

 1
64715-8910306

LN135,RN135,YN135

W(3 POINT TYPE REAR SEAT BELT),BROWN,TRIM4#

 1
64715-8910106

LN135,RN135,YN135

BROWN,TRIM4#

 1
64715-8910302

LN135,YN135

W(3 POINT TYPE REAR SEAT BELT),RED,TRIM3#

 1
64715-8910102

LN135,YN135

RED,TRIM3#

 1
64769A - COVER ASSY, SIDE TRIM TOOL BAG
64760-8910206

LN13#,RN13#,VZN130,YN13#

BROWN,TRIM4#

 2
64760-8910202

LN135,YN135

RED,TRIM3#

 2
64769A - COVER ASSY, SIDE TRIM TOOL BAG
64760-8910206

LN13#,RN13#,VZN130,YN13#

BROWN,TRIM4#

 2
64760-8910202

LN135,YN135

RED,TRIM3#

 2
64982 - KNOB, COVER
64982-1602020

LN135,YN135

RED,TRIM3#

 2
64982-1602053

LN111,13#,RN110,13#,VZN130,YN13#

MEDIUM GRAY,TRIM1#

 2
64982-1602059

LN111,13#,RN110,13#,VZN130,YN13#

BLUE,TRIM8#

 2
64982-1602050

LN111,13#,RN110,13#,VZN130,YN13#

BROWN,TRIM4#

 2
64982 - KNOB, COVER
64982-1602020

LN135,YN135

RED,TRIM3#

 2
64982-1602053

LN111,13#,RN110,13#,VZN130,YN13#

MEDIUM GRAY,TRIM1#

 2
64982-1602059

LN111,13#,RN110,13#,VZN130,YN13#

BLUE,TRIM8#

 2
64982-1602050

LN111,13#,RN110,13#,VZN130,YN13#

BROWN,TRIM4#

 2
Common parts
67771-89110
90109-11014
90468-04046
90468-05011
90468-05047
90468-05098
93560-14012
93568-14512
Linked diagrams
7451
