YN135L-GKMDS (1989)

Toyota Hilux/4runner (4wd)

Production Apr 1989 - Aug 1991
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(8912- )LHD

Click highlighted areas on diagram

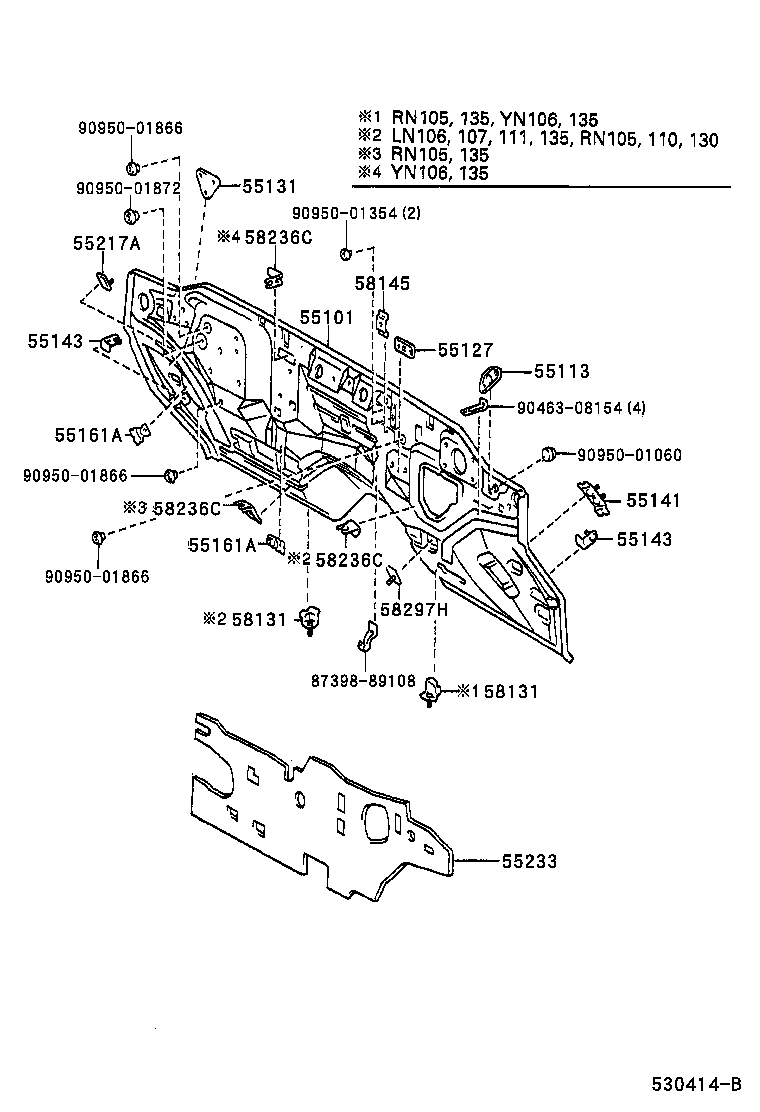

diagram 55101 55113 55127 55131 55141 55143 55143 55161A 55161A 55217A 55233 58131 58131 58145 58236C 58236C 58236C 58297H 8739889108 9046308154 9095001060 9095001354 9095001866 9095001866 9095001866 9095001872
Part # Description Qty Price
55143 - BRACKET, COWL SIDE TRIM MOUNTING, NO.1
55143-89102

LN130,RN105,110,13#,YN130;LN106,111,135,YN106,135..DLX,STD

LH

 1
55143-89103

LN130,RN105,110,13#,YN130;LN106,111,135,YN106,135..DLX,STD

RH

 1
55143-89102

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#

LH

 1
55143-89103

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#

RH

 1
55143 - BRACKET, COWL SIDE TRIM MOUNTING, NO.1
55143-89102

LN130,RN105,110,13#,YN130;LN106,111,135,YN106,135..DLX,STD

LH

 1
55143-89103

LN130,RN105,110,13#,YN130;LN106,111,135,YN106,135..DLX,STD

RH

 1
55143-89102

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#

LH

 1
55143-89103

LN106,111,13#,RN105,110,13#,VZN130,YN106,13#

RH

 1
58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-89117

LN130;LN106,111,135..DLX,STD

 1
58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-89117

LN130;LN106,111,135..DLX,STD

 1
58297H - RETAINER, FLOOR CLAMP
58297-89107

LN130,RN105,110,13#,YN130;LN106,111,135,YN106,135..DLX,STD

 1
Common parts
87398-89108
90463-08154
90950-01060
90950-01354
90950-01866
90950-01872
