YN135L-GKMDS (1989)
Toyota Hilux/4runner (4wd)
Production
Apr 1989
-
Aug 1991
Engine
4Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

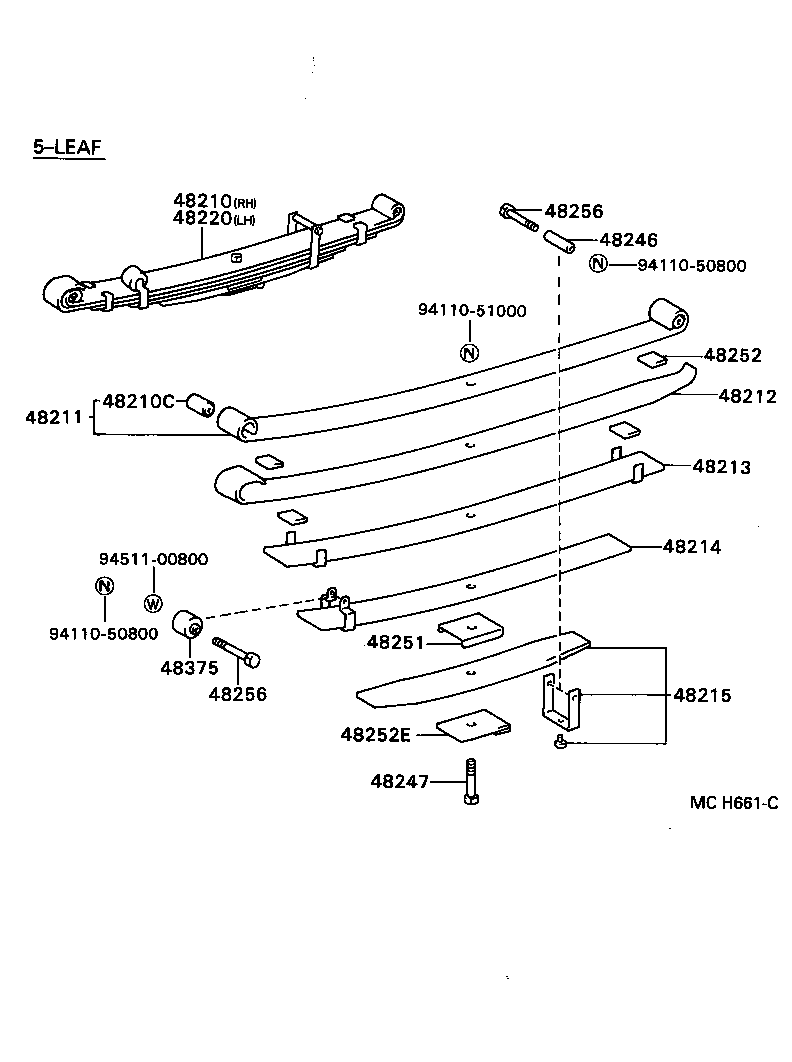

ILLUST NO. 2 OF 2(8904- )LN135,RN135,YN135
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14004 |
LN107,111,135,RN106,110,135,YN135 |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
LN106,111,135,RN105,110,135,YN106,135 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-35350 |
LN107..TW1..GEN;LN111,135,RN110,135,YN135 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN10#,111,135,RN10#,110,135,YN106,135 |
8 | ||
| 48252E - WEDGE, REAR SPRING CASTER | ||||
| 48252-35470 |
LN107..TW1..GEN;LN111,135,RN110,135,YN135 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-36570 |
LN111,135,RN110,135,YN135 RR |
2 | ||
| 48256-35360 |
LN111,135,RN110,135,YN135 FR |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-36570 |
LN111,135,RN110,135,YN135 RR |
2 | ||
| 48256-35360 |
LN111,135,RN110,135,YN135 FR |
2 | ||
| 48375 - DAMPER, LEAF SPRING DYNAMIC | ||||
| 48375-35011 |
LN107..TW1..GEN;LN111,135,RN110,135,YN135 |
2 | ||
| Common parts | ||||
| 94110-50800 | ||||
| 94110-51000 | ||||
| 94511-00800 | ||||
