YN135L-GKMDS (1989)

Toyota Hilux/4runner (4wd)

Production Apr 1989 - Aug 1991
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9008)LN135,YN135 ; (8808-9008)LN111,130,RN110,13#..ARL,V ; (9008-9511)VZN130.

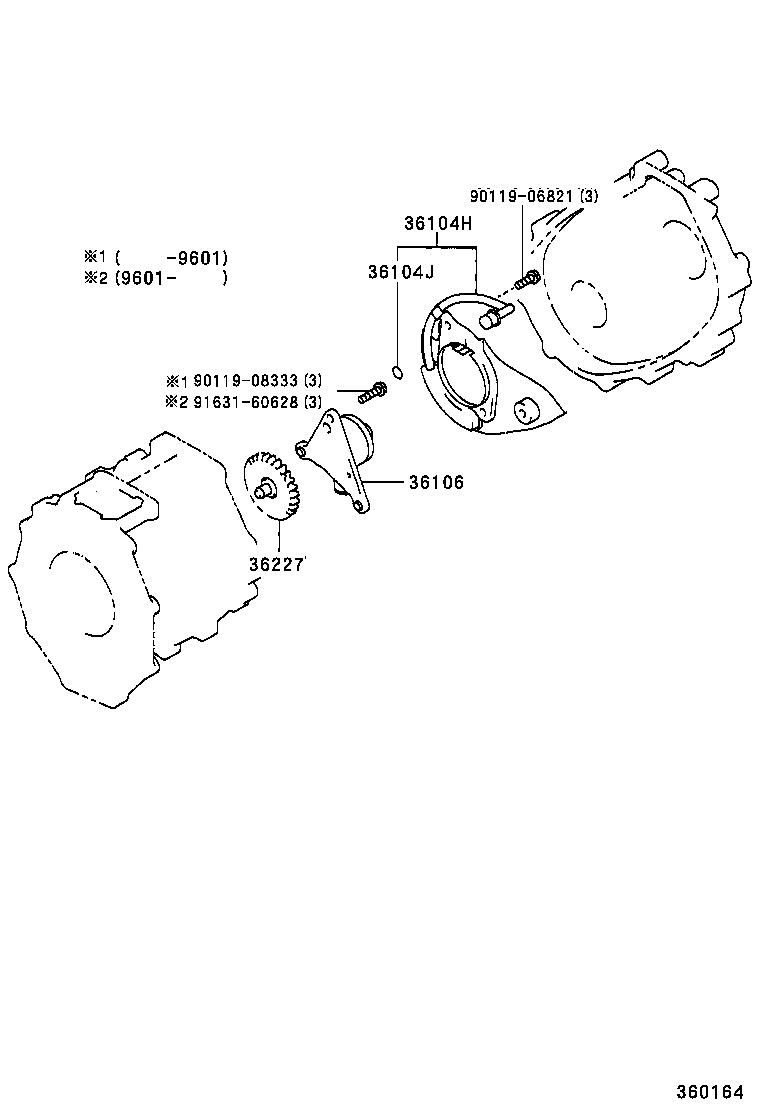

Click highlighted areas on diagram

diagram 36104H 36104J 36106 36227 9011906821 9011908333 9163160628
Part # Description Qty Price
36104H - SEPARATOR SUB-ASSY, TRANSFER OIL
36104-35010

LN135,YN135;LN111,130,RN110,13#..ARL,V

 1
36104-35010

LN135,YN135;LN111,130,RN110,13#..ARL,V

 1
36104J - RING, O (FOR TRANSFER OIL PUMP BODY)
96721-19012

LN135,YN135;LN111,130,RN110,13#..ARL,V

 1
96721-19012

LN135,YN135;LN111,130,RN110,13#..ARL,V

 1
36106 - BODY SUB-ASSY, TRANSFER OIL PUMP
36106-35021

LN135,YN135;LN111,130,RN110,13#..ARL,V

 1
36106-35021

LN135,YN135;LN111,130,RN110,13#..ARL,V

 1
36227 - GEAR, TRANSFER OIL PUMP
36227-35010

LN135,YN135;LN111,130,RN110,13#..ARL,V

 1
36227-35010

LN135,YN135;LN111,130,RN110,13#..ARL,V

 1
Common parts
90119-06821
90119-08333
91631-60628
