YN135L-GKMDS (1989)
Toyota Hilux/4runner (4wd)
(8808-9601)LN111,RN106..ARL..CBU ; (8808-9601)LN107,13#,RN110,13#,YN135

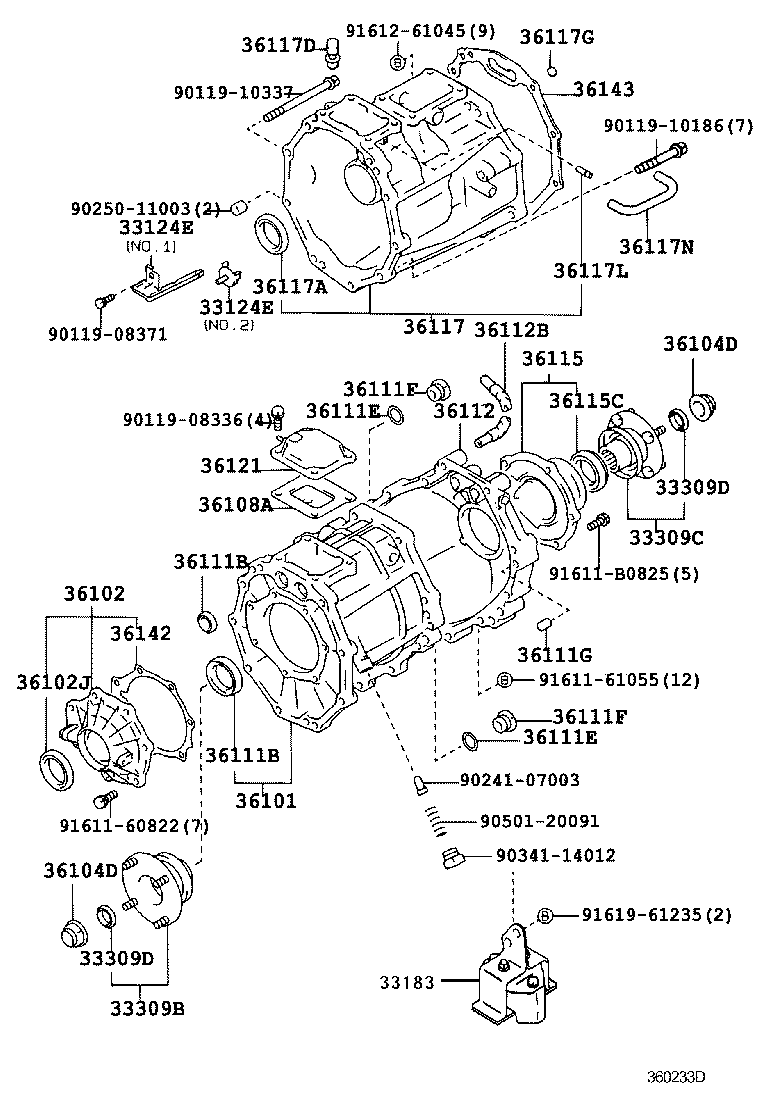

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-35070 |
LN13#,RN13#,YN135;LN107,111,RN106,110..ARL..CBU NO.1 |
1 | ||
| 33124-36010 |
LN13#,RN13#,YN135;LN107,111,RN106,110..ARL..CBU NO.2 |
1 | ||
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-35070 |
LN13#,RN13#,YN135;LN107,111,RN106,110..ARL..CBU NO.1 |
1 | ||
| 33124-36010 |
LN13#,RN13#,YN135;LN107,111,RN106,110..ARL..CBU NO.2 |
1 | ||
| 33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35061 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35080 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
2 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
2 | ||
| 36101 - CASE SUB-ASSY, TRANSFER | ||||
| 36101-35031 |
LN135,YN135;LN111,RN110,135..SR5 |
1 | ||
| 36101-35032 |
LN13#,RN13#,YN135..4D |
1 | ||
| 36101-35031 |
RN135;LN13#,RN130,YN135..DLX |
1 | ||
| 36102 - COVER SUB-ASSY, TRANSFER CASE | ||||
| 36102-35011 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER) | ||||
| 90311-40007 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22016 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
2 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22016 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
2 | ||
| 36108A - DEFLECTOR SUB-ASSY, BREATHER OIL | ||||
| 36108-35030 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-41006 |
LN135,YN135;LN111,130,RN110,13#..ARL,V FR OUTPUT SIDE |
1 | ||
| 90311-15008 |
LN135,YN135;LN111,RN110,135..SR5 FORK SHAFT SIDE |
2 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-41006 |
LN135,YN135;LN111,130,RN110,13#..ARL,V FR OUTPUT SIDE |
1 | ||
| 90311-15008 |
LN135,YN135;LN111,RN110,135..SR5 FORK SHAFT SIDE |
2 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
3 | ||
| 90430-18008 |
LN135,VZN130,YN135..5F;LN111,130,RN110,13#..(4D,T1)..(ARL,V) |
3 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
3 | ||
| 90430-18008 |
LN135,VZN130,YN135..5F;LN111,130,RN110,13#..(4D,T1)..(ARL,V) |
3 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
LN135,YN135;LN111,130,RN110,13#..ARL,V FILLER |
2 | ||
| 90341-18057 |
LN106,111,13#,RN105,110,13#,YN106,135 DRAIN |
1 | ||
| 90341-18006 |
LN135,VZN130,YN135..5F;LN111,130,RN110,13#..(4D,T1)..(ARL,V) FILLER |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
LN135,YN135;LN111,130,RN110,13#..ARL,V FILLER |
2 | ||
| 90341-18057 |
LN106,111,13#,RN105,110,13#,YN106,135 DRAIN |
1 | ||
| 90341-18006 |
LN135,VZN130,YN135..5F;LN111,130,RN110,13#..(4D,T1)..(ARL,V) FILLER |
2 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10214 |
LN135,YN135;LN111,130,RN110,13#..ARL,V L=14,OD=10 |
2 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36112-35020 |
LN135,YN135;LN111,RN110,135..SR5 |
1 | ||
| 36115 - HOUSING, TRANSFER EXTENSION | ||||
| 36105-35020 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-41005 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36117 - ADAPTER, TRANSFER | ||||
| 36107-35100 |
RN135;LN13#,RN130,YN135..DLX |
1 | ||
| 36107-35100 |
LN135,YN135;LN111,RN110,135..SR5 |
1 | ||
| 36117A - SEAL, OIL(FOR TRANSFER ADAPTER) | ||||
| 90311-40007 |
LN13#,RN13#,YN135;LN107,111,RN106,110,VZN130..5F..ARL..CBU |
1 | ||
| 36117D - PLUG(FOR TRANSFER ADAPTER) | ||||
| 90930-03085 |
LN13#,RN13#,YN135;LN107,111,RN106,110..ARL..CBU |
1 | ||
| 36117G - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER) | ||||
| 90341-20010 |
LN13#,RN13#,YN135;LN107,111,RN106,110..ARL..CBU |
1 | ||
| 36117L - TUBE(FOR TRANSFER ADAPTER) | ||||
| 90441-05001 |
RN135;LN13#,RN130,YN135..DLX |
1 | ||
| 90441-05001 |
LN135,YN135;LN111,RN110,135..SR5 |
1 | ||
| 90441-05001 |
LN13#,RN13#,YN135 |
1 | ||
| 36117N - HOSE(FOR TRANSFER ADAPTER) | ||||
| 90445-08265 |
LN13#,RN13#,YN135;LN107,111,RN106,110..ARL..CBU |
1 | ||
| 36121 - COVER, TRANSFER CASE, NO.1 | ||||
| 36102-35020 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36142 - GASKET, TRANSFER COVER | ||||
| 36142-35010 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| Common parts | ||||
| 90119-08336 | ||||
| 90119-08371 | ||||
| 90119-10186 | ||||
| 90119-10337 | ||||
| 90241-07003 | ||||
| 90250-11003 | ||||
| 90341-14012 | ||||
| 90501-20091 | ||||
| 91611-60822 | ||||
| 91611-61055 | ||||
| 91611-B0825 | ||||
| 91612-61045 | ||||
| 91619-61235 | ||||
