YN135L-GKMDS (1989)

Toyota Hilux/4runner (4wd)

Production Apr 1989 - Aug 1991
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8904-9108)4Y..YN135 ; (9108-9408)22R..RN13#..DLX

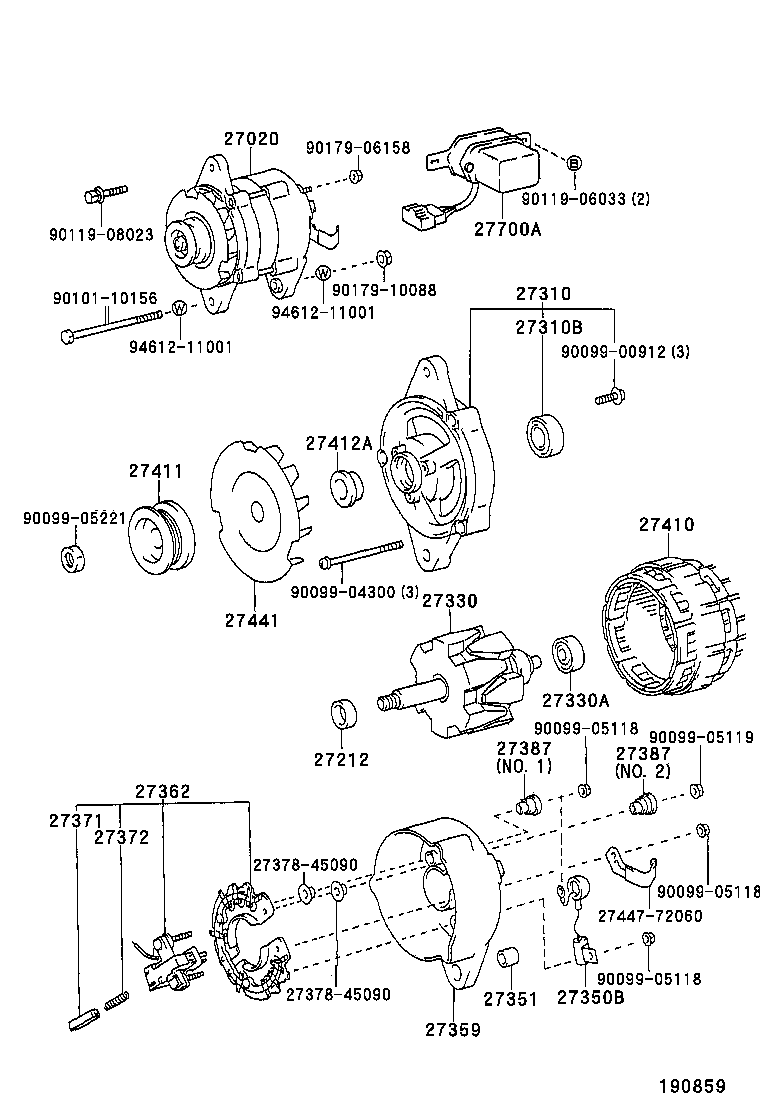

Click highlighted areas on diagram

12V 50A,55A

diagram 27020 27212 27310 27310B 27330 27330A 27350B 27351 27359 27362 27371 27372 2737845090 2737845090 27387 27387 27410 27411 27412A 27441 2744772060 27700A 9009900912 9009904300 9009905118 9009905118 9009905118 9009905119 9009905221 9010110156 9011906033 9011908023 9017906158 9017910088 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-72010

4Y..YN135

12V 55A

 1
27020-72240

4Y..YN135

12V 50A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-15150

22R,4Y..RN13#,YN135

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-72041

4Y..YN135

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142

4Y..YN106,135

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-16030

4Y..YN135

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

22R,4Y..RN105,110,13#,YN106,135

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

22R,4Y..RN105,110,13#,YN106,135

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

22R,4Y..RN105,110,13#,YN106,135

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72010

4Y..YN135

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-15022

4Y..YN135

 1
27371 - BRUSH, ALTERNATOR
27371-31011

22R,4Y..RN105,110,13#,YN106,135

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

22R,4Y..RN105,110,13#,YN106,135

 2
27387 - INSULATOR, TERMINAL
27387-45022

22R,4Y..RN105,110,13#,YN106,135

 1
27387-45022

22R,4Y..RN105,110,13#,YN135

 1
27387-45110

22R,4Y..RN13#,YN106,135

NO.1

 1
27387 - INSULATOR, TERMINAL
27387-45022

22R,4Y..RN105,110,13#,YN106,135

 1
27387-45022

22R,4Y..RN105,110,13#,YN135

 1
27387-45110

22R,4Y..RN13#,YN106,135

NO.1

 1
27410 - STATOR ASSY, ALTERNATOR
27410-41080

4Y..YN135

 1
27411 - PULLEY, ALTERNATOR
27411-72040

4Y..YN106,135

 1
27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
27412-16040

4Y..YN135

 1
27441 - FAN, ALTERNATOR
27441-63030

4Y..YN135

 1
27441-34030

22R,4Y..RN105,110,13#,YN106

 1
27700A - REGULATOR ASSY, GENERATOR
27700-72030

22R,3L,4Y..LN106,111,135,RN105,110,13#,YN106,135

 1
27700-72030

22R,3L,4Y..LN106,111,13#,RN105,110,13#,YN106,135

 1
Common parts
27378-45090
27447-72060
90099-00912
90099-04300
90099-05118
90099-05119
90099-05221
90101-10156
90119-06033
90119-08023
90179-06158
90179-10088
94612-11001
