YN135L-GKMDS (1989)

Toyota Hilux/4runner (4wd)

Production Apr 1989 - Aug 1991
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9108)4Y

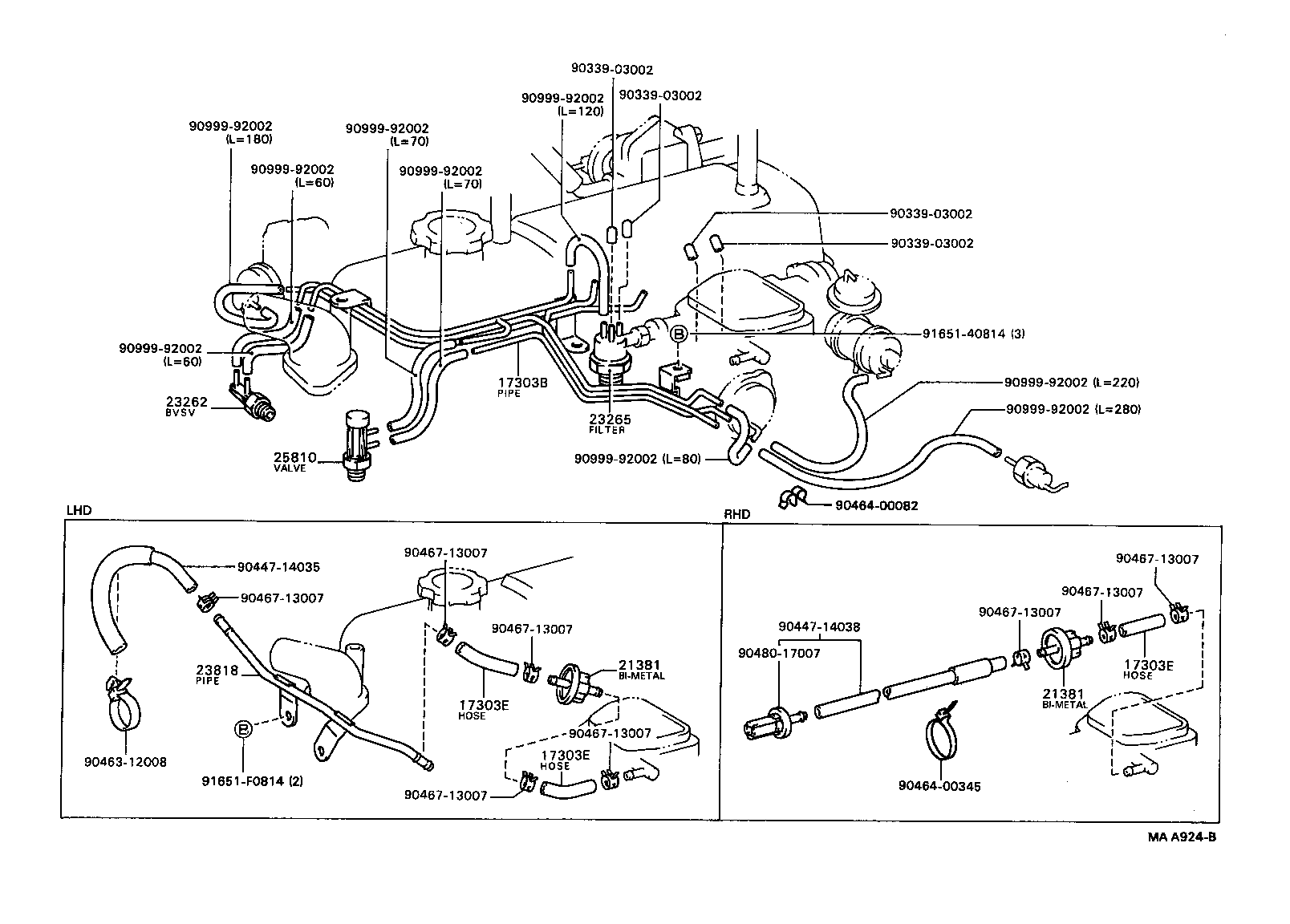

Click highlighted areas on diagram

diagram 17303B 17303E 17303E 17303E 21381 21381 23262 23265 23818 25810 9033903002 9033903002 9033903002 9033903002 9044714035 9044714038 9046312008 9046400082 9046400345 9046713007 9046713007 9046713007 9046713007 9046713007 9046713007 9046713007 9046713007 9048017007 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9165140814 91651F0814
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-73050

4Y..YN106,135

 1
17303E - HOSE, NO.1(FOR AIR PIPE)
90445-14075

4Y..YN106,135..LHD

 2
17303E - HOSE, NO.1(FOR AIR PIPE)
90445-14075

4Y..YN106,135..LHD

 2
17303E - HOSE, NO.1(FOR AIR PIPE)
90445-14075

4Y..YN106,135..LHD

 2
21381 - BIMETAL, THERMOSTATIC
21381-71050

4Y..YN106,135

 1
21381 - BIMETAL, THERMOSTATIC
21381-71050

4Y..YN106,135

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05044

4Y..YN106,135

 1
23265 - FILTER, GAS, NO.1
90917-11024

4Y..YN106,135

 1
23818 - PIPE, FUEL VAPOR FEED
23818-71011

4Y..YN106,135..LHD

 1
25810 - VALVE ASSY, BIMETAL
25820-37010

4Y..YN106,135

 1
Common parts
90339-03002
90447-14035
90447-14038
90463-12008
90464-00082
90464-00345
90467-13007
90480-17007
90999-92002
91651-40814
91651-F0814
