YN130R-GKPSEQ (1989)

Toyota Hilux/4runner (4wd)

Production Aug 1989 - Aug 1990
Engine 4YE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9108) ; (9108-0106)LN10#,111,RN10#,110,YN106

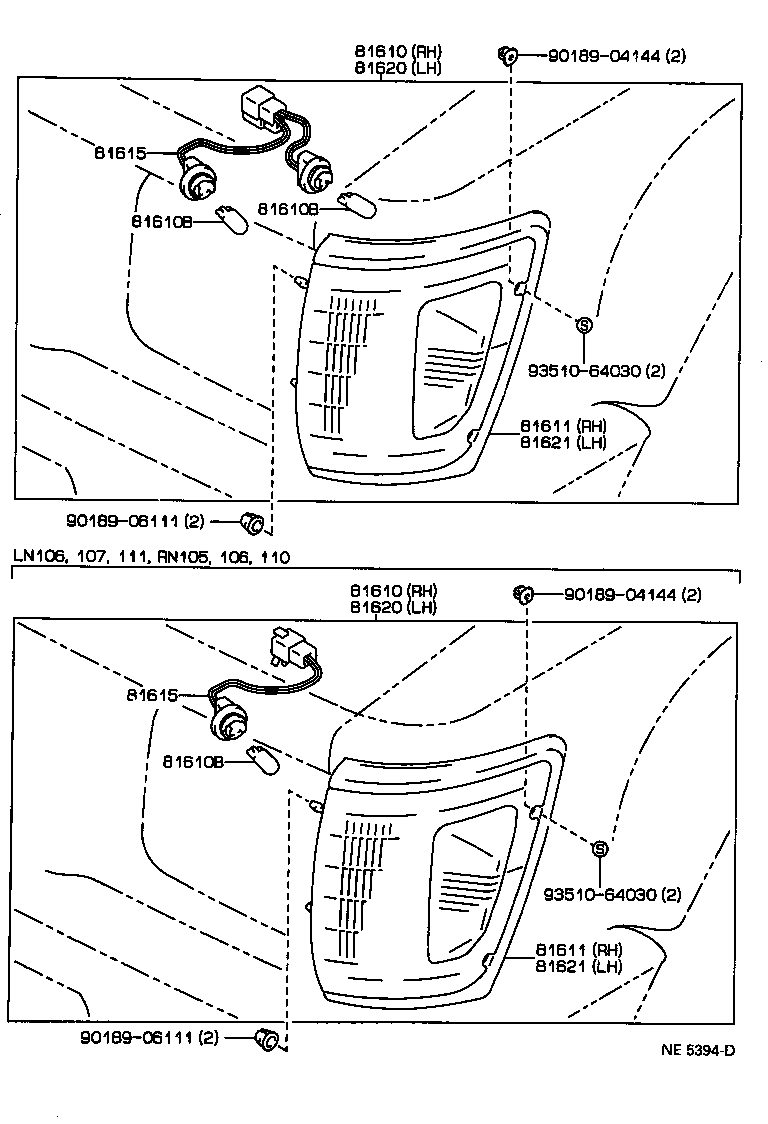

Click highlighted areas on diagram

diagram 81610 81610 81610B 81610B 81610B 81611 81611 81615 81615 81620 81620 81621 81621 9018904144 9018904144 9018906111 9018906111 9351064030 9351064030
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-89173

LN106,111,13#,RN105,110,130,YN106,13#

 1
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-89173

LN106,111,13#,RN105,110,130,YN106,13#

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

LN106,111,13#,RN105,110,13#,YN106,13#

12V 5W

 4
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

LN106,111,13#,RN105,110,13#,YN106,13#

12V 5W

 4
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

LN106,111,13#,RN105,110,13#,YN106,13#

12V 5W

 4
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-89173

LN106,111,13#,RN105,110,130,YN106,13#

 1
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-89173

LN106,111,13#,RN105,110,130,YN106,13#

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-89171

RN135;LN106,111,130,RN105,110,130,YN130..ARL

 2
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-89171

RN135;LN106,111,130,RN105,110,130,YN130..ARL

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-89173

LN106,111,13#,RN105,110,130,YN106,13#

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-89173

LN106,111,13#,RN105,110,130,YN106,13#

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-89173

LN106,111,13#,RN105,110,130,YN106,13#

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-89173

LN106,111,13#,RN105,110,130,YN106,13#

 1
Common parts
90189-04144
90189-06111
93510-64030
